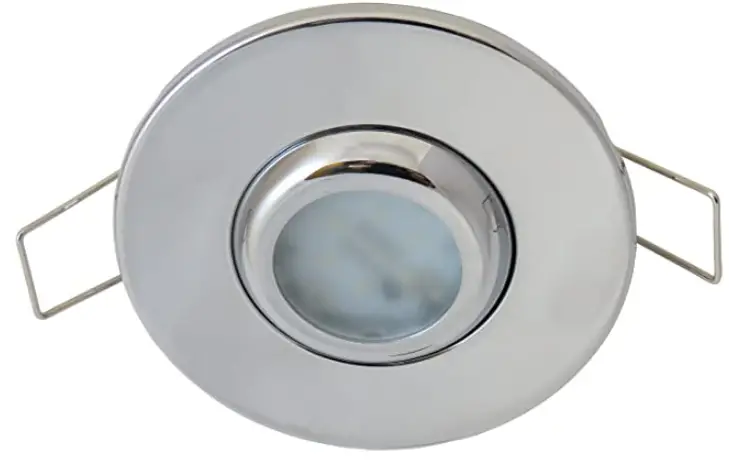

ITC 69400 Compass Overhead

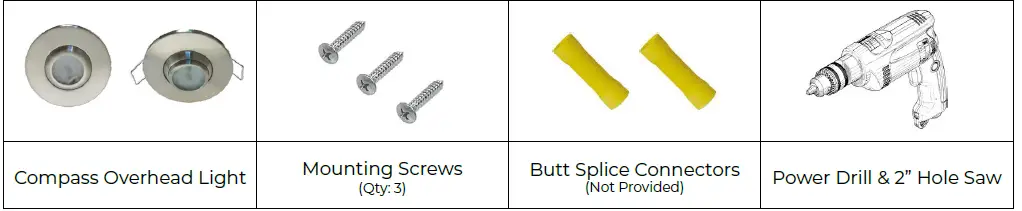

PARTS/TOOLS NEEDED
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive(+) input.

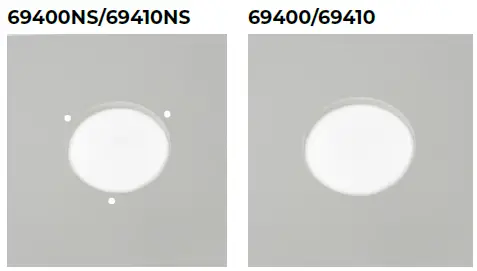

- Determine the installation location and use the light to mark holes. Drill holes for the screws and cut out 2” hole for light.

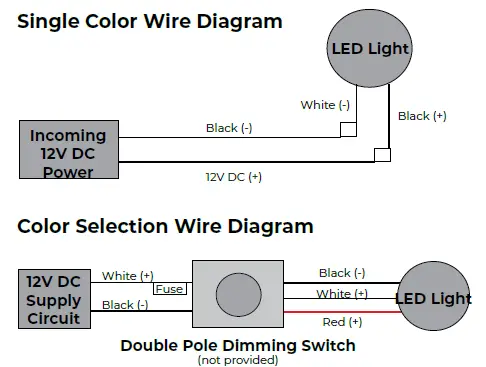

- Wire the light using the wiring diagrams below. Test the light.

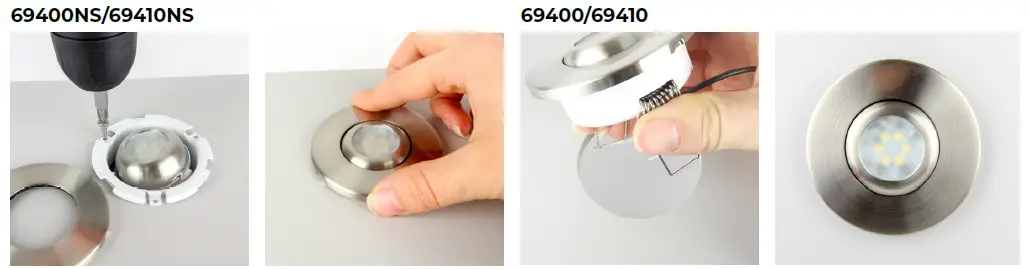

- 69400NS/69410NS | Screw down the light using the provided screws. 69400/69410 | Push clips on both sides of light up and slide housing and clips through hole. Clips will snap down and hold the light in place.
CONTACTS
- 3030 Corporate Grove Dr.
- Hudsonville, MI 49426
- Phone: 616.396.1355
- itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00112
Rev A 04/08/19
