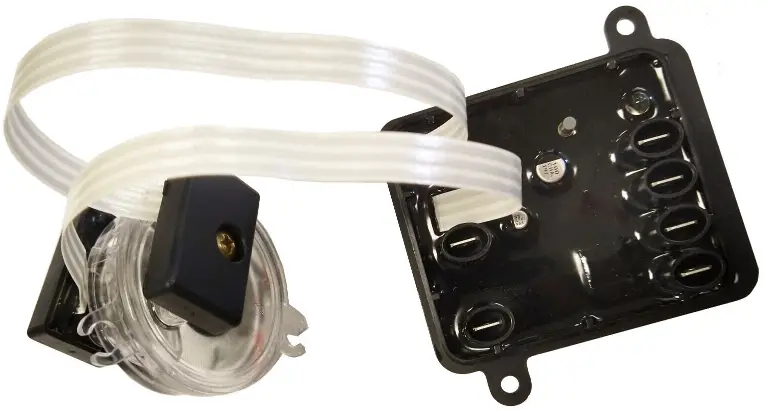

MINNKOTA 2884100 NH PowerDrive Compass Board Instruction Manual

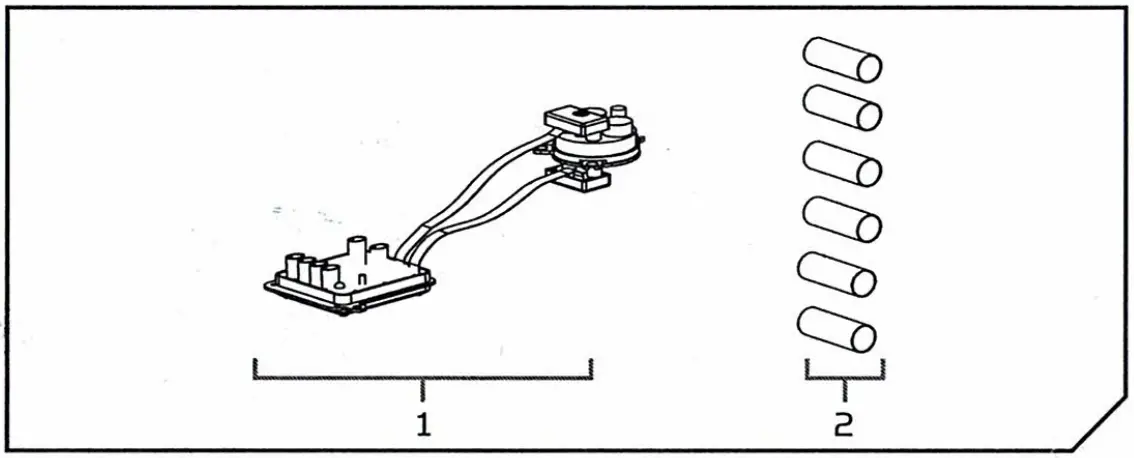

Description
| Item / Assembly | Part # | Description | Qty. |
| 1 | 2994058 | CTRL BRD/SHRINK TUBE SH ASSY | 1 |
| 2994059 | CTRL BRD/SHRINK TUBE NH ASSY | ||
| 2994100 | CTRL BD ASY,COMPASS N.HEM | ||
| 2 | 2305401 | SHRINK TUBE-.374 ID X 1.5″ | 6 |
CAUTION
Always wear safety glasses and gloves.
Disconnect all power to the trolling motor before beginning any work or maintenance. Johnson Outdoors Inc. is not responsible for any damage due to improper rigging or installation.
If you do not have the skills, experience and tools to perform the following maintenance and repairs, we recommend you seek the help of a Minn Kota Authorized Service Center.
A list of Authorized Service Centers can be found at http://www.minnkotamotors.com/ Authorized-Service-Providers/.
Or contact our Technical Service Department by email at [email protected] or, by dialing 800-227-6433.

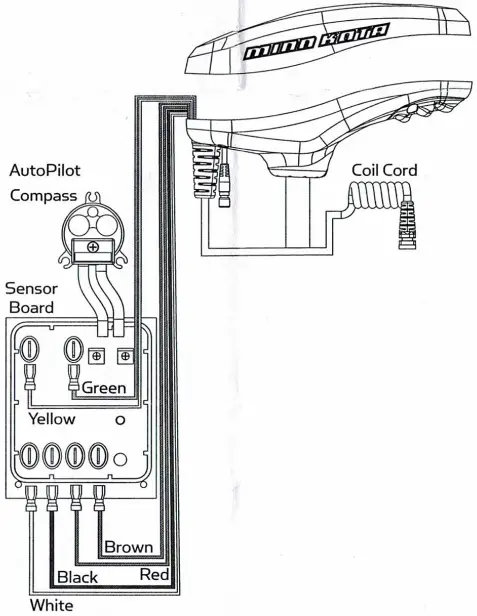

WIRING DIAGRAM
CUSTOMER SUPPORT
Minn Kota Consumer 6t Technical Service
Johnson Outdoors Marine Electronics, Inc.
PO Box 8129
Mankato, MN 56001
1Z1 Power Drive Mankato,
MN 56001
Phone: (800) 227-6433
Fax: (800) 527-4464
minnkotamotors.com
