Spokey 941207 E-longbay Electric Skateboard User Manual

941207 E-Longbay Electric Skateboard
MANUAL TRANSLATED FROM THE ORIGINAL

941207 E-Longbay Electric Skateboard

Thank you for buy our electric skateboard Do note that an electric skateboard is not atopy. Please take time to learn it and read this manual carefully. Particularly the safety instruction pages.
We hope you will enjoy this product and helots of fun with it in the future.

SAFETY INSTRUCTIONS

• The electric skateboard is not a toy, should be treated with appropriate caution. Always practice safety first-as it is possible to lose balance and cause a collision or fall. Ensure that you use the board in a safe appropriate environment, and always wear appropriate safety gear.
• Safety Gear: we recommend that you wear full safety gear while riding. Please wear a suitable skateboard helmet, elbow pads, knee pads, and gloves.
• Wear shoes: Flipflops or similar loose footwear are not suitable for riding wear.
• The skateboard is designed for rider over 12 years old and above.
• Only one person riding for each skateboard at a time. The maximum load of the board is 100kg. Exceeding this weight will compromise the structural integrity of The skateboard, as well as remote and functionality, and may cause board damage, losing control or other breakage.
• Please observe your local traffic laws and regulations.
• The board is designed to drive on flat and paved surfaces. Avoid driving on sand, gravel, mud, rugged or open ground. Do not drive on slippery ground, such as snow, ice or wet ground.
• Keep fingers, hairs, and clothing away from motors, wheels and moving parts.
• Do not open or tamper with electronics housing. Electrics hock is possible and this also voids the warranty.

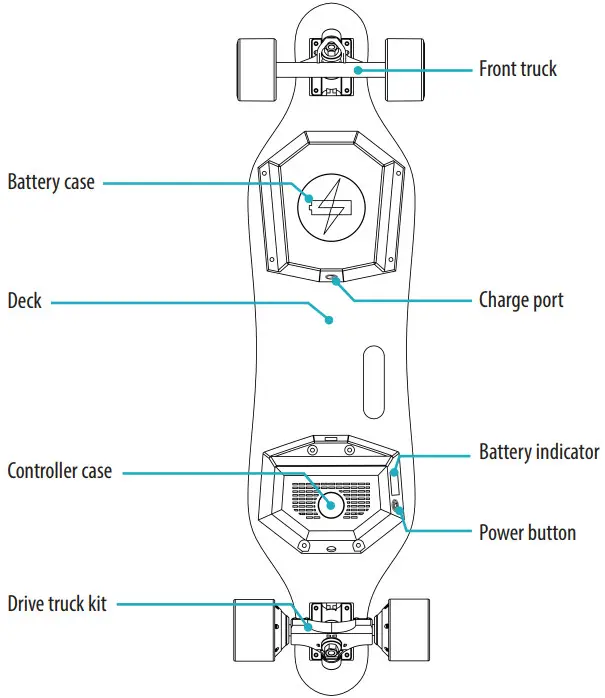

PARTS DIAGRAM

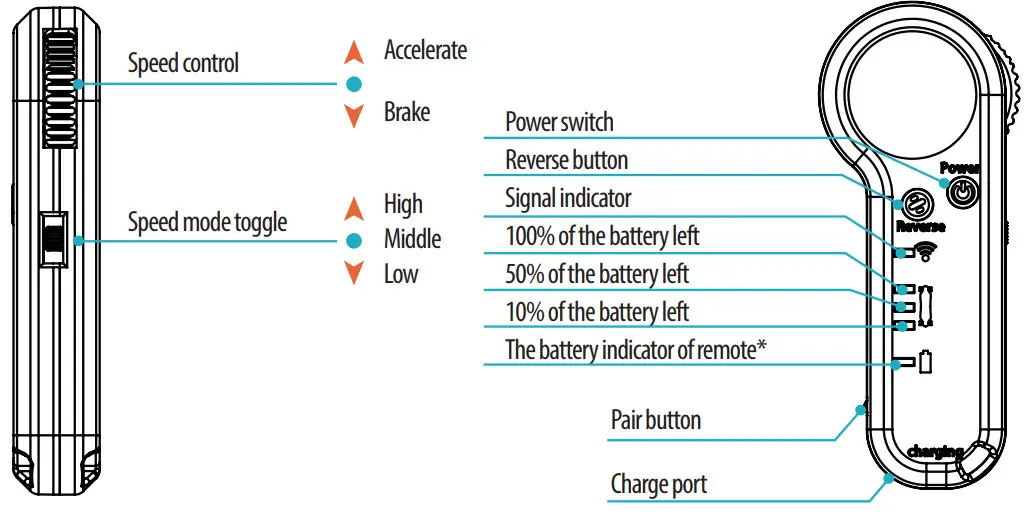

REMOTE CONTROL

* Remote control: If the red light is on, it means that there is only 5% of the battery, so please charge it immediately.

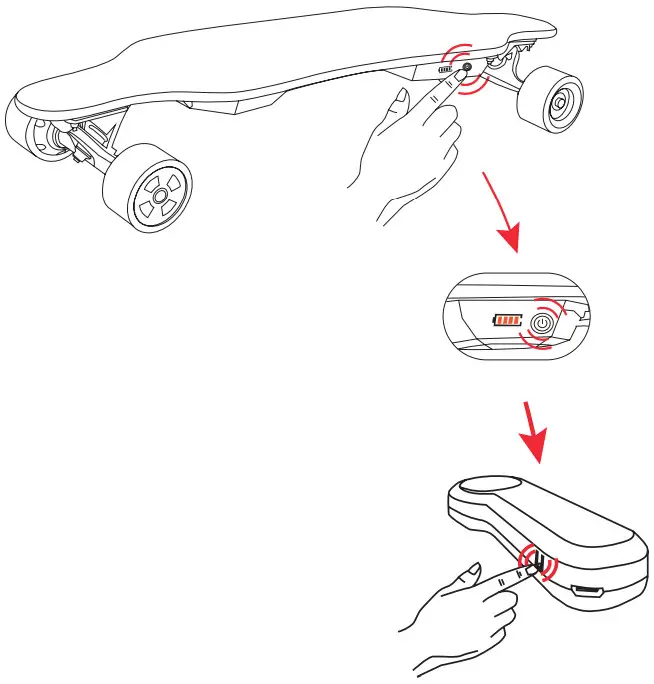

PAIR INSTRUCTION

At the first step, the Board and Remote must be paired. Before starting, ensure the Board and Remote are turn off.
Turn on the board
Turn on the remote, then press the pair button. the signal indicator will flash and the power button light will flash with same frequency. Then means the paired successfully.
Push the joystick, forward to test the accelerate handback ward to test the brake.
After tested all function work normal you can start your riding.

PREPARATION

1. Be sure that wear a helmet and safety gear when you ride it

2. Confirm the front direction of the skateboard

3. Confirm the position on the skateboard.
   The feet stand onthe widest front and back skateboard.

4. Please start with the low speed mode to be familiar with the accelerate and brake of the skateboard.

5. Please stop riding by remote-control brake operation, then get down your front foot at first and then get down your back foot.


SPECIFICATION

NOTE: The battery WARRANTY is valid for 6 months from the date of purchase, provided it is used properly

CERTIFICATIONS

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.
In accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.
MANUAL TRANSLATED FROM THE ORIGINAL.

www.spokey.eu
SPOKEY sp. z o.o.
al. Roździeńskiego 188C, 40-203 Katowice, Polska
tel: +48 32 317 20 00, www.spokey.pl / www.spokey.eu
e-mail: [email protected] /[email protected]
Spokey s.r.o.
Sadová 618, 738 01 Frýdek – Místek
Česká republika, www.spokey.cz
