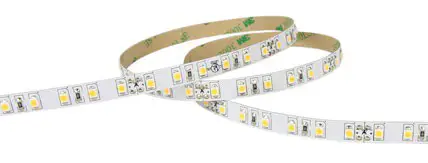

Tory™ High Lumen Tape Light
Part#: TPN24KK-60012-10-HL
INSTALLATION INSTRUCTIONS
PARTS / TOOLS NEEDED:
 |  |  |  |  |
| High Lumen Tape Light | Mounting Channel (purchased separately) | UL Class 2 Power Supply (purchased separately) | Butt Splices (not provided) | Alcohol Wipes (not provided) |
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Do not install any luminaire assembly closer than 6” from any combustible materials.
- Lights are not rated for wet location installation.
- Note, this light is susceptible to damage by electrostatic discharge, use care when handling.
- For safety purposes, ITC recommends tape light installations be used with a Class 2 power device.
For installations without a Class 2 power device, it is highly recommended that appropriate fusing be used, to be determined by tape light length.

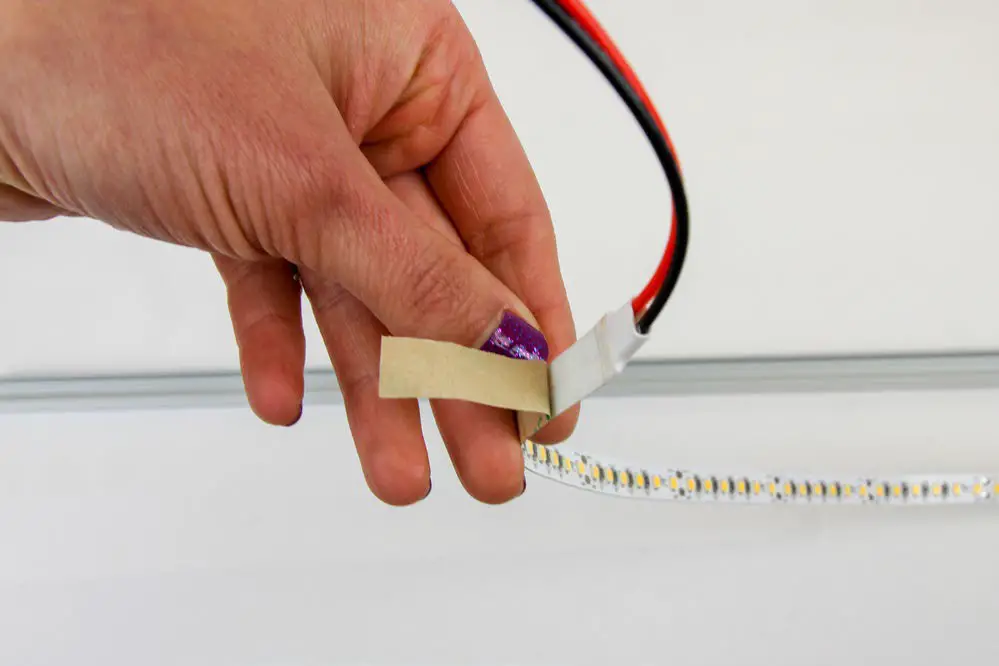

1. Determine the installation location and clean the surface using alcohol wipes (not provided). For more information on surface prep please review the 3M website*. Start at the wired end and begin peeling back the tape.
*http://www.3m.com/3M/en_US/bonding-and-assembly-us/resources/full-story/?storyid=b3996cbd-9954-455f-8e72-88e452ca38c0
2. Remove paper backing from tape before placing in track then press the light into the aluminum mounting channel or onto a piece of 0.1”H x 1/2”W (3mm x 12mm) aluminum flat bar.
Continue working along the light and peeling the paper as you go. Only pull back a few inches at a time to prevent the tape light sticking to itself.
In order to properly dissipate the heat, the tape light must be installed in/on an aluminum channel or flat bar. Failure to properly install light will void the warranty.

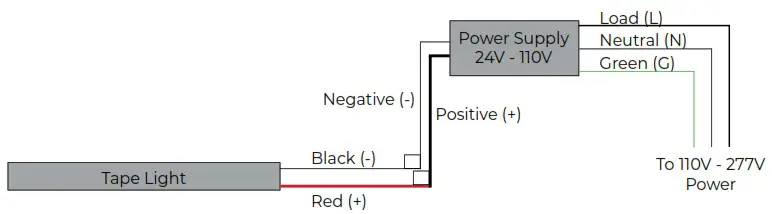

3. Follow the wiring diagram below to wire the light to your system.
3030 Corporate Grove Dr. Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00072 • Rev B • 10/16/18
