ITC TPR08-72 and TPR12KK-LLLWL-8 Closet Light Installation Guide
PARTS/TOOLS NEEDED
 |  |  |  |  |

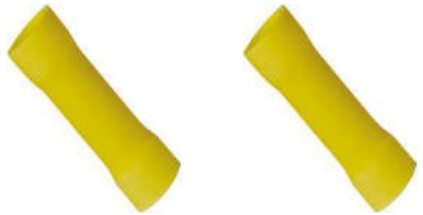

| Closet Light Channel | TPR Tape Light | #4 Mounting Screws (optional) | Power Drill or Staple Gun (Not Provided) | Butt Splice Connectors (Not Provided) |
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
INSTALLATION INSTRUCTIONS
- Determine the installation location and staple or screw channel in place. If screwing the channel in place, pre-drill holes to prevent the channel from cracking or warping.

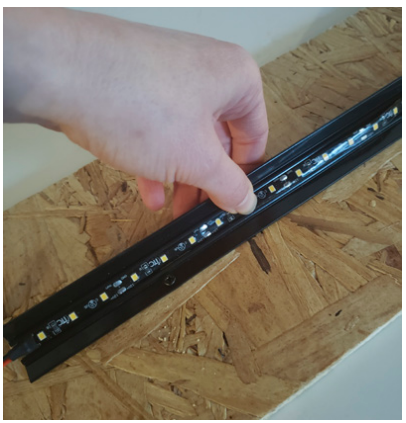

- Press the tape light into the channel making sure not to pinch or sharply bend the light. If additional securement is needed, the paper backing can be removed from the light and it can be taped into the channel.

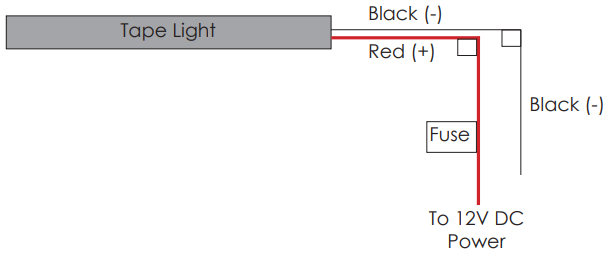

- Follow the wiring diagram below.
- Please review the considerations below to ensure a successful installation.
*Flexible light can’t be cut in the field. Field cutting the light will void the warranty.
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00184 • Rev B •11/10/2022
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
