Power MOSFET

FEATURES

• Dynamic dV/dt rating
• Repetitive avalanche rated
• Surface-mount (IRFRC20, SiHFRC20)
• Straight lead (IRFUC20, SiHFUC20)
• Available in tape and reel
• Fast switching
• Ease of paralleling
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

DESCRIPTION

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

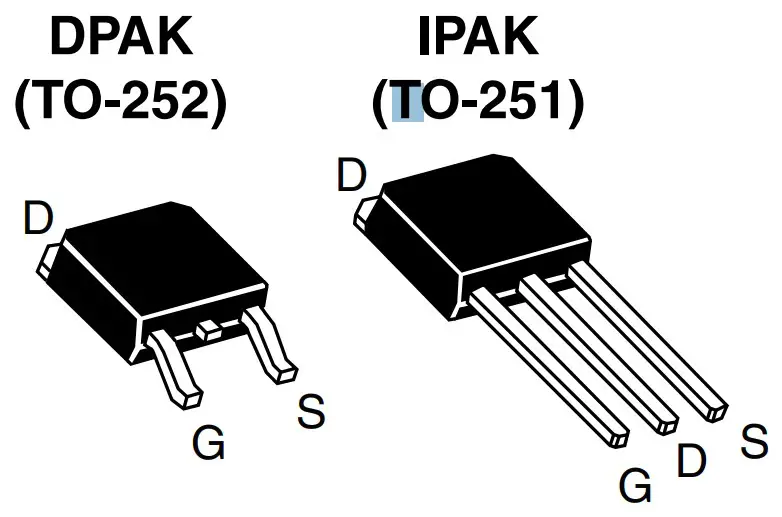

The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFUC, SiHFUC series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.

Note
a. See device orientation

Notes

a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. VDD = 50 V, starting TJ = 25 °C, L = 37 mH, Rg = 25 Ω, IAS = 2.0 A (see fig. 12)
c. ISD ≤ 2.0 A, dI/dt ≤ 40 A/μs, VDD ≤ VDS, TJ ≤ 150 °C
d. 1.6 mm from case
e. When mounted on 1″ square PCB (FR-4 or G-10 material)

Note
a. When mounted on 1″ square PCB (FR-4 or G-10 material)

SPECIFICATIONS (TJ = 25 °C, unless otherwise noted)
PARAMETER	SYMBOL	TEST CONDITIONS					MIN.	TYP.	MAX.	UNIT
Static
Drain-source breakdown voltage	VDS	VGS = 0 V, ID = 250 μA					600	–	–	V
VDS temperature coefficient	DVDS/TJ	Reference to 25 °C, ID = 1 mA					–	0.88	–	V/°C
Gate-source threshold voltage	VGS(th)	VDS = VGS, ID = 250 μA					2.0	–	4.0	V
Gate-source leakage	IGSS	VGS = ± 20 V					–	–	± 100	nA
Zero gate voltage drain current	IDSS	VDS = 600 V, VGS = 0 V					–	–	100	μA
		VDS = 480 V, VGS = 0 V, TJ = 125 °C					–	–	500
Drain-source on-state resistance	RDS(on)	VGS = 10 V	ID = 1.2 Ab				–	–	4.4	L
Forward transconductance	gfs	VDS = 50 V, ID = 1.2 A					1.4	–	–	S
Dynamic
Input capacitance	Ciss	VGS = 0 V, VDS = – 25 V,f = 1.0 MHz, see fig. 5					–	350	–	pF
Output capacitance	Coss						–	48	–
Reverse transfer capacitance	Crss						–	8.6	–
Total gate charge	Qg	VGS = 10 V	ID = 2.0 A, VDS = 360 V,see fig. 6 and 13b				–	–	18	nC
Gate-source charge	Qgs						–	–	3.0
Gate-drain charge	Qgd						–	–	8.9
Turn-on delay time	td(on)	VDD = 300 V, ID = 2.0 A,Rg = 18 L, RD = 135 L, see fig. 10b					–	10	–	ns
Rise time	tr						–	23	–
Turn-off delay time	td(off)						–	30	–
Fall time	tf						–	25	–
Internal drain inductance	LD	Between lead,6 mm (0.25″) from package and center of die contact		G	DS		–	4.5	–	nH
Internal source inductance	LS						–	7.5	–
Drain-Source Body Diode Characteristics
Continuous source-drain diode current	IS	MOSFET symbol showing the integral reversep – n junction diode		G		DS	–	–	2.0	A
Pulsed diode forward current a	ISM						–	–	8.0
Body diode voltage	VSD	TJ = 25 °C, IS = 2.0 A, VGS = 0 Vb					–	–	1.6	V
Body diode reverse recovery time	trr	TJ = 25 °C, IF = 2.0 A, dI/dt = 100 A/μsb					–	290	580	ns
Body diode reverse recovery charge	Qrr						–	0.67	1.3	μC
Forward turn-on time	ton	Intrinsic turn-on time is negligible (turn-on is dominated by LS and LD)

Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %

TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted)

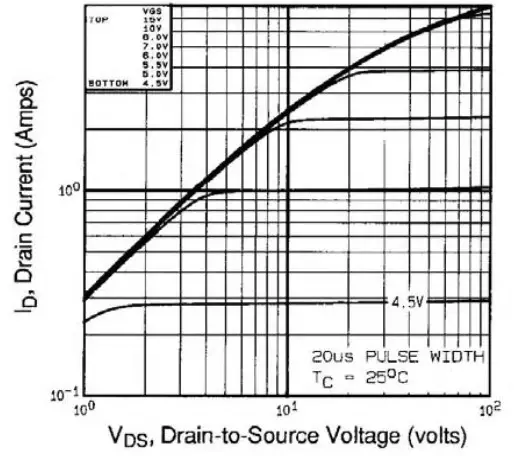

Fig. 1 – Typical Output Characteristics, TC = 25 °C

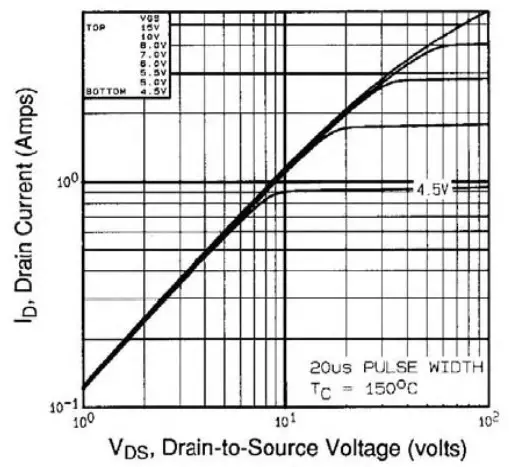

Fig. 1 – Typical Output Characteristics, TC = 150 °C

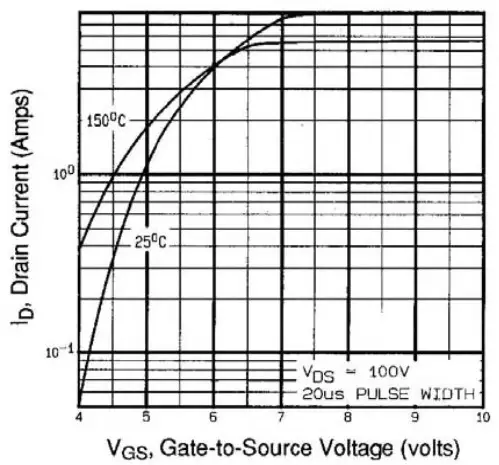

Fig. 2 – Typical Transfer Characteristics

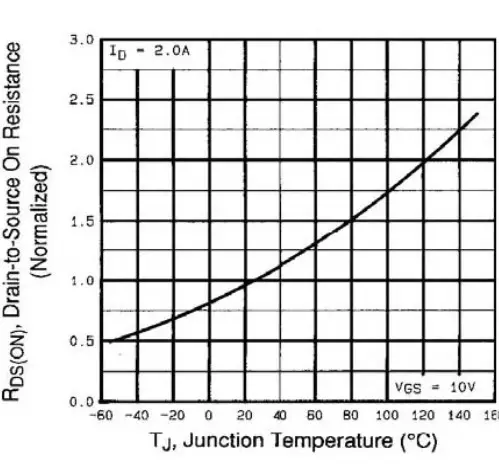

Fig. 3 – Normalized On-Resistance vs. Temperature

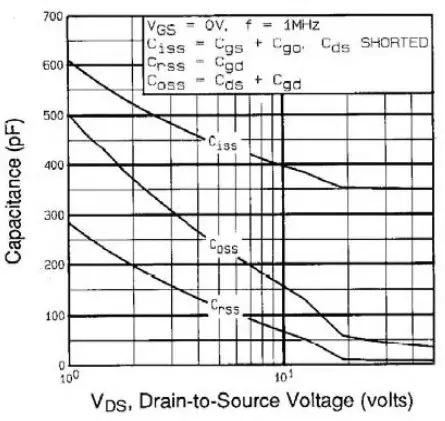

Fig. 4 – Typical Capacitance vs. Drain-to-Source Voltage

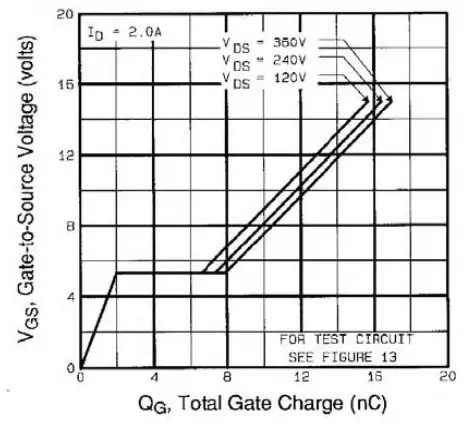

Fig. 5 – Typical Gate Charge vs. Gate-to-Source Voltage

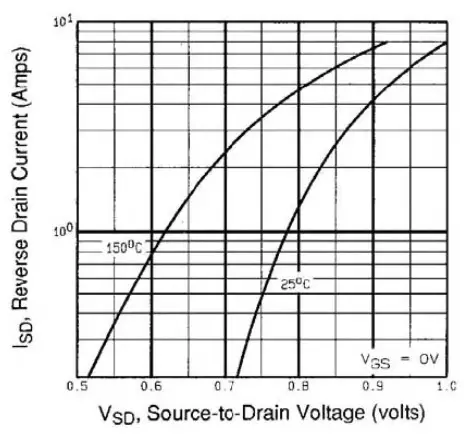

Fig. 6 – Typical Source-Drain Diode Forward Voltage

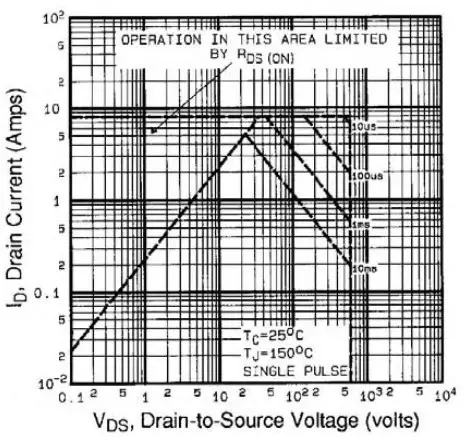

Fig. 7 – Maximum Safe Operating Area

Fig. 8 – Maximum Drain Current vs. Case Temperature

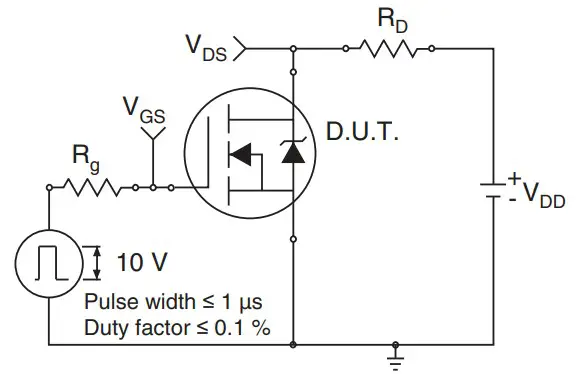

Fig. 10a – Switching Time Test Circuit

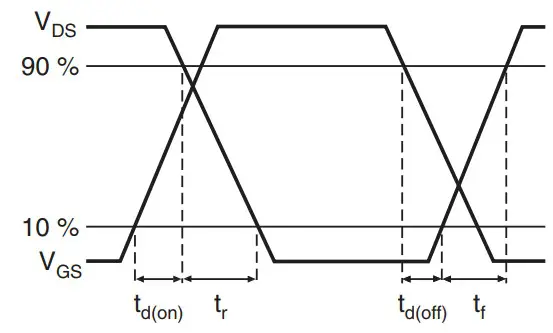

Fig. 10b – Switching Time Waveforms

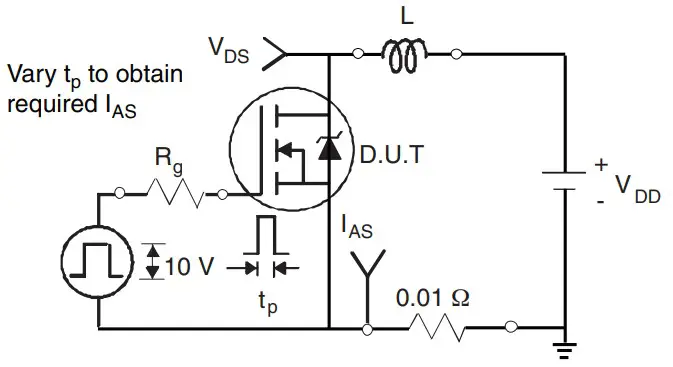

Fig. 12a – Unclamped Inductive Test Circuit

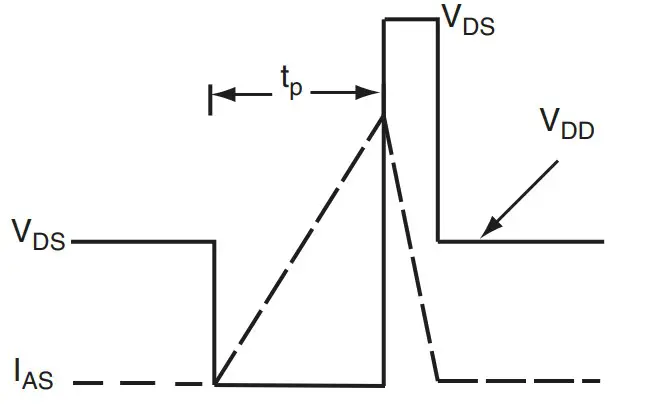

Fig. 12b – Unclamped Inductive Waveforms

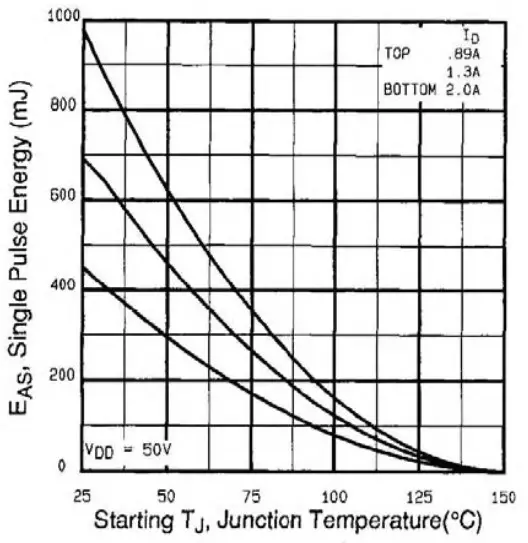

Fig. 12c – Maximum Avalanche Energy vs. Drain Current

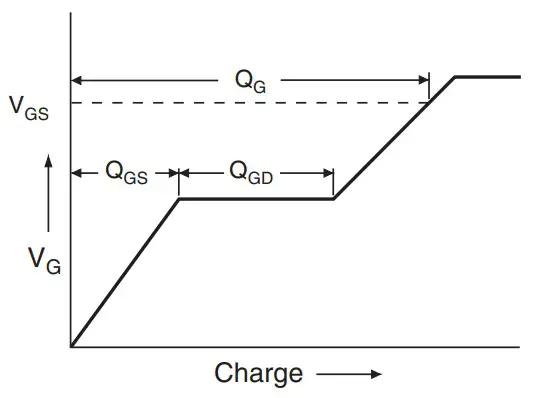

Fig. 13a – Basic Gate Charge Waveform

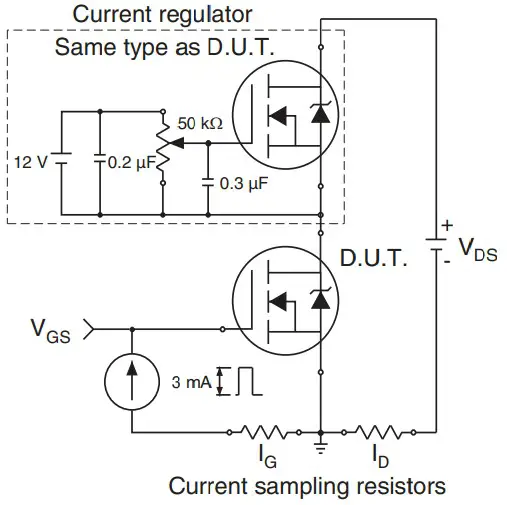

Fig. 13b – Gate Charge Test Circuit

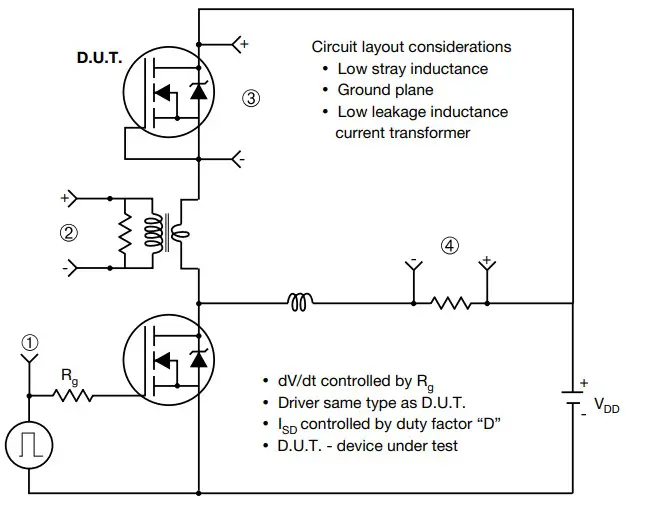

Peak Diode Recovery dV/dt Test Circui

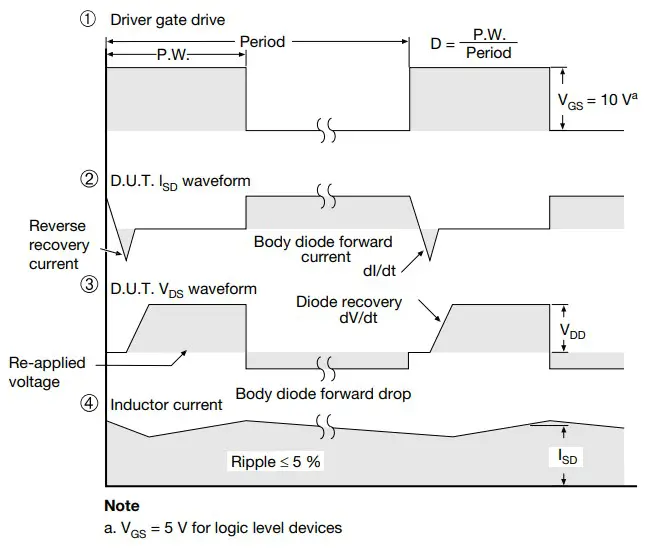

Fig. 10 – For N-Channel

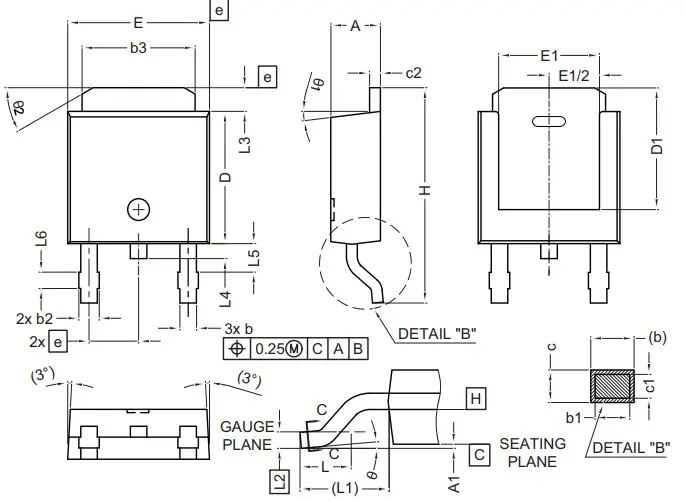

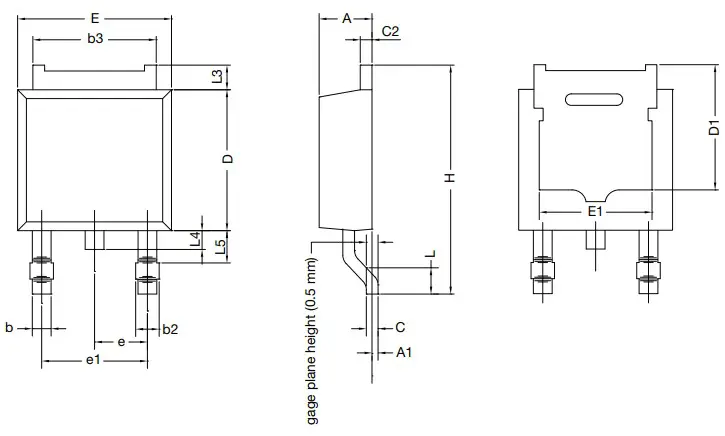

TO-252AA Case Outline

VERSION 1: FACILITY CODE = Y

Note

• Dimension L3 is for reference only

VERSION 2: FACILITY CODE = N

Notes

• Dimensioning and tolerance confirm to ASME Y14.5M-1994
• All dimensions are in millimeters. Angles are in degrees
• Heat sink side flash is max. 0.8 mm
• Radius on terminal is optional

ECN: E22-0399-Rev. R, 03-Oct-2022
DWG: 5347

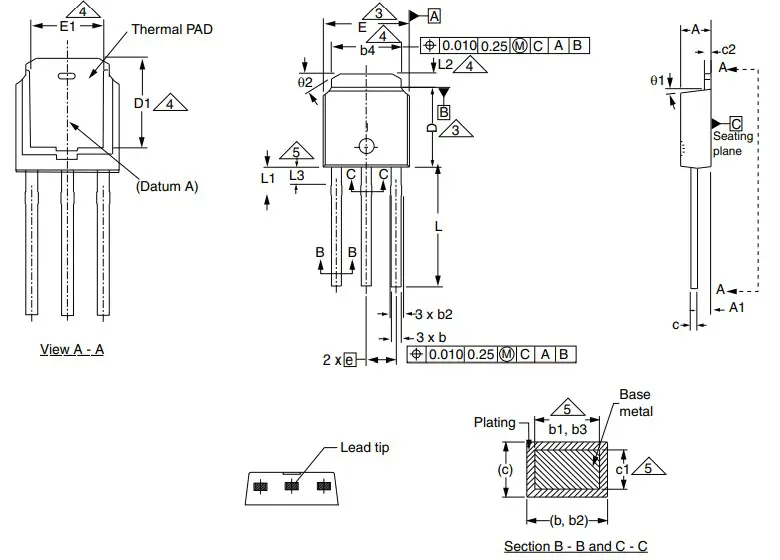

Case Outline for TO-251AA (High Voltage)

OPTION 1:

Notes

• Dimensioning and tolerancing per ASME Y14.5M-1994
• Dimension are shown in inches and millimeters
• Dimension D and E do not include mold flash. Mold flash shall not exceed 0.13 mm (0.005″) per side. These dimensions are measured at the outermost extremes of the plastic body
• Thermal pad contour optional with dimensions b4, L2, E1 and D1
• Lead dimension uncontrolled in L3
• Dimension b1, b3 and c1 apply to base metal only
• Outline conforms to JEDEC® outline TO-251AA

OPTION 2: FACILITY CODE = N

ECN: E21-0682-Rev. C, 27-Dec-2021
DWG: 5968

Notes

• Dimensioning and tolerancing per ASME Y14.5M-1994
• All dimension are in millimeters, angles are in degrees
• Heat sink side flash is max. 0.8 mm

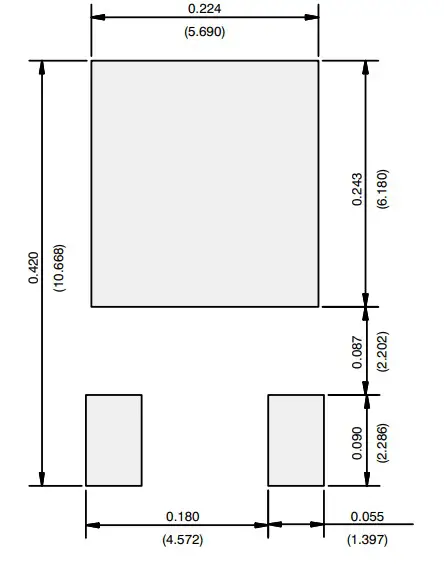

RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)

Recommended Minimum Pads Dimensions in Inches/(mm)
