IRFBG30 Power MOSFET
Instruction Manual

IRFBG30 Power MOSFET

PRODUCT SUMMARY

FEATURES

• Dynamic dV/dt rating
• Repetitive avalanche rated
• Fast switching

• Ease of paralleling
• Simple drive requirements
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

Note
* This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details

DESCRIPTION

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

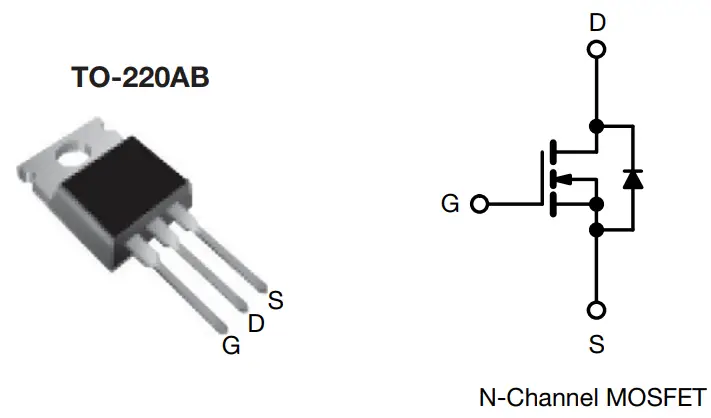

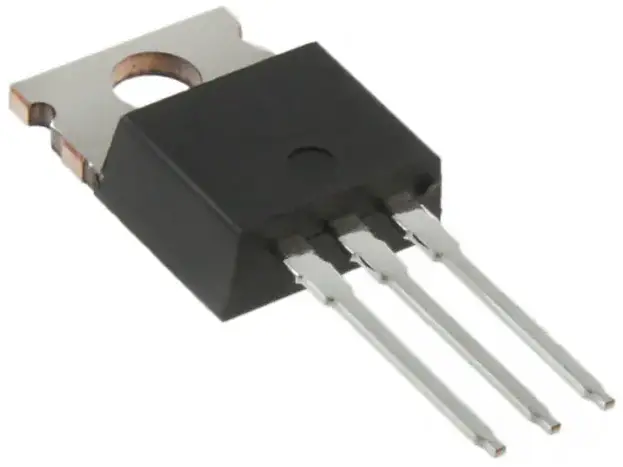

The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

ORDERING INFORMATION

ABSOLUTE MAXIMUM RATINGS

(TC = 25 °C, unless otherwise noted)

Notes

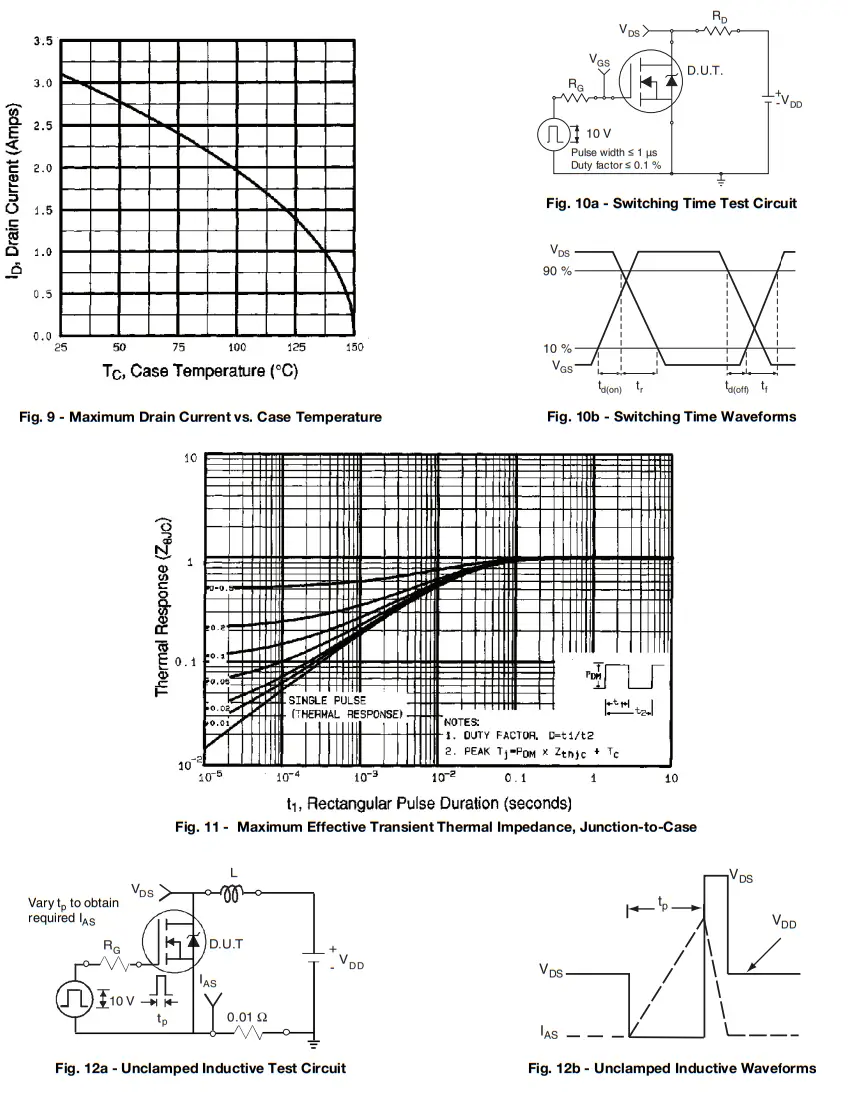

a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)

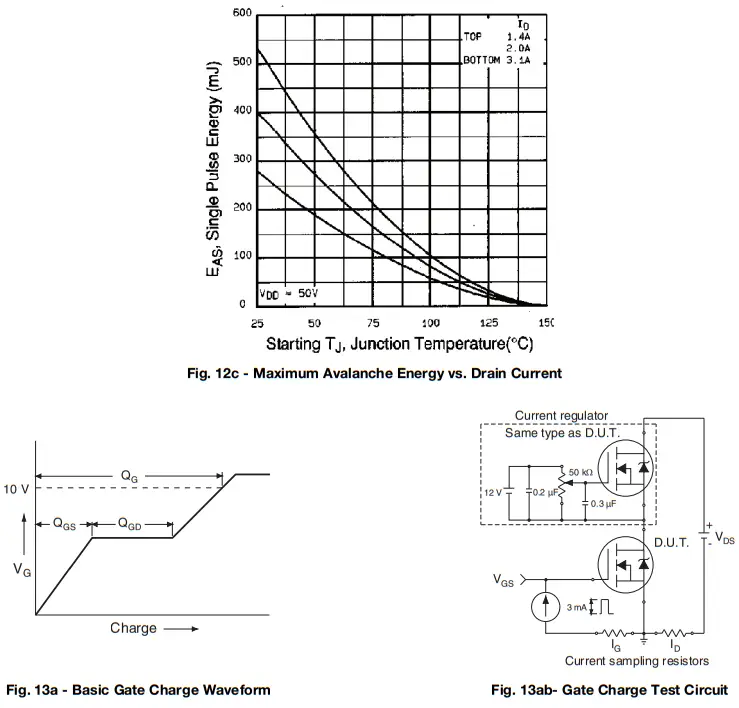

b. VDD = 50 V, starting TJ = 25 °C, L = 55 mH, Rg = 25 Ω, IAS = 3.1 A (see fig. 12)
c. ISD ≤ 3.1 A, dI/dt ≤ 80 A/μs, VDD ≤ 600, TJ ≤ 150 °C
d. 1.6 mm from case

THERMAL RESISTANCE RATINGS

SPECIFICATIONS

(TJ = 25 °C, unless otherwise noted)

PARAMETER	SYMBOL	TEST CONDITIONS			MIN.	TYP.	MAX.	UNIT
Static
Drain-source breakdown voltage	VDS	VGS = 0 V, ID = 250 pA			1000		–	V
VDS temperature coefficient	AVDs/T j	Reference to 25 °C, ID = 1 mA			–	1.	–	V/°C
Gate-source threshold voltage	VGS(th)	VDS = VGS, ID = 250 pA			2.0		4.0	V
Gate-source leakage	IGSS	VGS = ± 20 V			–		± 100	nA
Zero gate voltage drain current	loss	VDS = 1000 V, VGS = 0 V				–	100	pA
		VDS = 800 V, VGS = 0 V, Tj = 125 °C					500
Drain-source on-state resistance	RDS(on)	Vcs = 10 V	I ID = 1.9 A b				5.0	S2
Forward transconductance	gls	VDS = 10 V, ID = 1.9 A b						S
Dynamic
Input capacitance	Ciss	Vcs = 0 V, VDS = 25 V, f = 1. 5 see fi 1.0 MHz, fig.			–	980		of
Output capacitance	Coss					140
Reverse transfer capacitance	Crss					50
Total gate charge	Qg	VGS = 10 V	ID = 3.1 A, VDS =400 V, see fig. 6 and 13 b				80	nC
Gate-source charge	Ogs						10
Gate-drain charge	Ogd					–	42
Turn-on delay time	td(on)	VDD = 500 V, ID = 3.1 A Ftg = 12 12, RD = 170 Q, see fig. 10 b				12
Rise time	tr					25
Turn-off delay time	td(oft)					89	_
Fall time						29	–
Gate input resistance	Fig	f = 1 MHz, open drain			0.-1		2.	52
Internal drain inductance	LD	Between lead, 6 mm (0.25′) from package and center die contact				5		nH
			of
Internal source inductance	Ls					8.
Drain-Source Body Diode Characteristics
Continuous source-drain diode current	Is	MOSFET symbol showing the integral reverse			–	–	3.	A
			p – n junction diode
Pulsed diode forward current a	Ism				–	–	12
Body diode voltage	VsD	Tj = 25 °C, Is = 3.1 A, VGs=0Vb			–	–	2.	V
Body diode reverse recovery time	trr	Tj = 25 °C, IF = 3.1 A, dl/dt = 100 A/ps b			–	410	620	ns
Body diode reverse recovery charge	Qrr				–	1.	2.0	pC
Forward turn-on time	ton	Intrinsic turn-on time is negligible (turn-on is dominated by Ls and LS

Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %

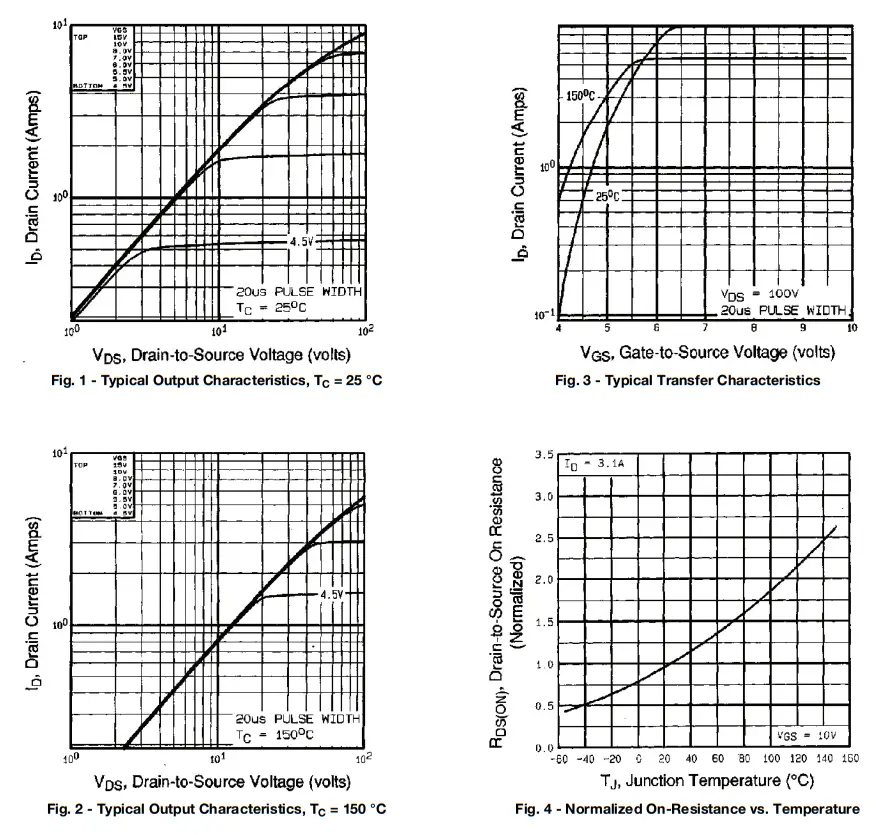

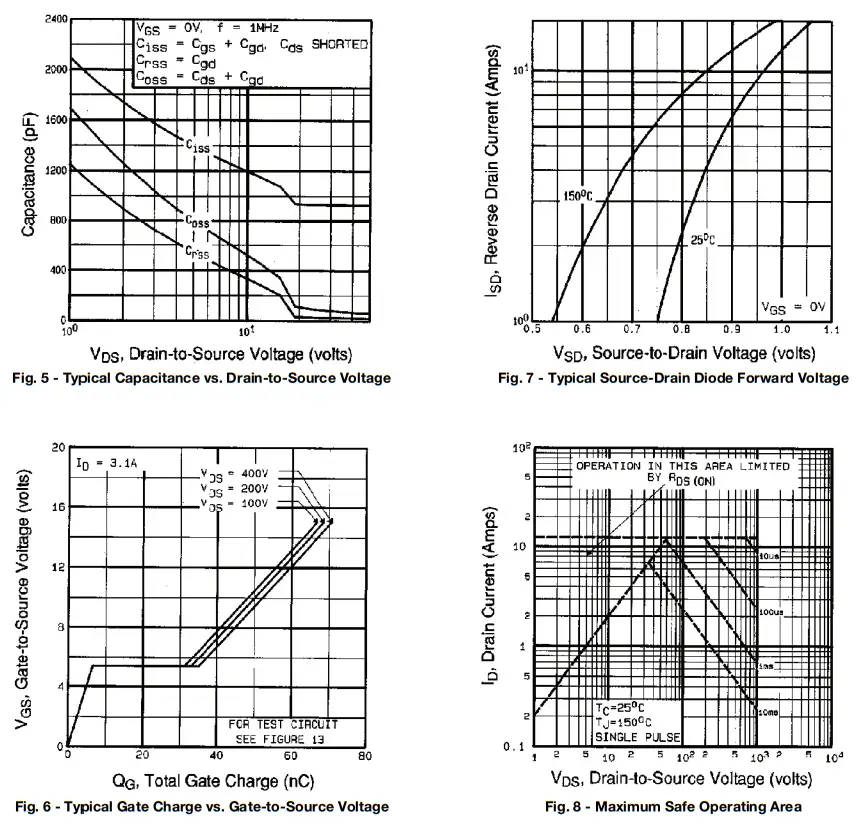

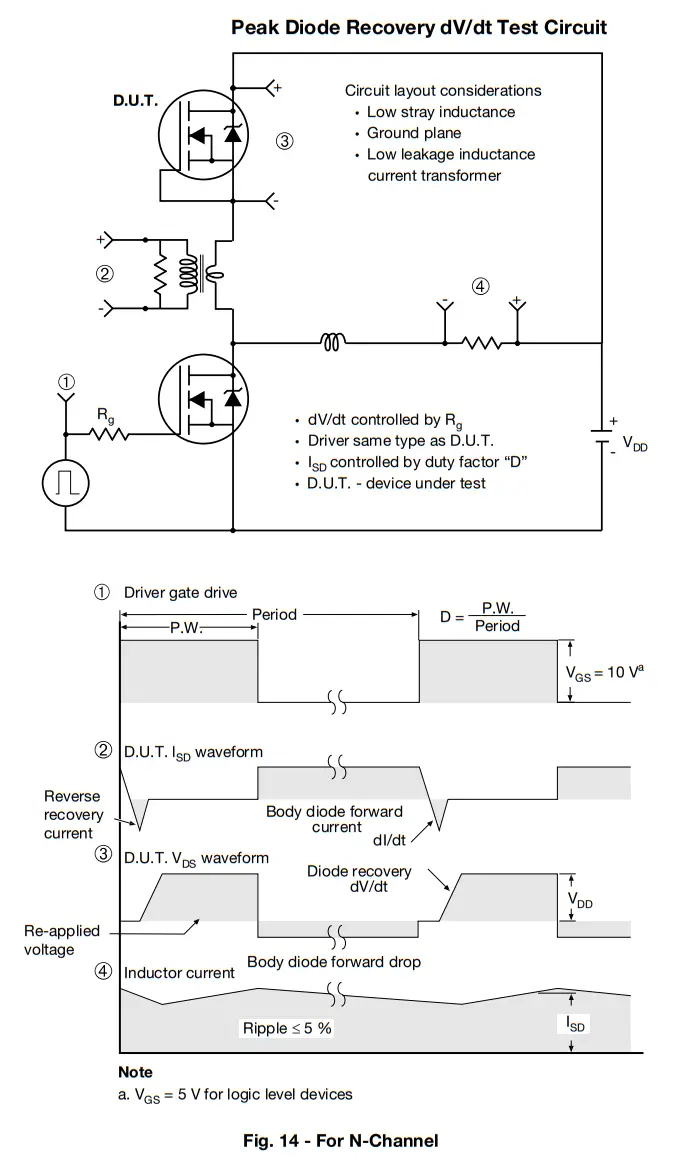

TYPICAL CHARACTERISTICS

(25 °C, unless otherwise noted)

Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see http://www.vishay.com/ppg?91124.

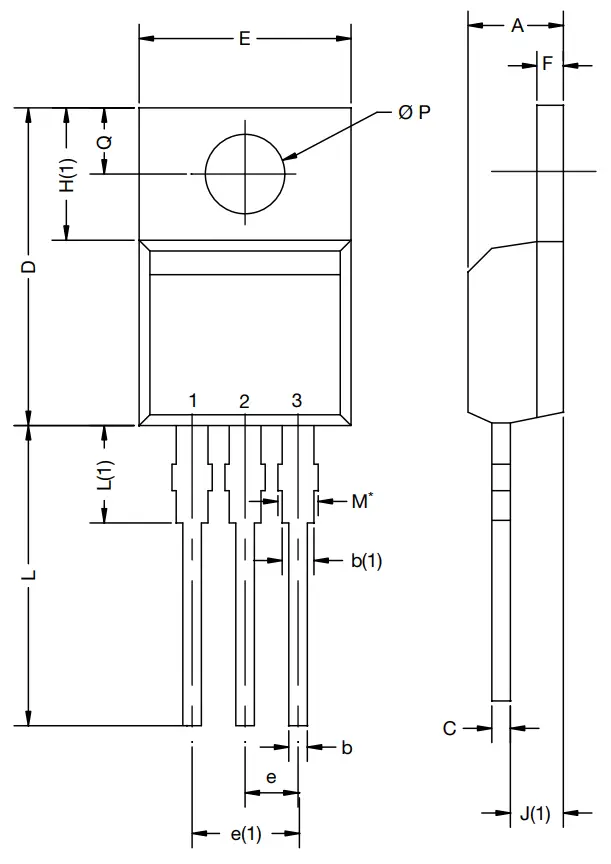

Package Information

Vishay Siliconix TO-220-1

Note
• M* = 0.052 inches to 0.064 inches (dimension including protrusion), heatsink hole for HVM
