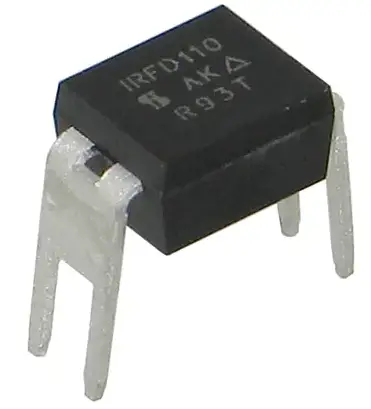

VISHAY IRFD9110 Power MOSFET
VISHAY IRFD9110 Power MOSFET
Product Information
- VDS (V): -100
- RDS(on) (): 1.2
- Qg (Max.) (nC): 8.7
- Qgs (nC): 2.2
- Qgd (nC): 4.1
- Configuration: Single

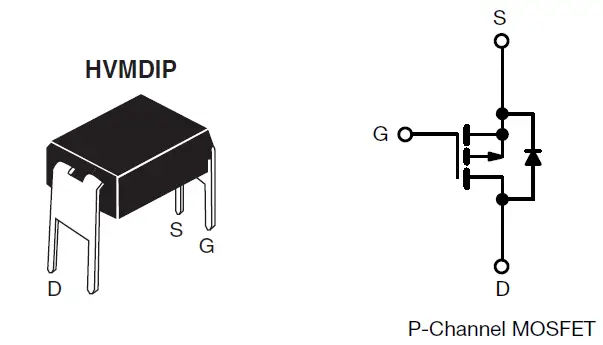

- Package Type: HVMDIP
- P-Channel MOSFET
Product Usage Instructions
of 120°C/W.
- Static Drain-Source Breakdown Voltage VDS
- Temperature Coefficient VDS/TJ
- Gate-Source Threshold Voltage VGS(th)
- Gate-Source Leakage IGSS
- Zero Gate Voltage Drain Current IDSS
- Drain-Source On-State Resistance RDS(on)
- Forward Transconductance gfs
- Input Capacitance Ciss
- Output Capacitance Coss
- Reverse Transfer Capacitance Crss
- Total Gate Charge Qg
- Gate-Source Charge Qgs
- Gate-Drain Charge Qgd
- Turn-On Delay Time td(on)
- Rise Time tr
- Turn-Off Delay Time td(off)
- Fall Time tf
- Internal Drain Inductance LD
- Internal Source Inductance LS
- Continuous Source-Drain Diode Current IS
- Pulsed Diode Forward Current ISM
- Body Diode Voltage VSD
- Body Diode Reverse Recovery Time trr
- Body Diode Reverse Recovery Charge Qrr
Please refer to the product manual for test conditions and limits.
PRODUCT SUMMARY
| PRODUCT SUMMARY | ||
| VDS (V) | -100 | |
| RDS(on) (Ù) | VGS = -10 V | 1.2 |
| Qg (Max.) (nC) | 8.7 | |
| Qgs (nC) | 2.2 | |
| Qgd (nC) | 4.1 | |
| Configuration | Single | |
FEATURES
- Dynamic dV/dt rating
- Repetitive avalanche rated
- For automatic insertion
- End stackable
- P-channel
- Fast switching
- 175 °C operating temperature
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
DESCRIPTION
Third-generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The 4-pin DIP package is a low-cost machine-inserted le case style that can be stacked in multiple combinations on standard 0.1″ pin centers. The dual drain serves as a thermal link to the mounting surface for power dissipation levels up to 1 W.
| ORDERING INFORMATION | |
| Package | HVMDIP |
| Lead (Pb)-free | IRFD9110PbF |
| ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) | |||||
| PARAMETER | SYMBOL | LIMIT | UNIT | ||
| Drain-source voltage | VDS | -100 | V | ||
| Gate-source voltage | VGS | ± 20 | |||
| Continuous drain current | VGS at -10 V | TA = 25 °C | ID | -0.70 | A |
| TA = 100 °C | -0.49 | ||||
| Pulsed drain current a | IDM | -5.6 | |||
| Linear derating factor | 0.0083 | W/°C | |||
| Single pulse avalanche energy b | EAS | 140 | MJ | ||
| Repetitive avalanche current a | IAR | -0.7 | A | ||
| Repetitive avalanche energy a | EAR | 0.13 | MJ | ||
| Maximum power dissipation | TA = 25 °C | PD | 1.3 | W | |
| Peak diode recovery dv/dt c | dV/dt | -5.5 | V/ns | ||
| Operating junction and storage temperature range | TJ, Tstg | -55 to + 175 | °C | ||
| Soldering recommendations (peak temperature) d | For 10 s | 300d | |||
Notes
- Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
- VDD = -25 V, starting TJ = 25 °C, L = 52 mH, Rg = 25 Ω, IAS = -2.0 A (see fig. 12)
- ISD ≤ -4.0 A, dI/dt ≤ 75 A/μs, VDD ≤ VDS, TJ ≤ 175 °C
- 1.6 mm from case
THERMAL RESISTANCE RATINGS
| THERMAL RESISTANCE RATINGS | ||||
| PARAMETER | SYMBOL | TYP. | MAX. | UNIT |
| Maximum Junction-to-Ambient | RthJA | – | 120 | °C/W |
SPECIFICATIONS
(TJ = 25 °C, unless otherwise noted)
| SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) | |||||||
| PARAMETER | SYMBOL | TEST CONDITIONS | MIN. | TYP. | MAX. | UNIT | |
| Static | |||||||
| Drain-Source Breakdown Voltage | VDS | VGS = 0 V, ID = -250 μA | -100 | – | – | V | |
| VDS Temperature Coefficient | ÄVDS/TJ | Reference to 25 °C, ID = -1 mA | – | -0.091 | – | V/°C | |
| Gate-Source Threshold Voltage | VGS(th) | VDS = VGS, ID = -250 μA | -2.0 | – | -4.0 | V | |
| Gate-Source Leakage | IGSS | VGS = ± 20 V | – | – | ± 100 | nA | |
| Zero Gate Voltage Drain Current | IDSS | VDS = -100 V, VGS = 0 V | – | – | -100 | μA | |
| VDS = -80 V, VGS = 0 V, TJ = 150 °C | – | – | -500 | ||||
| Drain-Source On-State Resistance | RDS(on) | VGS = -10 V | ID = -0.42 Ab | – | – | 1.2 | Ù |
| Forward Transconductance | gfs | VDS = -50 V, ID = -0.42 A | 0.60 | – | – | S | |
| Dynamic | |||||||
| Input Capacitance | Ciss | VGS = 0 V, VDS = -25 V, f = 1.0 MHz, see fig. 5 | – | 200 | – | pF | |
| Output Capacitance | Coss | – | 94 | – | |||
| Reverse Transfer Capacitance | Cross | – | 18 | – | |||
| Total Gate Charge | Qg | VGS = -10 V | ID = -4.0 A, VDS = -80 V see fig. 6 and 13b | – | – | 8.7 |
nC |
| Gate-Source Charge | Qgs | – | – | 2.2 | |||
| Gate-Drain Charge | Qgd | – | – | 4.1 | |||
| Turn-On Delay Time | td(on) | VDD = -50 V, ID = -4.0 A Rg = 24 Ù, RD = 11 Ù, see fig. 10b | – | 10 | – |
ns | |
| Rise Time | tr | – | 27 | – | |||
| Turn-Off Delay Time | td(off) | – | 15 | – | |||
| Fall Time | tf | – | 17 | – | |||
| Internal Drain Inductance | LD | Between lead, D 6 mm (0.25″) from package and center of G die contact S | – | 4.0 | – |
nH | |
| Internal Source Inductance | LS | – | 6.0 | – | |||
| Drain-Source Body Diode Characteristics | |||||||
| Continuous Source-Drain Diode Current | IS | MOSFET symbol D showing the integral reverse G p – n junction diode S | – | – | -0.70 | A | |
| Pulsed Diode Forward Current | ISM | – | – | -5.6 | |||
| Body Diode Voltage | VSD | TJ = 25 °C, IS = -0.7 A, VGS = 0 Vb | – | – | -5.5 | V | |
| Body Diode Reverse Recovery Time | trr | TJ = 25 °C, IF = -4.0 A, dI/dt = 100 A/μsb | – | 82 | 160 | ns | |
| Body Diode Reverse Recovery Charge | Qrr | – | 0.15 | 0.30 | μC | ||
Notes
- Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
- Pulse width ≤ 300 μs; duty cycle ≤ 2 %

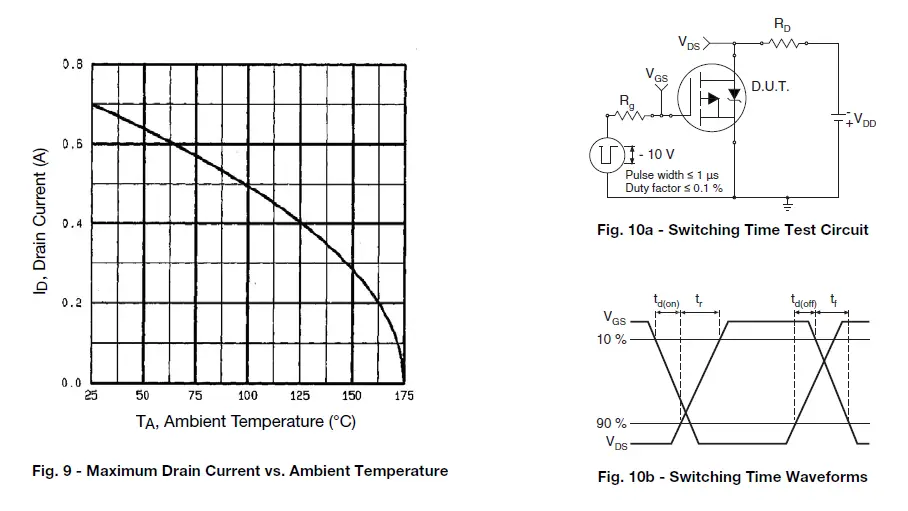

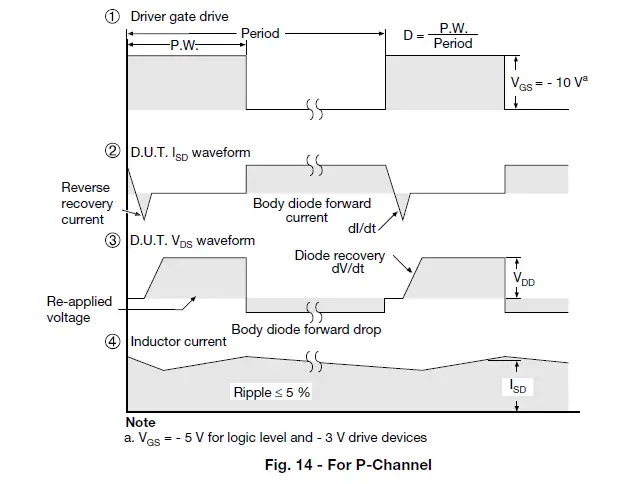

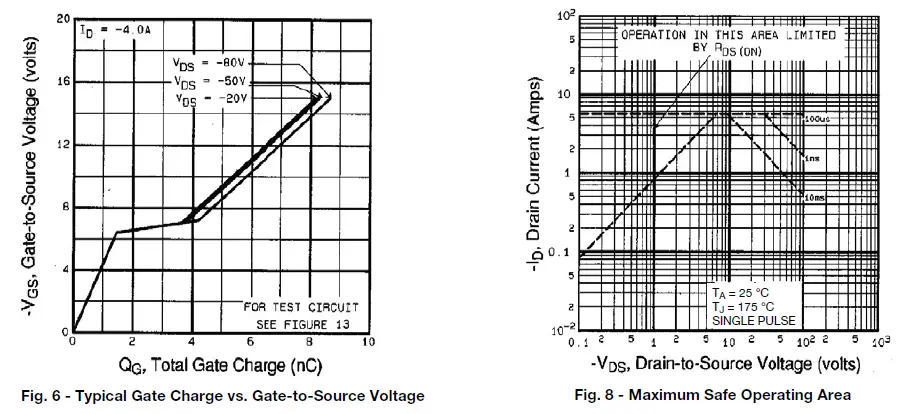

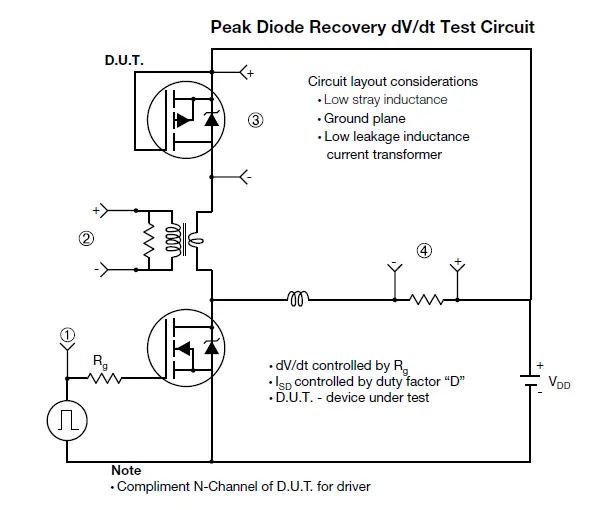

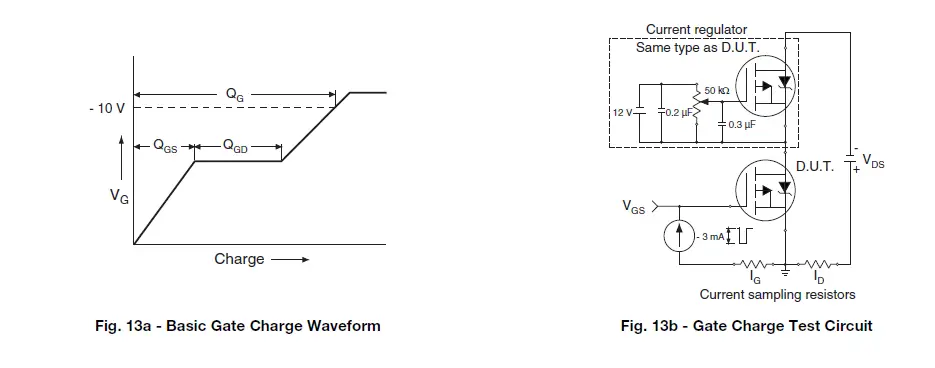

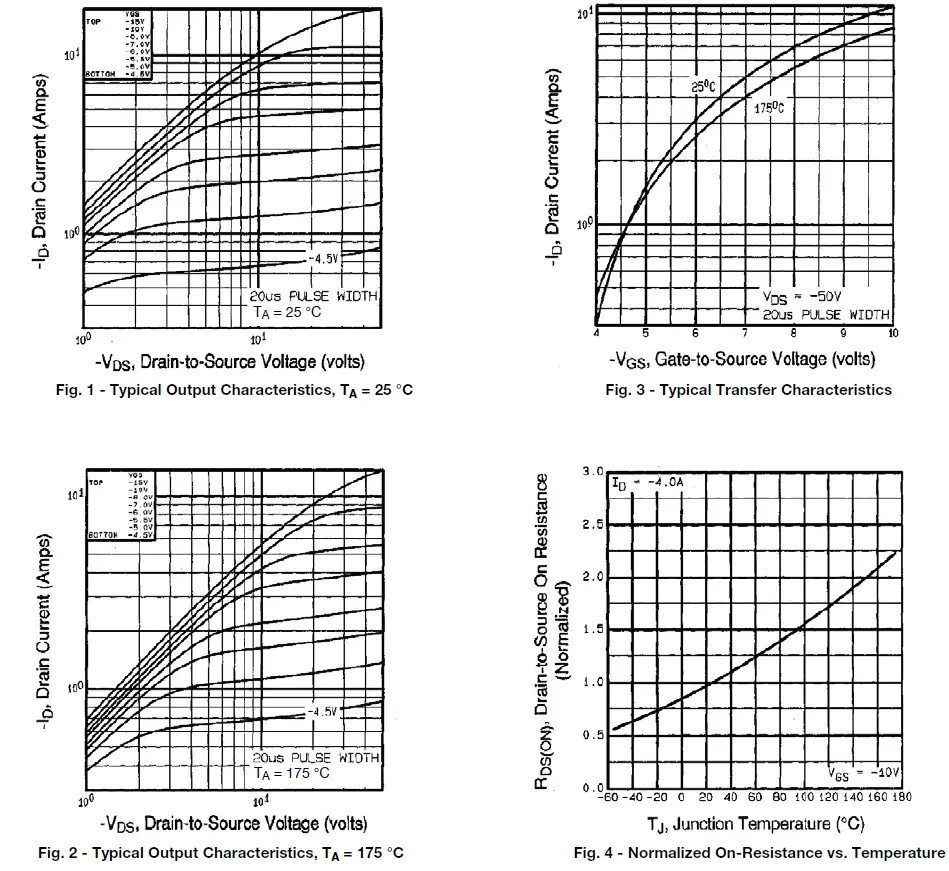

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

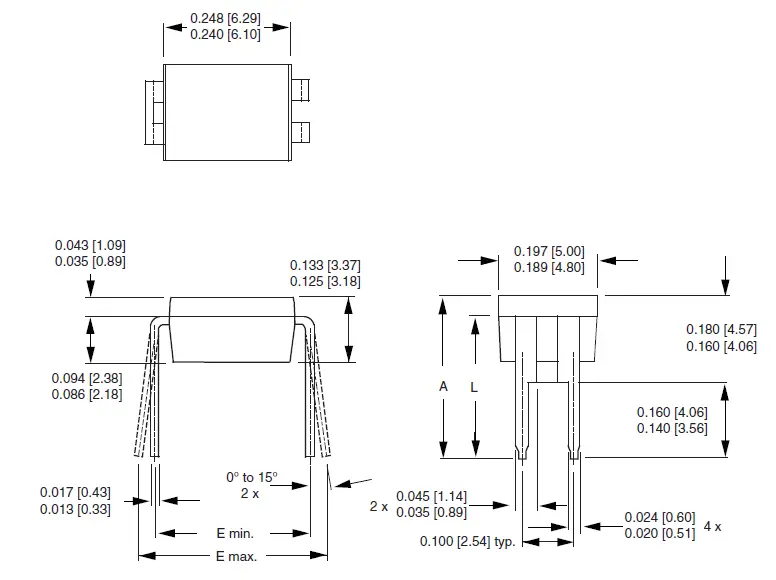

Package Information
HVM DIP (High voltage)
| INCHES | MILLIMETERS | |||
| DIM. | MIN. | MAX. | MIN. | MAX. |
| A | 0.310 | 0.330 | 7.87 | 8.38 |
| E | 0.300 | 0.425 | 7.62 | 10.79 |
| L | 0.270 | 0.290 | 6.86 | 7.36 |
| ECN: X10-0386-Rev. B, 06-Sep-10 DWG: 5974 | ||||
