VISHAY IRFL110 Power MOSFET
FEATURES
- Surface-mount
- Available in tape and reel
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
DESCRIPTION
Third-generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

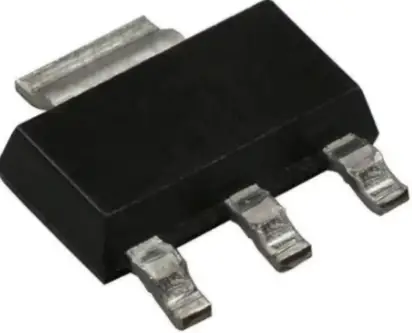

The SOT-223 package is designed for surface-mounting using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
| PRODUCT SUMMARY | ||
| VDS (V) | 100 | |
| RDS(on) (W) | VGS = 10 V | 0.54 |
| Qg (Max.) (nC) | 8.3 | |
| Qgs (nC) | 2.3 | |
| Qgd (nC) | 3.8 | |
| Configuration | Single | |
| ORDERING INFORMATION | |
| Package | SOT-223 |
| Lead (Pb)-free and halogen-free | SiHFL110TR-GE3 a |
| SiHFL110TR-BE3 a, b | |
| IRFL110TRPBF-BE3 a, b | |
| Lead (Pb)-free | IRFL110TRPbF a |
Notes
- See device orientation
- “-BE3” denotes alternate manufacturing location
| ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) | |||||
| PARAMETER | SYMBOL | LIMIT | UNIT | ||
| Drain-source voltage | VDS | 100 | V | ||
| Gate-source voltage | VGS | ± 20 | |||
| Continuous drain current | VGS at 10 V | TC = 25 °C | ID | 1.5 | A |
| TC = 100 °C | 0.96 | ||||
| Pulsed drain current a | IDM | 12 | |||
| Linear derating factor | 0.025 | W/°C | |||
| Linear derating factor (PCB mount) e | 0.017 | ||||
| Single pulse avalanche energy b | EAS | 150 | mJ | ||
| Avalanche current a | IAR | 1.5 | A | ||
| Repetitive avalanche energy a | EAR | 0.31 | mJ | ||
| Maximum power dissipation | TC = 25 °C | PD | 3.1 | W | |
| Maximum power dissipation (PCB mount) e | TA = 25 °C | 2.0 | |||

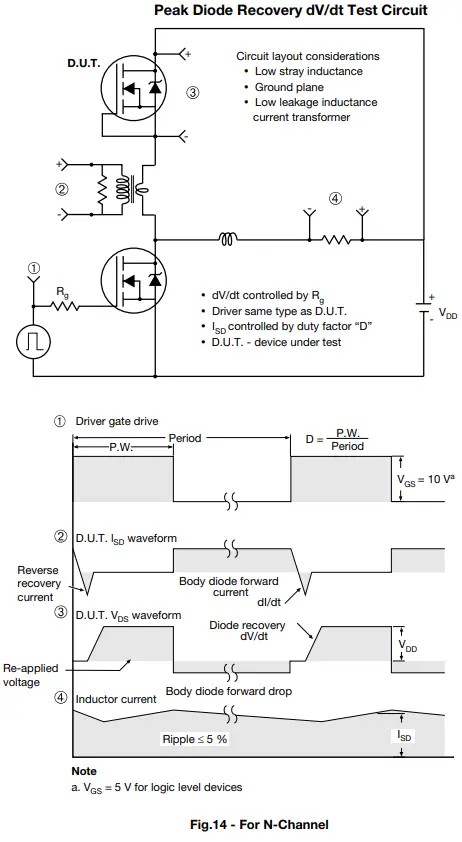

| Peak diode recovery dv/dt c | dV/dt | 5.5 | V/ns | ||
| Operating junction and storage temperature range | TJ, Tstg | -55 to +150 | °C | ||
| Soldering recommendations (peak temperature) d | For 10 s | 300 | |||
Notes
- Repetitive rating; pulse width limited by maximum junction temperature (see 11)
- VDD = 25 V, starting TJ = 25 °C, L = 25 mH, Rg = 25 W, IAS = 0 A (see fig. 12)
- ISD £ 6 A, dI/dt £ 75 A/μs, VDD £ VDS, TJ £ 150 °C
- 6 mm from case
- When mounted on 1″ square PCB (FR-4 or G-10 material)
| THERMAL RESISTANCE RATINGS | |||||
| PARAMETER | SYMBOL | MIN. | TYP. | MAX. | UNIT |
| Maximum junction-to-ambient (PCB mount) a | RthJA | – | – | 60 | °C/W |
| Maximum junction-to-case (drain) | RthJC | – | – | 40 | |
note
- When mounted on 1″ square PCB (FR-4 or G-10 material)
| SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) | ||||||||||
| PARAMETER | SYMBOL | TEST CONDITIONS | MIN. | TYP. | MAX. | UNIT | ||||
| Static | ||||||||||
| Drain-source breakdown voltage | VDS | VGS = 0 V, ID = 250 μA | 100 | – | – | V | ||||
| VDS temperature coefficient | DVDS/TJ | Reference to 25 °C, ID = 1 mA | – | 0.63 | – | V/°C | ||||
| Gate-source threshold voltage | VGS(th) | VDS = VGS, ID = 250 μA | 2.0 | – | 4.0 | V | ||||
| Gate-source leakage | IGSS | VGS = ± 20 V | – | – | ± 100 | nA | ||||
| Zero gate voltage drain current | IDSS | VDS = 100 V, VGS = 0 V | – | – | 25 | μA | ||||
| VDS = 80 V, VGS = 0 V, TJ = 125 °C | – | – | 250 | |||||||
| Drain-source on-state resistance | RDS(on) | VGS = 10 V | ID = 0.90 A b | – | – | 0.54 | W | |||
| Forward transconductance | gfs | VDS = 50 V, ID = 0.90 A | 1.1 | – | – | S | ||||
| Dynamic | ||||||||||

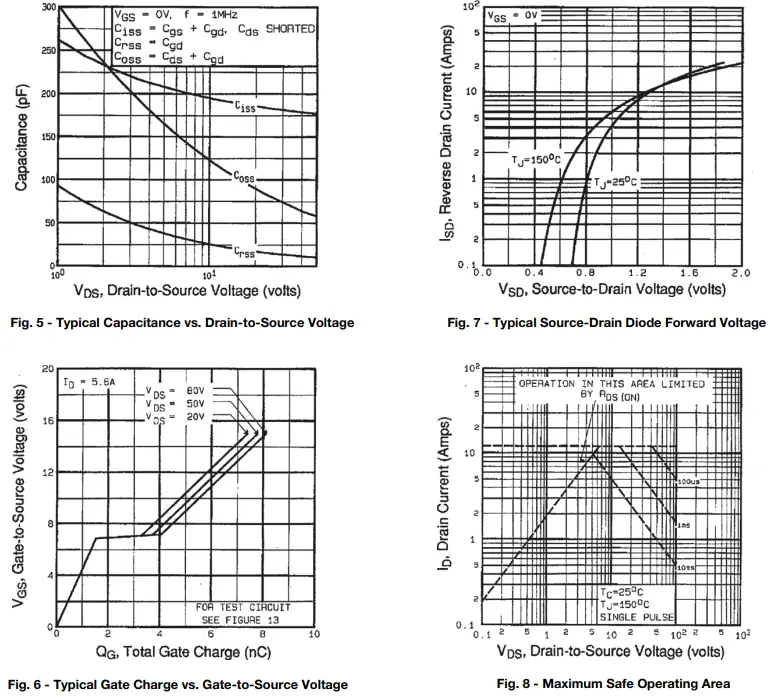

| Input capacitance | Ciss | VGS = 0 V, VDS = 25 V, f = 1.0 MHz, see fig. 5 | – | 180 | – | pF | ||||
| Output capacitance | Coss | – | 81 | – | ||||||
| Reverse transfer capacitance | Crss | – | 15 | – | ||||||
| Total gate charge | Qg | VGS = 10 V | ID = 5.6 A, VDS = 80 V, see fig. 6 and 13 b | – | – | 8.3 | nC | |||
| Gate-source charge | Qgs | – | – | 2.3 | ||||||
| Gate-drain charge | Qgd | – | – | 3.8 | ||||||

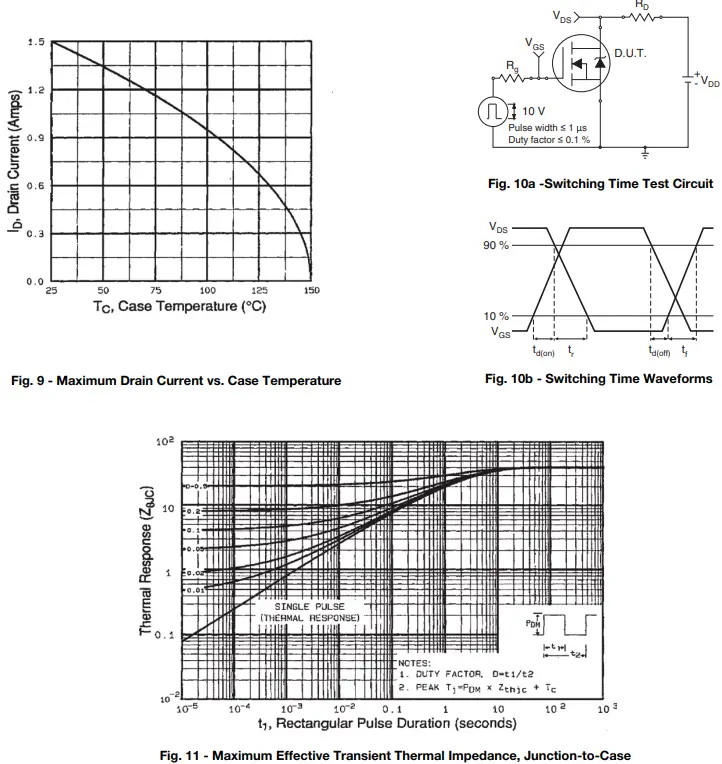

| Turn-on delay time | td(on) | VDD = 50 V, ID = 5.6 A, Rg = 24 W, RD = 8.4 W, see fig. 10 b | – | 6.9 | – |
ns | ||||
| Rise time | tr | – | 16 | – | ||||||
| Turn-off delay time | td(off) | – | 15 | – | ||||||
| Fall time | tf | – | 9.4 | – | ||||||
| Internal drain inductance | LD | Between lead, 6 mm (0.25″) from package and center of die contact |
G | D
S | – | 4.0 | – | nH | ||
| Internal source inductance | LS | – | 6.0 | – | ||||||
| Drain-Source Body Diode Characteristics | ||||||||||
| Continuous source-drain diode current | IS | MOSFET symbol showing the integral reverse p – n junction diode |
G |
D
S | – | – | 1.5 | A | ||
| Pulsed diode forward current a | ISM | – | – | 12 | ||||||
| Body diode voltage | VSD | TJ = 25 °C, IS = 1.5 A, VGS = 0 V b | – | – | 2.5 | V | ||||
| Body diode reverse recovery time | trr | TJ = 25 °C, IF = 5.6 A, dI/dt = 100 A/μs b | – | 100 | 200 | ns | ||||
| Body diode reverse recovery charge | Qrr | – | 0.44 | 0.88 | μC | |||||
| Forward turn-on time | ton | Intrinsic turn-on time is negligible (turn-on is dominated by LS and LD) | ||||||||
notes
- Repetitive rating; pulse width limited by maximum junction temperature (see 11)
- Pulse width £ 300 μs; duty cycle £ 2 %

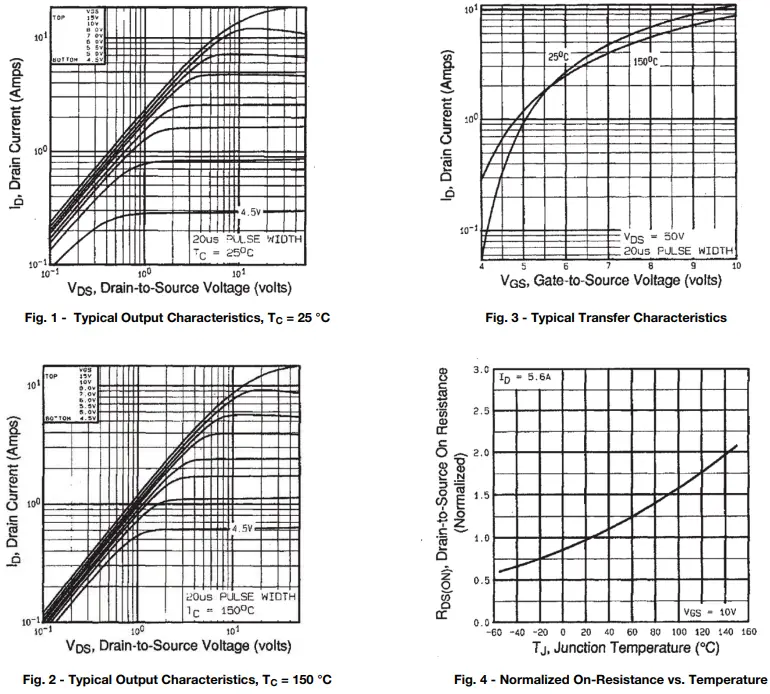

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

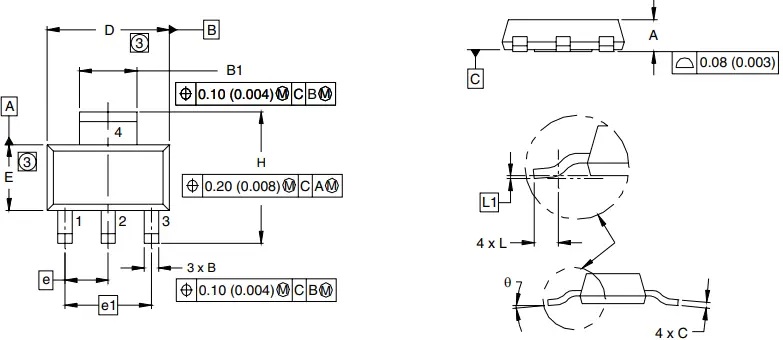

| MILLIMETERS | INCHES | |||
| DIM. | MIN. | MAX. | MIN. | MAX. |
| A | 1.55 | 1.80 | 0.061 | 0.071 |
| B | 0.65 | 0.85 | 0.026 | 0.033 |
| B1 | 2.95 | 3.15 | 0.116 | 0.124 |
| C | 0.25 | 0.35 | 0.010 | 0.014 |
| D | 6.30 | 6.70 | 0.248 | 0.264 |
| E | 3.30 | 3.70 | 0.130 | 0.146 |
| e | 2.30 BSC | 0.0905 BSC | ||
| e1 | 4.60 BSC | 0.181 BSC | ||
| H | 6.71 | 7.29 | 0.264 | 0.287 |
| L | 0.91 | – | 0.036 | – |
| L1 | 0.061 BSC | 0.0024 BSC | ||
| q | – | 10′ | – | 10′ |
| ECN: S-82109-Rev. A, 15-Sep-08 DWG: 5969 | ||||
Notes
- Dimensioning and tolerancing per ASME Y14.5M-1994.
- Dimensions are shown in millimeters (inches).
- Dimensions do not include mold flash.
- Outline conforms to JEDEC outline TO-261AA.
