IRFR310, IRFU310, SiHFR310, SiHFU310
Vishay Siliconix
Power MOSFET

IRFR310 Power MOSFET

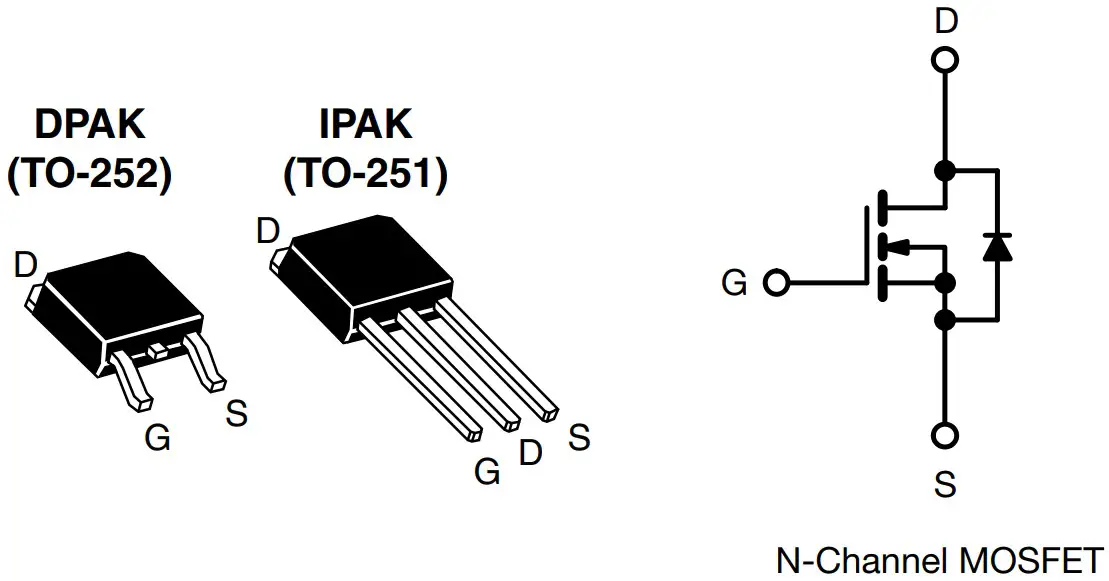

FEATURES

• Dynamic dV/dt rating
• Repetitive avalanche rated
• Surface-mount (IRFR310, SiHFR310)
• Straight lead (IRFU310, SiHFU310)
• Available in tape and reel
• Fast switching
• Fully avalanche rated
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

DESCRIPTION

Third generation power MOSFETs form Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface-mount applications.

Note
a. See device orientation

Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. VDD = 50 V, starting TJ = 25 °C, L = 52 mH, Rg = 25 Ω, IAS = 1.7 A (see fig. 12)
c. ISD ≤ 1.7 A, dI/dt ≤ 40 A/μs, VDD ≤ VDS, TJ ≤ 150 °C
d. 1.6 mm from case
e. When mounted on 1” square PCB (FR-4 or G-10 material)

Note
a. When mounted on 1″ square PCB (FR-4 or G-10 material)

SPECIFICATIONS (TJ = 25 °C, unless otherwise noted)
PARAMETER	SYMBOL	TEST CONDITIONS		MIN.	TYP.	MAX.	UNIT
Static
Drain-source breakdown voltage	VDS	VGS = 0 V, ID = 250 μA		400	–	–	V
VDS temperature coefficient	DVDS/TJ	Reference to 25 °C, ID = 1 mA		–	0.47	–	V/°C
Gate-source threshold voltage	VGS(th)	VDS = VGS, ID = 250 μA		2.0	–	4.0	V
Gate-source leakage	IGSS	VGS = ± 20 V		–	–	± 100	nA
Zero gate voltage drain current	IDSS	VDS = 400 V, VGS = 0 V		–	–	25	μA
		VDS = 320 V, VGS = 0 V, TJ = 125 °C		–	–	250
Drain-source on-state resistance	RDS(on)	VGS = 10 V	ID = 1.0 A b	–	–	3.6	L
Forward transconductance	gfs	VDS = 50 V, ID = 1.0 A b		0.97	–	–	S
Dynamic
Input capacitance	Ciss	VGS = 0 V, VDS = 25 V, f = 1.0 MHz, see fig. 5 c		–	170	–	pF
Output capacitance	Coss			–	34	–
Reverse transfer capacitance	Crss			–	6.3	–
Total gate charge	Qg	VGS = 10 V	ID = 2.0 A, VDS = 320 V, see fig. 6 and 13 b, c	–	–	12	nC
Gate-source charge	Qgs			–	–	1.9
Gate-drain charge	Qgd			–	–	6.5
Turn-on delay time	td(on)	VDD = 200 V, ID = 2.0 A, Rg = 24 L, RD = 95 Ω, see fig. 10 b, c		–	7.9	–	ns
Rise time	tr			–	9.9	–
Turn-off delay time	td(off)			–	21	–
Fall time	tf			–	11	–
Gate input resistance	Rg	f = 1 MHz, open drain		1.7	–	11.2	L
Internal drain inductance	LD	Between lead, 6 mm (0.25″) from package and center of die contact		–	4.5	–	nH
Internal source inductance	LS			–	7.5	–
Drain-Source Body Diode Characteristics
Continuous source-drain diode current	IS	MOSFET symbol showing the integral reverse p – n junction diode		–	–	1.7	A
Pulsed diode forward current a	ISM			–	–	6.0
Body diode voltage	VSD	TJ = 25 °C, IS = 1.7 A, VGS = 0 V b		–	–	1.6	V
Body diode reverse recovery time	trr	TJ = 25 °C, IF = 2.0 A, dI/dt = 100 A/μs b		–	240	540	ns
Body diode reverse recovery charge	Qrr			–	0.85	1.6	μC
Forward turn-on time	ton	Intrinsic turn-on time is negligible (turn-on is dominated by LS and LD)

Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %

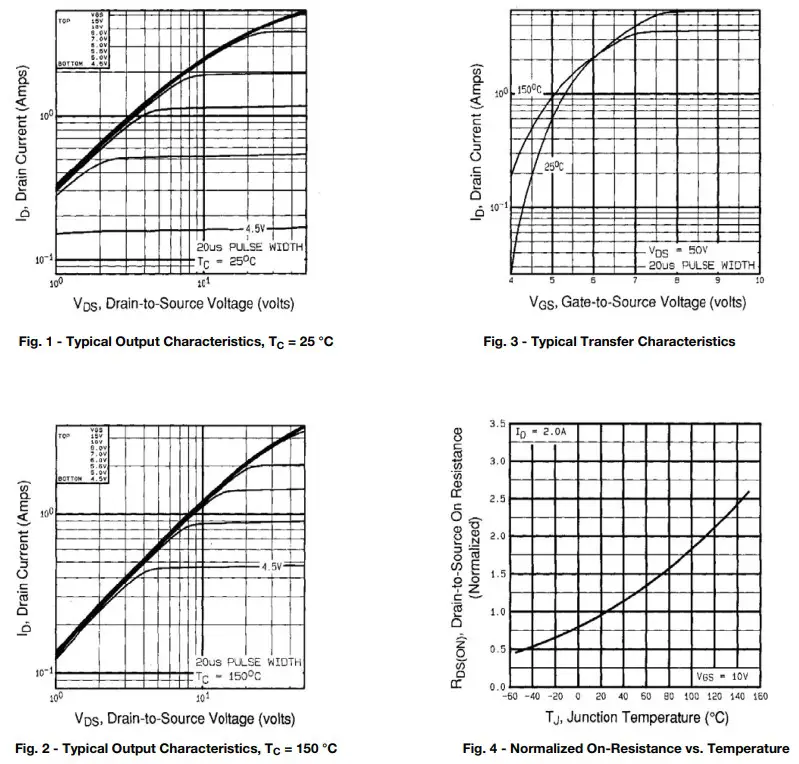

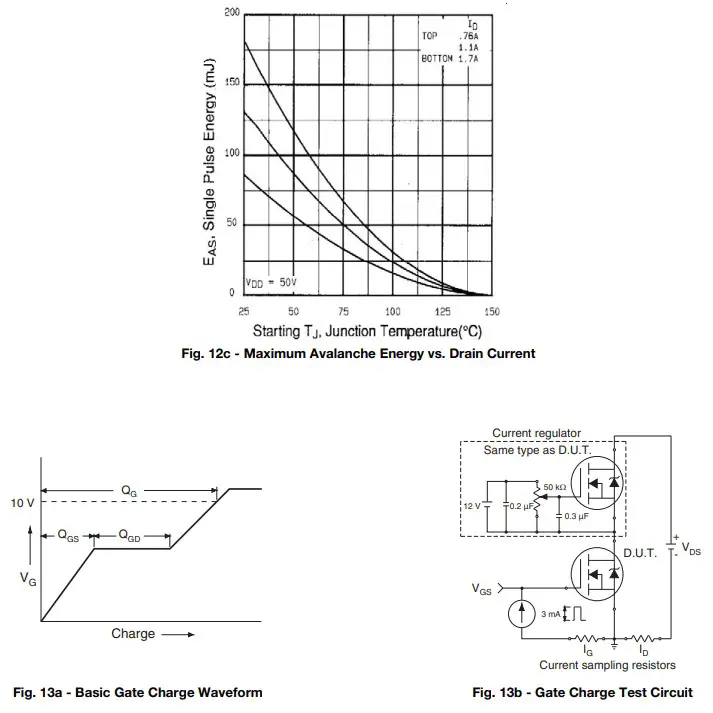

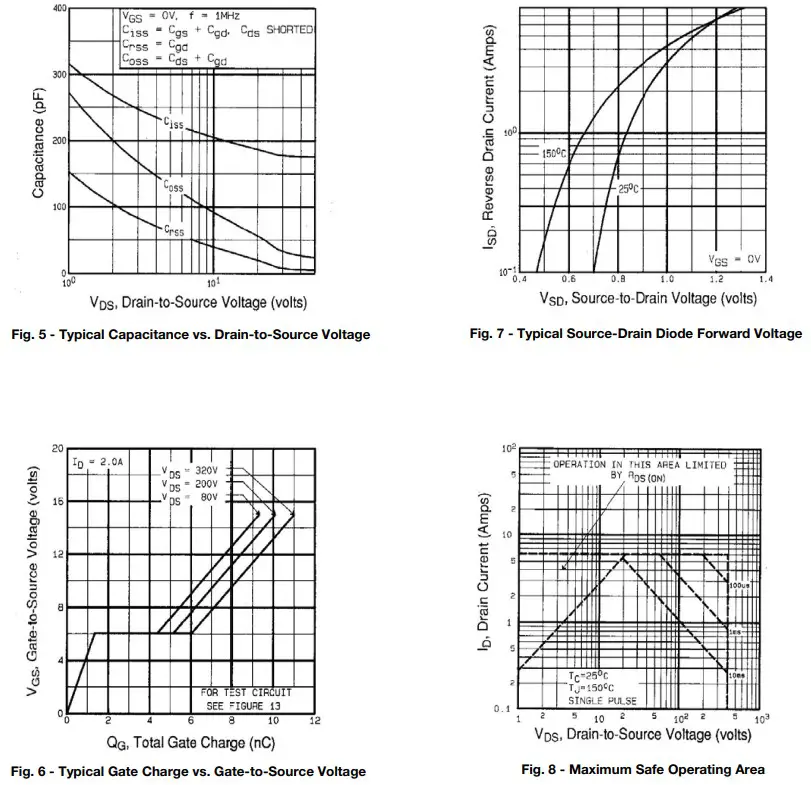

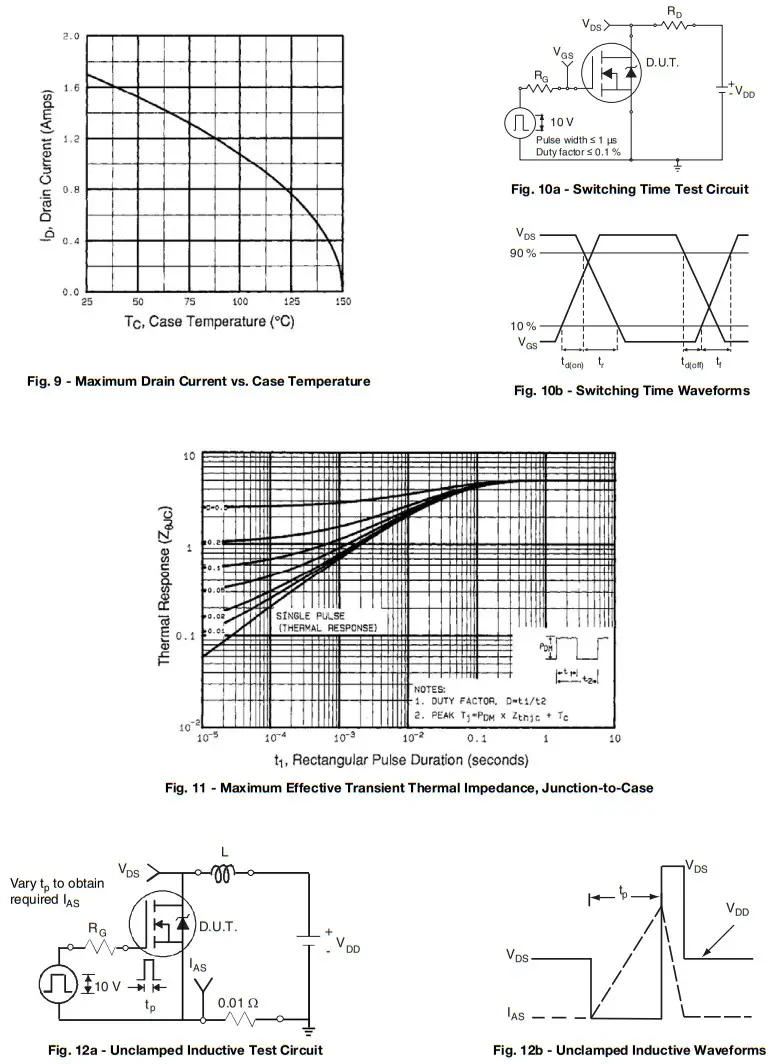

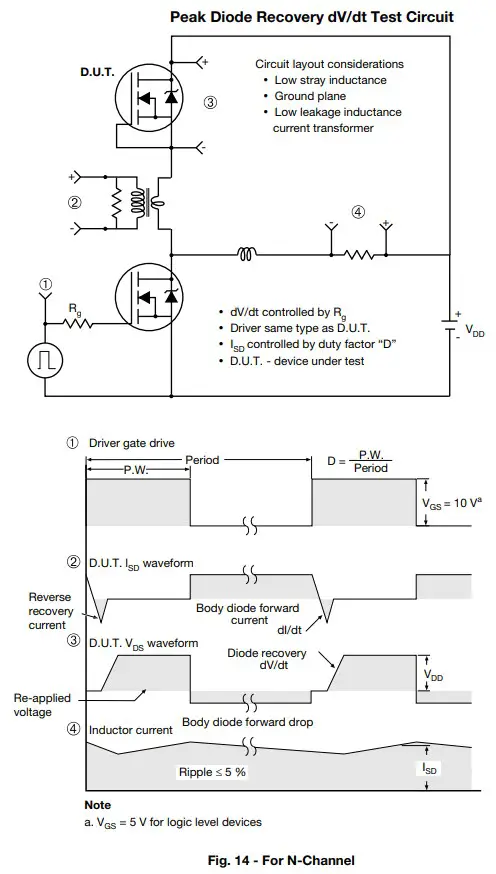

TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted)

Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?91272.

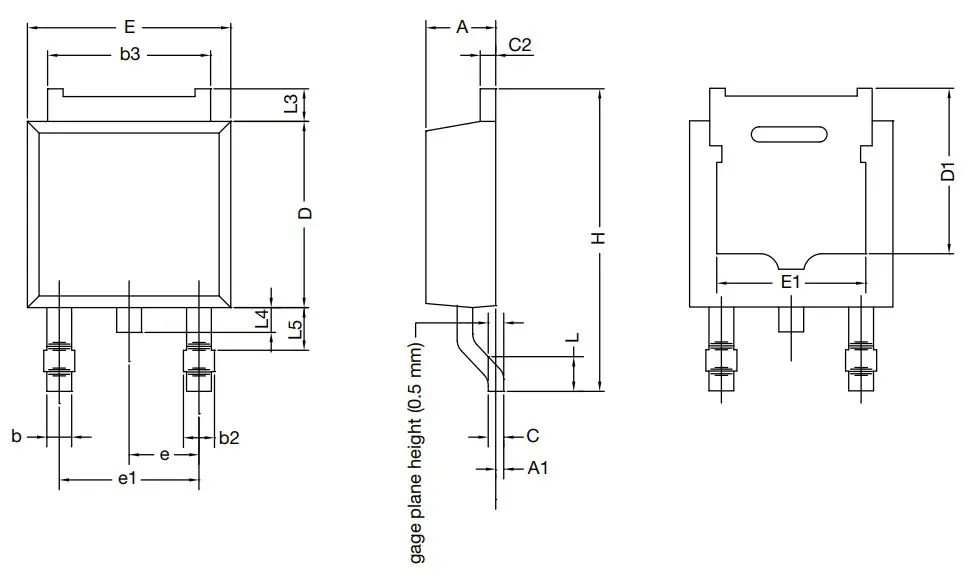

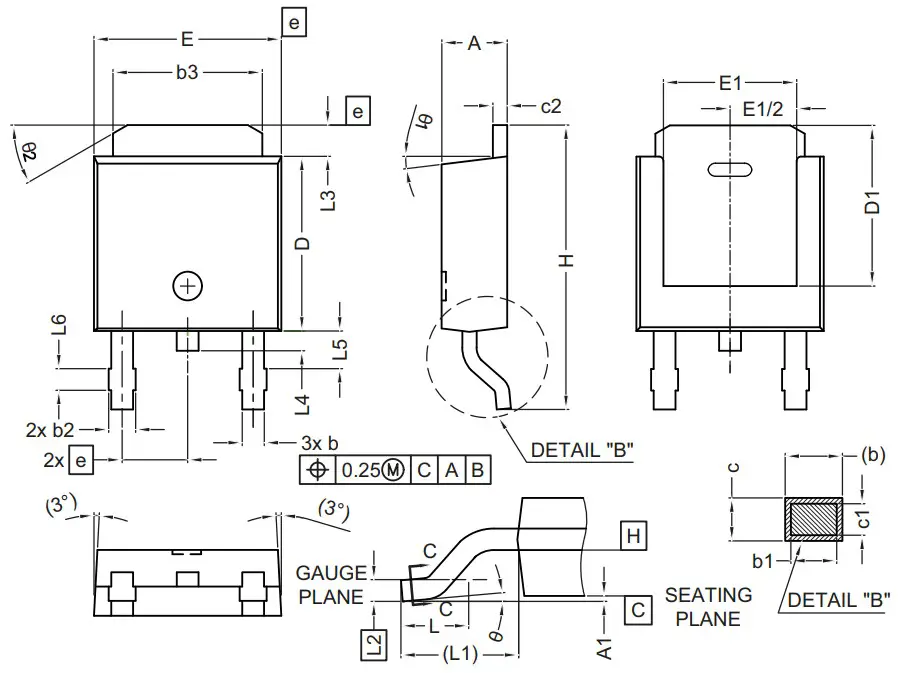

TO-252AA Case Outline

VERSION 1: FACILITY CODE = Y

Note
• Dimension L3 is for reference only

VERSION 2: FACILITY CODE = N

Notes

• Dimensioning and tolerance confirm to ASME Y14.5M-1994
• All dimensions are in millimeters. Angles are in degrees
• Heat sink side flash is max. 0.8 mm
• Radius on terminal is optional

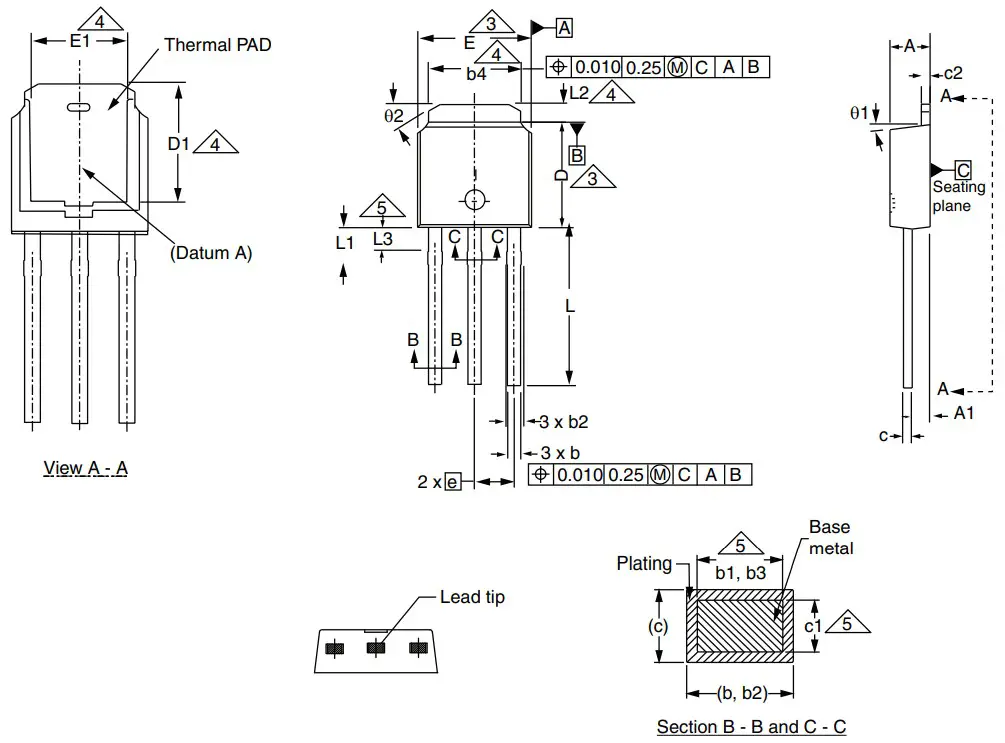

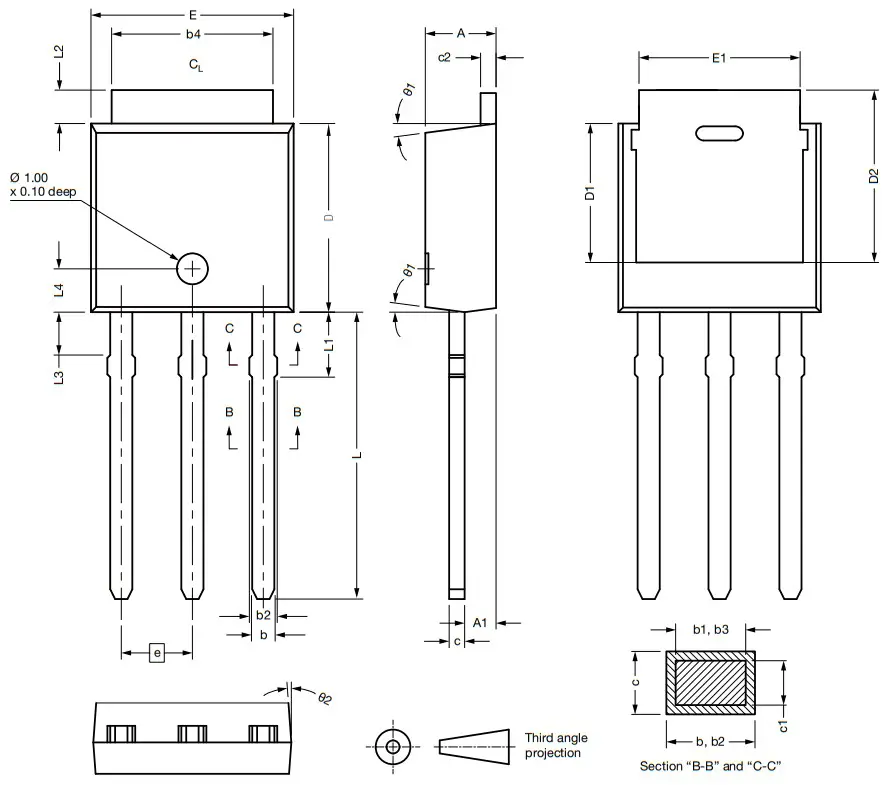

Case Outline for TO-251AA (High Voltage)

OPTION 1:

Notes

• Dimensioning and tolerancing per ASME Y14.5M-1994
• Dimension are shown in inches and millimeters
• Dimension D and E do not include mold flash. Mold flash shall not exceed 0.13 mm (0.005″) per side. These dimensions are measured at the outermost extremes of the plastic body
• Thermal pad contour optional with dimensions b4, L2, E1 and D1
• Lead dimension uncontrolled in L3
• Dimension b1, b3 and c1 apply to base metal only
• Outline conforms to JEDEC® outline TO-251AA

OPTION 2: FACILITY CODE = N

Notes

• Dimensioning and tolerancing per ASME Y14.5M-1994
• All dimension are in millimeters, angles are in degrees
• Heat sink side flash is max. 0.8 mm

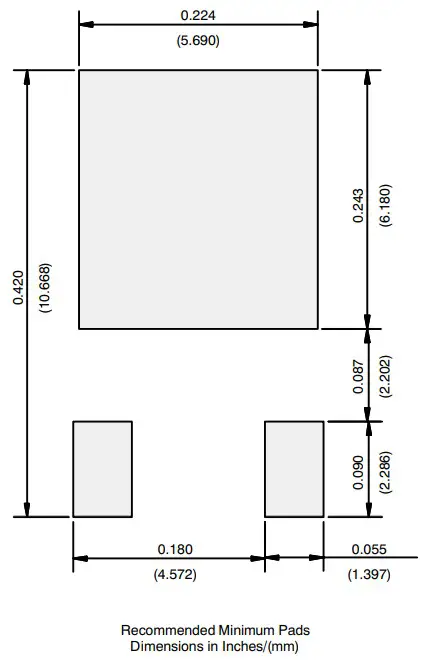

RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)

Return to Index

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2023 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED

For technical questions, contact: [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Revision: 01-Jan-2023
