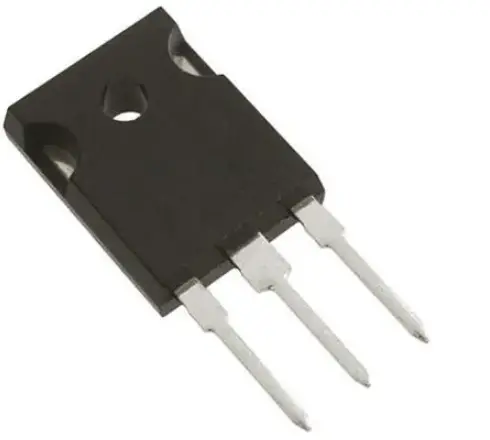

VISHAY IRF620 Siliconix Power MOSFET
FEATURES
- Dynamic dv/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Note
This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details

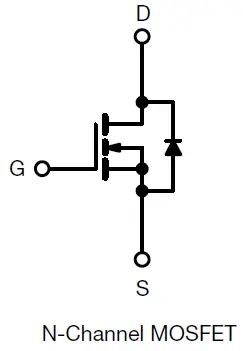

N-Channel MOSFET
DESCRIPTION
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry
PRODUCT SUMMARY
| VDS (V) | 200 | |
| RDS(on) (W) | VGS = 10 V | 0.80 |
| Qg max. (nC) | 14 | |
| Qgs (nC) | 3.0 | |
| Qgd (nC) | 7.9 | |
| Configuration | Single | |
ORDERING INFORMATION
| Package | TO-220AB |
| Lead (Pb)-free | IRF620PbF |
| Lead (Pb)-free and halogen-free | IRF620PbF-BE3 |
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
| PARAMETER | SYMBOL | LIMIT | UNIT | ||
| Drain-source voltage | VDS | 200 | V | ||
| Gate-source voltage | VGS | ± 20 | |||
| Continuous drain current | VGS at 10 V | TC = 25 °C | ID | 5.2 | A |
| TC = 100 °C | 3.3 | ||||
| Pulsed drain current a | IDM | 18 | |||
| Linear derating factor | 0.40 | W/°C | |||

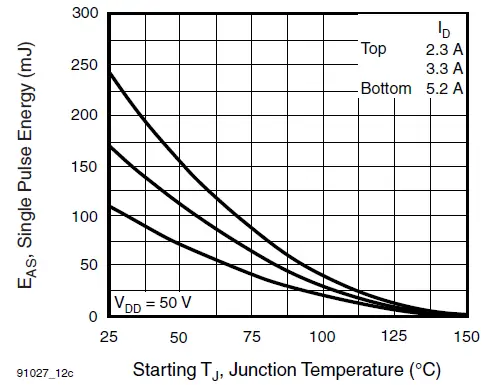

| Single pulse avalanche energy b | EAS | 110 | mJ | ||
| Repetitive avalanche current a | IAR | 5.2 | A | ||
| Repetitive avalanche energy a | EAR | 5.0 | mJ | ||
| Maximum power dissipation | TC = 25 °C | PD | 50 | W | |
| Peak diode recovery dV/dt c | dv/dt | 5.0 | V/ns | ||
| Operating junction and storage temperature range | TJ, Tstg | -55 to +150 | °C | ||
| Soldering recommendations (peak temperature) d | For 10 s | 300 | |||
| Mounting torque | 6-32 or M3 screw | 10 | lbf · in | ||
| 1.1 | N · m | ||||
Notes
- a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)

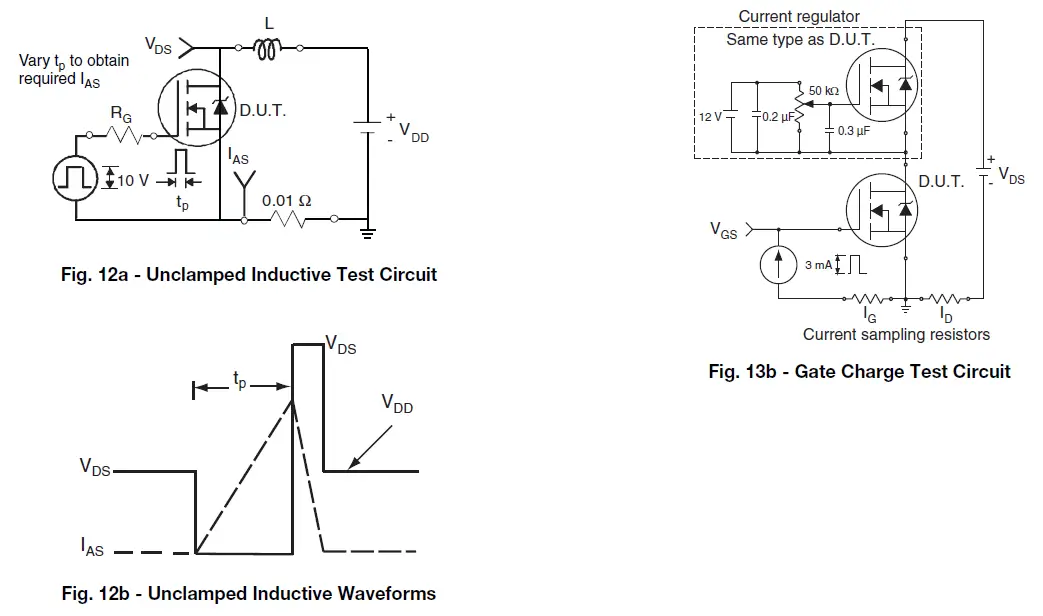

- b. VDD = 50 V, starting TJ = 25 °C, L = 6.1 mH, Rg = 25 Ω, IAS = 5.2 A (see fig. 12)
- c. ISD ≤ 5.2 A, di/dt ≤ 95 A/μs, VDD ≤ VDS, TJ ≤ 150 °C
- d. 1.6 mm from case
THERMAL RESISTANCE RATINGS
| PARAMETER | SYMBOL | TYP. | MAX. |
| Maximum junction-to-ambient | RthJA | – | 62 |
| Case-to-sink, flat, greased surface | RthCS | 0.50 | – |
| Maximum junction-to-case (drain) | RthJC | – | 2.5 |
SPECIFICATIONS
(TJ = 25 °C, unless otherwise noted)
| PARAMETER | SYMBOL | TEST CONDITIONS | MIN. | TYP. | MAX. | UNIT | |
| Static | |||||||
| Drain-source breakdown voltage | VDS | VGS = 0 V, ID = 250 μA | 200 | – | – | V | |
| VDS temperature coefficient | DVDS/TJ | Reference to 25 °C, ID = 1 mA | – | 0.29 | – | V/°C | |
| Gate-source threshold voltage | VGS(th) | VDS = VGS, ID = 250 μA | 2.0 | – | 4.0 | V | |
| Gate-source leakage | IGSS | VGS = ± 20 V | – | – | ± 100 | nA | |
| Zero gate voltage drain current | IDSS | VDS = 200 V, VGS = 0 V | – | – | 25 | μA | |
| VDS = 160 V, VGS = 0 V, TJ = 125 °C | – | – | 250 | ||||
| Drain-source on-state resistance | RDS(on) | VGS = 10 V | ID = 3.1 A b | – | – | 0.80 | W |
| Forward transconductance | gfs | VDS = 50 V, ID = 3.1 A | 1.5 | – | – | S | |
| Dynamic | |||||||

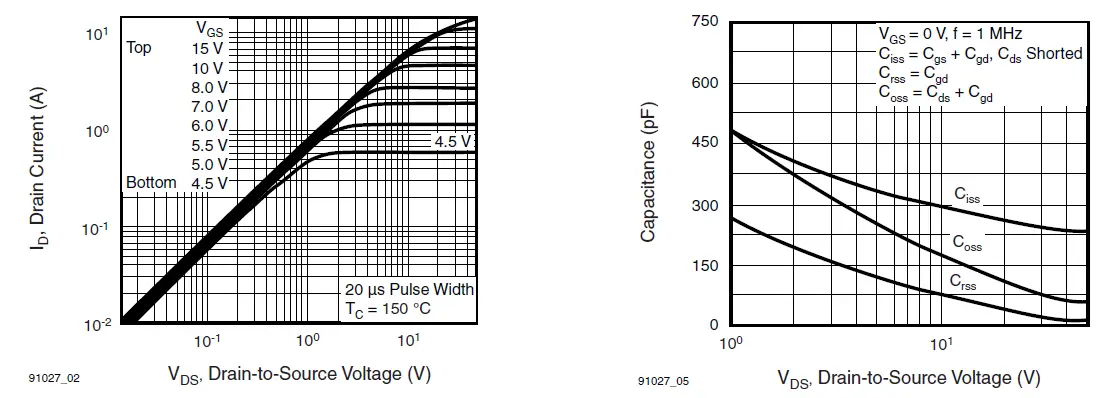

| Input capacitance | Ciss | VGS = 0 V, VDS = 25 V, f = 1.0 MHz, see fig. 5 | – | 260 | – | pF | |
| Output capacitance | Coss | – | 100 | – | |||
| Reverse transfer capacitance | Crss | – | 30 | – | |||

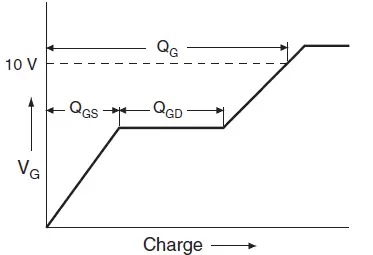

| Total gate charge | Qg | VGS = 10 V | ID = 4.8 A, VDS = 160 V, see fig. 6 and 13 b | – | – | 14 | nC |
| Gate-source charge | Qgs | – | – | 3.0 | |||
| Gate-drain charge | Qgd | – | – | 7.9 | |||
| Turn-on delay time | td(on) |  VDD = 100 V, ID = 4.8 A, Rg = 18 W, RD = 20 W, see fig. 10 b | – | 7.2 | – |
ns | |
| Rise time | tr | – | 22 | – | |||
| Turn-off delay time | td(off) | – | 19 | – | |||
| Fall time | tf | – | 13 | – | |||
| Gate input resistance | Rg | f = 1 MHz, open drain | 0.8 | – | 3.5 | W | |
| Internal drain inductance | LD | Between lead, D 6 mm (0.25″) from package and center of Gdie contactS
| – | 4.5 | – |
nH | |
| Internal source inductance | LS | – | 7.5 | – | |||
| Drain-Source Body Diode Characteristics | |||||||
| Continuous source-drain diode current | IS | MOSFET symbol D showing the integral reverse G p – n junction diode S | – | – | 5.2 | A | |
| Pulsed diode forward current a | ISM | – | – | 18 | |||
| Body diode voltage | VSD | TJ = 25 °C, IS = 5.2 A, VGS = 0 V b | – | – | 1.8 | V | |
| Body diode reverse recovery time | trr | TJ = 25 °C, IF = 4.8 A, dI/dt = 100 A/ms | – | 150 | 300 | ns | |
| Body diode reverse recovery charge | Qrr | – | 0.91 | 1.8 | μC | ||
| Forward turn-on time | ton | Intrinsic turn-on time is negligible (turn-on is dominated by LS and LD) | |||||
Notes
- a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
- b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %

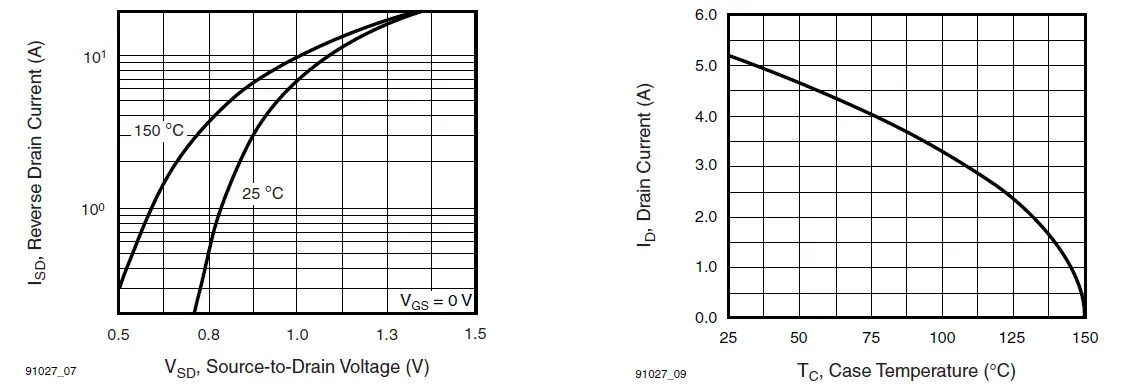

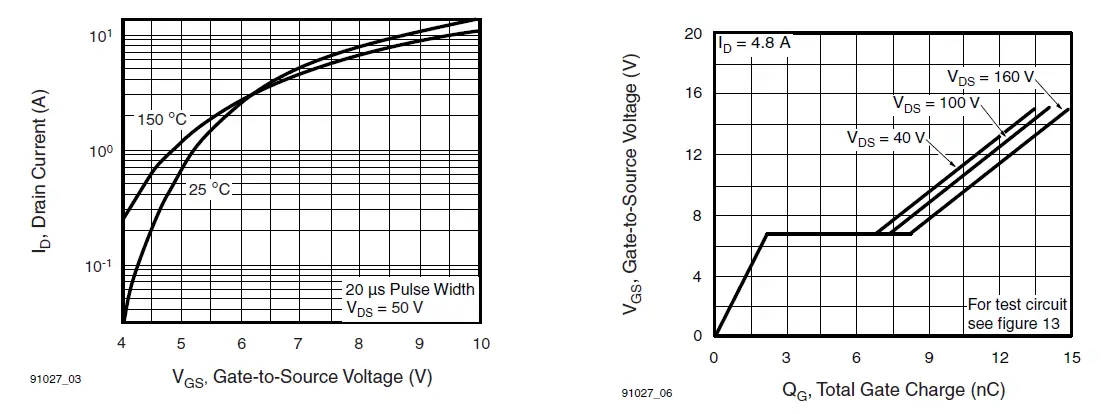

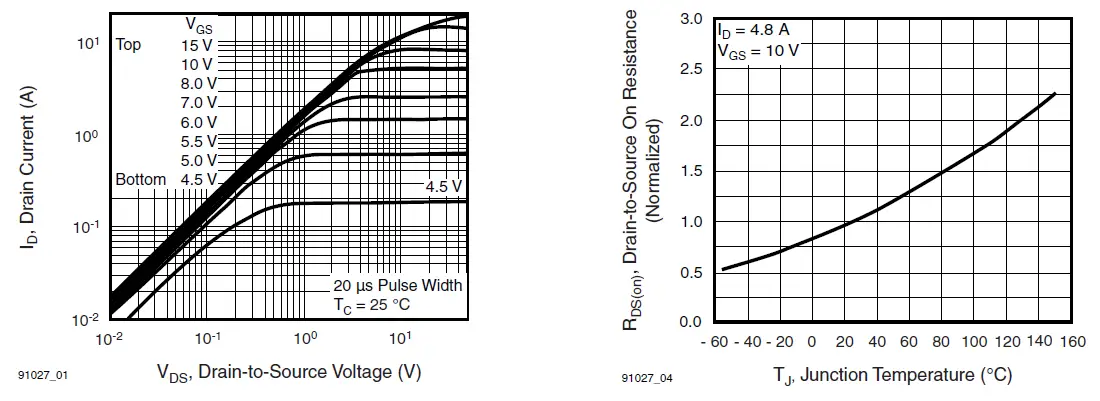

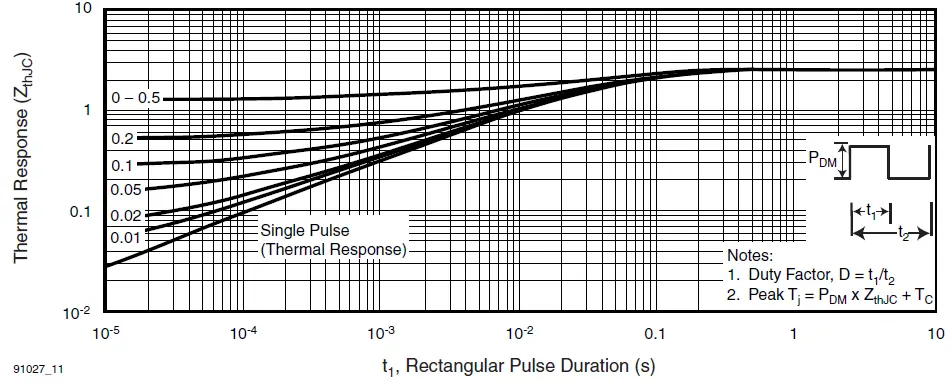

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

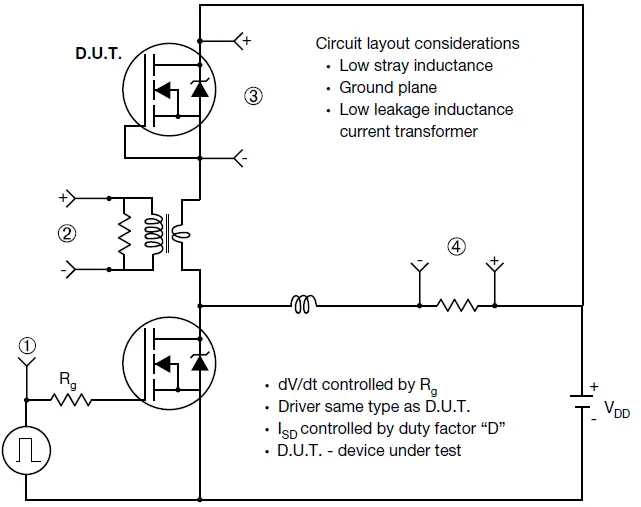

Peak Diode Recovery dV/dt Test Circuit

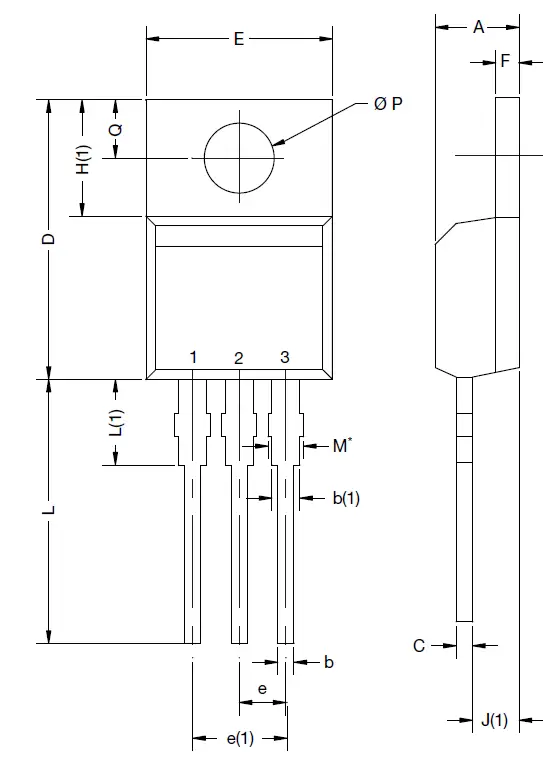

DIMENSIONS
| DIM. | MILLIMETERS | INCHES | ||
| MIN. | MAX. | MIN. | MAX. | |
| A | 4.24 | 4.65 | 0.167 | 0.183 |
| b | 0.69 | 1.02 | 0.027 | 0.040 |
| b(1) | 1.14 | 1.78 | 0.045 | 0.070 |
| c | 0.36 | 0.61 | 0.014 | 0.024 |
| D | 14.33 | 15.85 | 0.564 | 0.624 |
| E | 9.96 | 10.52 | 0.392 | 0.414 |
| e | 2.41 | 2.67 | 0.095 | 0.105 |
| e(1) | 4.88 | 5.28 | 0.192 | 0.208 |
| F | 1.14 | 1.40 | 0.045 | 0.055 |
| H(1) | 6.10 | 6.71 | 0.240 | 0.264 |
| J(1) | 2.41 | 2.92 | 0.095 | 0.115 |
| L | 13.36 | 14.40 | 0.526 | 0.567 |
| L(1) | 3.33 | 4.04 | 0.131 | 0.159 |
| Ø P | 3.53 | 3.94 | 0.139 | 0.155 |
| Q | 2.54 | 3.00 | 0.100 | 0.118 |
| ECN: E21-0621-Rev. D, 04-Nov-2021 DWG: 6031 | ||||
Note
M* = 0.052 inches to 0.064 inches (dimension including protrusion), heatsink hole for HVM
