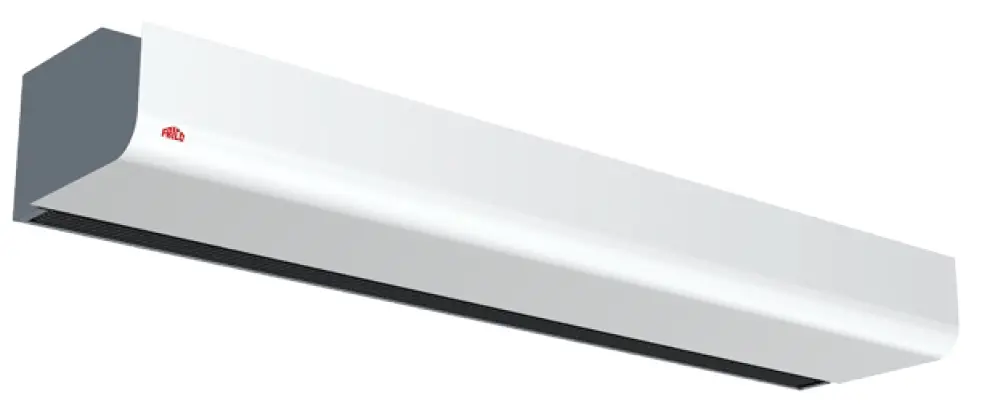

systemair PA2520E10YD Air Curtain
Item no. 14842
Version: 230V 3~
Description
Stylish air curtain for entrances, with intelligent control
- Recommended installation height 2,5 m
- Horizontal mounting
Application
- The PA2500 creates a temperature-dividing air barrier that effectively prevents cold drafts and gives excellent heating comfort in doorways, such as shops, offices and public offices.
- The air curtain has many intelligent and energy-saving features which provide fully automatic protection for the entrance, adaptable to each area of use.
Design
The PA2500 has a modern and stylish design developed to fit all entrances. A recess on the upper side of the unit with electrical heating simplifies installation and makes it more attractive. A recess on the upper side of the unit with electrical heating simplifies installation and makes it more attractive.The front can be finished in any colour to perfectly match the environment.
Technical parameters
| Unit | ||
| Type of installation | Horizontal | |
| Type of heating | Electric | |
| Length | 2050 | mm |
| Height | 209 | mm |
| Depth | 345 | mm |
| Weight | 36 | kg |
| Max. installation height | 2500 | mm |
| Color casing | RAL 9016, NCS S 0500- N | |
| Color, outlet grilles | RAL 7046 | |
| Protection class | IP20 | |
| Ambient working temperature range (dry conditions) | -20-30 | °C |
| Air flow | ||
| Air flow step 3 | 2900 | m³/h |
| Air flow step 2 | 2300 | m³/h |
| Air flow step 1 | 1800 | m³/h |
| Sound data | ||
| Sound power level LWA | 70 | dB(A) |
| Sound level step 3 | 53 | dB(A) |
| Sound level step 2 | 48 | dB(A) |
| Sound level step 1 | 43 | dB(A) |
| Control/motor data | ||
| Control/motor supply | 230 | V |
| Control/motor current | 1 | A |
| Max fan rpm | 1250 | r.p.m. |
| Motor power | 0,23 | kW |
| Heater | ||
| Supply voltage heating | 230 | V |
| Phase | 3 | ~ |
| Electric heating 100% | 10 | kW |
| Electric heating 66% | 6,7 | kW |
| Electric heating 33% | 3,4 | kW |
| Current heating 100% | 25,1 | A |
| Current heating 66% | 16,8 | A |
| Current heating 33% | 8,5 | A |
| Temperature rise, maximum heat output, highest airflow | 10,5 | °C |
| Temperature rise, maximum heat output, lowest airflow | 17 | °C |
Accessories
- SIRERTX Room sensor (17539)
- SIRECC605 5m Modular cable (17543)
- SIRECC615 15m Modular cable (17545)
- PA34TR20 Threaded rods (18057)
- PAMLK (18690)
- PA2PF20 Pendulum brackets (19417)
- PA2P20 Pendulum bar (19569)
Documentation
- ma_frico_pa2500_gb_170619.pdf (1,33MB)
- ma_frico_pa2p_pa2pf_pa34tr_160114.pdf (501,76kB) ma_frico_pamlk_low.pdf (549,72kB)
- cat_frico_pa2500_gb_20170612.pdf (417,45kB)
- cat_frico_ac_sire_valves_gb_20170523.pdf (345,98kB)
- Wiring diagram PA2500.pdf (96,44kB)
- DoC Air curtains_gb 2017-04.pdf (224,51kB)
- PA2520E-2D.dwg (446,50kB)
- PA2520E10-3D.dxf (87,58kB)
Specification text
Stylish air curtain for entrances, with intelligent control
- Recommended installation height 2,5 m*
- Horizontal mounting
Application
- The PA2500 creates a temperature dividing air barrier that effectively prevents cold drafts and gives excellent heating comfort in door ways, such as shops, offices and public offices.
- The air curtain has many intelligent and energy saving features which provide fully automatic protection for the entrance, adaptable to each area of use.
Design
The PA2500 has a modern and stylish design developed to fit all entrances. A recess on the upper side of the unit with electrical heating simplifies installation and makes it more attractive. A recess on the upper side of the unit with electrical heating simplifies installation and makes it more attractive.The front can be finished in any colour to perfectly match the environment.
- Name: PA2520E10YD AIR CURTAIN
- Item no.: 14842
- Version: 230V 3~
- Document type: Product card
- Document date: 2019-07-03
- Generated by: Online catalogue
