GREE FM-1.25-9-K Air Curtain
Product Information

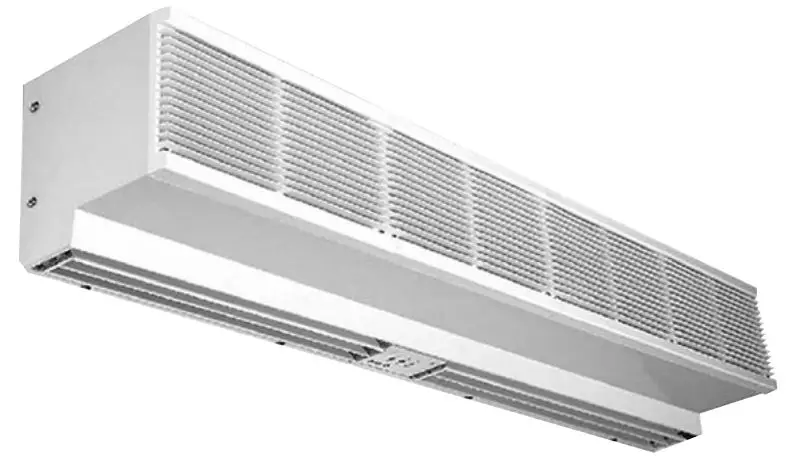

The Air Curtain is a product manufactured by Gree Australia. It is designed to create an invisible curtain of air that separates the indoor and outdoor environments, preventing the exchange of air and maintaining desired temperatures. The Air Curtain comes in two models: FM-1.25-9-K and FM-1.25-12-K.
FM-1.25-9-K Specifications:
- Part Code: FM-1.25-9-K
- Exploded View: Available
- Spare Parts List: Available
FM-1.25-12-K Specifications:
- Part Code: FM-1.25-12-K
- Exploded View: Available
- Spare Parts List: Available
Contact Information:
If you have any questions or need further assistance, please contact Gree Australia at 1800 473 346 or visit their website at greeac.com.au.
Product Usage Instructions
Before using the Air Curtain, please ensure that you have all the necessary spare parts mentioned in the Spare Parts List for your specific model.
Installation
- Choose a suitable location to install the Air Curtain.
- Refer to the Mounting Plate and Extended Base parts to securely mount the Air Curtain.
- Use the Wall Mounting Frame or Seat Board Sub-Assy for proper installation on walls.
- Connect the Power Cord to an appropriate power source.
- If using the Remote Controller, ensure that it is paired with the Air Curtain.
Operation
To operate the Air Curtain, follow these steps:
- Ensure that the Air Curtain is securely installed and all connections are properly made.
- Turn on the power supply.
- Use the Remote Controller or Main Board to set the desired settings such as fan speed, temperature, and mode.
- The Air Curtain will create a curtain of air to separate the indoor and outdoor environments.
Note: For detailed instructions on setting up and operating the Air Curtain, please refer to the user manual provided with the product.

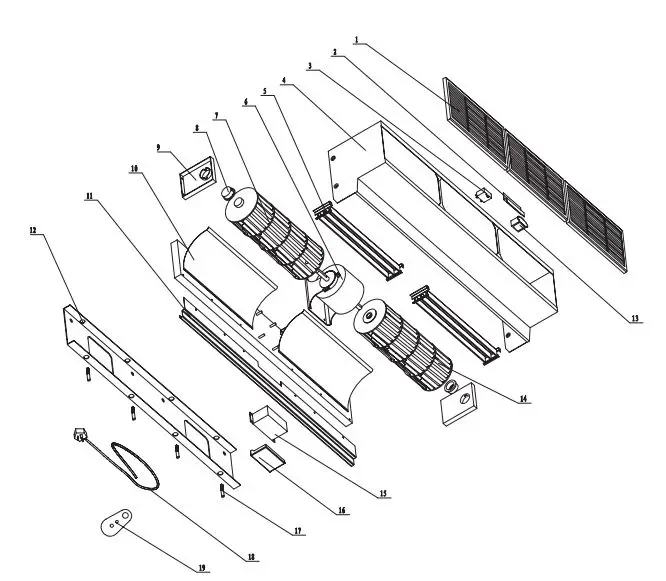

Exploded View
Spare Parts List
| No. | Part Description | Part Code |
| 1 | Plastic Fence | 22419811 |
| 2 | Transformer Fixer | 01339817 |
| 3 | Capacitor 3uF/450V | 33010027 |
| 4 | Case Assay | 01519811 |
| 5 | Guide Louver Assay | 01379811 |
| 6 | Motor FM65A | 15019811 |
| 7 | Left Cross Flow Fan | 10519811 |
| 8 | Bearing Bush | 76719811 |
| 9 | Bearing Holder | 01729813 |
| 10 | Base Assay | 01229810 |
| 11 | Extended Base | 01799812 |
| 12 | Wall Mounting Frame | 01339811 |
| 13 | Transformer SC16B1 | 43110195 |
| 14 | Right Cross Flow Fan | 10519812 |
| 15 | Main PCB-2 Z50151 | 30225004 |
| 16 | Main PCB-1 Z50151 | 30225003 |
| 17 | Mounting Screw | 70119811 |
| 18 | Power Cord | 400202681 |
| 19 | Remote Controller ZY611 | 30506001 |

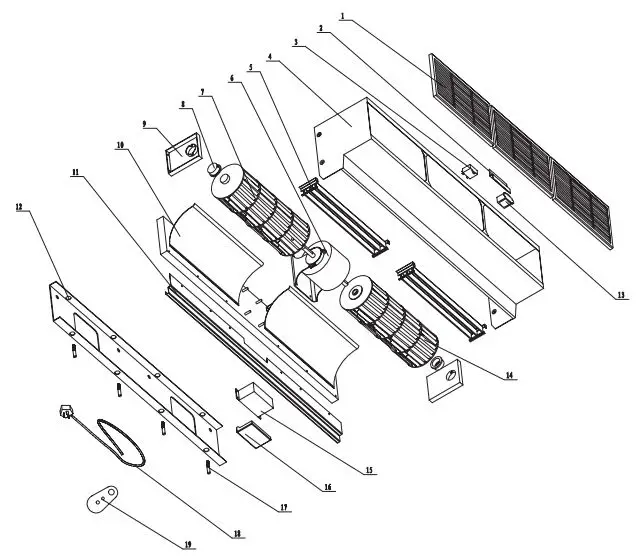

Exploded View
| No. | Part Description | Part Code |
| 1 | Wind Grill | 22419811 |
| 2 | Mounting Plate | 01339818 |
| 3 | Capacitor CBB61S | 3301074714 |
| 4 | Body Of Outdoor Unit | 01439811 |
| 5 | Guide Louver | 01379814 |
| 6 | Fan Motor | 15019811 |
| 7 | Left Cross Flow Fan | 105198111 |
| 8 | Bearing Bush | 76719811 |
| 9 | Bearing Holder | 01729813 |
| 10 | Seat Board Sub-Assy | 01229815 |
| 11 | Extended Base | 01799814 |
| 12 | Mounting Plate | 01339815 |
| 13 | Transformer | 43110260 |
| 14 | Right Cross Flow Fan | 105198121 |
| 15 | Main Board | 30225004 |
| 16 | Main Board | 30295000017 |
| 17 | Screw | 70119811 |
| 18 | Power Cord | 4002049110 |
| 19 | Remote Controller | 30506001 |
- It is the policy of Gree Australia to introduce continuous product improvements. Accordingly, specifications are subject to change without notice.
- Please consult with your dealer to confirm the specifications of the model selected.
- BoraSparePartsList-0223
- 1800 473 346 greeac.com.au
