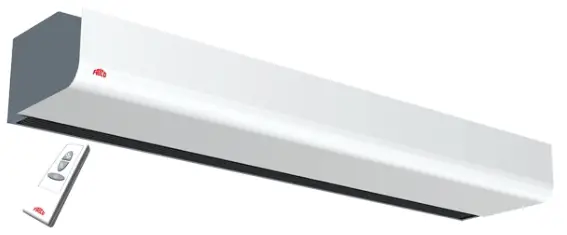

PA2210CE08 AIR CURTAIN
Item no. 19422
Document type: Product card
Document date: 2019-07-03
Generated by: Systemair Online Catalogue
Description
Stylish air curtain for entrances, with remote and integrated control
- Recommended installation height 2,2 m
- Horizontal mounting
Application
The PA2200C is a compact air curtain, suitable for most small entrances. The air curtain has an integrated control system and can also be remotely controlled which makes it very easy to use. PA2200C creates a temperature-dividing air barrier that effectively prevents cold draughts and gives excellent heating comfort inside the door.
Design
With its timeless design PA2200C is suitable for all entrances. The air curtain has a control panel discretely integrated into the end, which makes cable routing unnecessary. The front can be finished in any color to perfectly match the environment.
Technical parameters
| Unit | ||
| Type of installation | Horizontal | |
| Type of heating | Electrical heat | |
| Length | 1050 | mm |
| Height | 209 | mm |
| Depth | 345 | mm |
| Weight | 17 | kg |
| Max. installation height | 2200 | mm |
| Color casing | RAL 9016, NCS S 0500- N | |
| Color, outlet grilles | RAL 7046 | |
| Protection class | IP20 | |
| Ambient working temperature range (dry conditions) | -20-30 | °C |
| Airflow | ||
| Airflow step 3 | 1200 | m³/h |
| Airflow step 2 | 1000 | m³/h |
| Airflow step 1 | 900 | m³/h |
| Sound data | ||
| Sound power level LWA | 67 | dB(A) |
| Sound level step 3 | 51 | dB(A) |
| Sound level step 2 | 47 | dB(A) |
| Sound level step 1 | 42 | dB(A) |
| Control/motor data | ||
| Control/motor supply | 230 | V |
| Control/motor current | 0,45 | A |
| Motor power | 0,11 | kW |
| Heater | ||
| Supply voltage heating | 400 | V |
| Phase | 3 | ~ |
| Electric heating 100% | 8 | kW |
| Electric heating 50% | 5 | kW |
| Current heating is 100% | 11,5 | A |
| Current heating is 50% | 7,2 | A |
| Temperature rise, maximum heat output, highest airflow | 20 | °C |
| Temperature rise, maximum heat output, lowest airflow | 27 | °C |
Accessories
Accessories
PA34TR15 Threaded rods (18056)
PAMLK (18690)
PA2PF15 Pendulum brackets (19415)
PA2P15 Pendulum bar (19568)
PA2DR Remote + door contact (15662)
 | ma_frico_pa2dr.pdf (157,01kB) |
| ma_frico_pa2200c_gb.pdf (1,33MB) |
| ma_frico_pa2p_pa2pf_pa34tr_160114.pdf (501,76kB) |
| ma_frico_pamlk_low.pdf (549,72kB) |
| cat_frico_pa2200c_gb_170911.pdf (393,01kB) |
| Wiring diagram PA2200C.pdf (185,92kB) |
| DoC Air curtains_gb 2017-04.pdf (224,51kB) |
 | PA2210CE08-3D.dxf (87,05kB) |
| PA2210CE_CA-2D.dwg (294,93kB) |
Name: PA2210CE08 AIR CURTAIN | Item no.: 19422
Document type: Product card | Document date: 2019-07-03 | Generated by: Online catalog
Specification text
Stylish air curtain for entrances, with remote and integrated control
- Recommended installation height 2,2 m
- Horizontal mounting
Application
The PA2200C is a compact air curtain, suitable for most small entrances. The air curtain has an integrated control system and can also be remotely controlled which makes it very easy to use.
PA2200C creates a temperature-dividing air barrier that effectively prevents cold draughts and gives excellent heating comfort inside the door.
Design
With its timeless design PA2200C is suitable for all entrances. The air curtain has a control panel discretely integrated into the end, which makes cable routing unnecessary. The front can be finished in any color to perfectly match the environment
