Eas Electric Air Curtain Instruction Manual

CORTINA DE AIRE
AIR CURTAIN
Serie ECA
V.2
Instruction Manual

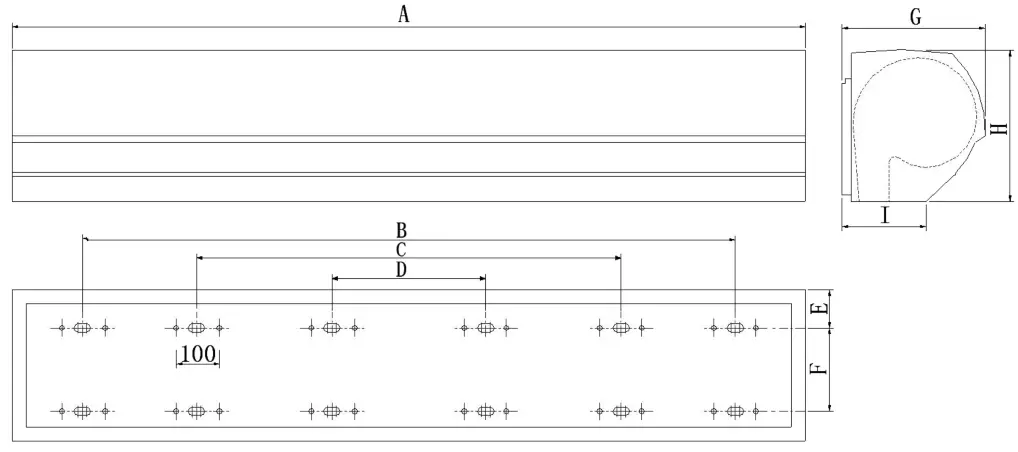

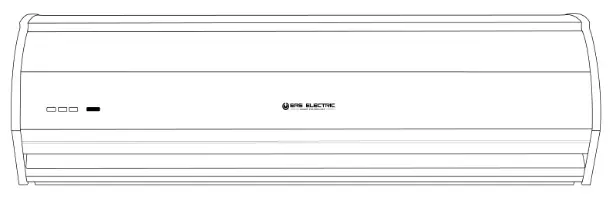

IDENTIFICATION & INSTALLATION DIMENSIONS

INSTALLATION CAUTION

Must follow the following requirements when installing air curtain:

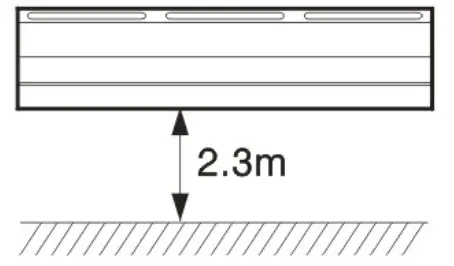

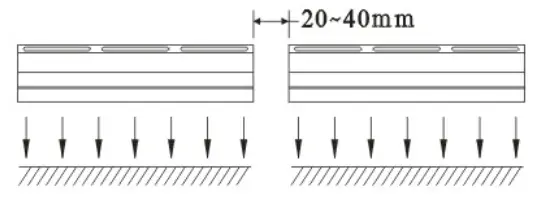

2.1 Please install the unit in a sturdy place to avoid shaking and ensure its security (because it may cause the wall becoming flexible or shaking and noise). 2.2 Please install the unit inside the room.2.3 Don’t install the unit too low, no less than 2.3 meter from the ground. 2.4 When the entrance is wider than the unit, it is recommended to install two or more units in parallel. In this case, provide 20-40mm gaps between the units.

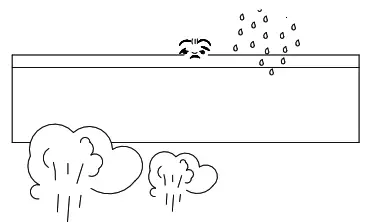

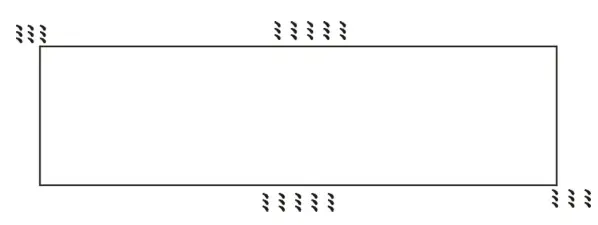

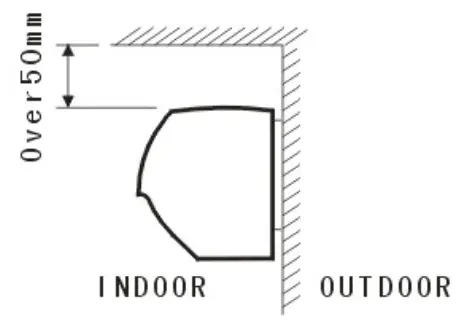

2.5 Don’t allow gaps between the unit and the wall. When hanging it from the ceiling, use the enclosed ceiling brackets.2.6 Don’t install the unit in a place where it might be splashed by water, exposed to excessive steam, explosive gas or corrosive gas.

INSTALLATION

A. Installing on concrete wall:

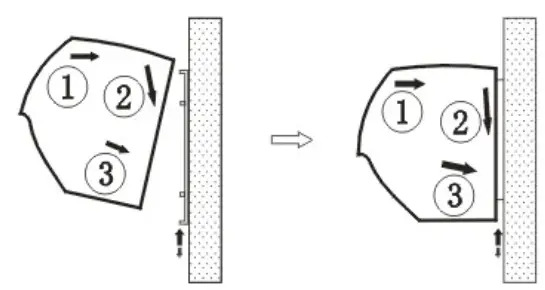

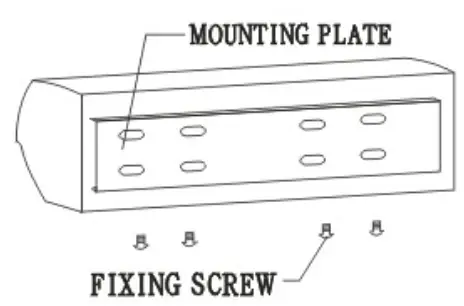

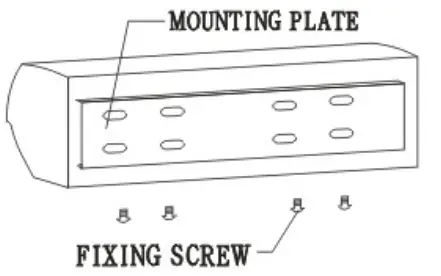

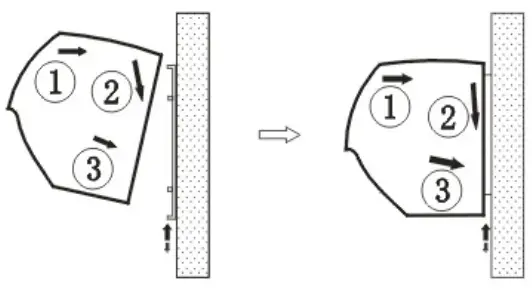

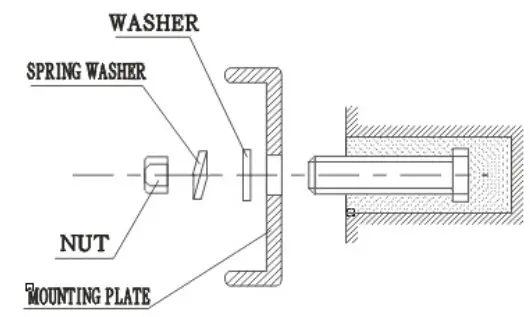

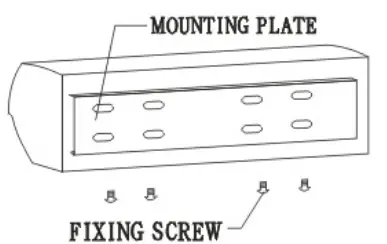

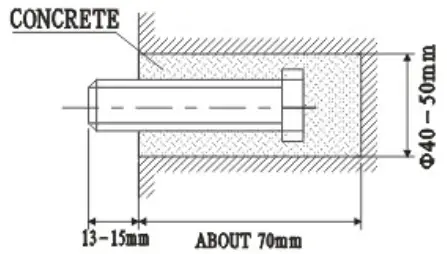

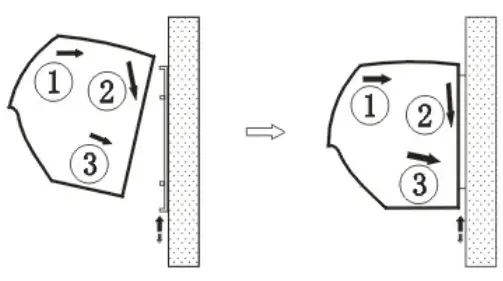

3.1.1 Remove the mounting plate Unclamp the fixed screws on the back of main body to remove the mounting plate. 3.1.2 Fix the bolts in the proper position (Decide the position with the mounting plate and pour cement into the bolt holes.)3.1.3 When the cement has frozen, fit the mounting plate (use the washer and nut according to the following) 3.1.4 Install the main body Set the main body onto the upper end of the mounting plate and clamp it as shown.

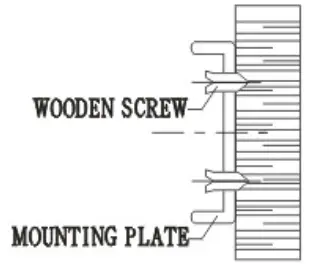

B. Installing on the wooden wall
3.2.1 Fix the mounting plate in the proper positions with tapping screw.3.2.2 Same as the step 3 of A

C. Hanging from the ceiling

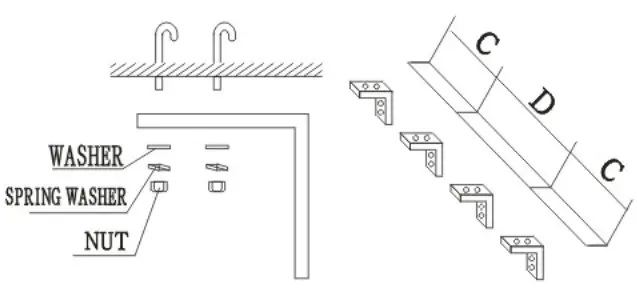

3.3.1 Remove the mounting plate from main body (Same as step 3.1.1)3.3.2 Fixing ceiling brackets as Fig.

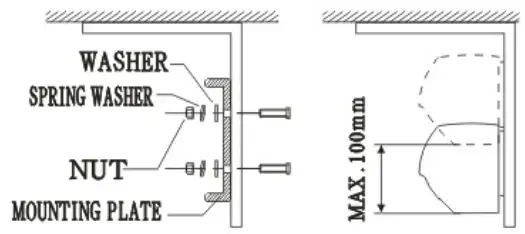

3.3.3 Set the mounting plate on the ceiling brackets and ensure it is safely fixed (use the bolts attached to the ceiling brackets as Fig. Using the ceiling brackets to hang from the ceiling, the position of mounting plate can be adjusted in the limit of 100mm.3.3.4 Do the same as step A to install the main body.3.4.1 Fix the air curtain as in the procedure for installing on the concrete wall.3.4.2 Then pipe as below Fig. instructs.

TECHNICAL PARAMETER

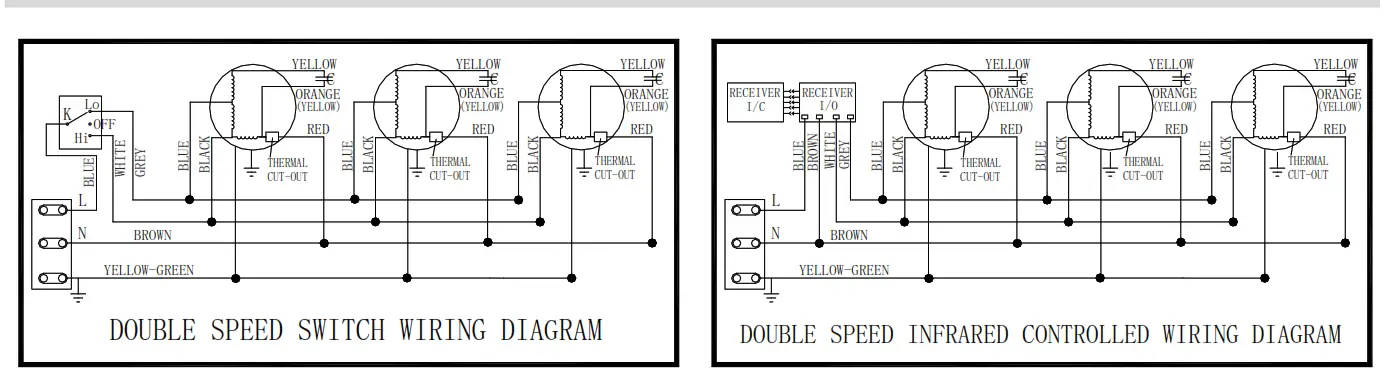

ELECTRIC WORK

OPERATION

6.1 Turn on the power switch
6.2 Select the best speed：High[H], Low[L]
6.3 According to the installation place to adjust the wind direction parts to obtain the best effect.

CAUTIONS

a) Use the unit at the rated voltage and frequency indicated on the nameplate.
b) Disconnect power source before unit operation.
c) Routing maintenance must be done every year.
d) Never use petrol, benzene, thinner or any other such chemical for clearing the unit.
e) Don’t allow water or anything enter the motor.
f) When power supply comes from socket, the plug must accord with IEC335-1. When the power cord is connected with charging line directly, all polarity switches that the contact gap is 3mm at least must be installed in the charging line.

Visítanos en: www.easelectric.es

Scan for manual in other languages and further updates:https://s3.eu-west-3.amazonaws.com/documentacion.tecnica/Documentaci%C3%B3n%20T%C3%A9cnica%20B2C%2FVentilaci%C3%B3n%2FCortinas%20de%20aire%2FECA_manual_usuario_%2301.pdf
Complete documents about the product
https://easelectric.es/p/12-documentacion-tecnica
EAS ELECTRIC SMART TECHNOLOGY, S.L.U.
P.I. San Carlos, Camino de la Sierra, S/N, Parcela 11
03370 Redován (Alicante) – ESPAÑA
