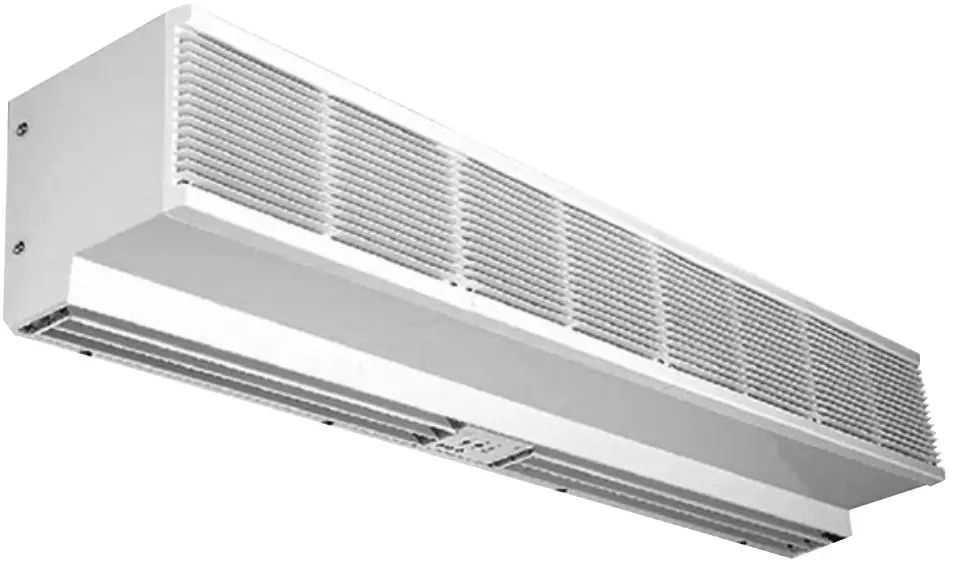

GREE FM-1.25-12-K Air Curtain User Manual

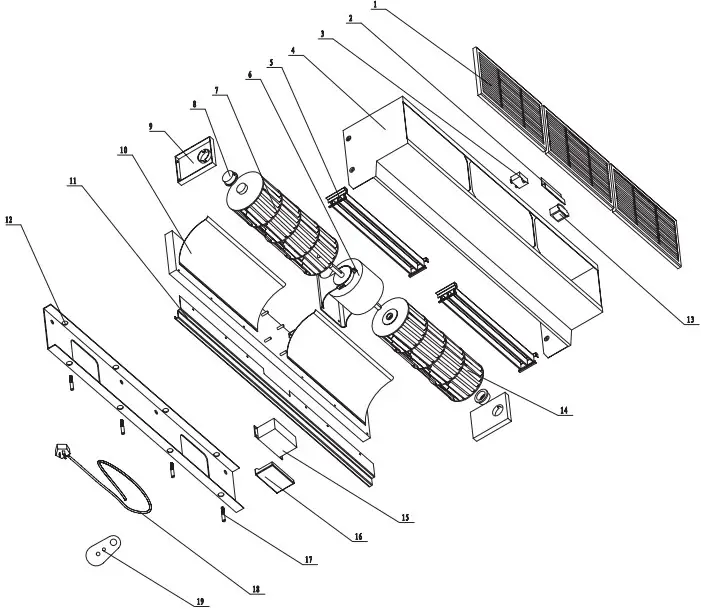

Exploded View
Spare Parts List
| No | Part Description | Part Code |
| 1 | Wind Grill | 22419811 |
| 2 | Mounting Plate | 01339818 |
| 3 | Capacitor CBB61S | 3301074714 |
| 4 | Body Of Outdoor Unit | 01439811 |
| 5 | Guide Louver | 01379814 |
| 6 | Fan Motor | 15019811 |
| 7 | Left Cross Flow Fan | 105198111 |
| 8 | Bearing Bush | 76719811 |
| 9 | Bearing Holder | 01729813 |
| 10 | Seat Board Sub-Assy | 01229815 |
| 11 | Extended Base | 01799814 |
| 12 | Mounting Plate | 01339815 |
| 13 | Transformer | 43110260 |
| 14 | Right Cross Flow Fan | 105198121 |
| 15 | Main Board | 30225004 |
| 16 | Main Board | 30295000017 |
| 17 | Screw | 70119811 |
| 18 | Power Cord | 4002049110 |
| 19 | Remote Controller | 30506001 |
It is the policy of Gree Australia to introduce continuous product improvements. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
BoraSparePartsList-0223
