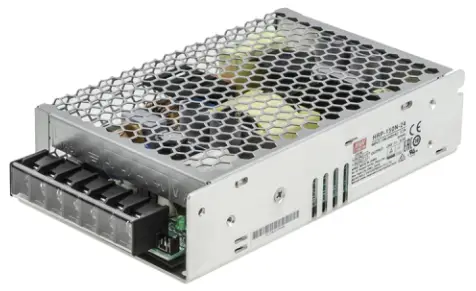

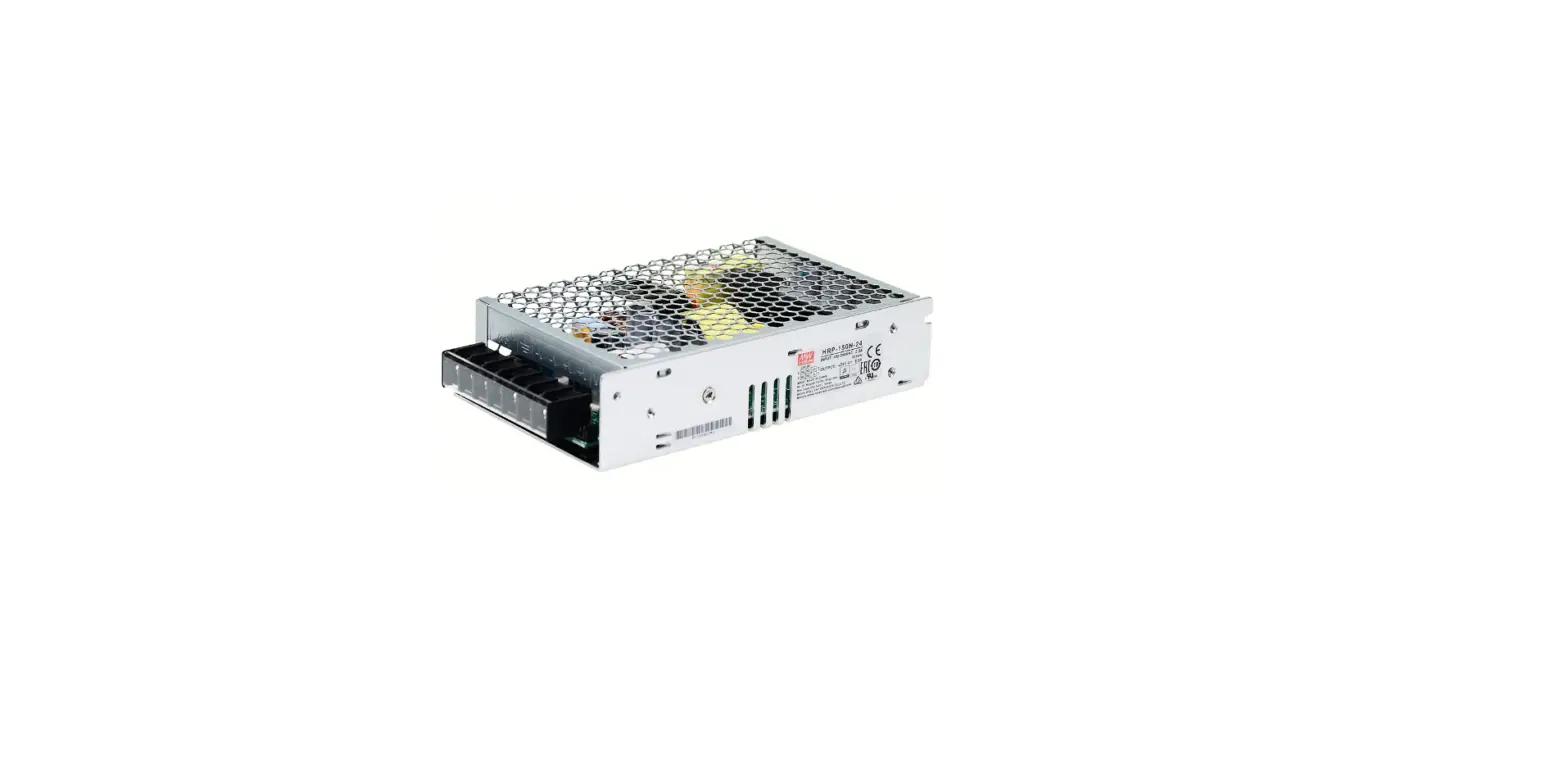

150W Single Output with PFC Function
Instruction Manual

Contents hide

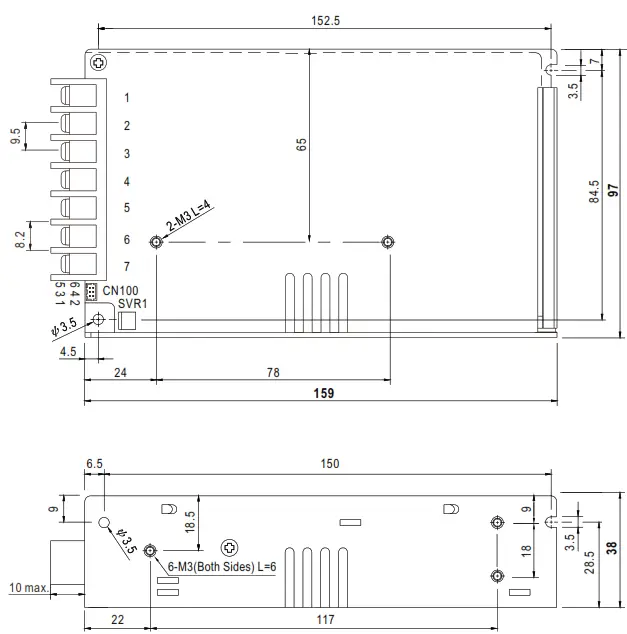

6 Mechanical Specification

7 Documents / Resources

7.1 References

8 Related Posts

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
250% peak power capability
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 38mm
Built-in remote sense function
5 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Diagnostic or biological facilities
Test or measurement systems
Telecommunication equipment

■ GTIN CODE
MW Search:https://www.meanwell.com/serviceGTIN.aspx

■ Description
HRP-150N is a 150W single output type AC/DC power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70°C without cover. Moreover, HRP-150N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
■ Model Encoding

HRP	Output voltage(12/24/36/48V)
150N	Rated wattage
24	Series name

SPECIFICATION

MODEL		HRP-150N- 2	HRP-150N-24		HRP-150N-36		HRP-150N-48
OUTPUT	DC VOLTAGE	12V	24V		36V		48V
	RATED CURRENT	13A	6.5A		4.3A		3.3A
	CURRENT RANGE	0 ~ 13A	0 ~ 6.5A		0 ~ 4.3A		0 ~ 3.3A
	RATED POWER	156W	156W		154.8W		158.4W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	150mVp-p		200mVp-p		240mVp-p
	VOLTAGE ADJ. RANGE	10.2 ~ 13.8V	21.6 ~ 28.8V		28.8 ~ 39.6V		40.8 ~ 55.2V
	VOLTAGE TOLERANCE Note.3	±1.5%	±1.5%		±1.5%		±1.5%
	LINE REGULATION	±0.3%	±0.2%		±0.2%		±0.2%
	LOAD REGULATION	±0.5%	±0.5%		±0.5%		±0.5%
	SETUP, RISE TIME	3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE ote.4	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.95/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)	88%	88%		89%		89%
	AC CURRENT (Typ.)	1.7A/115VAC 0.9A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVERLOAD	Normally works within 105 ~ 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover
		Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
	OVERVOLTAGE	14.4 ~ 16.8V	30 ~ 34.8V		41.4 ~ 48.6V		57.6 ~ 67.2V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-40 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-50 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.04%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
	OPERATING ALTITUDE Note.6	5000 meters
SAFETY & EMC (Note 5)	SAFETY STANDARDS	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard		Test Level / Note
		Conducted		BS EN/EN55032		Class B
		Radiated		BS EN/EN55032		Class B
		Harmonic current		BS EN/EN61000-3-2		Class A
		Voltage Flicker		BS EN/EN61000-3-3		—–
	EMC IMMUNITY	BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)
		Parameter		Standard		Test Level / Note
		ED		BS EN/EN61000-4-2		Level 3, 8KV air; Level 2, 4KV contact
		RF field		BS EN/EN61000-4-3		Level 3, 10V/m
		EFT/ Burst		BS EN/EN61000-4-4		Level 3, 2KV
		Surge		BS EN/EN61000-4-5		Level 4, 4KV/Line-FG; 2KV/Line-Line
		Conducted		BS EN/EN61000-4-6		Level 3, 10V
		Magnetic Field		BS EN/EN61000-4-8		Level 4, 30A/m
		Voltage Dips and Interruptions		BS EN/EN61000-4-11		95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
OTHERS	MTBF	1740.3K hrs min. Telcordia SR-332 (Bellcore) ; 221.7K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	1599738mm (LWH)
	PACKING	0.54Kg; 24pcs/12.96Kg/0.9CUFT

NOTE

All parameters NOT specially mentioned are measured at 230VAC input rated load, and 25℃ of ambient
Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 1uf & 47uf parallel capacitor.
Tolerance: includes set up tolerance, line regulation, and load
Derating may be needed under low input Please check the derating curve for more details.
The power supply is considered a component that will be installed into a final All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
The ambient temperature derating of 5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitudes higher than 2000m(6500ft).

※ Product Liability Disclaimer For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

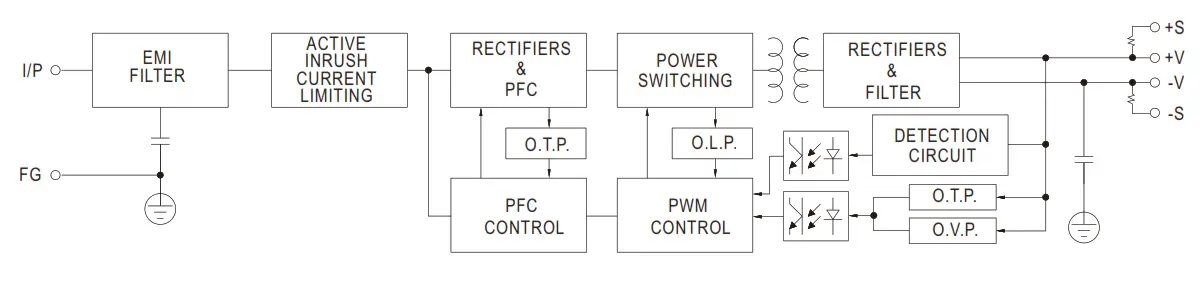

Block Diagram

PWM fosc: 90KHz

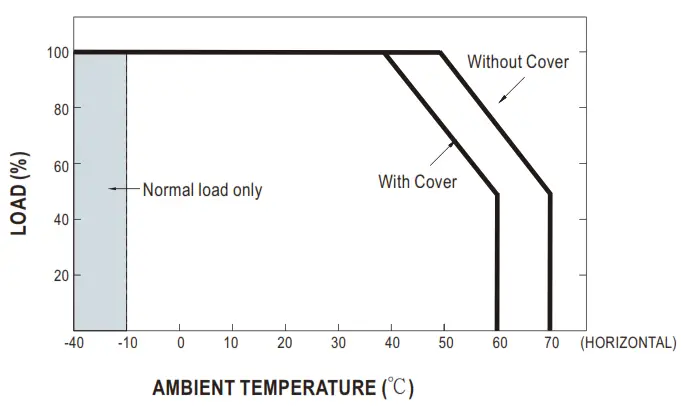

Derating Curve

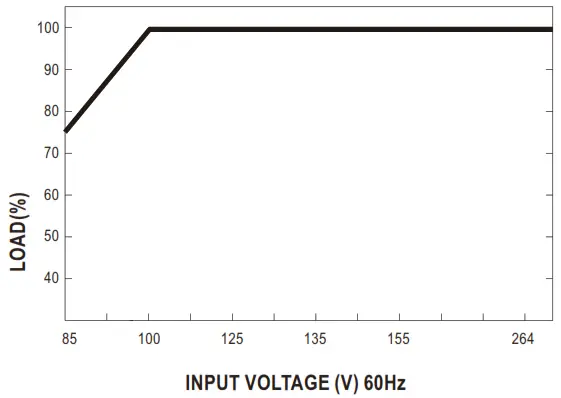

Output Derating VS Input Voltage

Function Manual

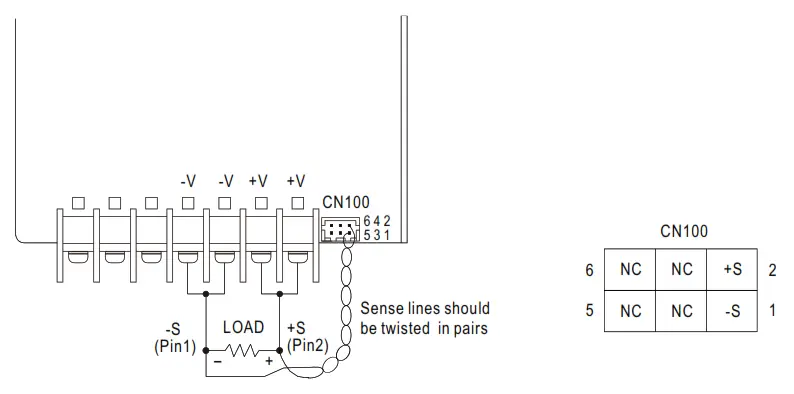

Remote Sense
The remote sensing compensates for voltage drop on the load wiring up to 0.5V.

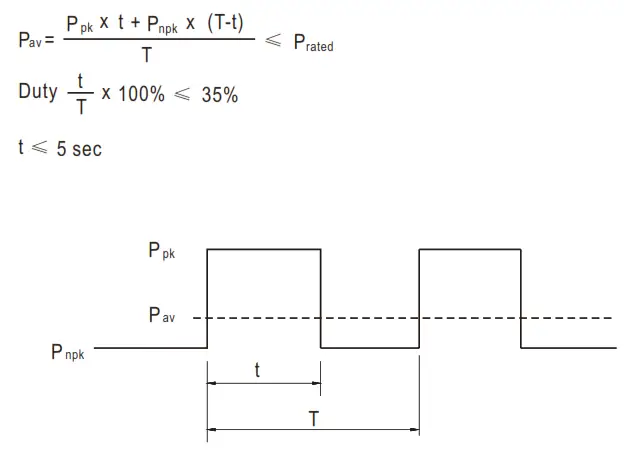

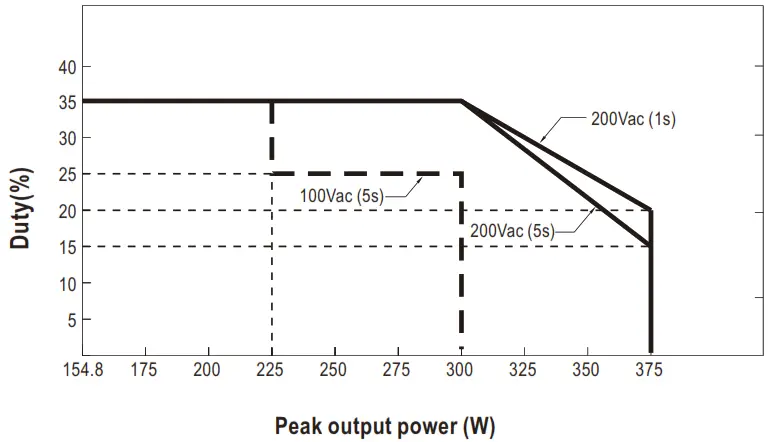

Peak Power
P av: Average output power (W)
P pk: Peak output power (W)
P npk: Non-peak output power(W)
P rated: Rated output power(W)
t : Peak power width(sec)
T : Period(sec)
