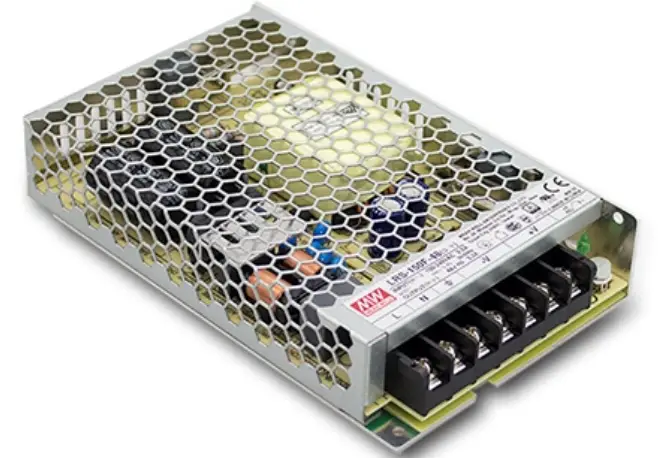

MEAN WELL LRS-150F Series Single Output Switching Power Supply
Product Information
The LRS-150F series is a 150W Single Output Switching Power Supply. It is designed to provide reliable and efficient power for various applications. The power supply is compliant with safety standards such as AS/NZS62368-1, GB4943.1, UL62368-1, Bauar t gepruft Sicherheit, and TP TC004 IEC62368-1. It has been tested and certified by TUV.
Specifications
| Model | Output Voltage | Rated Current | Current Range | Rated Power | Ripple & Noise (max.) | Setup, Rise Time | Hold Up Time (Typ.) | Voltage Range | Frequency Range | Efficiency (Typ.) | Input AC Current (Typ.) | Inrush Current (Typ.) | Leakage Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LRS-150F-5 | 5V | 22A | 0 ~ 22A | 110W | 100mVp-p | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | 16ms/230VAC 12ms/115VAC at full load | 85 ~ 264VAC 120 ~ 370VDC | 47 ~ 63Hz | 85% | 3A/115VAC 1.7A/230VAC | COLD STAR 60A/230VAC | |
| LRS-150F-12 | 12V | 12.5A | 0 ~ 12.5A | 150W | 150mVp-p | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | 16ms/230VAC 12ms/115VAC at full load | 85 ~ 264VAC 120 ~ 370VDC | 47 ~ 63Hz | 87.5% | 3A/115VAC 1.7A/230VAC | COLD STAR 60A/230VAC | |
| LRS-150F-15 | 15V | 10A | 0 ~ 10A | 150W | 150mVp-p | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | 16ms/230VAC 12ms/115VAC at full load | 85 ~ 264VAC 120 ~ 370VDC | 47 ~ 63Hz | 89% | 3A/115VAC 1.7A/230VAC | COLD STAR 60A/230VAC | |
| LRS-150F-24 | 24V | 6.5A | 0 ~ 6.5A | 156W | 200mVp-p | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | 16ms/230VAC 12ms/115VAC at full load | 85 ~ 264VAC 120 ~ 370VDC | 47 ~ 63Hz | — | — | — | |
| LRS-150F-36 | 36V | — | — | — | — | — | — | — | — | — | — | — | — |
| LRS-150F-48 | 48V | — | — | — | — | — | — | — | — | — | — | — | — |
Product Usage Instructions
To use the LRS-150F series Single Output Switching Power Supply, follow these instructions:
- Choose the appropriate model based on the required output voltage and current.
- Ensure that the input voltage falls within the specified voltage range (85 ~ 264VAC or 120 ~ 370VDC) and frequency range (47 ~ 63Hz).
- Connect the AC power source to the power supply using suitable cables or connectors.
- Connect the load to the power supply’s output terminals, ensuring correct polarity.
- If required, adjust the output voltage using the provided adjustment mechanism.
- Switch on the AC power source.
Note: Refer to the user manual for detailed safety instructions and precautions before using the power supply.
Features
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 second
- No load power consumption<0.5W
- Miniature size and 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over voltage category Ill
- 100% full load burn-in test
- 3 vears warranty
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- Household appliances
GTIN CODE MW Search: https://www.meanwell.com/serviceGTIN.asox
Description
- LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design.
- Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
- In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30°C through 70°C under air convection without a fan.
- Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.

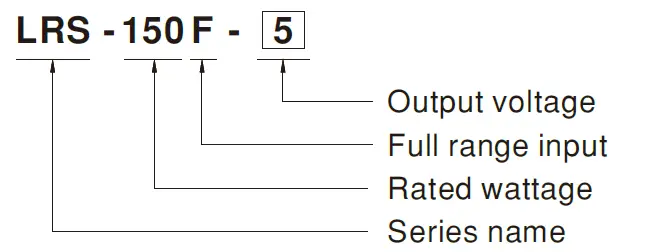

Model Encoding
SPECIFICATION
| MODEL | LRS-150F-5 | LRS-150F-12 | LRS-150F-15 | LRS-150F-24 | LRS-150F-36 | LRS-150F-48 | |
|
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 22A | 12.5A | 10A | 6.5A | 4.3A | 3.3A | |
| CURRENT RANGE | 0 ~ 22A | 0 ~ 12.5A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 4.3A | 0 ~ 3.3A | |
| RATED POWER | 110W | 150W | 150W | 156W | 154.8W | 158.4W | |
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.2 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 32.4 ~ 39.6V | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION Note.5 | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 12ms/115VAC at full load | ||||||
|
INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 85% | 87.5% | 89% | 89% | 89% | 90% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD STAR 60A/230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||||||
|
PROTECTION | OVER LOAD | 110 ~ 140% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 18.75 ~ 21.75V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||
|
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | ||||||
|
SAFETY & EMC (Note 7) | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS15598-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2 Class A(≤80% Load ), GB/T 9254, BSMI CNS15936, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 2761.8K hrs min. Telcordia SR-332 (Bellcore) ; 592.4Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 159*97*30mm (L*W*H) | ||||||
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | ||||||
NOTE
- All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0. 1uf & 47uf parallel capacitor.
- Tolerance : includes set up tolerance, line regulation and load regulation.
- Line regulation is measured from low line to high line at rated load.
- Load regulation is measured from 0% to 100% rated load.
- Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
- The power supply is considered a component which will be installed into a final equipment. All the MC tests are been executed by mounting the unit on a 360mm *360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it till meets EMC directives. For guidance on how to perform these MC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- The ambient temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m (6500ft). Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

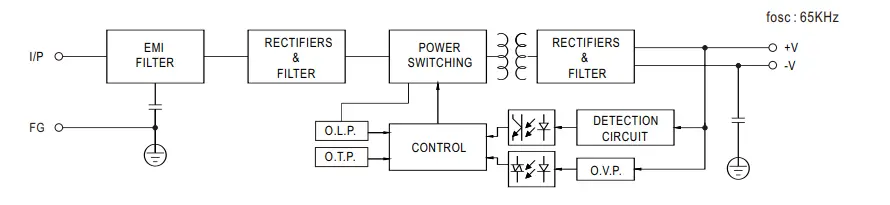

Block Diagram

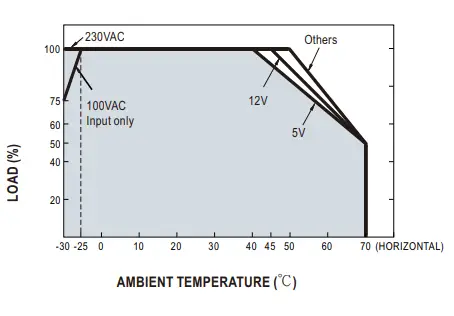

Derating Curve
Static Characteristics

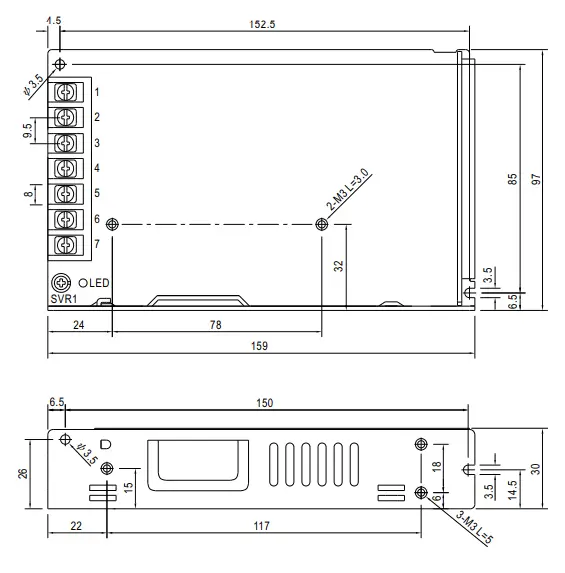

Mechanical Specification
Terminal Pin No. Assignment
| Pin No. | Assignment | Pin No. | Assignment | ||
| 1 | AC/L | 4,5 | DC OUTPUT -V | ||
| 2 | AC/N | 6,7 | DC OUTPUT +V | ||
| 3 | FG | ||||
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name: LRS-150F-SPEC 2023-03-03
