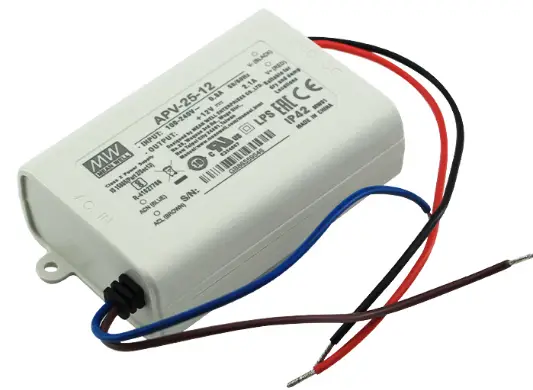

MEAN WELL APV-25 Series 25W Single Output Switching Power
Features
- Constant voltage mode power supply
- Universal AC input /Full range
- Withstand 300VAC Surge input for 5 seconds
- Protections: Short circuit/Over load/Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- Small and compact size
- IP42 design
- Class 2 power unit
- Pass LPS
- 100% full load burn-in test
- Low cost, high reliability
- Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.9)
- 2 years warranty 1C a 4COOEIne.4OI 401

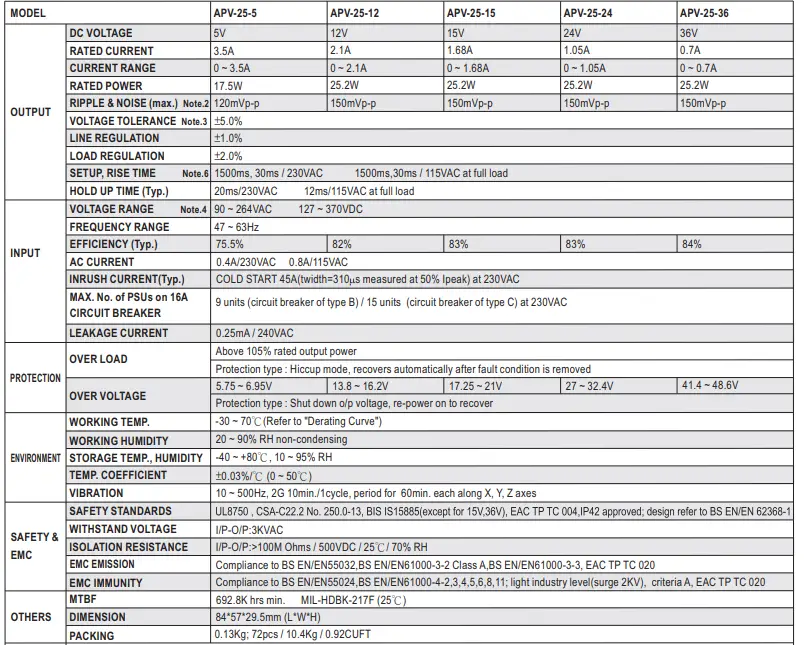

SPECIFICATION
NOTE
- All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25’C of ambient temperature.
- Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- Tolerance: includes set up tolerance, line regulation and load regulation.
- Derating may be needed under low input voltage. Please check the static characteristics for more details.
- The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- Length of set up time is measured at the first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- The ambient temperature derating of 3.5 C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(650oft).
- For any application note and IP waterproof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
- To fulfill the requirements of latest ErP regulation for lighting luminaires, this LED Driver can only be used behind a switch without being permanently connected to mains.
- x Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/service Disclaimer.aspx

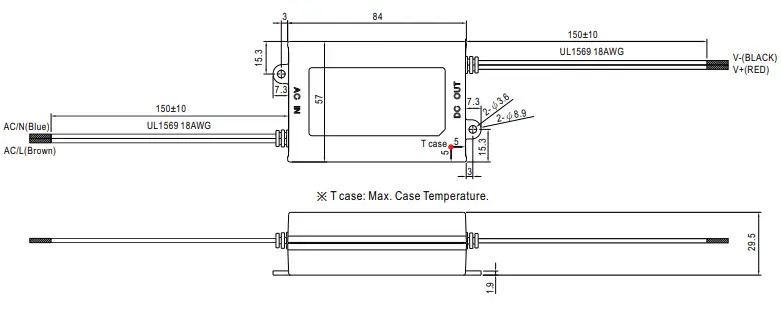

Mechanical Specification
Diagram

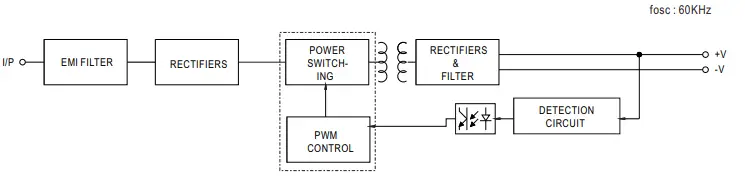

Block Diagram

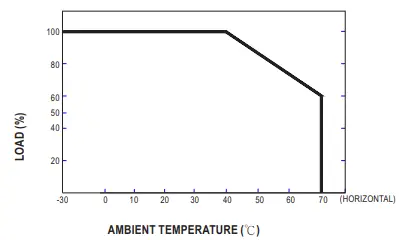

Derating Curve
Static Characteristics
