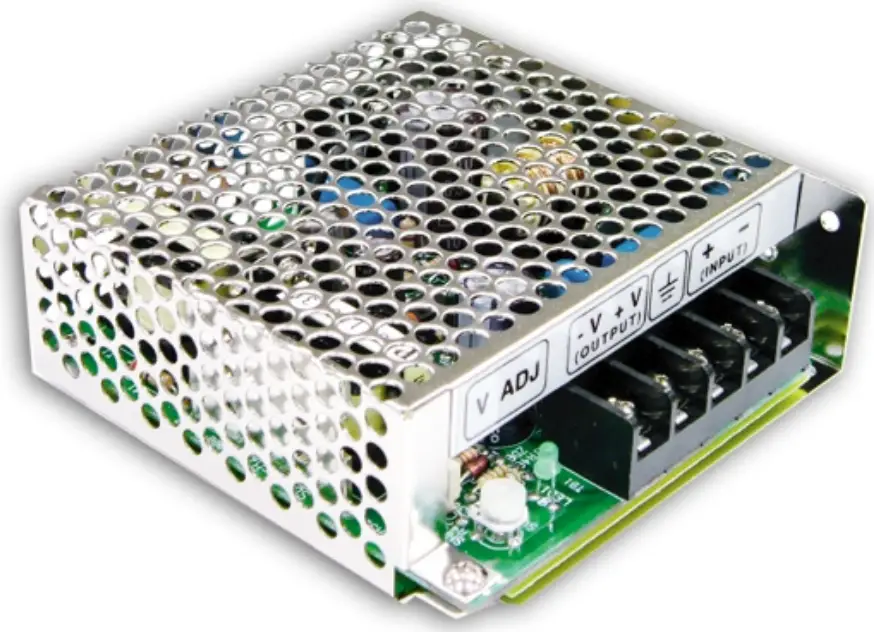

25W Single Output DC-DC Converter
SD – 25 series
Features:
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Fixed switching frequency at 83KHz
- Low cost
- High reliability
- 2 years warranty
SPECIFICATION
| MODEL | SD-25A-5 | SD-25B-5 | SD-25C-5 | SD-25A-12 | SD-25B-12 | SD-25C-12 | SD-25A-24 | SD-25B-24 | SD-25C-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | ||||||
| RATED CURRENT | 5A | 2.1A | 1.1A | |||||||
| CURRENT RANGE | 0 ~ 5A | 0 ~ 2.1A | 0 ~ 1.1A | |||||||
| RATED POWER | 25W | 25.2W | 26.4W | |||||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | |||||||
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5VDC | 11 ~ 16VDC | 23 ~ 30VDC | |||||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | |||||||
| LINE REGULATION | ±0.5% | ±0.3% | ±0.2% | |||||||
| LOAD REGULATION | ±0.5% | ±0.3% | ±0.2% | |||||||
| SETUP, RISE, HOLD UP TIME | 2.5s, 50ms,——- at full load | |||||||||
| INPUT | VOLTAGE RANGE | A:9.2 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC | ||||||||
| EFFICIENCY (Typ.) | 71% | 72% | 74% | 72% | 75% | 78% | 75% | 78% | 81% | |
| DC CURRENT | 3.2A/12V | 1.6A/24V | 0.8A/48V | 3.2A/12V | 1.6A/24V | 0.8A/48V | 3.2A/12V | 1.6A/24V | 0.8A/48V | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 5.75 ~ 6.75V/10% load | 16.8 ~ 20V/10% load | 31.5 ~ 37.5V/10% load | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to “Derating Curve”) | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC (Note 4) | SAFETY STANDARDS | Design refer to LVD, EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,6,8, EN55024,heavy industry level, criteria A, EAC TP TC 020 | |||||||||
| OTHERS | MTBF | 374.3K hrs min.(SD-25A) 365.9K hrs min.(SD-25B) 377.5K Hrs min.(SD-25C) MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 99*97*36mm (L*W*H) | |||||||||
| PACKING | 0.38Kg; 45pcs/17.8Kg/0.9CUFT | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). | |||||||||
File Name:SD-25-SPEC 2018-01-12
