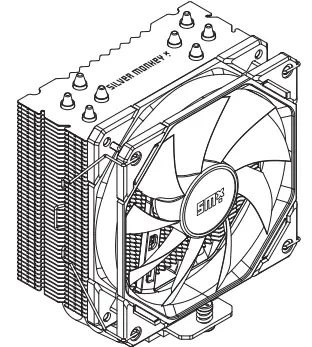

Crisp Cooler Guide
Model: SMX-CPUCRI-120
BEFORE YOU USE THIS PRODUCT, READ THIS GUIDE CAREFULLY. DO NOT THROW IT GUT, YOU MAY NEED IT LATER.
WHAT YOU’LL FIND IN THE PACKAGE
- CPU cooler
- Thermal paste
- Installation set

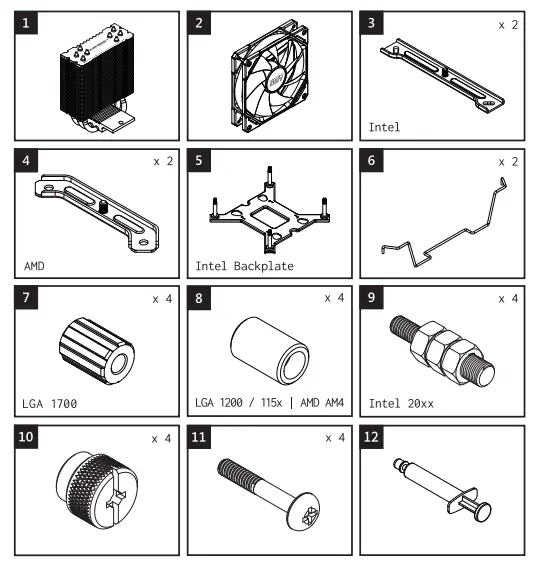

COMPONENT LIST

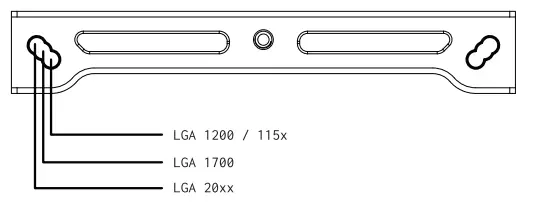

HOW TO ADJUST THE SPACING OF THE COOLER’S MOUNTING – FOR INTEL PROCESSORS

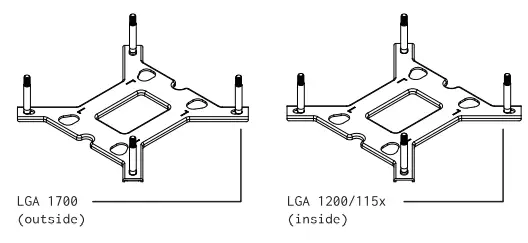

HOW TO INSTALL THE BACKPLATE – FOR THE INTEL PROCESSORS
HOW TO INSTALL THE COOLING SYSTEM ON YOUR MOTHERBOARD

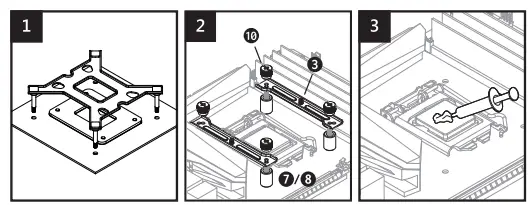

Intel LGA 1700| 1200 / 115x
- Install the cooler’s backplate on the rear of the motherboard – carry the mounting screws through the motherboard’s mounting holes. Pay attention to the cutouts intended for elements, which stick out.
- Put appropriate spacers (7 or 8) on the mounting screws. Put on the mounting bars (3) and then tighten the nuts (9).
- Put the thermal paste, which is included in the set, on the processor.

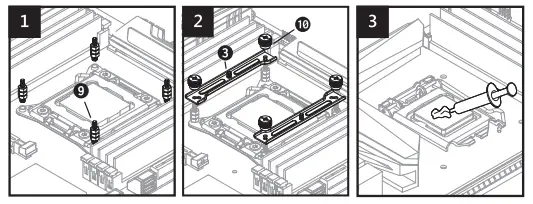

Intel LGA 2@xx
- Screw on appropriate spacer bolts (9) to the processor’s socket on the motherboard.
- Put on the mounting bars (3) and then tighten the nuts (18).
- Put the thermal paste, which is included in the set, on the processor.

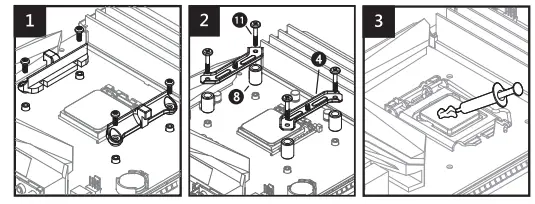

AMD AM4
- Remove the stock processor socket’s mounting bracket from the motherboard.
- Put appropriate spacers (8) and mounting bars (4) on the motherboard and then tighten the screws (11).
- Put the thermal paste, which is included in the set, on the processor.

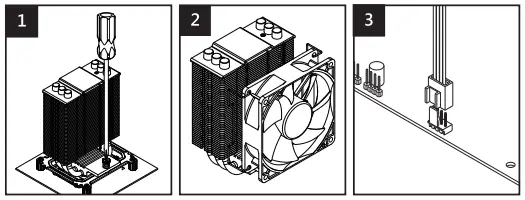

HOW TO INSTALL THE FAN
- Put the heatsink on the processor and tighten the screws alternately.
- Fasten the fan’s latch on the heatsink,
- Connect the fan to the motherboard’s CPU fan header.
SPECIFICATION
| TDP | 180 W |
| Overall Dimension | 148 x 128 x 75 mm (H x W x D) |
| Heatsink | 4 x m6 mm Direct Touch Heatpipe Aluminium fin |
| Overall Weight | 500 g |
| Fan Dimension | 120 x 120 x 25 mm |
| Fan Speed | 700 – 1800 ± 10% RPM |
| Rated Voltage | 12 V |
| Power Input | 2.4 W |
| Bearing Type | Hydraulic Bearing |
| Connector | 4-PIN PWM |
| MTBF | 50,000 Hrs |
| Socket compatibility | Intel LGA 115x / 1200 / 1700 / 20xx AMD AM4 / AM5 |
| Noise level | 15.2 – 35.2 dB(A) |
WARRANTY AND TECHNICAL SUPPORT
Your cooler has 6 @ months of manufacturer’s warranty. You can find more information on our website wow, Silvermonkey.com/support.
If you have questions about using the product – contact us at [email protected].
Manufacturer:
Silver Monkey sp. z 0.0.
ul. Twarda 18, @@-105 Warszawa Poland
DISPOSAL AND THE EU COMPLIANCE STATEMENT
We, as the manufacturer o f this equipment, declare that it meets the rules of the appropriate FU directives. If you need a copy of the EU Declaration of Conformity – contact us.
Do not throw this equipment out with other household waste. This equipment is made from materials that may be harmful to the environment and human health, if the product is disposed of i n the wrong way. When you need to throw away an old product, take it to a designated collection point.
