DDR-30 series
30W DIN Rail Type DC-DC Converter

Contents hide

5 Documents / Resources

5.1 References

6 Related Posts

Feature

Width only 35mm (2SU)
4:1 ultra wide input range
-40-1-135°C wide working temperature
No minimum load required
DC output adjustable (±10%)
Cooling by free air convection

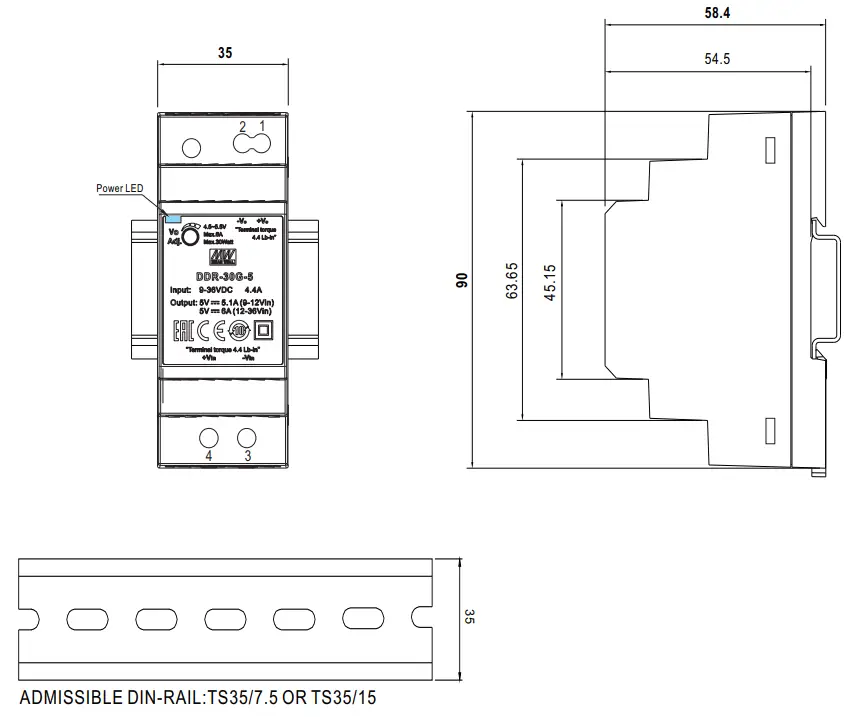

Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
3 years warranty

Applications

Industrial control system
Semi-conductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system

GTIN CODE
MW Search: http://www.meanuwell

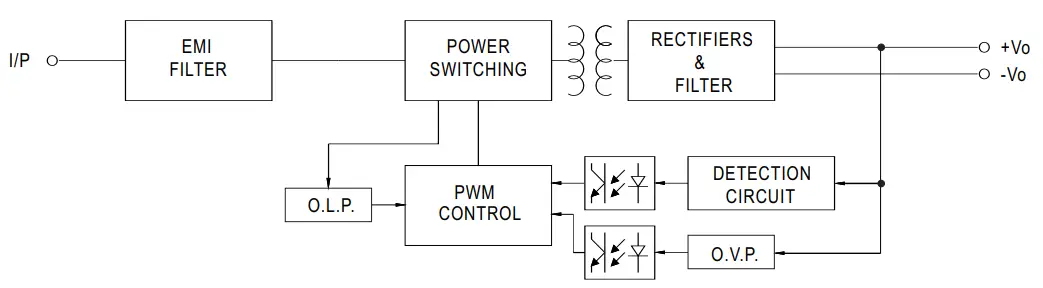

Description

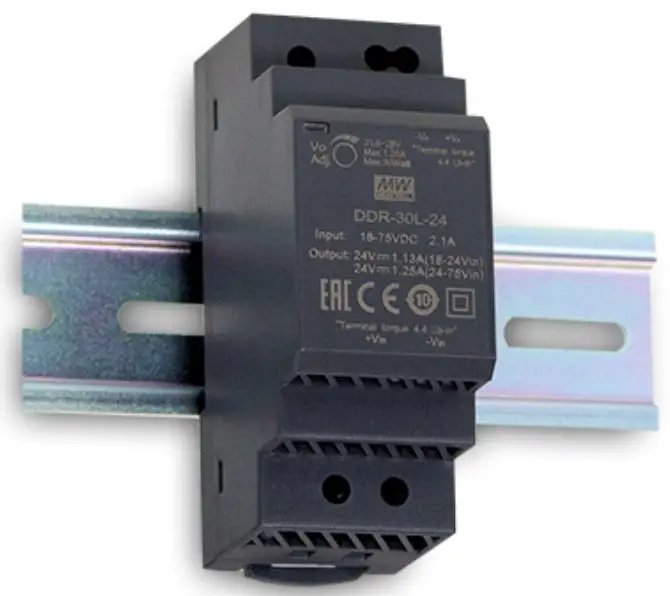

DDR-30 series is a 30W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (35mm), 4:1 ultra wide input voltage, -40-+85°C wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (± 10%) and full protective functions…etc.
This series has two input options: 9-36V /18-75V and various output options: 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable…etc.

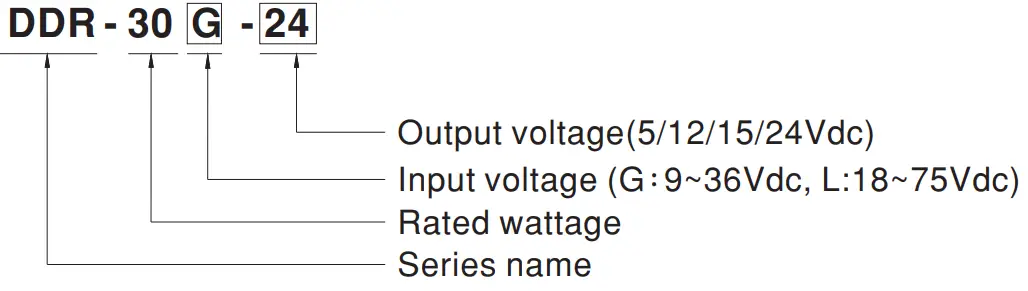

Model Encoding

MODEL

DDR-30G-5

DDR-30G-12

DDR-30G-15

DDR-30G-24

DDR-30L-5

DDR-30L-12

DDR-30L-15

DDR-30L-24

OUTPUT

DC VOLTAGE

12V

15V

24V

12V

15V

24V

RATED CURRENT

25A

1.25A

2.5A

I.25A

CURRENT RANGE

0 ∼ 6A

0 ∼ 2.5A

0 ∼ 2A

0∼1.25A

0 ∼ 6A

0 ∼ 2.5A

0 ∼ 2A

0∼125A

RATED POWER

30W

RIPPLE & NOISE (max.) Note.2

60mVp-p

75mVp-p

100mVp-p

60mVp-p

75mVpb

75mVp-p

100mVp-p

VOLTAGEADJ. RANGE

4.5- 5.5V

9- 13.2V

13.5 – 16.5V

21.6 – 28V

4.5- 5.5V

9- 13.2V

13.5 – 16.5V

21.6- 28V

VOLTAGE TOLERANCE Nott3

±2.0%

LINE REGULATION

±0.5%

±05%

±0.5%

±05%

±0.5%

LOAD REGULATION

±1.5%

±05%

±0.5%

±15%

±0.5%

SETUP, RISE TIME

120ms, 85ms at full load

HOLD UP TIME (lyp.)

G-type:7ms@24Vdc input

L-type: 18ms@48Vdc input

EXTERNAL CAPACITANCE LOAD (Max.)

3300 μF

2200 μF

1500 μF

1000 μF

3300 μF

2200 μF

1500 μF

1000 μF

INPUT

VOLTAGE RANGE Note.4

9∼36Vdc

18∼75Vdc

EFFICIENCY (Typ.)

85%

186%

I87%

89%

86%

I89%

I90%

I91%

DC CURRENT (Typ.)

1.5A/24Vdc

0.8A/48Vdc

INRUSH CURRENT (Typ.)

15A /24Vdc

15A /48Vdc

PROlECION

OVERLOAD

110 – 150% rated output power

Protection type : Constait current limiting, recovers autanaticaly after fait condition is removed

OVER VOLTAGE

5.75∼7V

113.8∼16.2V

117 25∼20.29/

128.8∼ 34V I S75 – 7V

113.8∼162V

117.25∼2025V

128.8∼34V

Protection type : Shutdown o/p voltage, re-power on to recover

REVERSE POLARITY

By internal MOSFET, no damage, recovers automaticaly after fault coma lion removed

UNDER VOLTAGE LOCKOUT

24Vin (G-type):Power ON ≥ 9V , OFF ≥ 8.5V

48Vin (L-type):Power ON ≥ 18V , OFF ≥ 17V

ENYIKSMENT

WORKING TEMP.

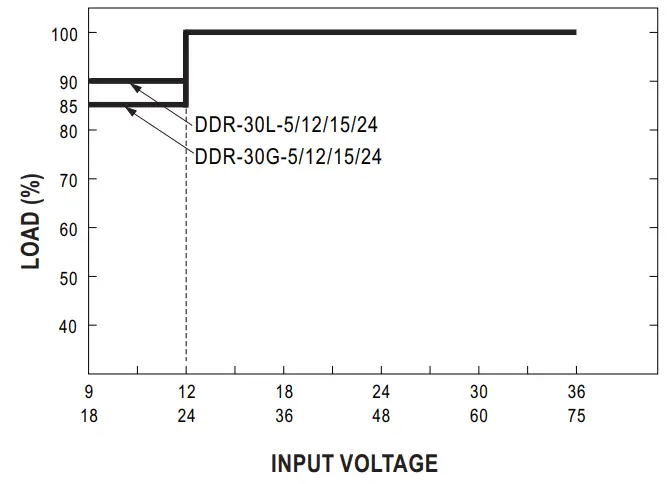

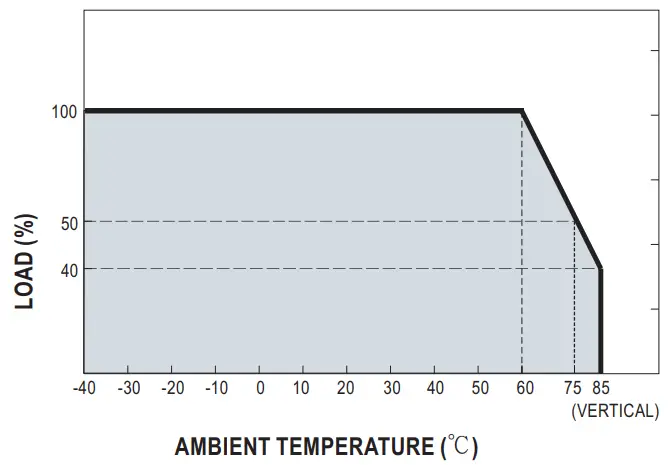

-40 ∼ +85ºC (Refer to ‘Derating Curve,

WORKING HUMIDITY

5 ∼ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ∼ +85ºC .5 ∼ 95% RH non-condensng

TEMP. COEFFICIENT

±0.03%/ºC (0 ∼ 60ºC )

VIBRATION

Component:10 -500Hz, 2G 1Ortin./1cyde, 60mki. each along X, Y, 2 axes; Mounting: Compiance to IEC600684-6

OPERATING ALTITUDE

5000 meters

SAFETY &
EMC (Note 5)

SAFETY STANDARDS

HUI EC 62368-1 ,AS!NZS 62368.1 approved; Desigi refer to UL508

WITHSTAND VOLTAGE

I/P-0/P:4KVdc

ISOLATION RESISTANCE

I/P-01P>100M Ohms/ 500Vdc/ 25ºC/70% RH

EMC EMISSION

Parameter

Standard

Test Level! Note

Conducted

BS EN/EN55032

Class B

Radiated

BS E N/E N55032

Class B

Voltage Flicker

BS EN/EN61000-3-3

—

EMC IMMUNITY

BS E N/E N55035 . BS E N/E N61000-6-2(BS EN/EN50382-2)

Parameter

Standard

Test Level! Note

ESD

BS EN/EN61030-4.2

Level 3. 8IW air : Level 3. 6IW contact: criteriaA

Radiated

BS EN/EN61000-4-3

Level 3, 10V/m ;criteria A

EFT/ Burst

BS E N/E N61030-4-4

Level 3. 2KV; criteria A

Surge

BS EN/EN61000-4-5

Level 3, 1KV/Line-Line;criteria A

Conducted

BS E N/E N61030-4-6

Level 3, WV ; critenaA

Magnetic Field

BS EN/EN61000-4-8

Level 4, 30A/m ;criteria A

OTHERS

MTBF

2780.3K hrsmn. Telcordia SR-332 (Be core) ;483.8K hrs min. MIL-HDBK-217F (25(:)

DIMENSION

35’90’54.5mrn (WH’D)

PACKING

0.12K9;96pcs/12.5K9/1.1CUFT

NOTE

1. All parameters NOT specially mentioned are measured at normal input (G24Vdc, L:48Vdc), rated load and 25’C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1 of & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Denting may be needed under low input voltage. Please check the denting curve for more details
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives For guidance on how to perform these EMC tests, please refer to ‘EMI testing of component power supplies.” (as available on http://www.meanwell.com)
6. The ambient temperature denting of 3.5t/1000m with fanless models and of 5t/1000m with fan models for operating altitude higher than 2000m(6500ft).
Product Liability Disclaimer: For detailed information. please refer to https://www.meanwell.com/serviceDisclaimer.aspx
