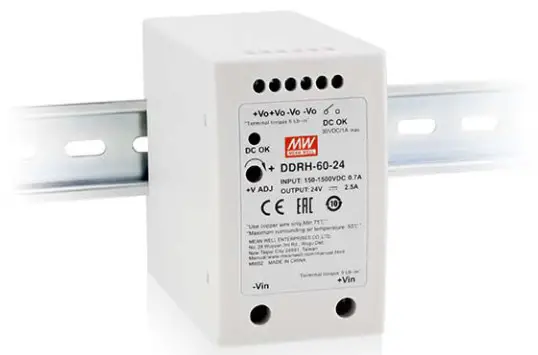

DDRH-60 series
60W Ultra Wide Input DIN Rail Type DC-DC Converter
Contents hide
Features
- 150.– 1500Vdc 10:1 ultra – wide input range
- 57mm slim width
- 4KVac I/O high isolation(Reinforced isolation)
- Protections: Short circuit / Overload / Over voltage / Over temperature DC input under voltage / DC input reverse polarity
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- -30-‘+80°C ultra-wide operating temperature ( > +55°C derating)
- Over voltage category II
- Operating altitude up to 5000 meters
- DC OK relay contact
- DC output voltage adjustable(+20%)
- 3 years warranty
Applications
- Photovoltaic power generation
- High voltage freqency conversion
- Industrial control system
- Semiconductor fabrication equipment
- Electro-mechanical apparatus
- DC bus centralized application
Description
DDRH-60 series is a 150 r- 1500Vdc ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: easy to install DIN rail type, narrow width(57mm) in slim design, -30-+80°c wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-60 is compliant with BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application and so forth.

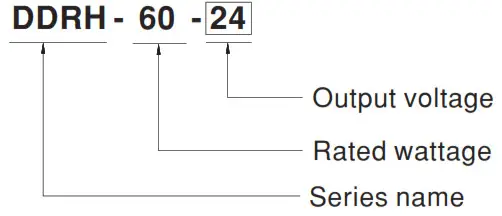

Model Encoding
SPECIFICATION
| MODEL | DDRH-60-5 | DDRH-60-12 | DDRH-60-24 | DDRH-60-48 | |||||
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V | ||||
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A | |||||
| CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | 0 ~ 1.25A | |||||
| RATED POWER | 50W | 60W | 60W | 60W | |||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |||||
| VOLTAGE ADJ. RANGE | 5 ~ 6V | 12 ~ 15V | 24 ~ 29V | 48 ~ 54V | |||||
| VOLTAGE TOLERANCE Note.3 | ±1.5% | ±1.5% | ±1.0% | ±1.0% | |||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| LOAD REGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| EXTERNAL CAPACITANCE LOAD (Max.) | 6000μF | 4000μF | 2500μF | 1000μF | |||||
| INPUT | VOLTAGE RANGE Note.4 | 150 ~ 1500Vdc | |||||||
| EFFICIENCY (Typ.) | 200Vdc | 80% | 83% | 86% | 87% | ||||
| 800Vdc | 81% | 85% | 87% | 88% | |||||
| 1500Vdc | 76% | 81% | 84% | 83% | |||||
| INRUSH CURRENT (max.) | COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage | |||||||||
| OVER VOLTAGE | 6.6 ~ 8.4V | 16.5 ~ 21V | 30 ~ 38V | 55 ~ 60V | |||||
| Protection type : Hiccup up mode, recovers automatically after fault condition is removed | |||||||||
| OVER TEMPERATURE | Protection type : Hiccup up mode, recovers automatically after fault condition is removed | ||||||||
| DC INPUT | REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |||||||
| UNDER VOLTAGE LOCKOUT | Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc | ||||||||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.) : 30V / 1A resistive | |||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃ (Refer to “Derating Curve”) | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | ||||||||
| VIBRATION | Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | ||||||||
| OPERATING ALTITUDE Note.5 | 5000 meters /OVCⅡ | ||||||||
| OVER VOLTAGE CATEGORY | Ⅱ; According to EN62109-1; altitude up to 5000 meters | ||||||||
| SAFETY & EMC (Note.7) | SAFETY STANDARDS | IEC62109-1(LVD) , EAC TP TC 004 approved; Design refer to UL1741(By request) | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC O/P-DC OK:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level / Note | ||||||
| Conducted | BS EN/EN55032(CISPR32) | Class A | |||||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ——- | |||||||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | ||||||||
| Parameter | Standard | Test Level /Note | |||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V, criteria A | |||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV, criteria A | |||||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Vin+ ~ Vin-, criteria A | |||||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A, criteria A | |||||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods | |||||||
| OTHERS | MTBF | 454.5K hrs min. MIL-HDBK-217F (25℃); 503K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃) | |||||||
| DIMENSION | 57*93.5*105mm (W*H*D) | ||||||||
| PACKING | 0.8Kg; 16pcs/12.8Kg/0.84CUFT | ||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 600Vdc input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. |3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the derating curve for more details. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | ||||||||

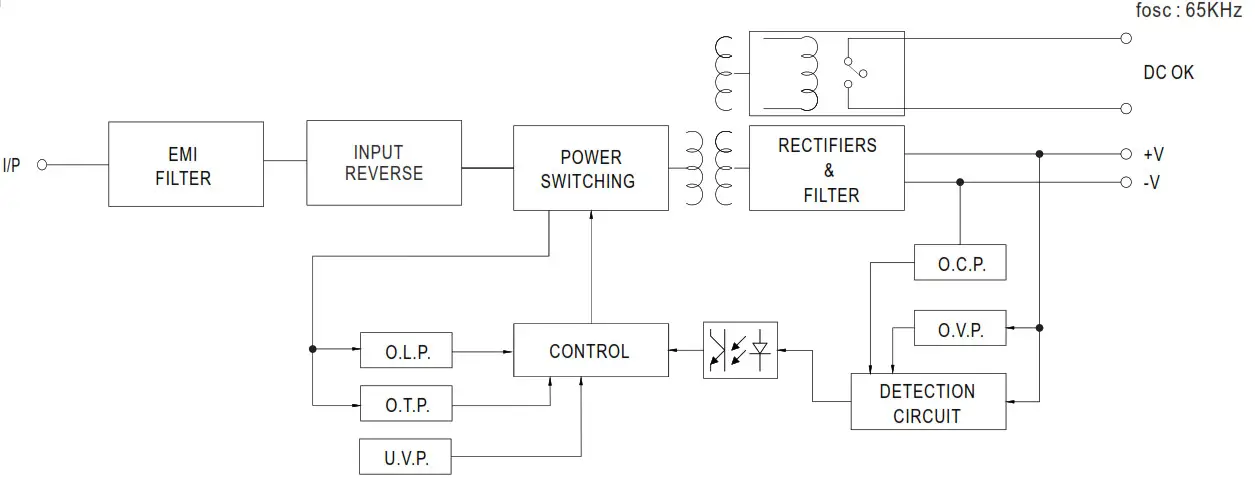

Block Diagram

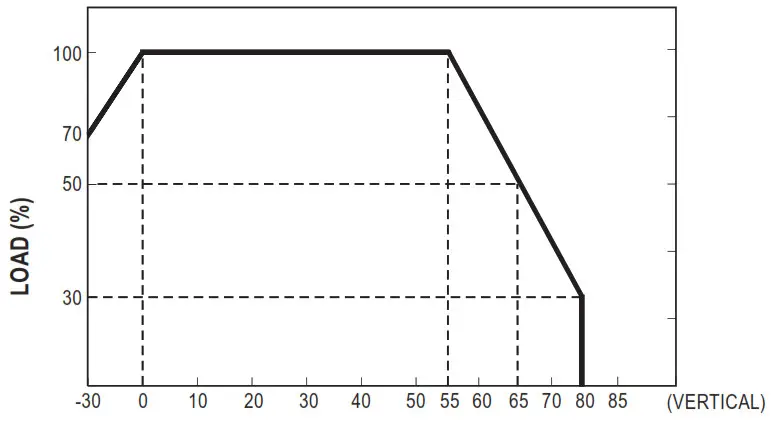

Derating Curve
AMBIENT TEMPERATURE (℃ )

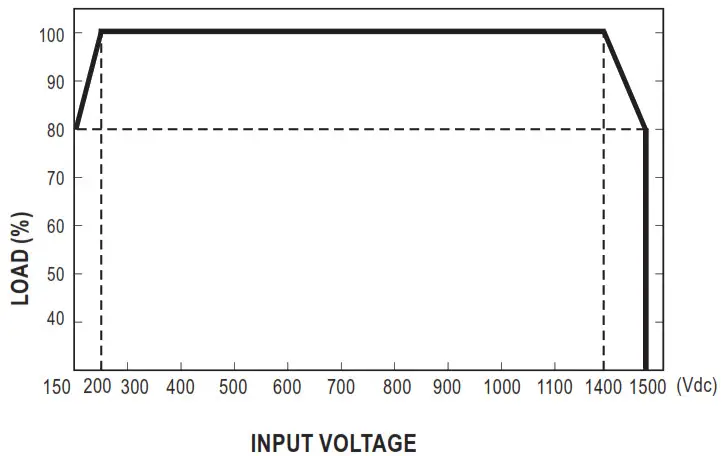

Static Characteristics
DC OK Relay Contact
| Contact Close | PSU turns ON / DC OK. |
| Contact Open | PSU turns OFF / DC Fail. |
| Contact Ratings (max.) | 30V/1A resistive load. |

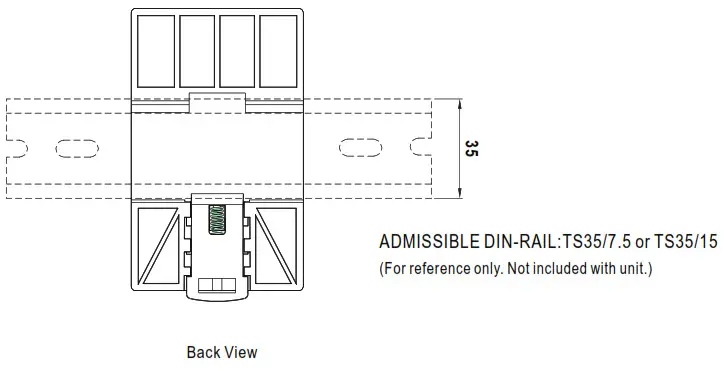

Mechanical Specification

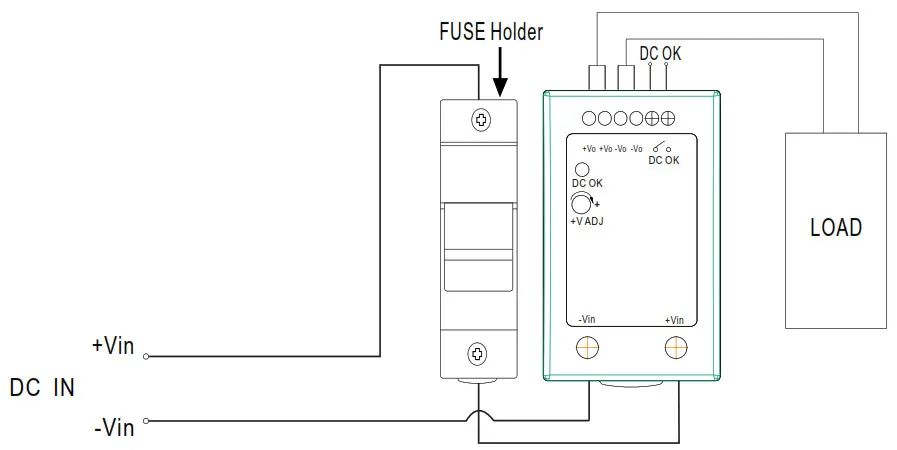

External FUSE wiring instruction
External FUSE is required.FUSE specification: 4A/1500Vdc.
Suggested model:
| Fuse Brand | Manufacturer Part NO. | MW’s Order NO. | |
| Fuse | Fuse Holder | Fuse + Fuse Holder | |
| WalterFuse | WJ30-4 | WJ30-H | DDRH-WJ30-4-H |
| Littelfuse | SPXV-4A | LFPXV/LPXV | Not provide |
| Bussmann | PV-4A10F85L | CHPV15L85 | Not provide |
Installation Instruction
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
