MEAN WELL WDR-60 Series 60W Ultra Wide Input Industrial DIN Rail Power Supply

Features

180 550Vac ultra-wide input for 1-phase or 2-phase
32mm slim width
4.7KVac VO high isolation (Reinforced isolation)
Protections: Short circuit / Overload/ Over voltage / Over temperature
Cooling by free air convection

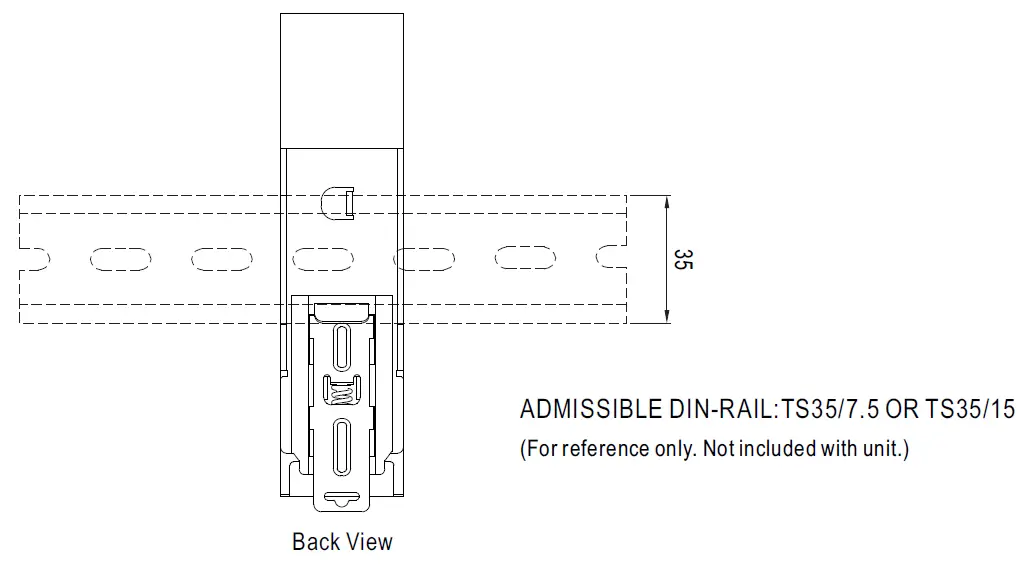

Can be installed on DIN rail TS-35/7.5 or 15
-30~+85 C ultra-wide operating temperature (>+60°C derating)
Overvoltage category I
DC OK relay contact
DC output voltage adjustable(+20%)
3 years warranty

Applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx

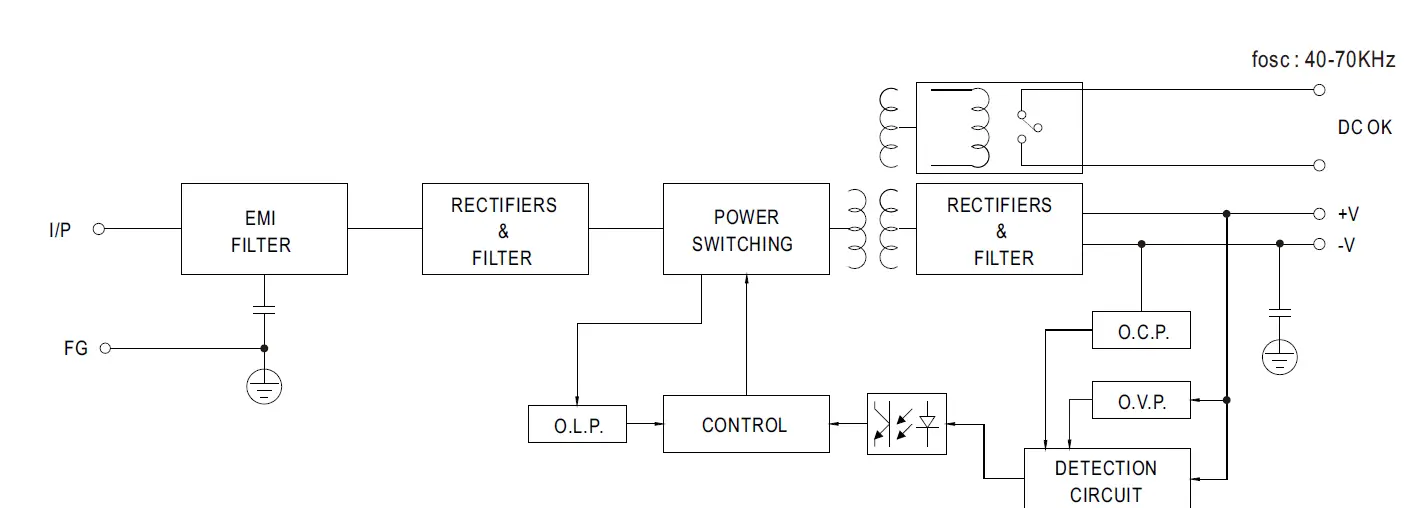

Description
WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: it can accept 180-550Vac ultra-wide input voltage range for single phase or 2-phase system, easy to install DIN rail type, narrow width (32mm) in slim design,-30+85°C wide range operating temp, 4.7KVAC high isolation voltage, operation at 2000m altitude, adjustable output voltage (+20% max.), high efficiency, low ripple & noise, complete protections and so on. WDR-60 is compliant with BS EN/EN-61000-6-2 standard regarding immunity for industrial environments. It suitable for industrial automation, surveilance, telecommunication and more applications.

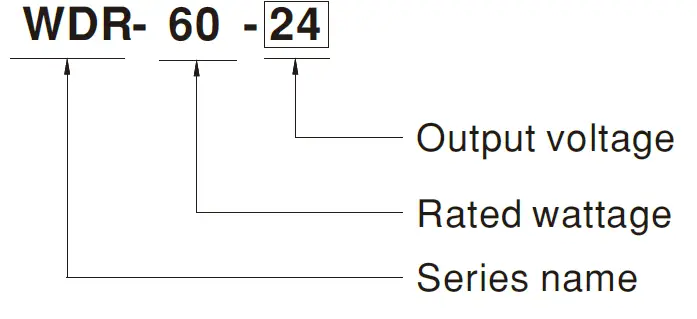

Model Encoding

SPECIFICATION

MODEL		WDR-60-5	WDR-60-12		WDR-60-24		WDR-60-48
OUTPUT	DC VOLTAGE	5V	12V		24V		48V
	RATED CURRENT	10A	5A		2.5A		1.25A
	CURRENT RANGE	0 ~ 10A	0 ~ 5A		0 ~ 2.5A		0 ~ 1.25A
	RATED POWER	50W	60W		60W		60W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p		150mVp-p		200mVp-p
	VOLTAGE ADJ. RANGE	5 ~ 6V	12 ~ 15V		24 ~ 29V		48 ~ 57V
	VOLTAGE TOLERANCE Note.3	±2%	±1.5%		±1.0%		±1.0%
	LINE REGULATION	±0.5%	±0.5%		±0.5%		±0.5%
	LOAD REGULATION	±1.5%	±0.5%		±0.5%		±0.5%
	SETUP, RISE, HOLD UP TIME	1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load

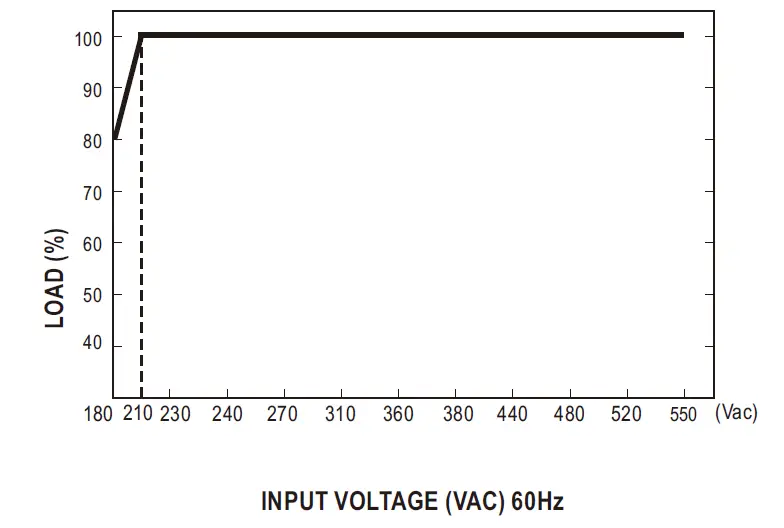

INPUT	VOLTAGE RANGE Note.4	180 ~ 550Vac or 254 ~ 780Vdc
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	83.5% / 400Vac	86.5% / 400Vac		89% / 400Vac		90.5% / 400Vac
	AC CURRENT	0.4A/400Vac 0.7A/230Vac
	INRUSH CURRENT (max.)	COLD START 50A /400Vac 30A/230Vac
	LEAKAGE CURRENT	<2mA / 530Vac
PROTECTION	OVERLOAD	105 ~ 135% rated output power
		Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting recovers automatically after fault condition is removed
	OVER VOLTAGE	6.2 ~ 7.2V	16 ~ 18V		31 ~ 37V		58 ~ 60.5V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION	DC OK SIGNAL	Relay contact rating(max.) : 30V / 1A resistive

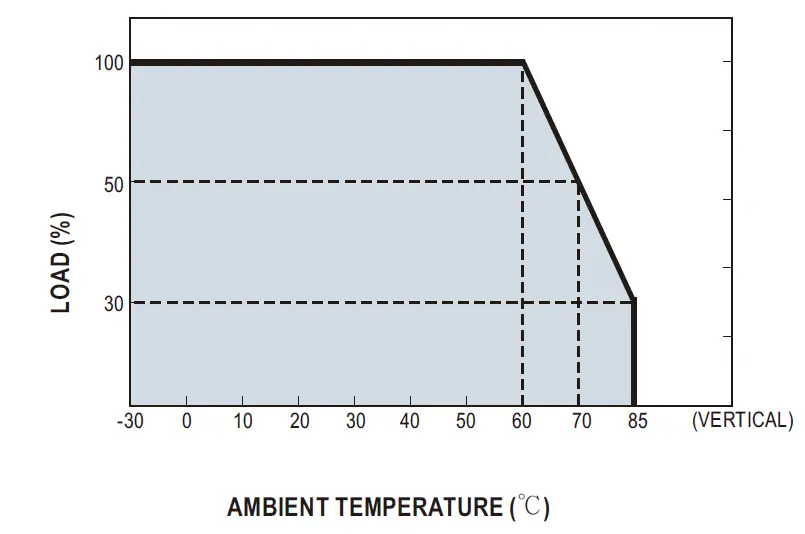

ENVIRONMENT	WORKING TEMP.	-30 ~ +85℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.	-40 ~ +85℃
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 60℃)
	VIBRATION	Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
	OPERATING ALTITUDE Note.5	2000 meters
	OVER VOLTAGE CATEGORY	Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters
SAFETY & EMC (Note 7)	SAFETY STANDARDS	UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved; design refer to GL and BS EN/EN60204-1(By request)
	WITHSTAND VOLTAGE	I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard		Test Level / Note
		Conducted		BS EN/EN55032(CISPR32)		Class B
		Radiated		BS EN/EN55032(CISPR32)		Class B
		Harmonic Current		BS EN/EN61000-3-2		Class A
		Voltage Flicker		BS EN/EN61000-3-3		——-
	EMC IMMUNITY	BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
		Parameter		Standard		Test Level /Note
		ESD		BS EN/EN61000-4-2		Level 3, 8KV air; Level 2, 4KV contact, criteria A
		Radiated Susceptibility		BS EN/EN61000-4-3		Level 3, 10V/m, criteria A
		EFT Bursts		BS EN/EN61000-4-4		Level 3, 2KV/5KHz, criteria A
		Surge		BS EN/EN61000-4-5		Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A
		Conducted		BS EN/EN61000-4-6		Level 3, 10V, criteria A
		Magnetic Field		BS EN/EN61000-4-8		Level 4, 30A/m, criteria A
		Voltage Dips and interruptions		BS EN/EN61000-4-11		＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS	MTBF	1900.1K hrs min. Telcordia SR-332 (Bellcore) ; 313.7K hrs min. MIL-HDBK-217F (25℃)

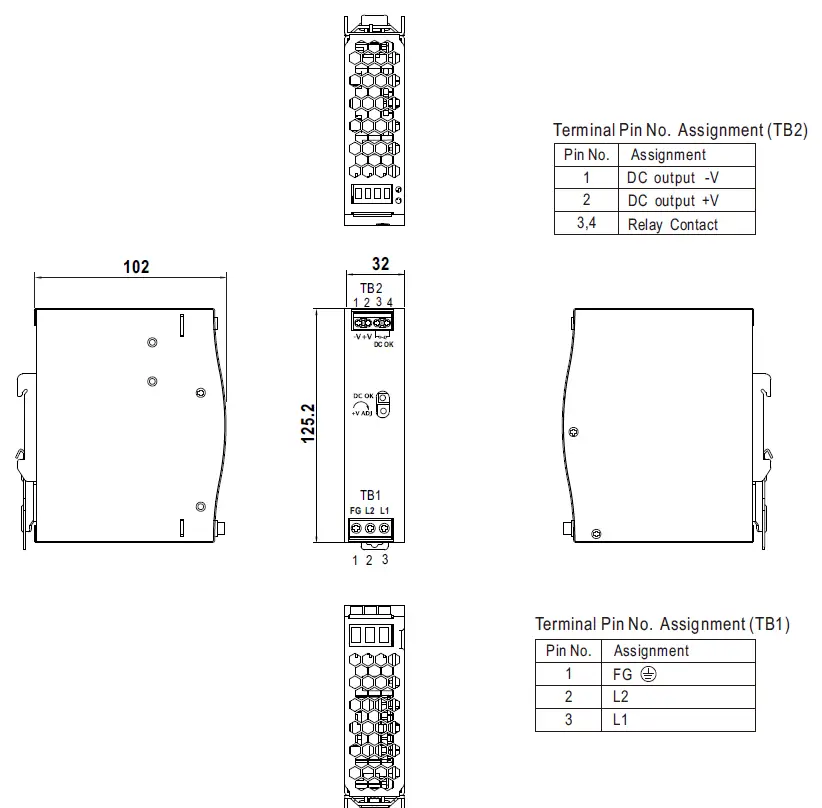

	DIMENSION	32125.2102mm (WHD)
	PACKING	0.45Kg; 28pcs/13.6Kg/1.24CUFT

NOTE	All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25C of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1í 8& 47f parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. Derating may be needed under low input voltage. Please check the derating curve for more details. The ambient temperature derating of 3.5 C/1000m with fanless models and of 5 C/1000m with fan models for operating altitude higher than 2000m(6500ft). Installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) https://www.meanwell.com/serviceDisclaimer.aspx
