MEAN WELL MDR-100 Series 96W Single Output Industrial DIN Rail Power Supply

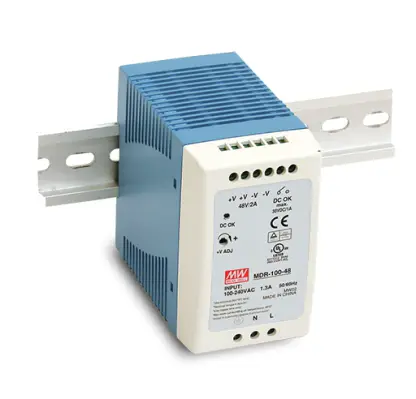

MEAN-WELL-MDR-100-Series-96W-Single-Output-Industrial-DIN-Rail-Power-Supply-PRODUCT-IMAGE

Product Information

Product Name: MDR-100-96W Single Output Industrial DIN Rail Power Supply
Model Numbers: MDR-100-12, MDR-100-24, MDR-100-48
DC Voltage: 12V, 24V, 48V
Rated Current: 7.5A, 4A, 2A
Rated Power: 90W (MDR-100-12), 96W (MDR-100-24, MDR-100-48)
Output Ripple & Noise: Maximum 120mVp-p
Voltage Adjustment Range: 12V to 15V
Line Regulation: Within 150mVp-p
Load Regulation: Within 200mVp-p
Setup/Rise Time: 3000ms, 50ms/230VAC; 3000ms, 50ms/115VAC at full load
Hold Up Time: Typical 50ms/230VAC; 20ms/115VAC at full load
Voltage Range: 85VAC to 264VAC, 120VDC to 370VDC
Frequency Range: 47Hz to 63Hz
Power Factor: Typically PF0.95/230VAC, PF0.98/115VAC at full load
Efficiency: 83% (MDR-100-12), 86% (MDR-100-24), 87% (MDR-100-48)
AC Current: Typically 1.3A/115VAC
Inrush Current: Typically 0.8A/230VAC cold start; 30A/115VAC, 60A/230VAC
Leakage Current: 100M Ohms / 500VDC / 25/70% RH
Compliance: BS EN/EN62368-1, BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020, CNS13438 Class B, BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
MTBF: Minimum 2217.8K hrs (Telcordia SR-332), minimum 346.5K hrs (MIL-HDBK-217F)
Dimensions: 55mm x 90mm x 100mm (W x H x D)
Packing: 0.42Kg; 30pcs/13.6Kg/0.82CUFT

Product Usage Instructions

To use the MDR-100 Single Output Industrial DIN Rail Power Supply, please follow these instructions:

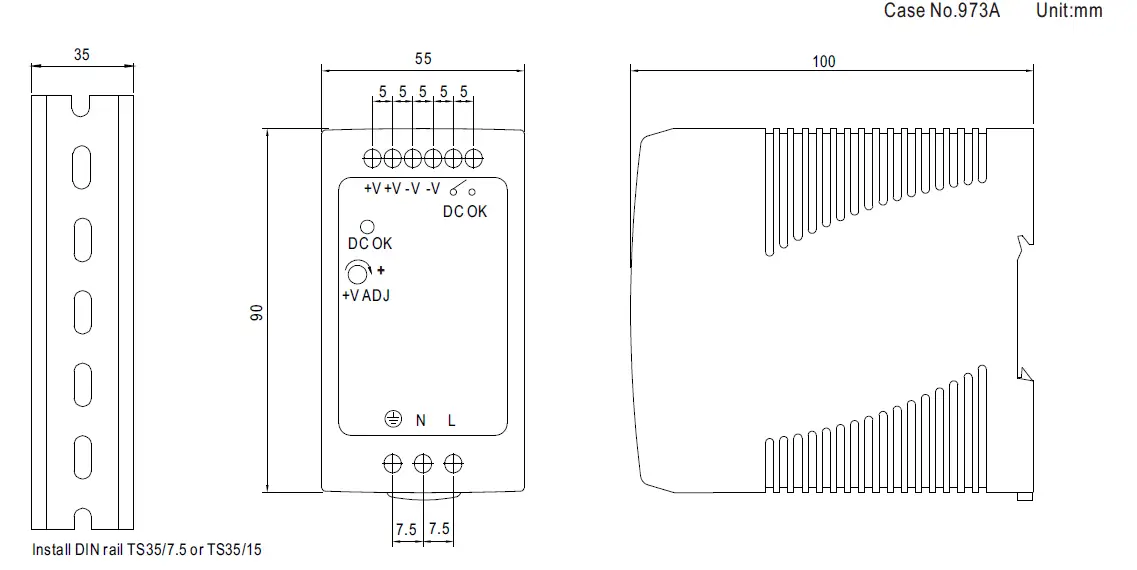

Install the DIN rail TS35/7.5 or TS35/15 according to the mechanical specifications provided.

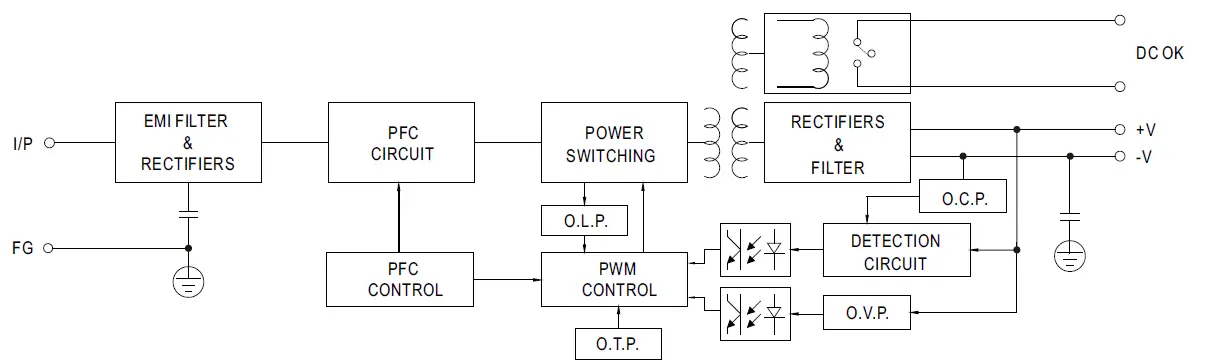

Connect the input power supply to the I/P and RECTIFIERS terminals.
Make sure that the DC voltage output terminals (+V, -V) are properly connected to your device.
Adjust the voltage output within the specified range (12V to 15V) using the +V ADJ terminal.
Ensure that the load does not exceed the rated current for your specific model (7.5A for MDR-100-12, 4A for MDR-100-24, 2A for MDR-100-48).
Check the output ripple and noise, which should not exceed 120mVp-p.
Monitor the line regulation and load regulation to ensure they are within the specified limits.
Allow the power supply to reach its setup/rise time of 3000ms at 230VAC or 115VAC at full load.
Ensure that the hold up time is sufficient for your application
(50ms/230VAC or 20ms/115VAC at full load).
Check the voltage range compatibility (85VAC to 264VAC, 120VDC to 370VDC) and frequency range (47Hz to 63Hz).
Verify the power factor, which should be approximately PF0.95/230VAC or PF0.98/115VAC at full load.
Monitor the efficiency, which is 83% for MDR-100-12, 86% for MDR-100-24, and 87% for MDR-100-48.
Take note of the AC current and inrush current values for your reference.
Ensure that the leakage current is within the specified range (100M Ohms / 500VDC / 25/70% RH).
Comply with the relevant safety standards and regulations mentioned in the user manual.

For further information, please refer to the complete user manual available for download on the Mean Well website.

96W Single Output Industrial DIN Rail Power Supply

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
ZCS/ZVS technology to reduce power dissipation
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
No load power consumption<1 W
LED indicator for power on
100% full load burn-in test
3 years warranty

GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx

MEAN-WELL-MDR-100-Series-96W-Single-Output-Industrial-DIN-Rail-Power-Supply-01

SPECIFICATION

MODEL		MDR-100-12	MDR-100-24	MDR-100-48
OUTPUT	DC VOLTAGE	12V	24V	48V
	RATED CURRENT	7.5A	4A	2A
	CURRENT RANGE	0 ~ 7.5A	0 ~ 4A	0 ~ 2A
	RATED POWER	90W	96W	96W
	RIPPLE & NOISE (max.) Note.2	120mVp-p	150mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 15V	24 ~ 30V	48 ~ 56V
	VOLTAGE TOLERANCE Note.3	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME Note.5	3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.6	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF≧0.95/230VAC PF≧0.98/115VAC at full load
	EFFICIENCY (Typ.)	83%	86%	87%
	AC CURRENT (Typ.)	1.3A/115VAC 0.8A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	15.6 ~ 18V	31.2 ~ 36V	57.6 ~ 64.8V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, auto-recovery or re-power on to recover
FUNCTION	DC OK SIGNAL	Relay contact rating(max.): 30V/1A resistive

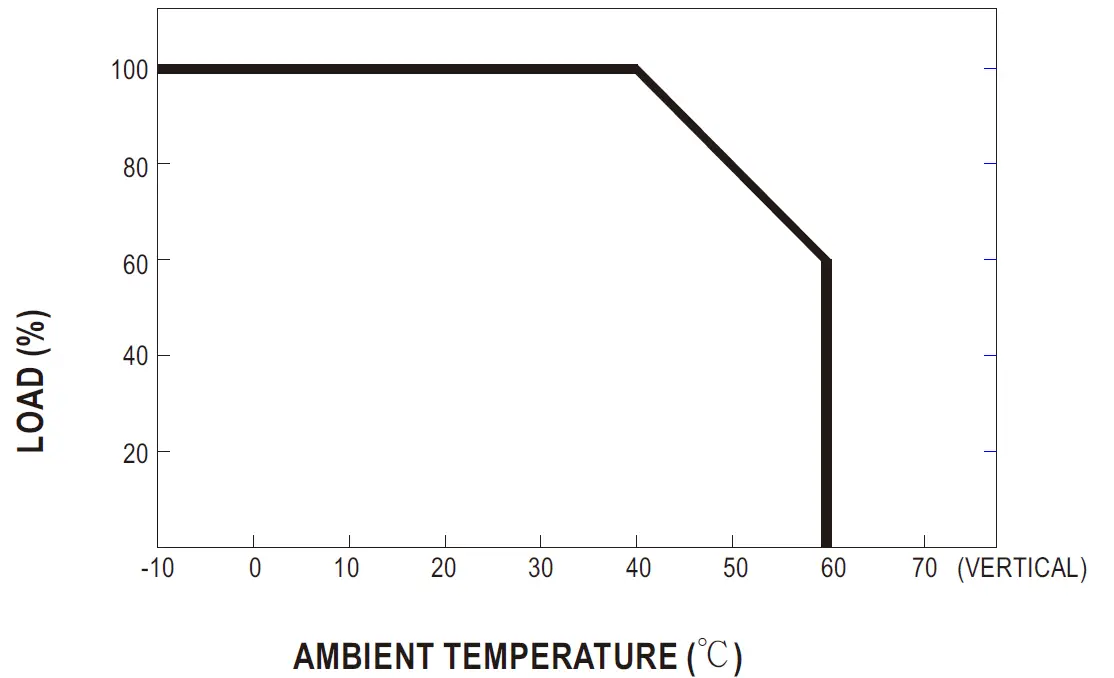

ENVIRONMENT	WORKING TEMP.	-10 ~ +60℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020
OTHERS	MTBF	2217.8K hrs min. Telcordia SR-332 (Bellcore) ; 346.5K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	5590100mm (WHD)
	PACKING	0.42Kg; 30pcs/13.6Kg/0.82CUFT

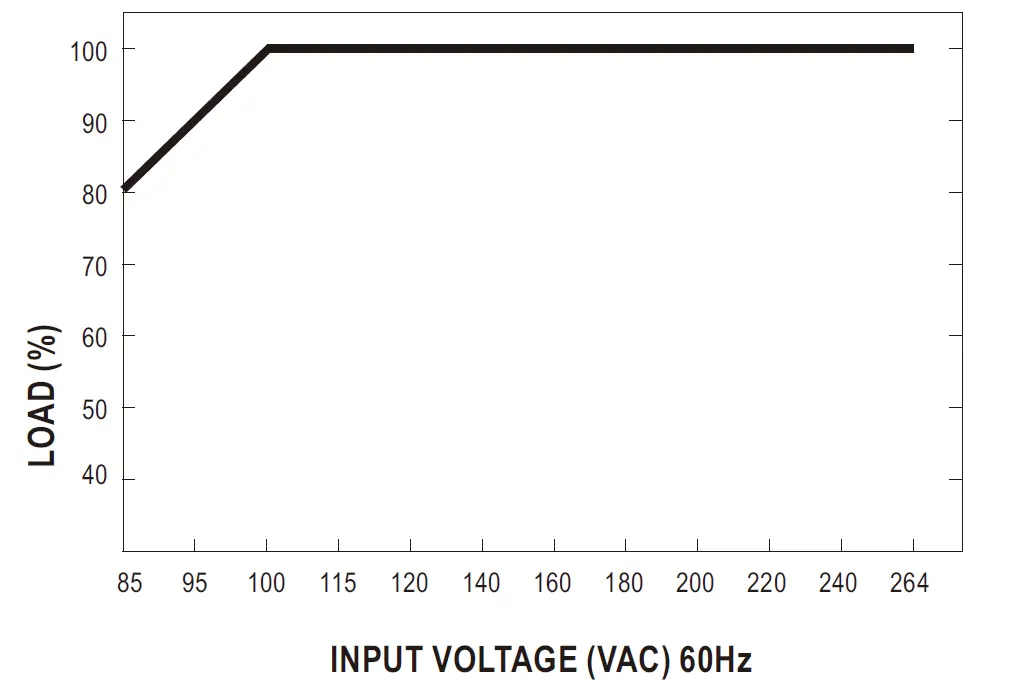

NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0. 1uf & 47uf parallel capacitor. Tolerance: includes set up tolerance, line regulation and load regulation. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these MC tests, please refer to “EMI testing of component power supplies.’ 19 (as available on http://www.meanwell.com) Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. Deating maybe needed under low input voltages, please check the derating curve for more detail. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft) Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
