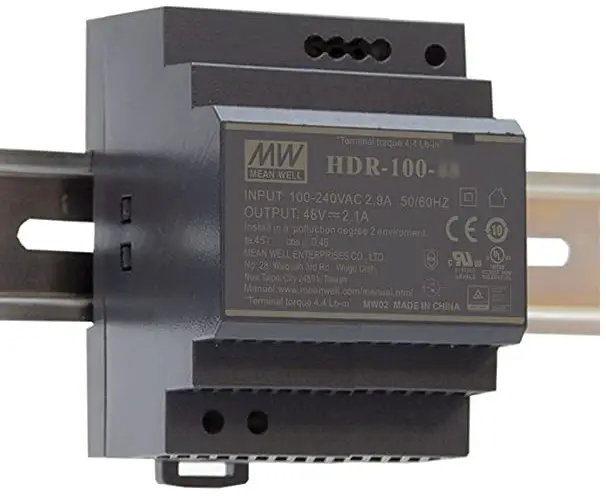

Mean Well Hdr-100 Series 85 To 100w Ultra Slim Step Shape Din Rail Instructions (+ PDF)

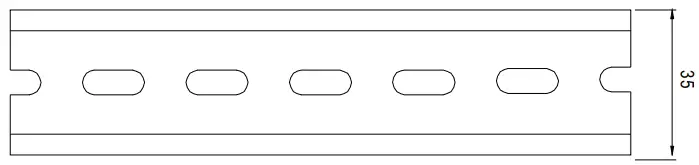

HDR-100 is one economical ultra slim 100W DlN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 70mm(4SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-100 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1,UL508, UL62368-1, BS EN/EN61558-2-16)make HDR-100 a very competitive power supply solution for household and industrial applications.

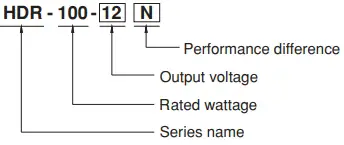

Model Encoding

Type	Description	Note
Blank	92W max, Pass LPS with a narrower output adjustable range	ln stock
N	100W max, Non-LPS with a wider output adjustable range	ln stock

SPECIFICATION

MODEL			HDR-100-12	HDR-100-12N	HDR-100-15		HDR-100-15N	HDR-100-24	HDR-100-24N	HDR-100-48	HDR-100-48N
OUTPUT	DC VOLTAGE		12V		15V			24V		48V
	RATED CURRENT		7.1A	7.5A	6.13A		6.5A	3.83A	4.2A	1.92A	2.1A
	CURRENT RANGE		0 ~ 7.1A	0 ~ 7.5A	0 ~ 6.13A		0 ~ 6.5A	0 ~ 3.83A	0 ~ 4.2A	0 ~1.92A	0 ~ 2.1A
	RATED POWER		85.2W	90W	92W		97.5W	92W	100.8W	92.2W	100.8W
	RIPPLE & NOISE (max.) Note.2		120mVp-p		120mVp-p			150mVp-p		240mVp-p
	VOLTAGE ADJ. RANGE	Pass LPS	12 ~ 13V		15 ~ 17V			24 ~ 25.5V		48 ~ 48.7V
		Non LPS	12~ 13.8V		13.5 ~ 18V			21.6 ~ 29V		43.2 ~ 55.2V
	VOLTAGE TOLERANCE Note.3		±2.0%		±1.0%			±1.0%		±1.0%
	LINE REGULATION		±1.0%		±1.0%			±1.0%		±1.0%
	LOAD REGULATION		±1.0%		±1.0%			±1.0%		±1.0%
	SETUP, RISE TIME		500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
	HOLD UP TIME (Typ.)		30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE		85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
	FREQUENCY RANGE		47 ~ 63Hz
	EFFICIENCY (Typ.)		88%		89%			90%		90%
	AC CURRENT (Typ.)		3A/115VAC 1.6A/230VAC
	INRUSH CURRENT (Typ.)		COLD START 35A/115VAC 70A/230VAC
PROTECTION	OVERLOAD		HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power
			Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
	OVER VOLTAGE		14.2 ~ 16.2V		18.8 ~ 22.5V			30 ~ 36V		56.5 ~ 64.8V
			Protection type : Shut down o/p voltage, re-power on to recover

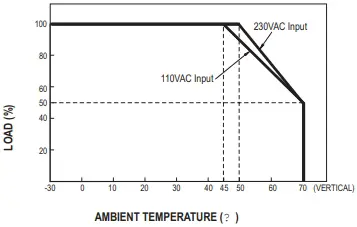

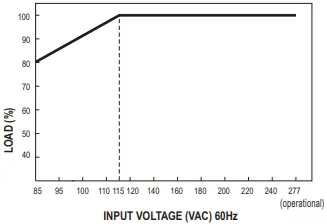

ENVIRONMENT	WORKING TEMP.		-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 50℃) RH non-condensing
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
	OPERATING ALTITUDE		2000 meters
	OVER VOLTAGE CATEGORY		Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters
	SAFETY STANDARDS		UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1
	WITHSTAND VOLTAGE		I/P-O/P:4KVAC
	ISOLATION RESISTANCE		I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Parameter			Standard			Test Level / Note
			Conducted			BS EN/EN55032(CISPR32), CNS13438			Class B
			Radiated			BS EN/EN55032(CISPR32), CNS13438			Class B
			Harmonic Current (Note 5)			BS EN/EN61000-3-2			Class A
SAFETY & EMC (Note 5)			Voltage Flicker			BS EN/EN61000-3-3			——-
	EMC IMMUNITY		BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3
			Parameter			Standard			Test Level /Note
			ESD			BS EN/EN61000-4-2			Level 3, 8KV air; Level 2, 4KV contact, criteria A
			Radiated Susceptibility			BS EN/EN61000-4-3			Level 3, criteria A
			EFT/Burest			BS EN/EN61000-4-4			Level 3, criteria A
			Surge			BS EN/EN61000-4-5			Level 4,2KV/L-N, criteria A
			Conducted			BS EN/EN61000-4-6			Level 3, criteria A
			Magnetic Field			BS EN/EN61000-4-8			Level 4, criteria A
			Voltage Dips and interruptions			BS EN/EN61000-4-11			＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS	MTBF		856.5K hrs min. MIL-HDBK-217F (25℃)

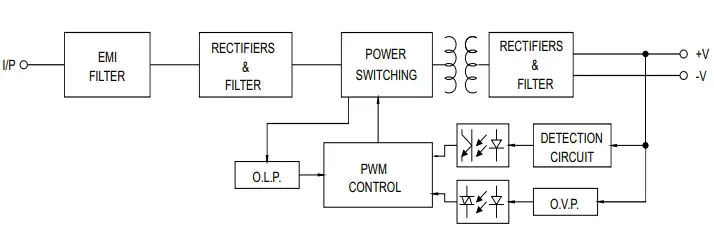

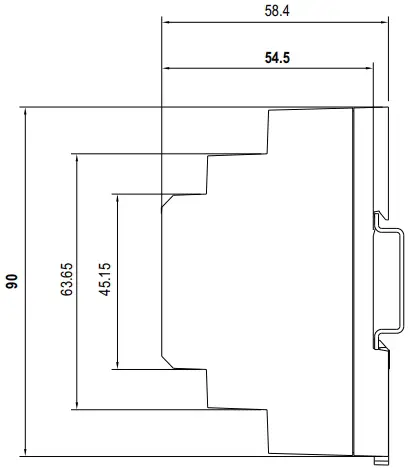

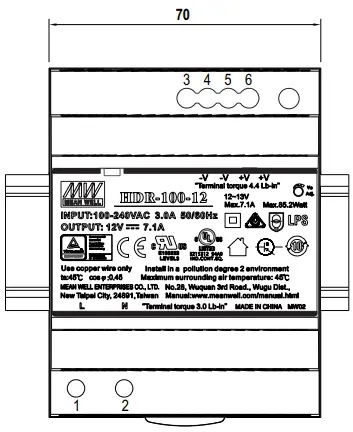

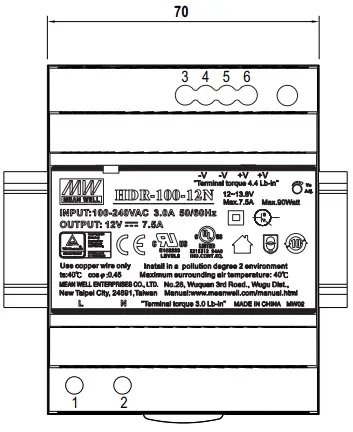

	DIMENSION		709054.5mm (WHD)
	PACKING		0.27Kg; 48pcs/14Kg/1.06CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. Harmonic current test at 90% load for HDR-100-xxN. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMl testing of component power supplies.” (as available on http://www.meanwell.com) The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
