HDR-30 series 30W Ultra Slim
Step Shape DIN Rail
User Guide

Contents hide

1 HDR-30 series 30W Ultra Slim Step Shape DIN Rail

6 Mechanical Speciﬁcation

7 Installation Manual

8 Documents / Resources

8.1 References

9 Related Posts

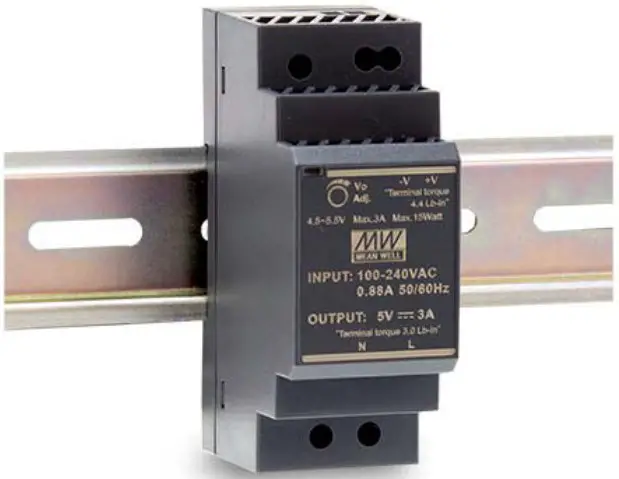

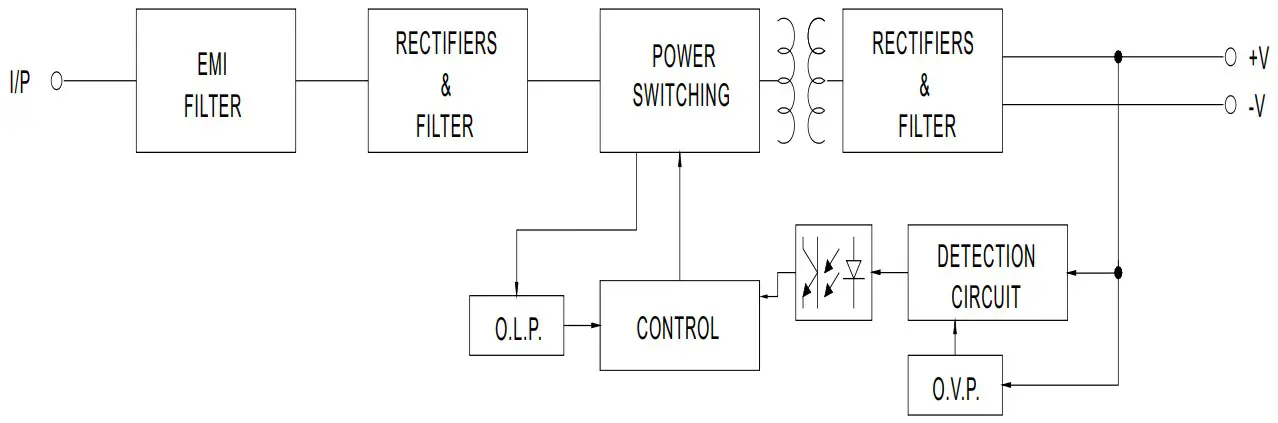

HDR-30 series 30W Ultra Slim Step Shape DIN Rail

https://www.meanwell.com/Upload/PDF/HDR%20DIN%20rail%20power%20supply.pdf

Features

Ultra slim design with 35mm(2SU) width
Universal input 85′-264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class II
Pass LPS (Limited power source)
DC output voltage adjustable
Protections : Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature:-30-4-70°C)

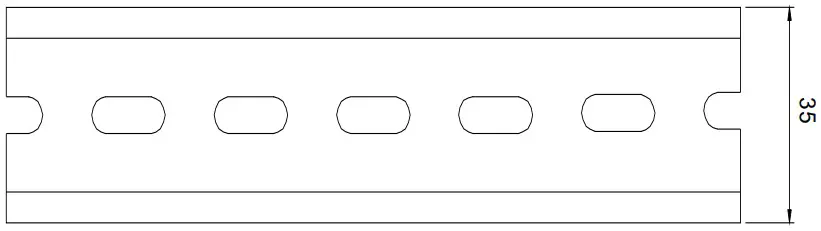

DIN rail TS-35/7.5 or 15 mountable
Over voltage category 111
LED indicator for power on
3 years warranty

Applications

Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus

Description

HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm(2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30 ℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL508,UL62368-1, BS EN/EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.

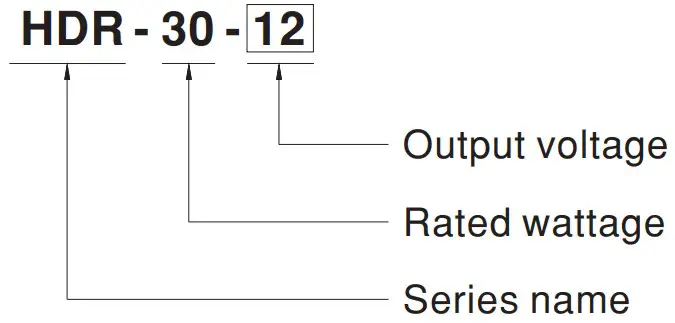

Model Encoding

SPECIFICATION

MODEL		HDR-30-5	HDR-30-12		HDR-30-15	HDR-30-24		HDR-30-48
OUTPUT	DC VOLTAGE	5V	12V		15V	24V		48V
	RATED CURRENT	3A	2A		2A	1.5A		0.75A
	CURRENT RANGE	0 ~ 3A	0 ~ 2A		0 ~ 2A	0 ~ 1.5A		0 ~ 0.75A
	RATED POWER	15W	24W		30W	36W		36W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	120mVp-p		120mVp-p	150mVp-p		240mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	10.8 ~ 13.8V		13.5 ~ 18V	21.6 ~ 29V		43.2 ~ 55.2V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%		±1.0%	±1.0%		±1.0%
	LINE REGULATION	±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	LOAD REGULATION	±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	SETUP, RISE TIME	500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load

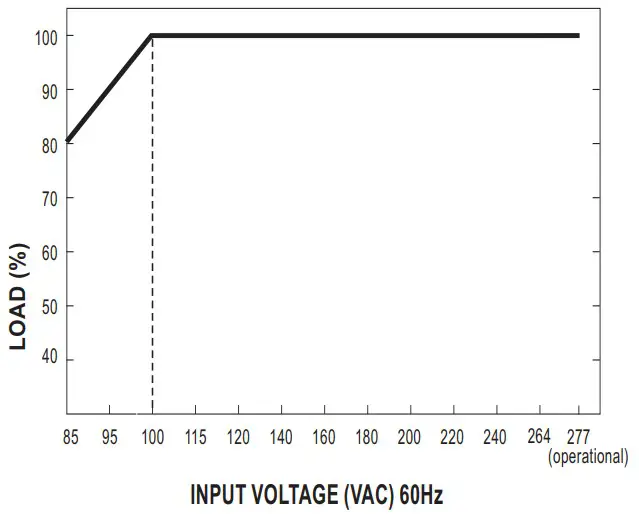

INPUT	VOLTAGE RANGE	85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	82%	88%		89%	89%		90%
	AC CURRENT (Typ.)	0.88A/115VAC 0.48A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 25A/115VAC 45A/230VAC
PROTECTION	OVERLOAD	105 ~ 160% rated output power
		Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 7.5V	15 ~ 18V		18.8 ~ 22.5V	30 ~ 36V		57.6~ 67.2V
		Protection type : Shut down o/p voltage, re-power on to recover

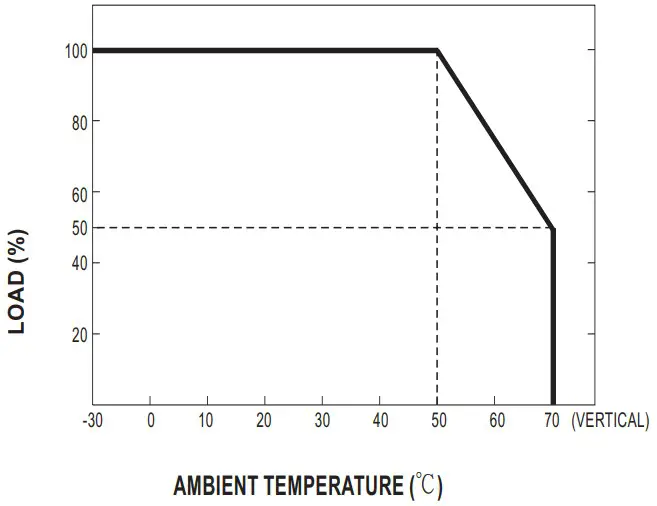

ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃) RH non-condensing
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
	OPERATING ALTITUDE	2000 meters
	OVER VOLTAGE CATEGORY	Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1,IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1
	WITHSTAND VOLTAGE	I/P-O/P:4KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard			Test Level / Note
		Conducted		BS EN/EN55032(CISPR32), CNS13438			Class B
		Radiated		BS EN/EN55032(CISPR32), CNS13438			Class B
		Harmonic Current		BS EN/EN61000-3-2			Class A
		Voltage Flicker		BS EN/EN61000-3-3			—-
	EMC IMMUNITY	BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
		Parameter		Standard			Test Level /Note
		ESD		BS EN/EN61000-4-2			Level 3, 8KV air; Level 2, 4KV contact, criteria A
		Radiated Susceptibility		BS EN/EN61000-4-3			Level 3, criteria A
		EFT/Burest		BS EN/EN61000-4-4			Level 3, criteria A
		Surge		BS EN/EN61000-4-5			Level 4,2KV/L-N, criteria A
		Conducted		BS EN/EN61000-4-6			Level 3, criteria A
		Magnetic Field		BS EN/EN61000-4-8			Level 4, criteria A
		Voltage Dips and interruptions		BS EN/EN61000-4-11			＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS	MTBF	968.1K hrs min. MIL-HDBK-217F (25℃)

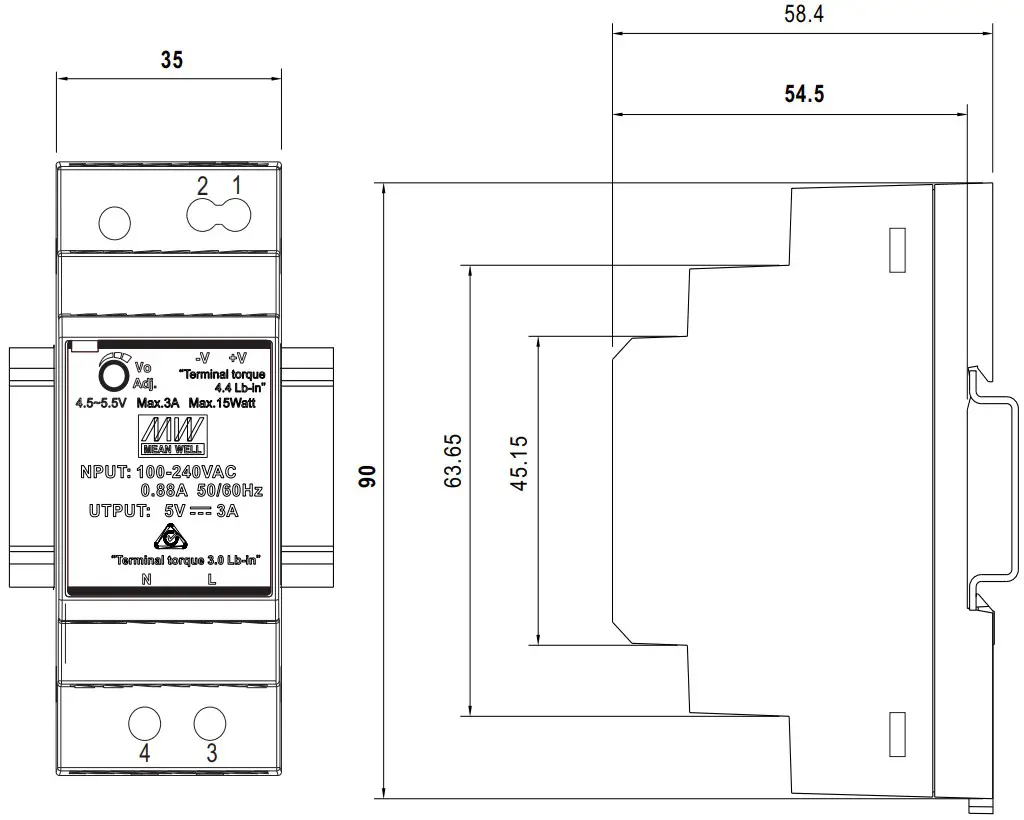

	DIMENSION	359054.5mm (WHD)
	PACKING	0.12Kg;96pcs/12.5Kg/1.1CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMl testing of component power supplies.” (as available on http://www.meanwell.com) 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
