Din Rail Bracket
User Guide
Requires a Heimgardactuator
Installation
Read all instructions prior to installation.

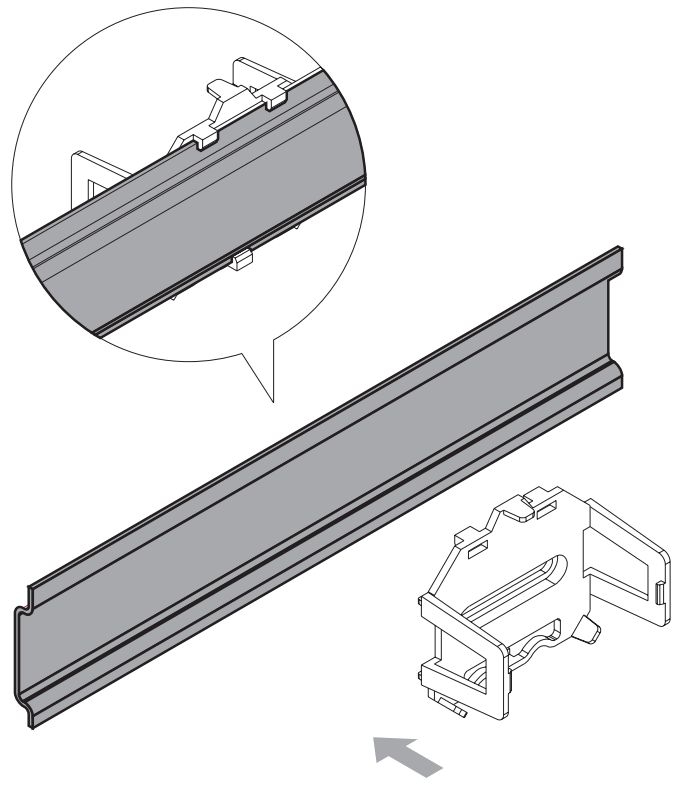

- Clip the mounting clip onto DIN rail.

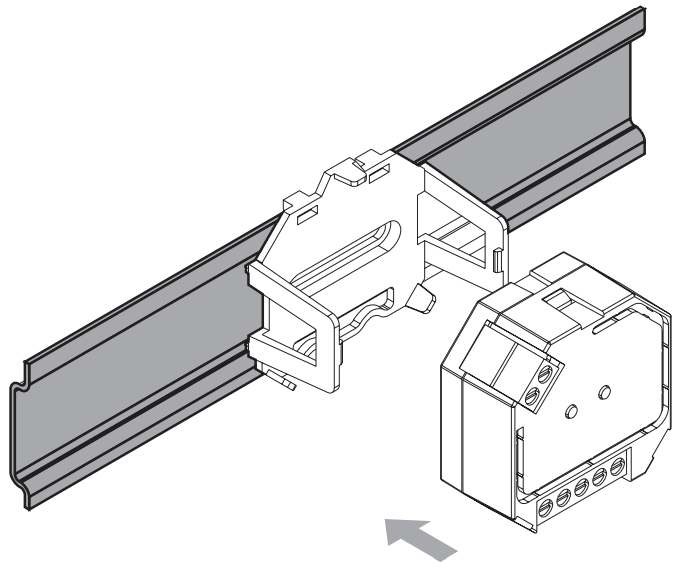

- Install the device onto the mounting clip in the correct direction.

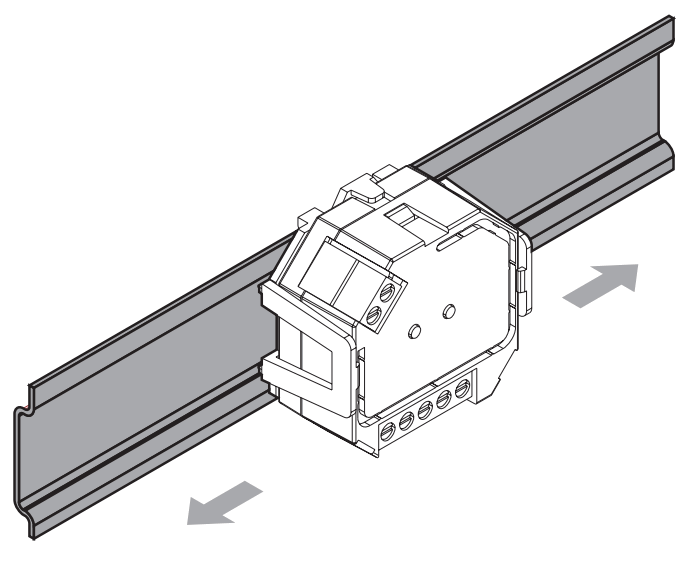

- The device can slide freely on the DIN rail.

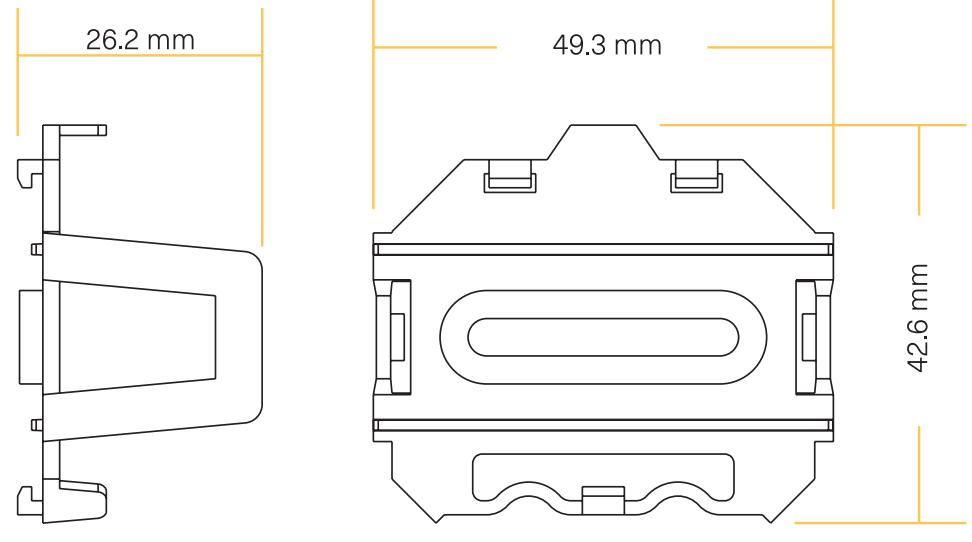

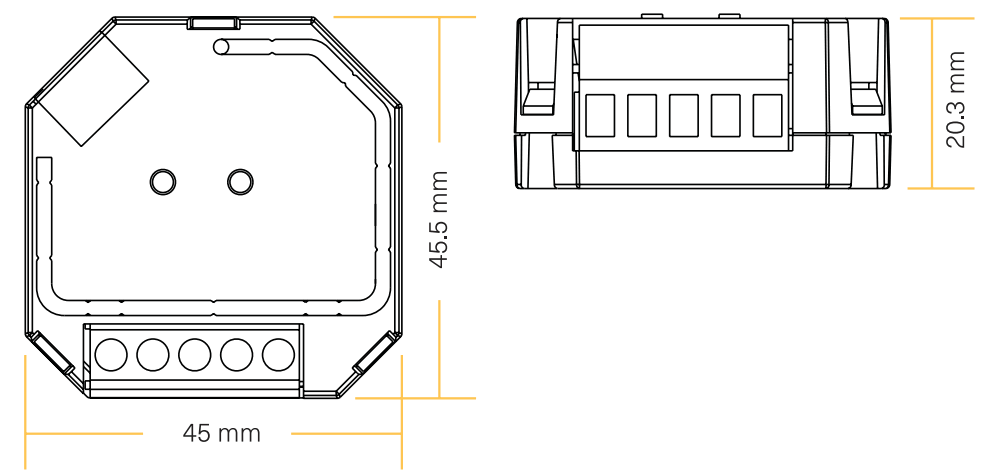

This DIN rail mounting clip is developed to mount in-wall module on a 35mm DIN rail. It is applicable to all devices with the casing design as follows:
