EB500E ONE-HANDLE BAR FAUCET
Instruction Manual
EB500E One-Handle Bar Faucet
Image is for reference only (Style varies by model)
Record Purchased Model Number: (Save instruction sheet for future reference)
Register Online: www.moen.com/product-registration
PLEASE CONTACT MOEN FIRST
For Installation Help, Missing or Replacement Parts
(USA) 1-800-BUY-MOEN (1-800-289-6636) www.moen.com
(Canada) 1-800-465-6130 www.moen.ca
HELPFUL TOOLS
For safety and ease of faucet replacement, Moen recommends the use of these helpful tools.
 |  |  |  |
| Adjustable Pliers | Adjustable Wrench | Flathead Screwdriver | Phillips Screwdriver |
 |  |  |  |
| Safety Glasses | Sealant | Tape Measure | Thread Seal Tape |

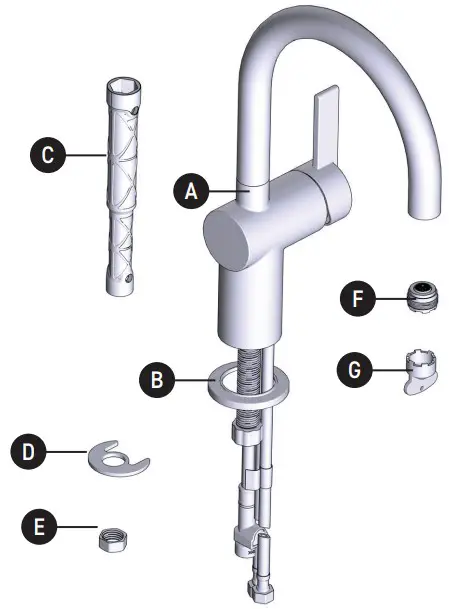

Parts List
A. Faucet Body
B. Escutcheon
C. Installation Tool
D. Support Bracket
E. Mounting Bracket Nut
F. Aerator
G. Aerator Tool
CAUTION — TIPS FOR REMOVAL OF OLD FAUCET:
Always turn water supply OFF before removing existing faucet or disassembling the valve. Open faucet handle to relieve water pressure and ensure that complete water shut-off has been accomplished.
Icon Legend

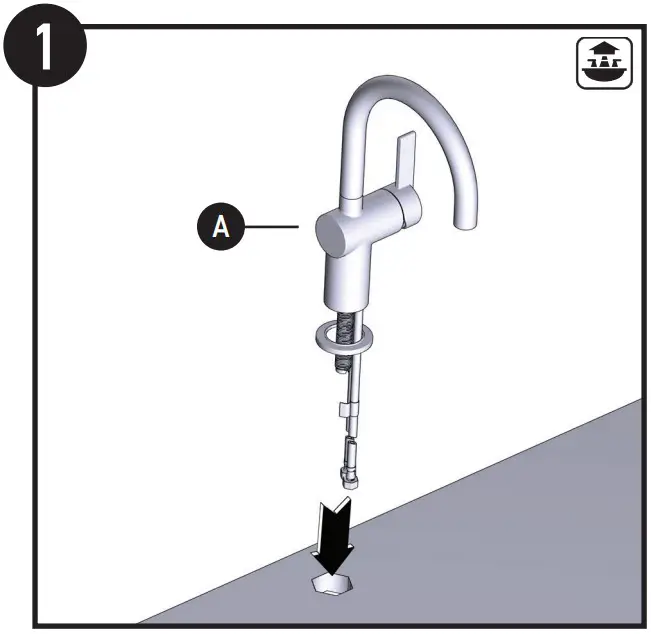

1. Insert Faucet Body (A) through hole in sink until fully seated

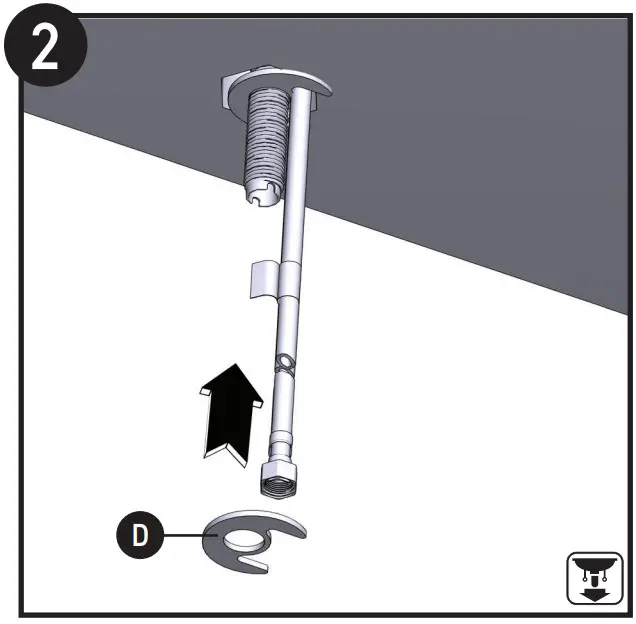

1. Install Support Bracket (D)

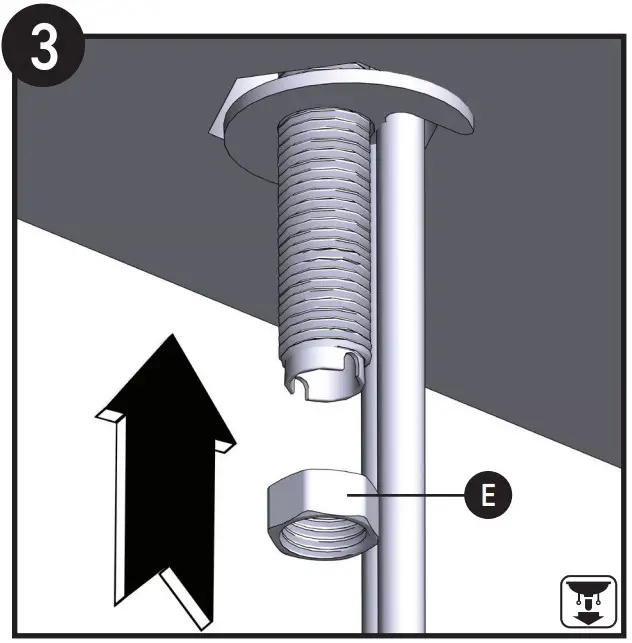

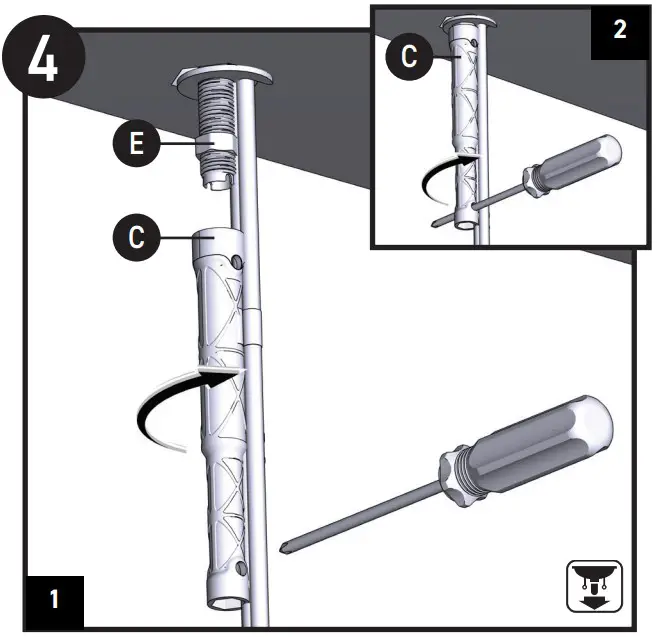

1. Install Mounting Bracket Nut (E).
- Use Installation tool (C) to install Support bracket Nut (E).
- Insert Screwdriver into Installation tool (C) to tighten support bracket nut.

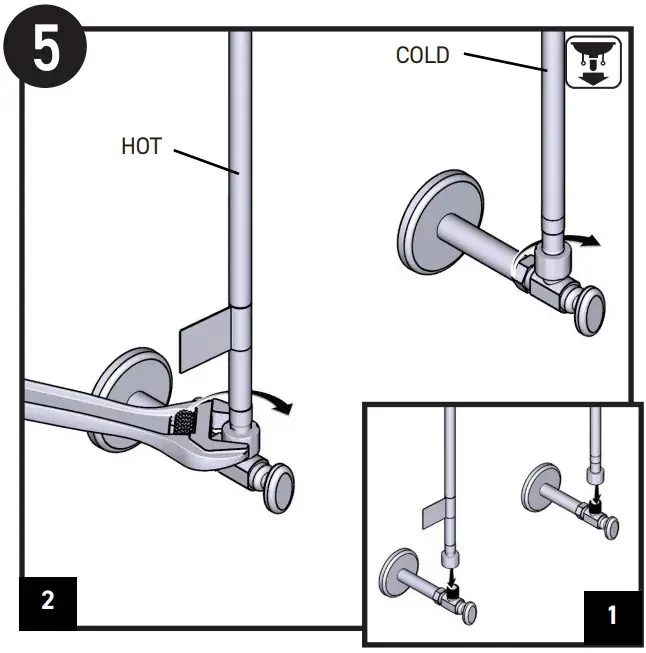

1. Attach Supply hoses (x2) to shut-off valves. Tighten with wrench until secure.
1. Turn on Hot and Cold water supply.

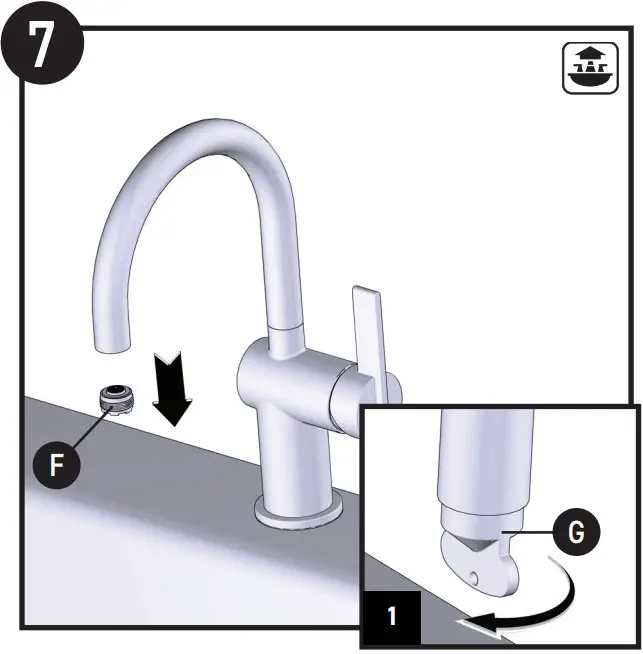

1. Use Aerator tool (G) to remove Aerator (F).
- Turn on handle and rinse faucet of any possible debris for 15 seconds.
- Turn off handle

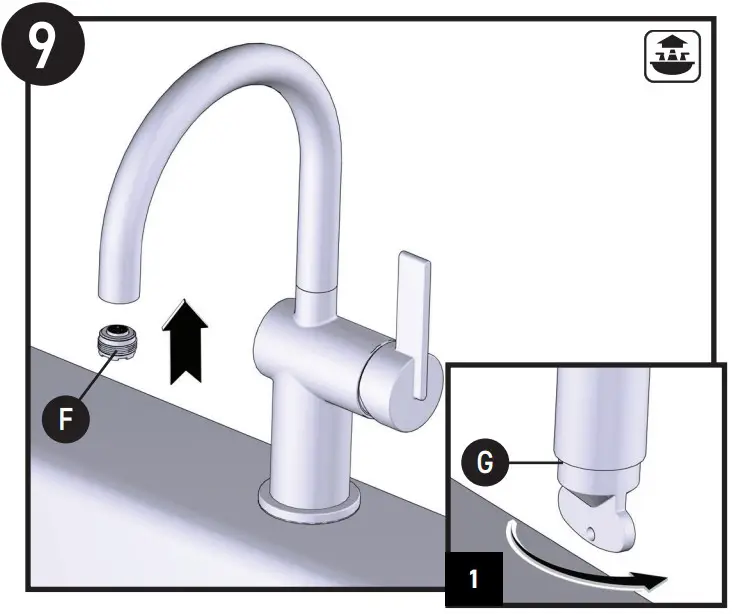

1. Reinstall Aerator (F) with Aerator tool (G).
1. Installation Complete.
Moen Limited Lifetime Warranty
Moen products have been manufactured under the highest standards of quality and workmanship.
Moen warrants to the original consumer purchaser for as long as the original consumer purchaser owns their home (the “Warranty Period” for homeowners), that this faucet will be leak- and drip-free during normal use and all parts and finishes of this faucet will be free from defects in material and manufacturing workmanship. All other purchasers (including purchasers for industrial, commercial and business use) are warranted for a period of 5 years from the original date of purchase (the “Warranty Period” for non-homeowners).
If this faucet should ever develop a leak or drip during the Warranty Period, Moen will FREE OF CHARGE provide the parts necessary to put the faucet back in good working condition and will replace FREE OF CHARGE any part or finish that proves defective in material and manufacturing workmanship, under normal installation, use and service. Replacement parts may be obtained by calling 1-800-289-6636 (Canada 1-800-465-6130), or by writing to the address shown. Proof of purchase (original sales receipt) from the original consumer purchaser must accompany all warranty claims. Defects or damage caused by the use of other than genuine Moen parts is not covered by this warranty. This warranty is applicable only to faucets purchased after December, 1995 and shall be effective from the date of purchase as shown on purchaser’s receipt.
This warranty is extensive in that it covers replacement of all defective parts and finishes. However, damage due to installation error, product abuse, product misuse, or use of cleaners containing abrasives, alcohol or other organic solvents, whether performed by a contractor, service company, or yourself, are excluded from this warranty. Moen will not be responsible for labor charges and/or damage incurred in installation, repair or replacement, nor for any indirect, incidental or consequential damages, losses, injury or costs of any nature relating to this faucet. Except as provided by law, this warranty is in lieu of and excludes all other warranties, conditions and guarantees, whether expressed or implied, statutory or otherwise, including without restriction those of merchantability or of fitness for use.
Some states, provinces and nations do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state, province to province, nation to nation. Moen will advise you of the procedure to follow in making warranty claims. Simply write to Moen Incorporated using the address below. Explain the defect and include proof of purchase and your name, address, area code and telephone number.
Moen Incorporated
25300 Al Moen Drive
North Olmsted, Ohio 44070-8022
U.S.A.
INS11737 – 8/21
©2014 Moen Incorporated
Moen Inc.
2816 Bristol Circle
Oakville, Ontario L6H 5S7
Canada
