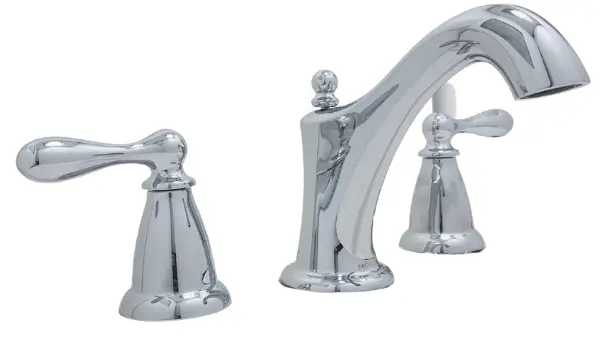

MOEN Caldwell WS84440 Series Two-Handle Widespread Lavatory Faucet
There is more than one version of this model. Page down to identify the version you have.
MODELS: WS84440 Series
NOTE: SPOUT INSTALLS THROUGH 1-1/8” MIN. DIA. HOLE. VALVES INSTALL THROUGH 1-1/8” MIN. DIA. HOLE. For Deck Thickness 1-3/8” to 3”, use service kit number 175709

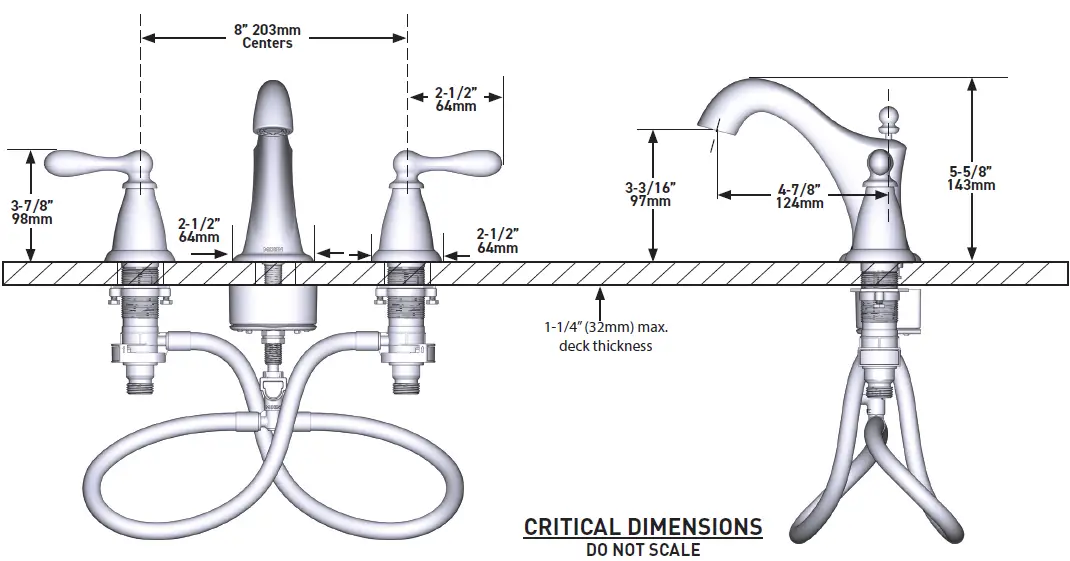

DIMENSIONS
DESCRIPTION
- Duralock™ quick connect installation
- Metal construction with various finishes identified by suffix
- 1/2” IPS connections
- Includes non-metal pop-up waste assembly
OPERATION
- Lever style handles
- Hot side counterclockwise to open (clockwise to close)
- Cold side clockwise to open (counterclockwise to close)
FLOW
- Water usage is limited to these maximum flow rates as indicated by the corresponding product markings
- 1.2 gpm max (4.5L/min) at 60 psi
- 1.5 gpm max (5.7L/min) at 60 psi
CARTRIDGE
- 1234 cartridge
- Nonmetallic and stainless steel material
STANDARDS
- Third party certified to WaterSense,® ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein
- Certified to NSF 61/9 & 372
- Products marked with 1.2 gpm are compliant with California water efficiency regulations
- Complies with California Proposition 65 and with the Federal Safe Drinking Water Act
- ADA for lever handles
WARRANTY
- Lifetime limited warranty against leaks, drips and finish defects to the original homeowner
- 10 year limited warranty when used in a multifamily installation
- 5 year limited warranty when used in a commercial installation
CLEVELAND FAUCET GROUP 25300 AL MOEN DRIVE NORTH OLMSTED, OHIO 44070
- (888) 450-5522
- www.cfgonline.com
FOR MORE INFORMATION CALL:
- 1-800-BUY-MOEN
- www.moen.com
