SPECIFICATIONS
Ash™
Two-Handle Widespread Lavatory Faucet with Waste
MODELS: 58912 series

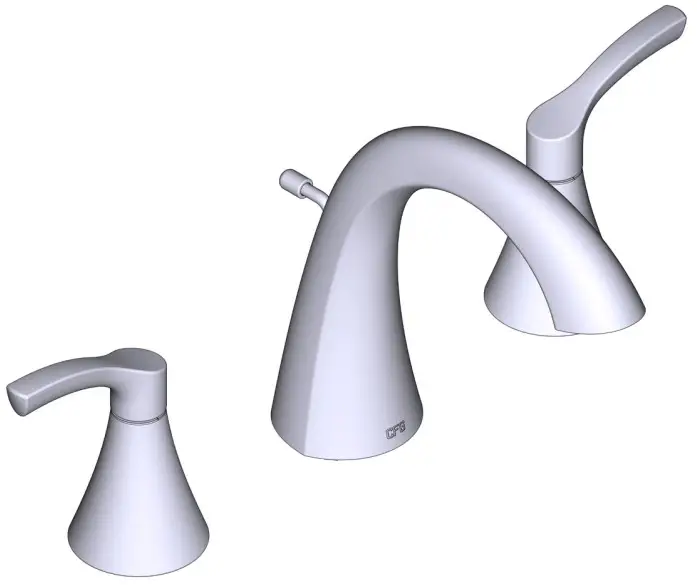

58912 Series Ash Two-Handle Widespread Lavatory Faucet with Waste

NOTES:
The spout is designed to be installed through 1” (26mm) minimum diamter hole, valve body installs through 1-1/4” (32mm) diameter holes. Maximum deck thickness: 1-1/2” (38mm)There is more than one version of this model.
Page down to identify the version you have.

DESCRIPTION

• Metal construction with various finishes identifed by suffix
• 1/2” IPS connections
• Designed to be installed on 8” to 16” centers
• Includes 50/50 pop-up waste assembly
• Six (6) individual boxes per master carton

OPERATION

• Lever style handles
• Hot side: Turn counterclockwise to open (clockwise to close)
• Cold side: Turn clockwise to open (counterclockwise to close)
• Operates with less than 5 lbs. of torque
• No grasping motion required to operate the faucet handle
• Features red/blue hot/cold termperature indicators

FLOW

• Water usuage is limited to these maximum flow rates as indicated by the corresponding product markings
  • 1.2 gpm max (4.5L/min)at 60 psi

CARTRIDGE

• Ceramic disc technology
• Non-metallic, non-ferrous, and brass materials
• Single body construction for easy replacement

STANDARDS

• Third party certified to WaterSense® , ASME A112.18.1/ CSA B-125.1, and all applicable requirements referenced therein including NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California water effciency requlations
• Complies with California Proposition 65 and with the Federal Safe Drinking Water Act
• ADA for lever handles

WARRANTY

• Ten year limited warranty against defects in materials and manufacturing workmanship
• Refer to the installation instructions enclosed with each CFG product or call 1-888450-5522 for complete warranty information

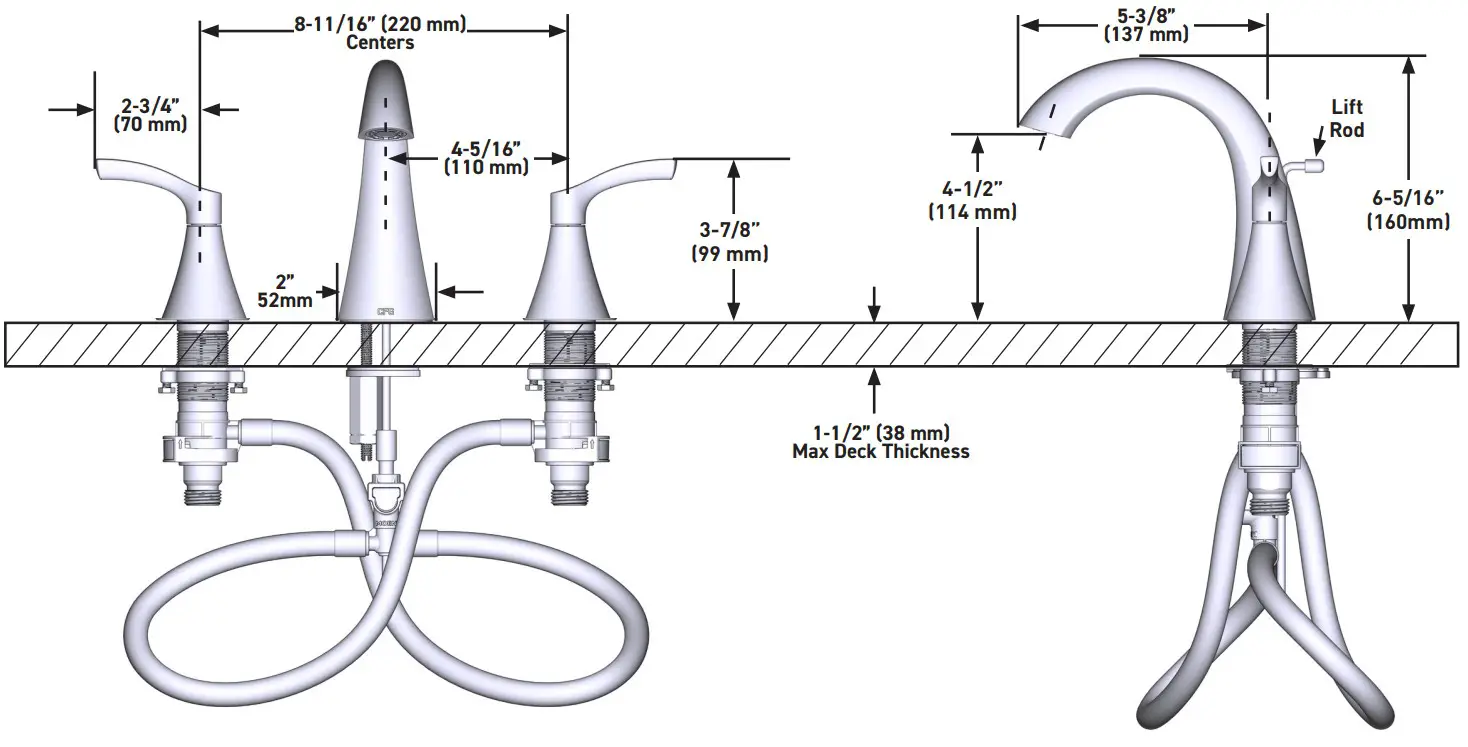

CRITICAL DIMENSIONS DO NOT SCALE
SPECIFICATION SHEETModels: 58912 series

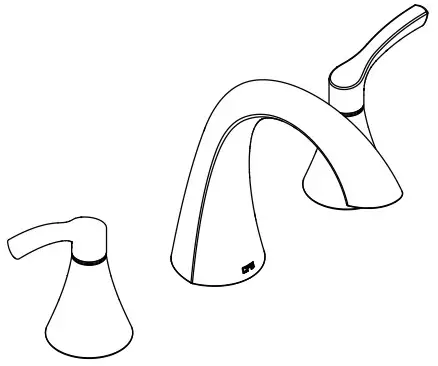

Ash™Two Handle Widespread Lavatory With Waste

DESCRIPTION

• Metal construction with chrome finish
• 1/2″ IPS shanks
• Designed to be installed on 8″ to 16″ centers
• Includes 50/50 pop-up waste assembly
• Six (6) individual boxes per master carton

OPERATION

• Lever-style handle
• Hot side: Turn counterclockwise to open (clockwise to close)
• Cold side: Turn clockwise to open (counterclockwise to close)
• Will operate with less than 5 lbs. of torque
• No grasping motion required to operate the faucet handle
• Features red/blue hot/cold temperature indicators

FLOW

• Water usuage is limited to these maximum flow rates as indicated by the corresponding product markings
  • 1.2 gpm max (4.5L/min)at 60 psi

CARTRIDGE

• Ceramic disc technology
• Non-metallic, non-ferrous, and brass materials
• Single body construction for easy replacement

STANDARDS

• Third party certified to WaterSense®, ASME A112.18.1/ CSA B-125.1, and all applicable requirements ref er enced therein including NSF 61/9 & 372
• Complies with California Proposition 65 and with the Federal Safe Drinking Water Act
• Products marked with 1.2 gpm are compliant with California water efficiancy regulations
• ADA for lever handle

WARRANTY – RESIDENTIAL, COMMERCIAL

• Ten year limited warranty against defects in materials and manufacturing workmanship
• Refer to the installation instructions enclosed with each CFG product or call 1-888-450-5522 for complete warranty information

NOTE:

• The spout is designed to be installed through 1″ (26 mm) minimum diameter hole, valve body installs through 1-1/4″ (32 mm) diameter holes
• Maximum deck thickness: 1-1/2″ (38 mm)

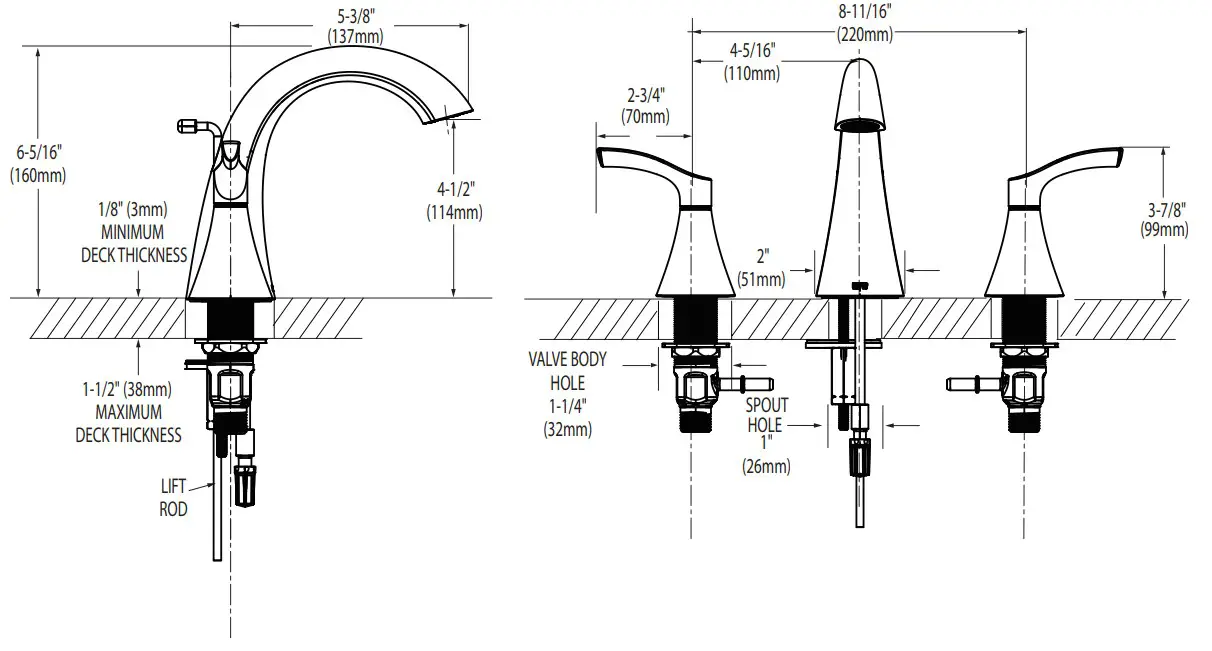

CRITICAL DIMENSIONS (DO NOT SCALE)

CLEVELAND FAUCET GROUP
25300 AL MOEN DRIVE
NORTH OLMSTED, OHIO 44070
(888) 450-5522
www.cfgonline.com
CFG- 58912
