MOEN 204688 Handle Hub Kit

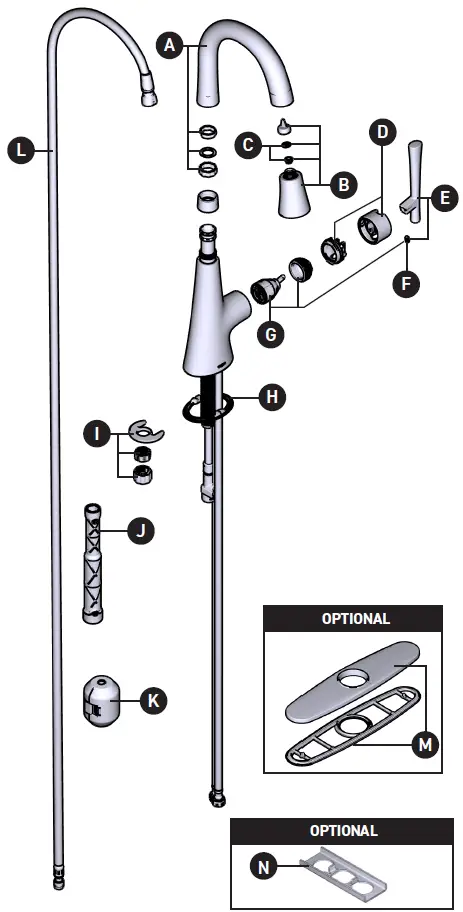

Illustrated Parts

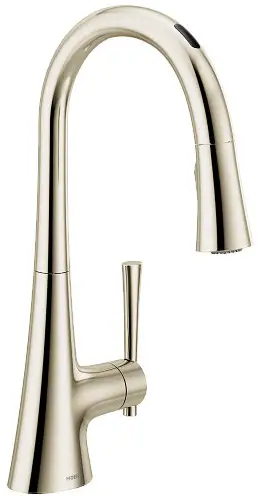

Single-Handle High Arc Pulldown Bar Faucet
| ID | Kit Number | Kit Description | Finish |
| A | 204773 | Spout Kit | Chrome |
| 204773BL | Matte Black | ||
| 204773NL | Nickel | ||
| 204773SRS | Spot Resist Stainless | ||
| B | 204777 | Wand Kit | Chrome |
| B | 204777BL | Matte Black | |
| 204777NL | Nickel | ||
| 204777SRS | Spot Resist Stainless | ||
| C | 158550 | Wand Screen, O-Ring (1.5 gpm) | N/A |
| D | 204688 | Handle Dome | Chrome |
| 204688BL | Matte Black | ||
| 204688NL | Nickel | ||
| 204688SRS | Spot Resist Stainless | ||
| E | 204687 | Handle Kit | Chrome |
| 204687BL | Matte Black | ||
| 204687NL | Nickel | ||
| 204687SRS | Spot Resist Stainless | ||
| F | 155023 | Set Screw (requires 3/32” hex key) | N/A |
| G | 160657 | Cartridge, Cart. Nut & Set Screw | N/A |
| H | 204779 | Gasket Kit | Chrome/SRS |
| 204779BL | Matte Black | ||
| I | 192155 | Mounting Hardware | N/A |
| J | 118305 | Installation Tool | N/A |
| K | 195361 | Hose Weight | N/A |
| L | 150259 | Pulldown Hose | N/A |
| M | 141002 | Escutcheon Kit (optional) | Chrome |
| 141002BL | Matte Black | ||
| 141002NL | Nickel | ||
| 141002SRS | Spot Resist Stainless | ||
| N | 176787 | Mounting Bracket (optional) | N/A |
TO ORDER PARTS CALL: 1-800-BUY-MOEN
