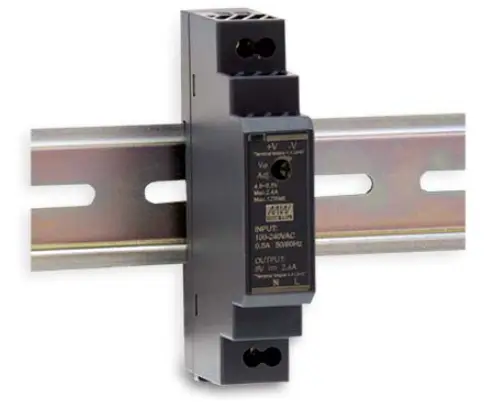

15W
Ultra Slim Step Shape
DIN-Rail

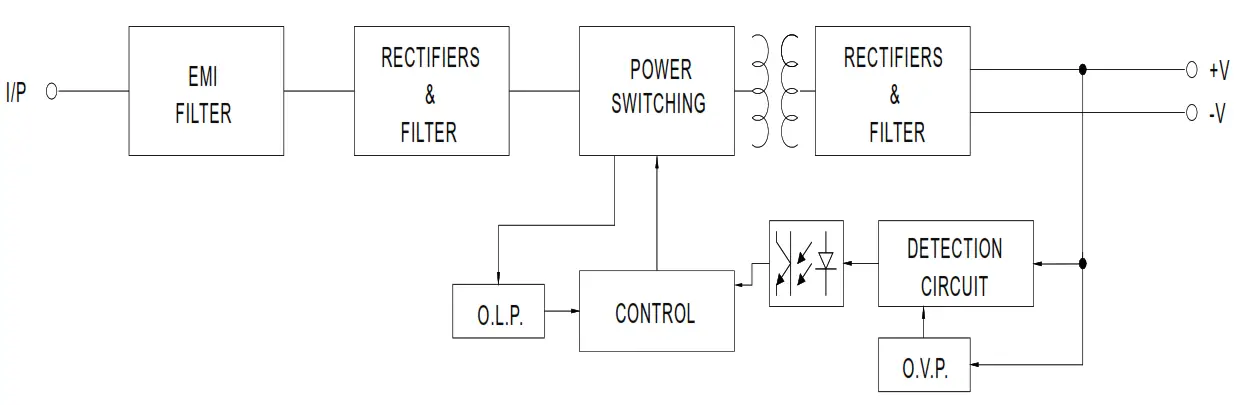

HDR-15 series

Contents hide

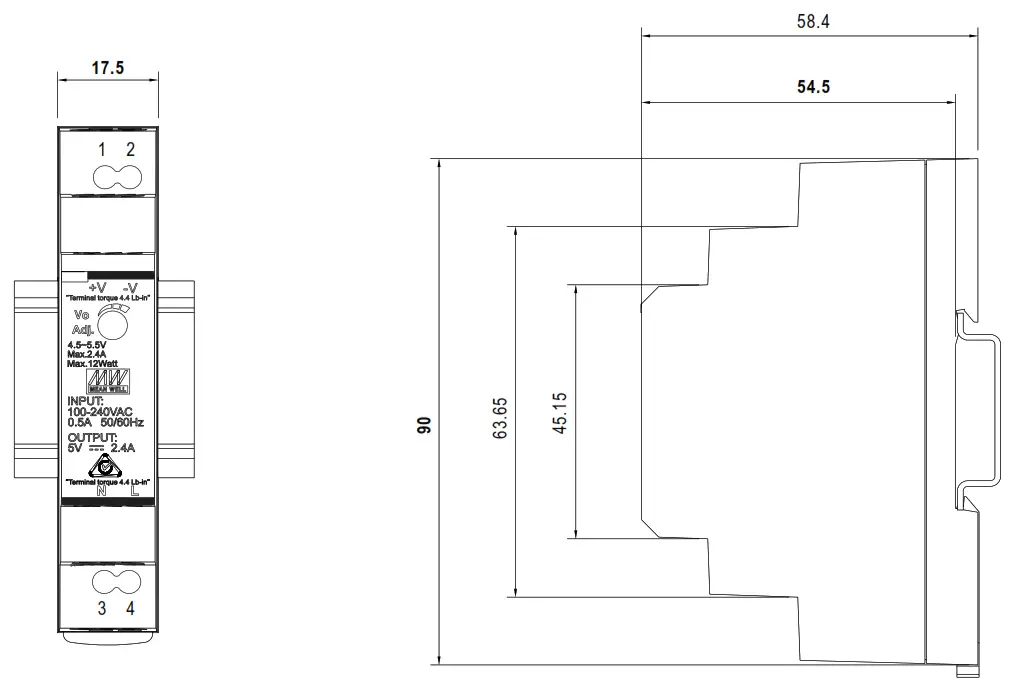

7 Mechanical Speciﬁcation

8 Installation Manual

9 Documents / Resources

9.1 References

10 Related Posts

Features

Ultra slim design with 17.5mm (1SU) width
Universal input 85~264VAC (277VAC operational)
No load power consumption<0.3W
Isolation class II
Pass LPS (Limited power source)
DC output voltage adjustable
Protections: Short circuit/Overload/Over voltage
Cooling by free air convection (working temperature: -30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
Overvoltage category III
LED indicator for power on
3 years warranty

Applications

Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus

Description

HDR-15 is one economical ultra-slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space-saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with plastic housing that can effectively prevent a user from electric hazards. With a working efficiency of up to 87%, the entire series can operate at the ambient temperature between -30°C and air convection. The complete protection functions and relevant certificates for home automation and industrial 70°C under control apparatus (IEC60950-1, UL508, UL60950-1, EN61558-2-16) make HDR-65 a very competitive power supply solution for household and industrial applications.

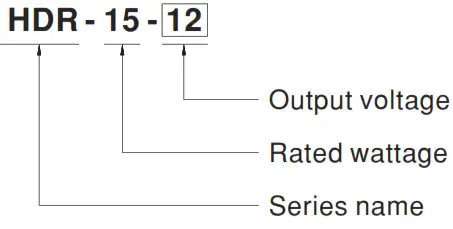

Model Encoding

SPECIFICATION

MODEL		HDR-15-5	HDR-15-12		HDR.45-15	HDR-15-24		HDR-15-411
OUTPUT	DC VOLTAGE	5V	12V		15V	24V		48V
	RATED CURRENT	2.4A	125A		1A	0.63A		0.32A
	CURRENT RANGE	0-2.4A	0 – 1.25A		0-IA	0 – 0.63A		0 -0.32A
	RATED POWER	12W	15W		15W	15.2W		15.4W
	RIPPLE 8 NOISE (max.) Natal	80mVp-p	120mVp-p		120mVp-p	150mVp-p		240mVp-p
	VOLTAGE ADJ. RANGE	4.5 – 5.5V	10.8 – 13.8V		135 – 18V	21.6 – 29V		43.2 – 55.2V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%		±1.0%	±1.0%		±1.0%
	LINE REGULATION	±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	LOAD REGULATION	±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	SETUP, RISE TIME	2000ms. 80ms(230VAC, 2000ms. 80ms/115VAC at fel load
	HOLD UP TIME (Typ.)	30ms230VAC, 12ms/115VAC at ful load
INPUT	VOLTAGE RANGE	85 – 264VAC (277VAC opesaticnal ) , 120- 370VDC (390NDC operational )
	FREQUENCY RANGE	47 -63Hz
	EFFICIENCY (Typ.)	BO% , 185% ,185.5%, 186%, 187%
	AC CURRENT (Typ.)	0.5A/115VAC, 0.25A230VAC
	INRUSH CURRENT (Typ.)	COLD START 25A/115VAC , 45N230VAC
PROTECTION	OVERLOAD	110 – 145% rated output power
		Hiccup mode Wien output voltage <50%. recovers automatically after fault condition is removed Constant current Laing within 50% -100% rated output voltage, recovers automatically after faun ooncteon is removed
	OVER VOLTAGE	5.75 – 6.75V	14.2- 16.2V 1 18.8 – 22.5V			30′- 36V		56 5 – 64.6V
		Protection type : Shut off o/p voltage, Swale by zener diode

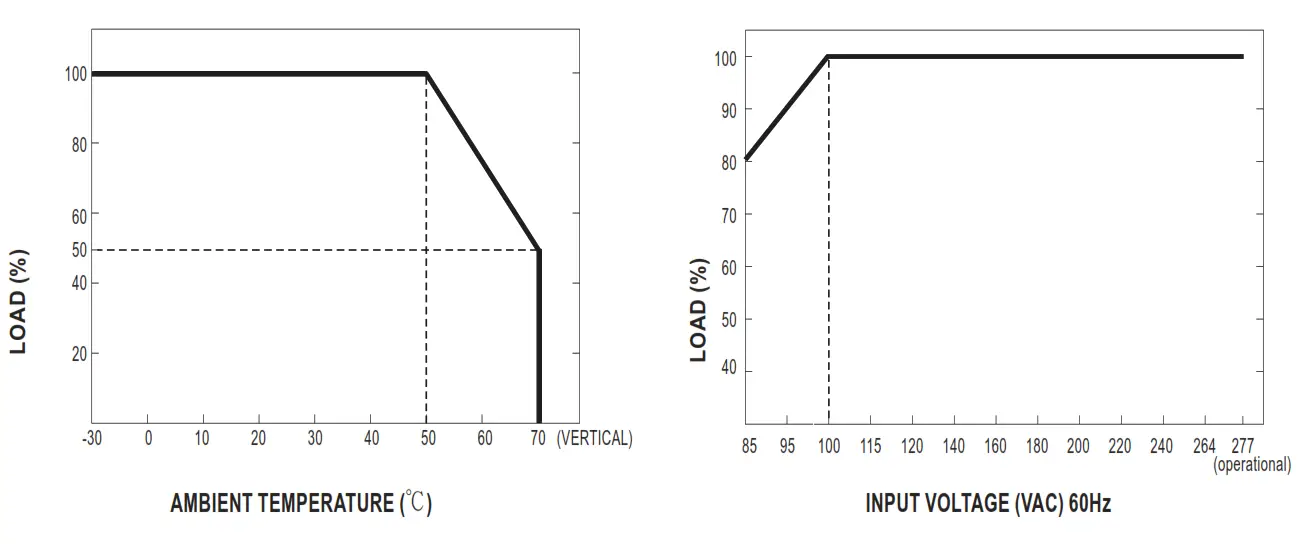

EIPPROMIERT	WORKING TEMP.	-30 – +70t (Refer Tel:/eating Curve)
	WORKING HUMIDITY	20 – 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40-485’C, 10- 95% RH non-condensitg
	TEMP. COEFFICIENT	-±0.03%R.: (0 – 50^.C) RH non-condensing
	VIBRATION	10- 500Hz. 2G 10min./Icycle. period fa 60min. each along X. Y. Z axes: Mounting: Compliance to IEC60068-2-6
	OPERATING ALTITUDE	2000 meters
	OVER VOLTAGE CATEGORY	ill : According to EN61558, EN50178,EN60664-1, EN62477-1 : altitude up to 2000 meters
SAFETY & EMC (Nets 4)	SAFETY STANDARDS	UL60950-1, UL508, TUV EN61558-2-16.IEC60950-1, EAC TP TC 004, BSMI CNS14336-1 approved: Design refer to TUV EN60950-1
	WITHSTAND VOLTAGE	1/P-01P:4KVAC
	ISOLATION RESISTANCE	UP-OIP:100M Ohms! 500VDC / 25C/ 70% RH
	EMC EMISSION	Parameter		Standard			Test Level / Note
		Conducted		EN55032(CISPR32), CNS13438			Class B
		Radiated		EN55032(CISPR32). CN$13438			Class 8
		Harmonic Current		EN61000-3-2			Class A
		Voltage Facies		EN61000-3-3
	EMC IMMUNITY	EN55024, EN55035. EN61000-6-2. EN61204-3
		Parameter		Standard			Test Level /Note
		ESD		EN61000-4-2			Level 3. BKV air: Level 2, 4XV contact. °mem A
		Radiated Susceptibility		EN61000-4-3			Leve13. aiteria A
		EFT/Burest		EN61000-4-4			Leve13. crrteria A
		Surge		EN61000-4-5			Leve14,2KV/L-N, aiteria A
		Conducted		EN61000-4-6			Level 3. criteria A
		Magnetic Field		EN61000-4-8			Level 4. aiteda A
		Voltage Dips and interruptions		EN810004-11			>95% dip 0.5 periods. 30% dip 25 periods. >95% interruptions 250 periods
OTHERS	MTBF	1166K hrs mil. MIL-HDBK-217F (25t)
	DIMENSION	17.5’90’54.5mm (WI-I’D)
	PACKING	78g:160pcs/13.5149/1.19CUFT

NOTE

All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
Tolerance: includes set up tolerance, line regulation, and load regulation.
The power supply is considered as an independent unit, but the final equipment still needs to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
The ambient temperature derating of 3.5/1000m with fanless models and of 5/1000m with fan models for operating altitude higher than 2000m(6500ft).
