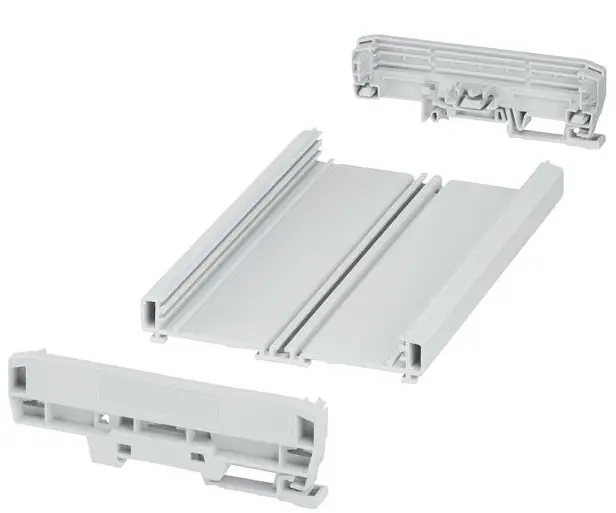

PHOENIX CONTACT 1300365 DIN Rail Cabinet Set UM-BASIC

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user’s documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download)

Key Commercial Data

Packing unit	1 pc
GTIN
GTIN	4063151544614
Custom tariff number	39169010

Technical data

Product properties

Brief article description	Housing set
Type	UM-BASIC-KIT-B122-L180-7035
Item no.	1300365
Housing type	Profile housing
Housing series	UM-BASIC
Type	incl. 2 lateral elements
Mounting type	DIN rail mounting

Dimensions

Width	183.8 mm
Height	142.3 mm
Depth	39.45 mm
Depth from the top edge of the DIN rail	32.45 mm

PCB specifications

Number of PCB holders	3
Dimensions	122 mm x 180 mm (PCB dimensions)

Technical data

PCB specifications

PCB surface, maximum	19240 mm²
PCB thickness	1.4 mm… 1.8 mm
Mounting position	parallel to the DIN rail
Type of PCB mount	Insertion/securing with additional elements

Material specifications – Profile

Material	PVC
Color (RAL)	light gray (7035)
Flammability rating according to UL 94	V0

Material specifications – Lateral elements

Material	PA
Color (RAL)	light gray (7035)
Flammability rating according to UL 94	V0

Ambient conditions

Ambient temperature (storage/transport)	-40 °C … 50 °C
Ambient temperature (assembly)	-5 °C … 50 °C
Ambient temperature (operation)	-15 °C … 50 °C (depending on power dissipation)
Relative humidity (storage/transport)	95 %
