PHOENIX CONTACT 1300357 184x40x128mm DIN-Rail Enclosure Kit
Housing set – UM-BASIC-KIT-B108-L180-7035 – 1300357
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user’s documentation. Our General Terms of Use for Downloads are valid(http://phoenixcontact.com/download)

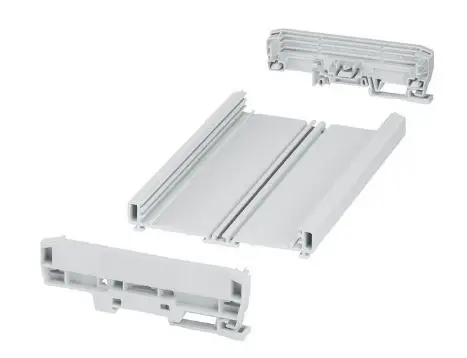

Profile housing (PVC), mounting type: DIN rail mounting, color: light gray (7035), dimensions on the DIN rail: width: 183.8 mm, height: 127.8 mm, depth: 39.45 mm, incl. 2 lateral elements (PA), color: light gray (7035), for PCBs with width: 108 mm, length: 180 mm, PCB surface: 16870 mm²
Key Commercial Data
| Packing unit | 1 pc |
| GTIN | |
| GTIN | 4063151545208 |
| Custom tariff number | 39169010 |
Technical data
| Brief article description | Housing set |
| Type | UM-BASIC-KIT-B108-L180-7035 |
| Item no. | 1300357 |
| Housing type | Profile housing |
| Housing series | UM-BASIC |
| Type | incl. 2 lateral elements |
| Mounting type | DIN rail mounting |
| Width | 183.8 mm |
| Height | 127.8 mm |
| Depth | 39.45 mm |
| Depth from top edge of DIN rail | 32.45 mm |
| Number of PCB holders | 3 |
| Dimensions | 108 mm x 180 mm (PCB dimensions) |
Housing set
| PCB surface, maximum | 16870 mm² |
| PCB thickness | 1.4 mm…. 1.8 mm |
| Mounting position | parallel to the DIN rail |
| Type of PCB mount | Insertion/securing with additional elements |
| Material | PVC |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
| Material | PA |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C … 50 °C |
| Ambient temperature (assembly) | -5 °C … 50 °C |
| Ambient temperature (operation) | -15 °C … 50 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 95 % |
| Type of note | Assembly instruction: |
| Note | Please observe the assembly instructions available in the download area. |
| Type of packaging | packed in cardboard |
| Pieces per package | 1 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
| eCl@ss 10.0.1 | 27182701 |
| eCl@ss 11.0 | 27182701 |
| eCl@ss 9.0 | 27182701 |
