PHOENIX CONTACT 1310926 84x40x92mm Polyamide DIN-Rail Enclosure Kit
Housing set – UM-PRO-KIT-B72-L80-7035 – 1310926
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user’s documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

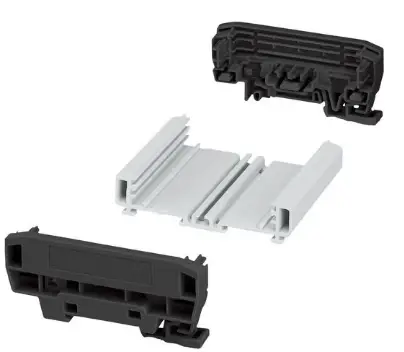

Profile housing (PA), mounting type: DIN rail mounting, color: light gray (7035), dimensions on the DIN rail: width: 83.8 mm, height: 92.3 mm, depth: 39.45 mm, incl. 2 lateral elements (PA), color: black (9005), for PCBs with width: 72 mm, length: 80 mm, PCB surface: 4300 mm²
Key Commercial Data
| Packing unit | 1 pc |
| GTIN |
|
| GTIN | 4063151571122 |
| Custom tariff number | 39169010 |
Technical data
Product properties
| Brief article description | Housing set |
| Type | UM-PRO-KIT-B72-L80-7035 |
| Item no. | 1310926 |
| Housing type | Profile housing |
| Housing series | UM-PRO |
| Type | incl. 2 lateral elements |
| Mounting type | DIN rail mounting |
Dimensions
| Width | 83.8 mm |
| Height | 92.3 mm |
| Depth | 39.45 mm |
| Depth from top edge of DIN rail | 32.45 mm |
PCB specifications
| Number of PCB holders | 3 |
| Dimensions | 72 mm x 80 mm (PCB dimensions) |
Technical data
PCB specifications
| PCB surface, maximum | 4300 mm² |
| PCB thickness | 1.4 mm…. 1.8 mm |
| Mounting position | parallel to the DIN rail |
| Type of PCB mount | Insertion/securing with additional elements |
Material specifications – Profile
| Material | PA |
| Color (RAL) | light gray (7035) |
| Flammability rating according to UL 94 | V0 |
Material specifications – Lateral elements
| Material | PA |
| Color (RAL) | black (9005) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C … 55 °C |
| Ambient temperature (assembly) | -5 °C … 100 °C |
| Ambient temperature (operation) | -40 °C … 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
General information
| Type of note | Assembly instruction: |
| Note | Please observe the assembly instructions available in the download area. |
Packaging specifications
| Type of packaging | packed in cardboard |
| Pieces per package | 1 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Classifications
eCl@ss
| eCl@ss 11.0 | 27182701 |
Approvals
Approvals
UL Recognized
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 240868
