480W Single Output Industrial DIN
RAIL N D R = 4 0 series

Contents hide

8 Output derating VS input voltage

9 mechanical Specification

10 Installation Instruction

11 Documents / Resources

11.1 References

12 Related Posts

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty

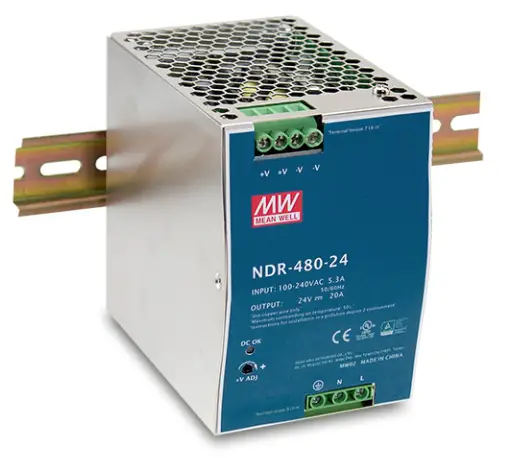

Description

NDR-480 is one economical slim 480W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-480 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-480 a very competitive power supply solution for industrial applications.

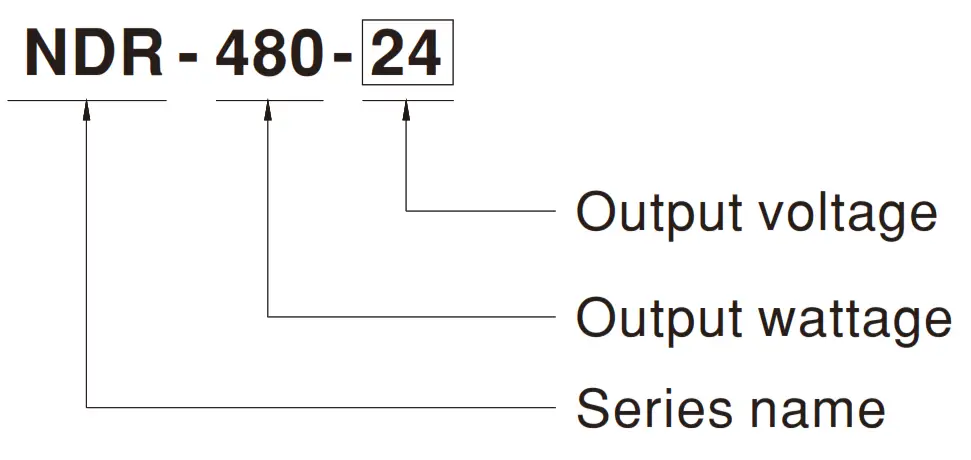

Model Encoding

Applications

Industrial control system
Factory automation
Electro-mechanical apparatus

GTIN CODE
MW Search: https://www.meanwell.com’serviceGTIN.aspx

SPECIFICATION

MODEL		NDR-480-24	NDR-480-48
OUTPUT	DC VOLTAGE	24V	48V
	RATED CURRENT	20A	10A
	CURRENT RANGE	0 – 20A	0-10A
	RATED POWER	460W	480W
	RPPLE & NOISE (max.) Nona	15OrnVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	24 – 28V	48 -55V
	VOLTAGE TOLERANCE Nob3	±10%	±1.0%
	LINE REGULATION	±05%	±0.5%
	LOAD REGULATION	± 1 .0%	±1.0%
	SETUP, RISE TIME	1503ms. 100ms/230VAC 3000ms. 100 ms/I I5VAC at WI bad
	HOLD UP TIME (Typ.)	16(110230VAC 16ms1115VAC at ful load
INPUT	VOLTAGE RANGE Nome	90- 264VAC 127 – 370VDC
	FREQUENCY RANGE	47- 63Hz
	POWER FACTOR (Typ.)	PF>0.981115VAC, PF>0.94/230VAC at full load
	EFFICIENCY (Tye.)	93.%	92.5%
	AC CURRENT (Typ.)	4 BA/115VAC 2.4A/230VAC
	INRUSH CURRENT (Typ.)	20A/115VAC 354.1230VAC
	LEAKAGE CURRENT	<2mA/ 240VAC
PROTECTION	OVERLOAD	105 -130% rated output power
		Protectontype :Constant current limiting, unit wit shut down alter 3 sec., re-power on to recover
	OVER VOLTAGE	29-33V /56 – 65V
		Protection type: Shut down Cpvollage. re-poKer cc to recover
	OVER TEMPERATURE	Shut dOw Op vol (age. recovers au bma tic* alter tempera b re goes down
BOMONIAMT	WORKING TEMP.	-20 -+70t (Refer b ‘Deming Camel
	WORKING HUMIDITY	20- 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 -+85t , 10- 95% RH
	TEMP. COEFFICIENT	toonrc (0-50t )
	VIBRATION	Corrponentl 0 – 500Hz, 2G l Ornit Mayo’s, 60mb. each along X, Y, Z axes; Mountbg: Compiance to EC60368.2.6
SAFETY & EMC (Note 4)	SAFETY STANDARDS	11508, TUV BS EN/EN62368-1, EAC TPTC 004. BSA I CNS14336-1 approved;(meel BS EN/EN60204-1)
	WITHSTAND VOLTAGE	VP-0/P:3KVAC I!P-FG:2KVAC OP-FG:0.5KVAC
	ISOLATION RESISTANCE	1/P-0/P, IP-FG ,O/P-FG:>100M Ohms I 500VDC 125*C170% RH
	EMC EMISSION	Comp lance b BS EN/EN55032 (CISPR32)13$ EN/EN61204-3Class B,BS ENE h€1000-3-2,-3,EAC TP TC 020.CNS13438 Class B
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,IIS SUEN55024,13S EN/EN6100043-2 (BS ENEN50002-2),BS EWEN61204-3, heavy industry level, EAC TP TC 020
OTHERS	NYSE	10416K Ms min. Telmmia SR-332 (13elcore) ; 146 AK hrs inn. MIL-HDBK-217F (25T)
	DIMENSION	85.5’1252128.5mm (WWI))
	PACKING	1.5Kg; 8 pos/13Kg/0.9CUF T
NOTE	1.N parameters NOT miecially mentioned we measured at 230VAC input rated load and at of ambient temperature. 2 .Ftpple & noise are measured at 20MHz of bandwidth by using a 12- twisted pair-wire terminated with a O. tut & 47u1 parallel capacitor. 3 .Tolerance : inudas set up tolerance, line regulation and load regulation. 4 .Instillation dominoes : 40mm on bp, 20mm on the bottom, 5mm on the left and right Ode are recommended when loaded permanently with kill power. In case the adjacent device is a heat source. 15rnm clearance is recommended. 5 .Derating may be needed under by input voltage. Please check the Stating awe brfor more details. 6 .The paver supply is considered as an independent unit, but the final equipment sill need to reconfirm that the whole system complies with be EMC directives. Fagidave on hO’Niopeumthese EIIC lest. phase refer WWI testing of comps en pow copes.’ 7 .The ambient temperature derming a 3.5’C/1000m with tantass models and of 5’C/1000m with tan models for operating altitude higher than 2000m(6500ft). lassvelte:http://www.meanwell.com) > Product Liability Disclaimer : For detailed information. please refer https://www.meanwell.comfserviceDiscldmer.aspx

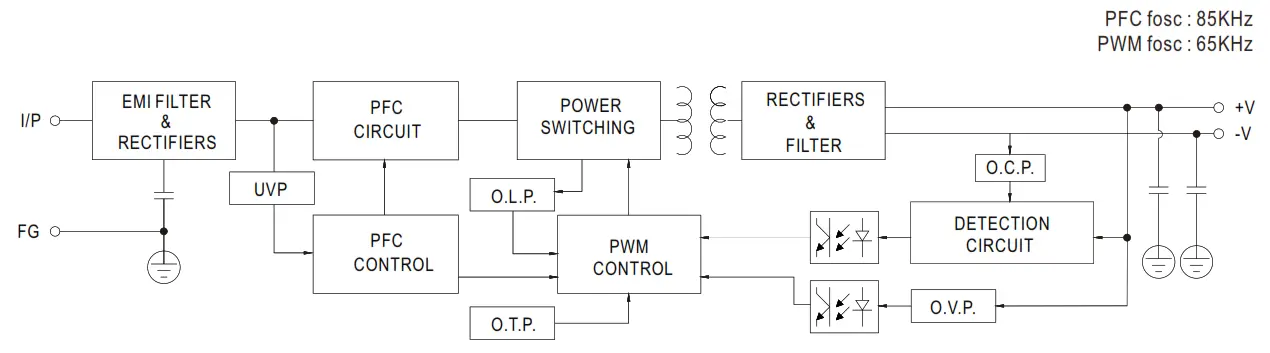

Block Diagram

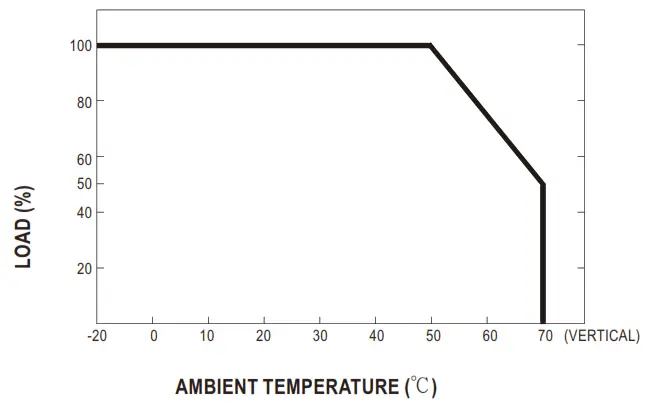

Derating Curve

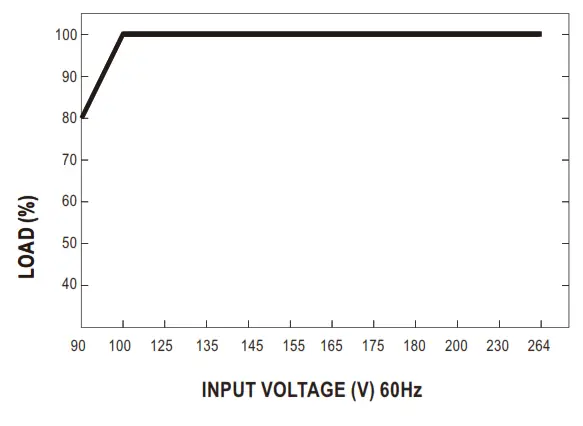

Output derating VS input voltage

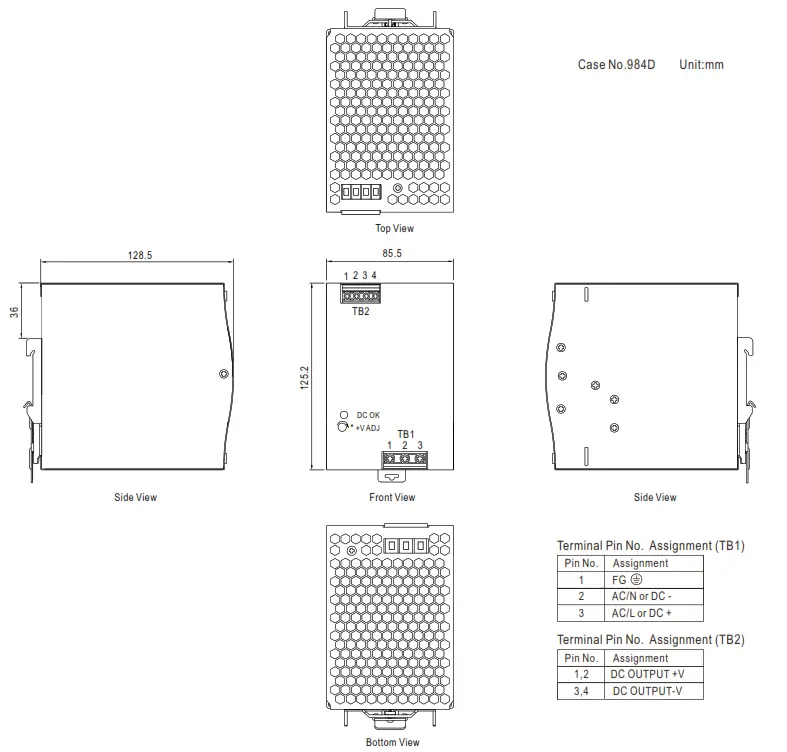

mechanical Specification

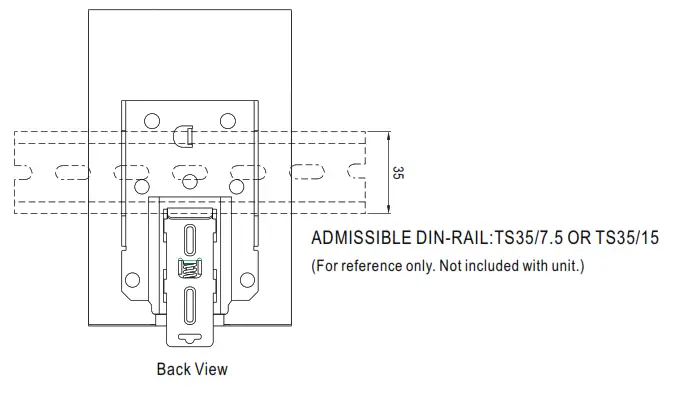

Installation Instruction

This series fits DIN rail TS35/7.5 or TS35/15.
For installation details, please refer to the Instruction manual.
Installation Manual
Please refer to : http://www.meanwell.com/manual.html

https://www.meanwell.com/Upload/PDF/NDR%20DIN%20rail.pdf
