Klus Os22-duo-lin-z Stainless Steel Pa Fastener Instruction Manual

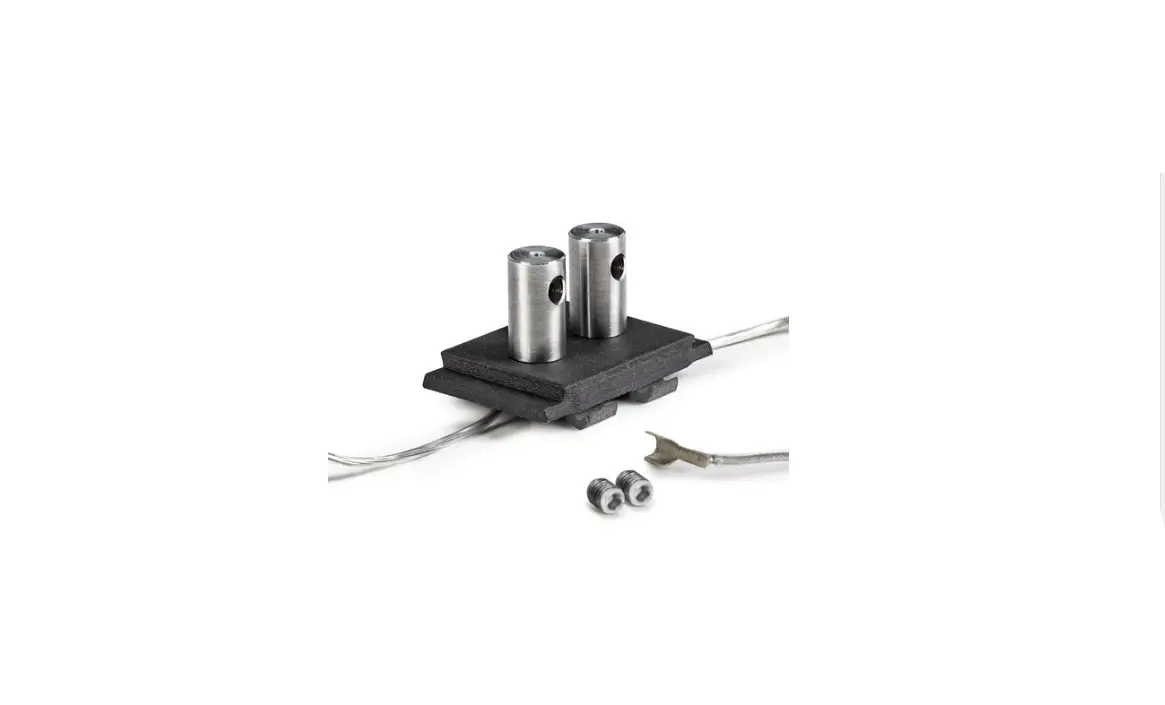

KLUS OS22-DUO-LIN-Z Stainless steel PA Fastener

PRODUCT DESCRIPTION

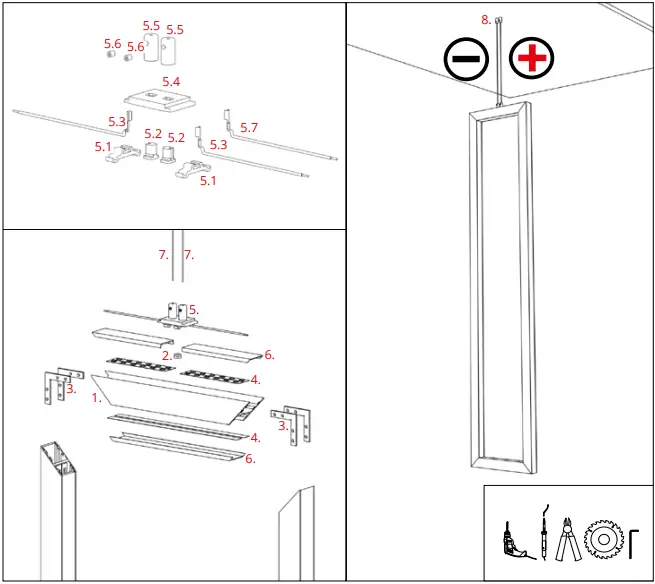

1. GLAZA-DUO profile
2. Gland
3. Connector
4. LED tape

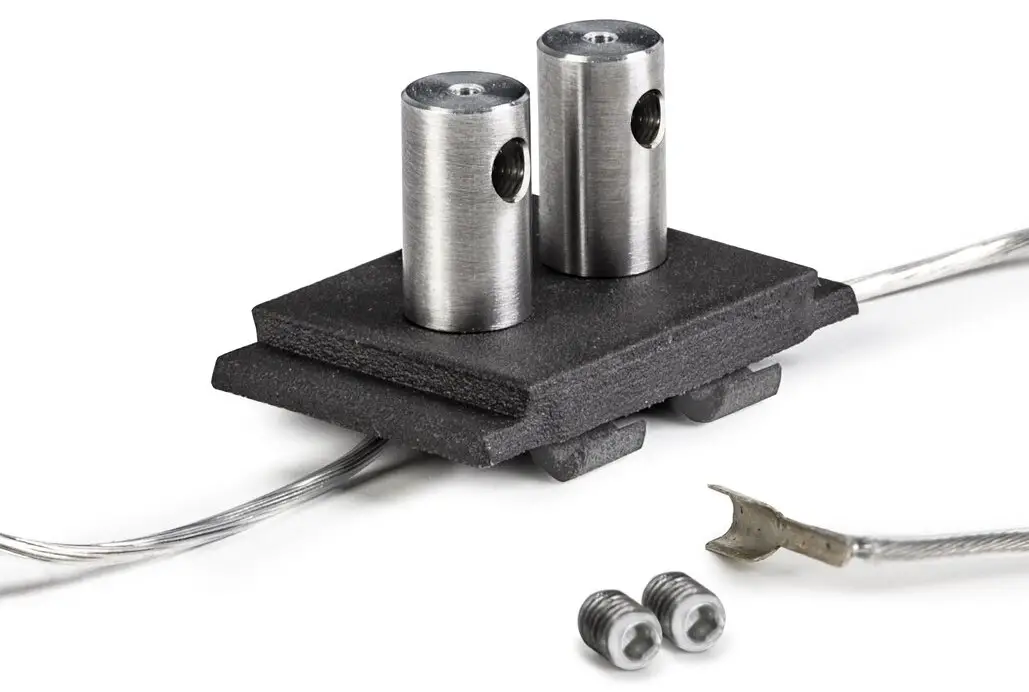

5.  OS22-DUO-LIN-Z fastener
   1. Blockade
   2. Threaded hook
   3. Conductor
   4. Base
   5. Head
   6. Pressure screw
   7. Spare conductor
6. Cover
7. Wire
8. Ceiling fastener
   NOTE! The lifting capacity of a single fastener is 5 kg. Designing multi-level lighting installations should take into account the weight of individual fixtures and choose the number of fasteners accordingly.
   NOTE! All LED tapes must be connected to a 12 V or 24 V power supply.
   IMPORTANT: Not all possible mounting procedures are presented here.
   More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings in these instructions are simplified and only approximate the actual shapes.

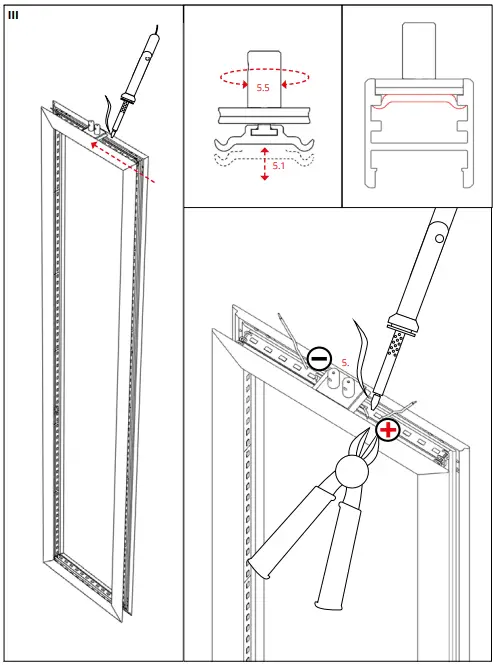

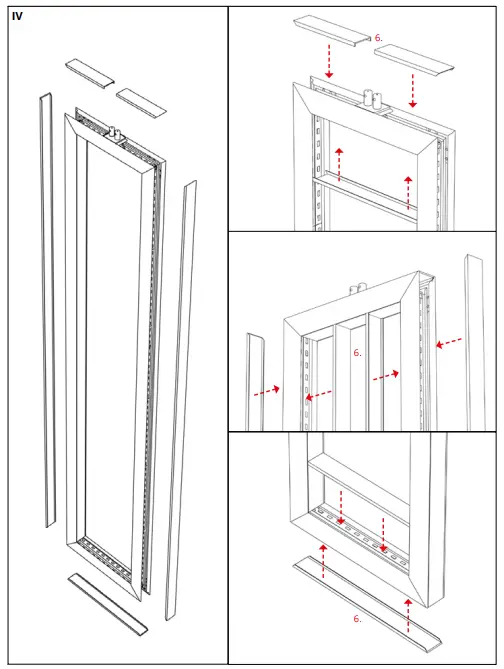

MOUNTING INSTRUCTION

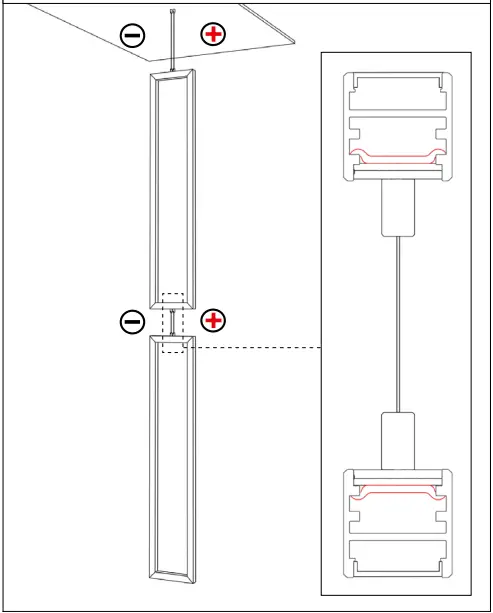

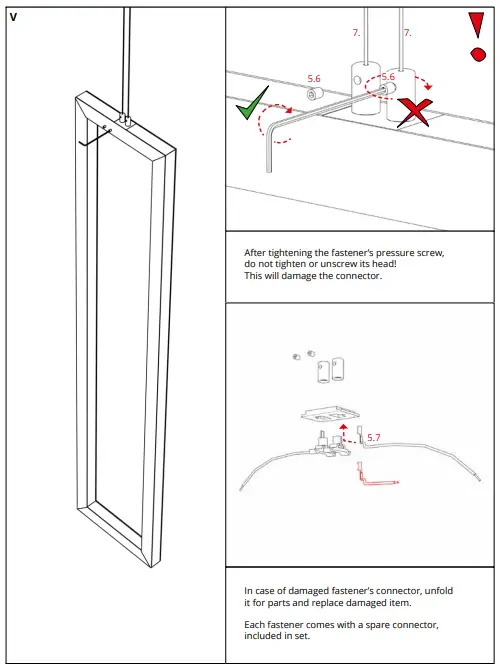

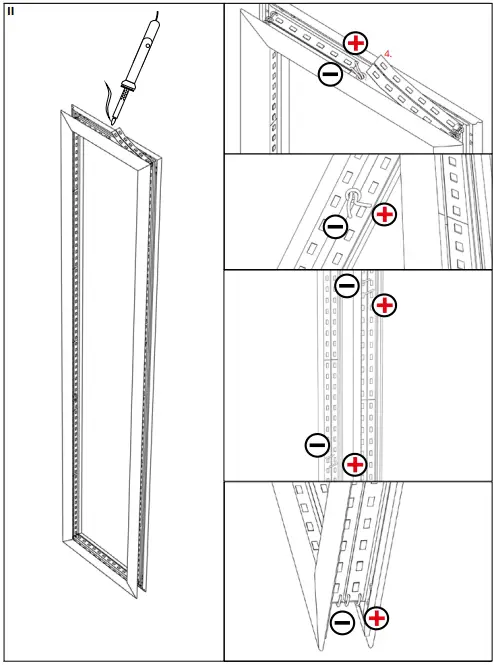

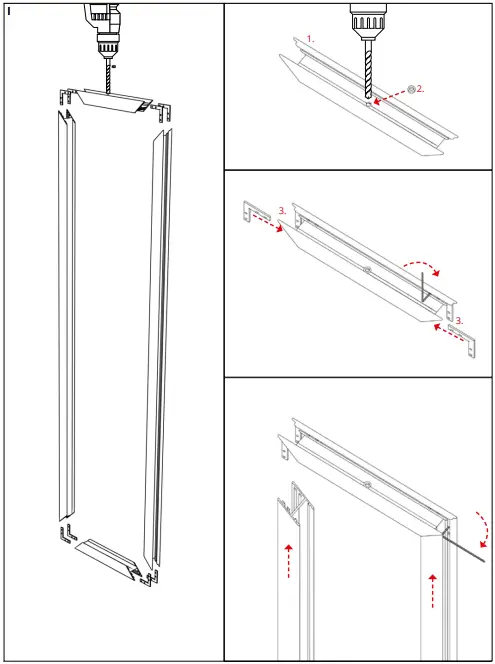

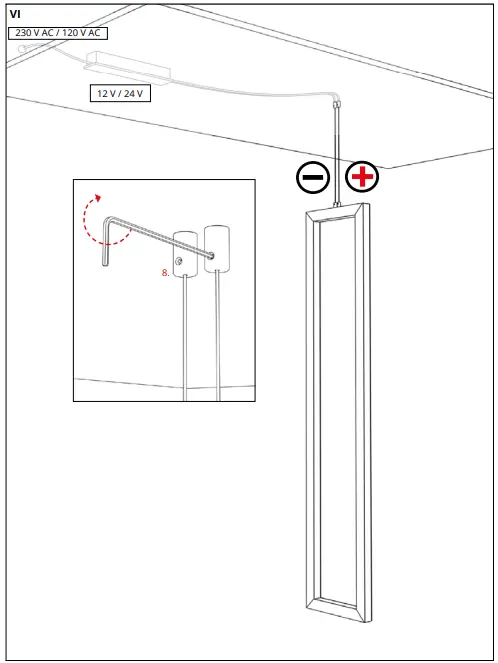

OPTIONAL: PROPOSAL OF SUSPENDED FIXTURES CONFIGURATION.
