KLUS PLD-10-WP Fasteners and Heads for Profiles Instruction Manual

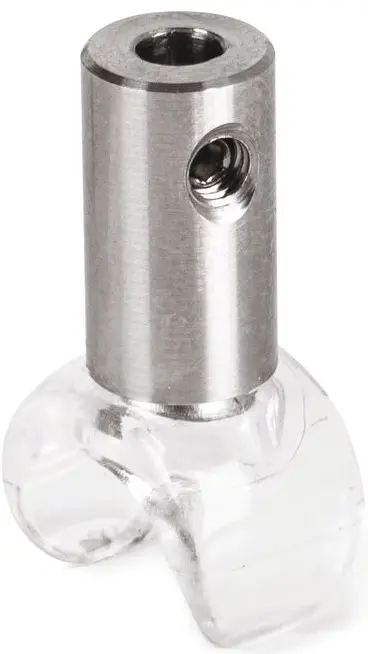

- PLD-10-WP Fastener (ref. 42292)
- Rod*
- Wall fastener*
- Power supply (12 V / 24 V)*
- Lighting fixture*
The full range of accessories and electronics is available at www.KlusDesign.eu
www.KlusDesign.eu
NOTE! All LED tapes must be connected to a 12 V or 24 V power supply
IMPORTANT: Not all possible mounting procedures are presented here. More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings of extrusions and accessories in these instructions are simplified and only approximate the actual shapes.

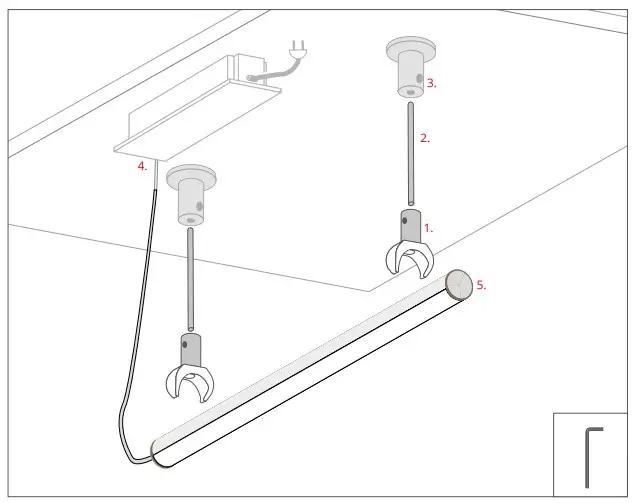

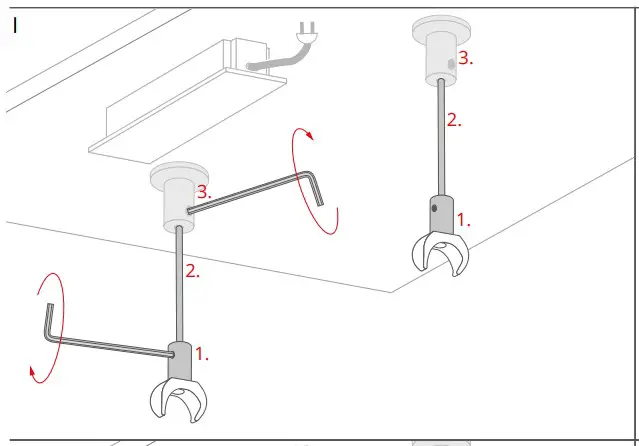

Mount the fasteners (1) on the rods (2) and on the wall fasteners (3).

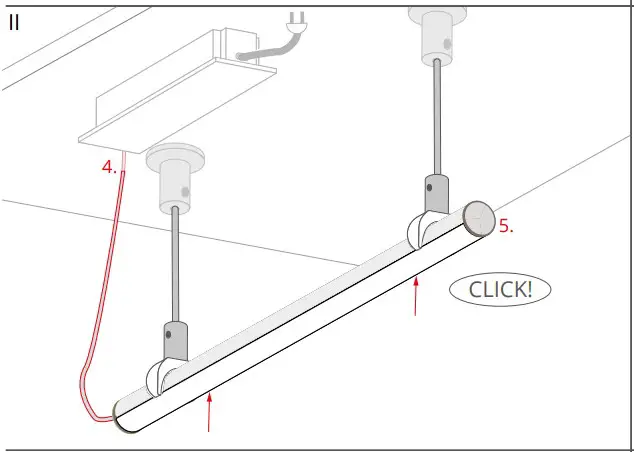

Connect the lighting fixture (5) to the 12 V / 24 V power supply (4) and snap it in the fasteners.
It is recommended to use:
2 fasteners for 1 m of fixture
4 fasteners for 2 m of fixture
5 fasteners for 3 m of fixture
The lighting fixture can be rotated in the mounting brackets.
