Klus Design C24500n00 Jaz Profile Extrusion Instruction Manual

JAZ Profile

JAZ – mounting instructions

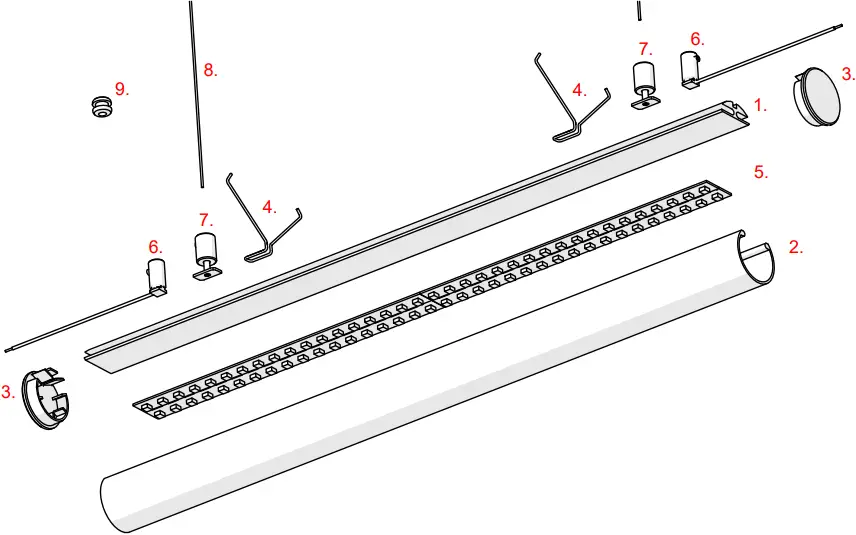

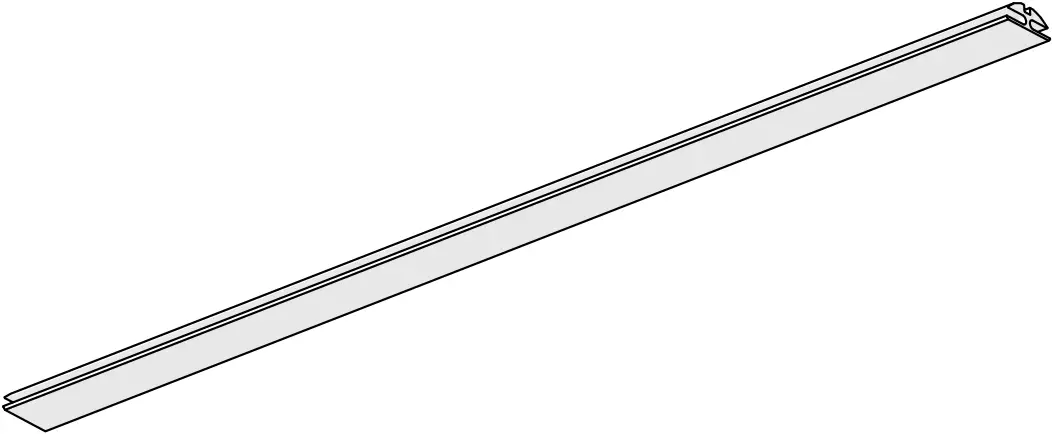

1. JAZ Profile (Ref. A08547)

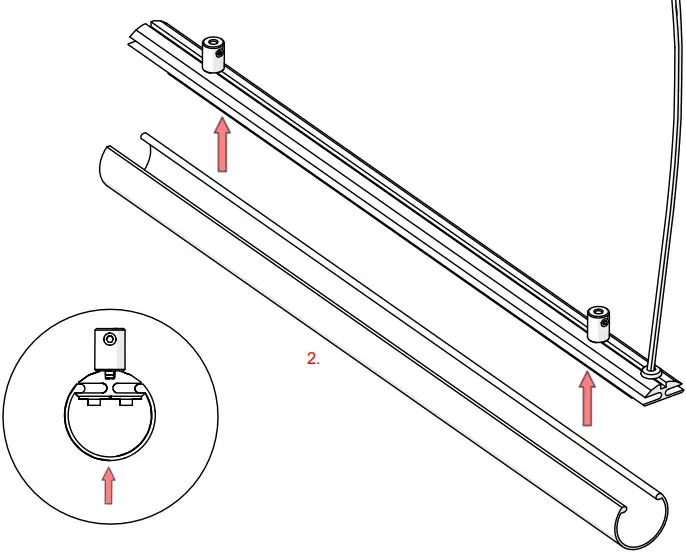

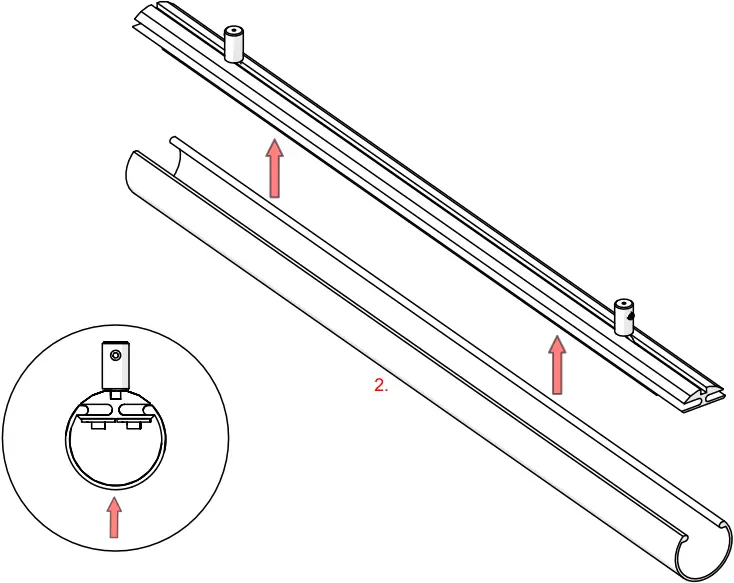

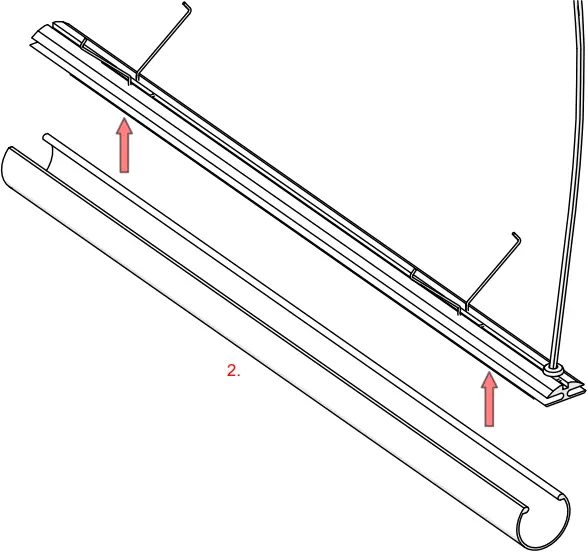

2. Cover JAZ (Ref. B17162M)

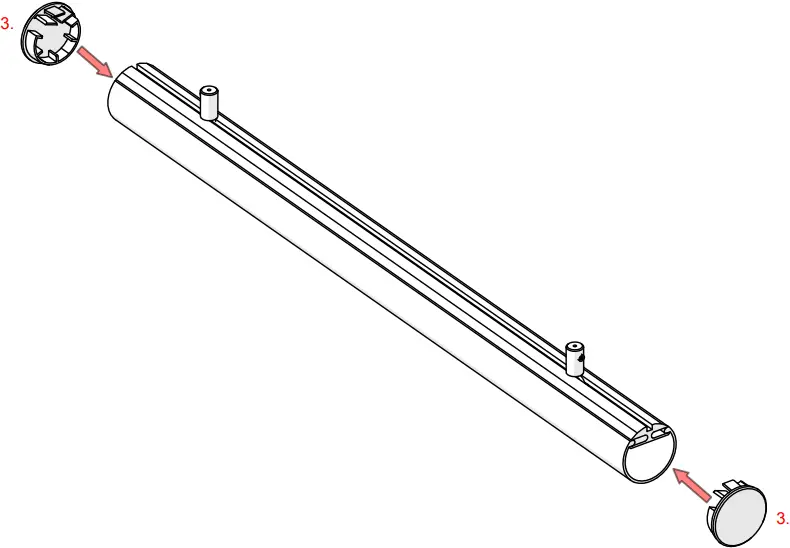

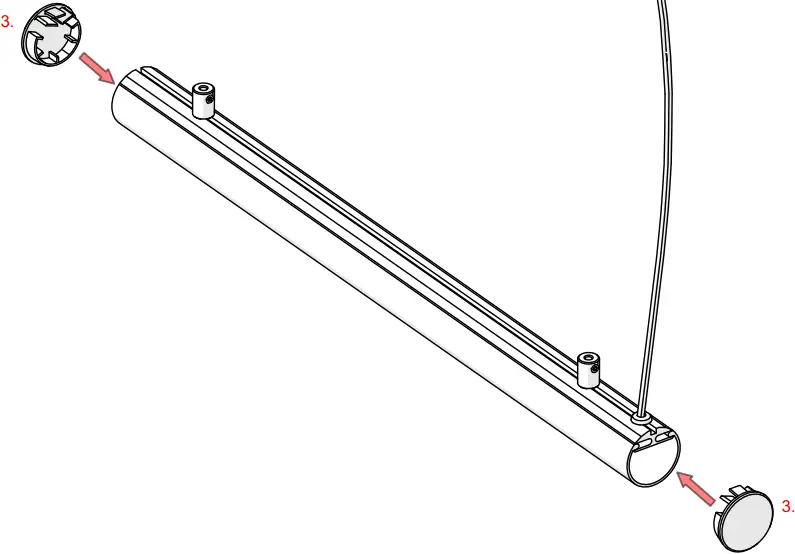

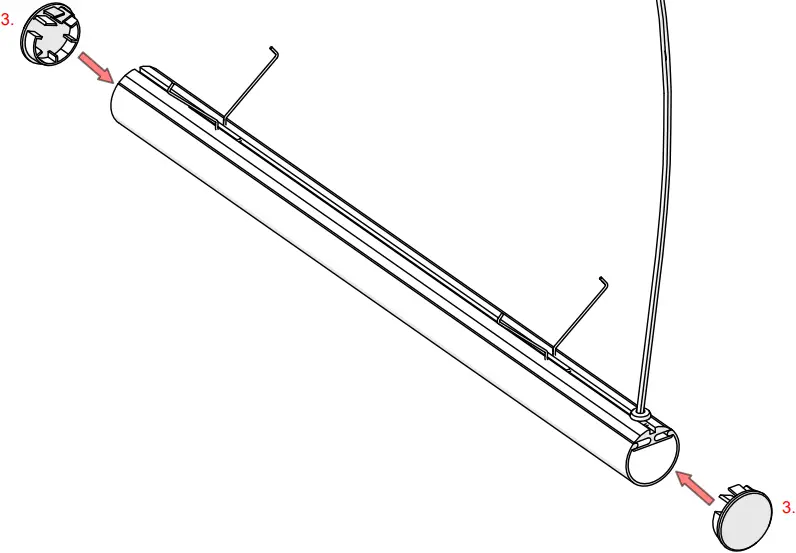

3. End cap JAZ (Ref. C24224C02)

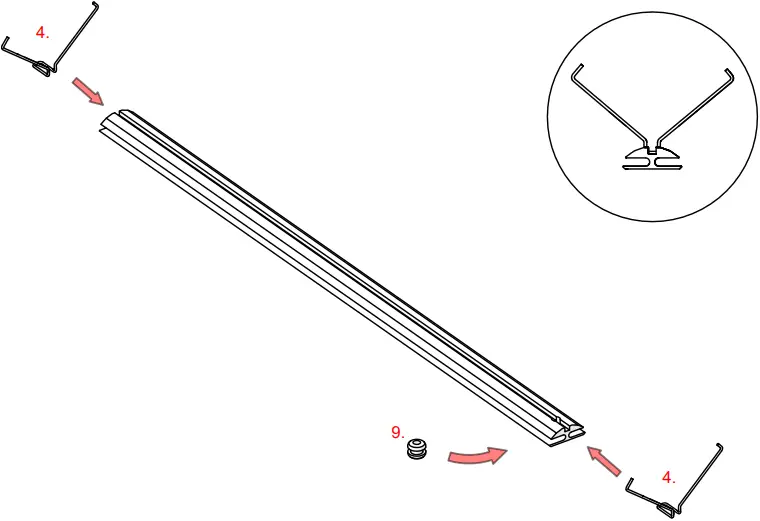

4. Spring GP (C24500N00)

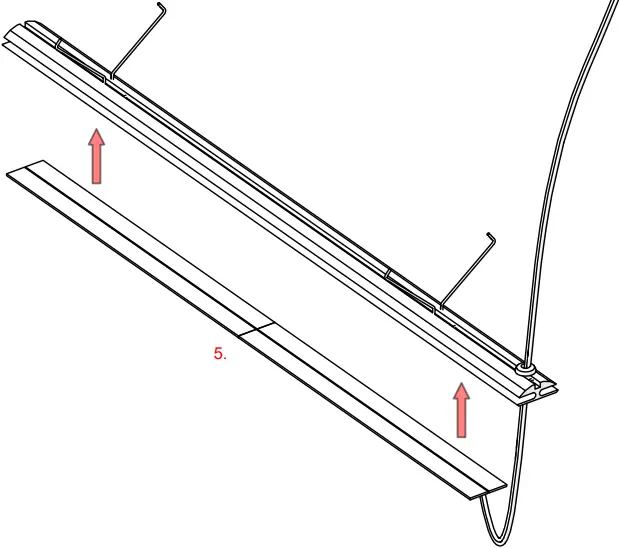

5. LED tape*

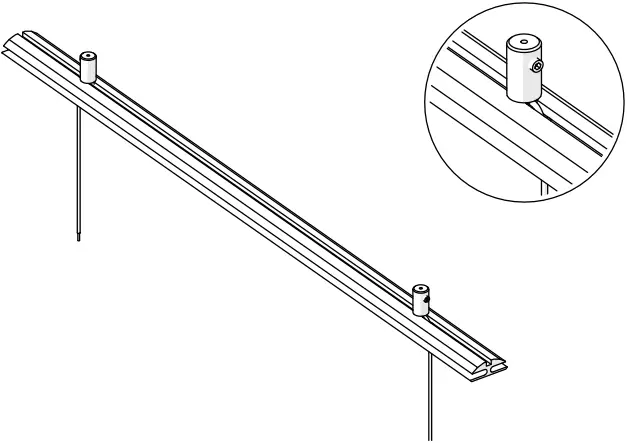

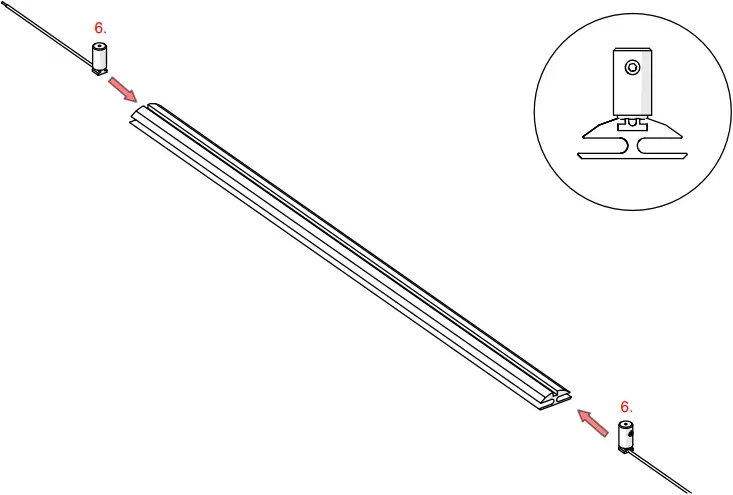

6. Fastener Fi-8*

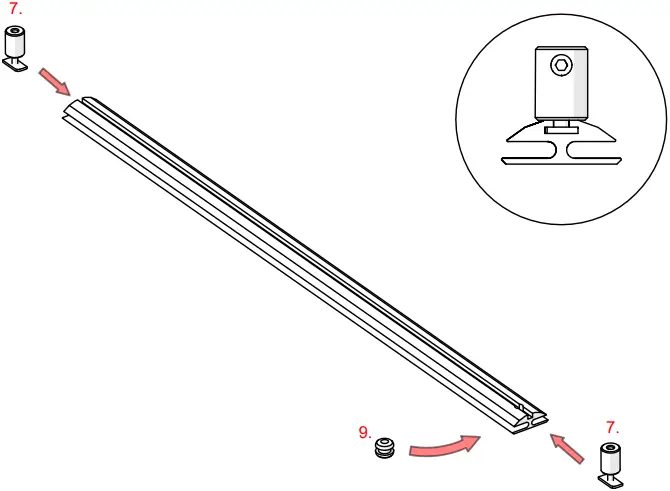

7. Fastener Fi-10*

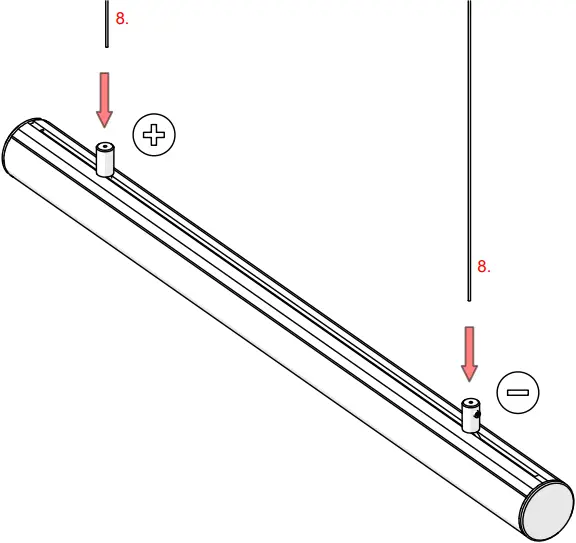

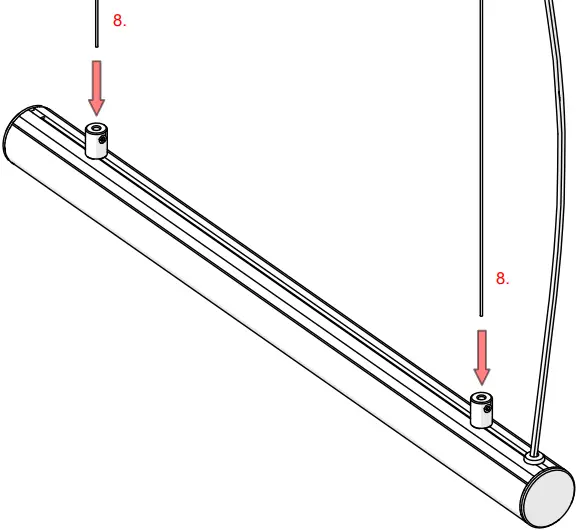

8. Wire CU*
9. Gland*

* The full range of accessories and electronics is available at www.KlusDesign.eu

NOTE! ! All LED tapes must be connected to a 12 V or 24 V power supply.

IMPORTANT: Not all possible mounting procedures are presented here.
More mounting procedures and related accessories can be found at www.KlusDesign.eu.
Drawings in these instructions are simplified and only approximate the actual shapes.
