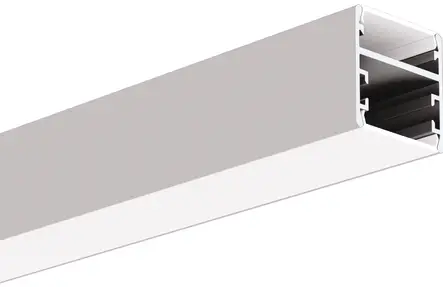

KLUS C3059 Glaza-Duo Profile

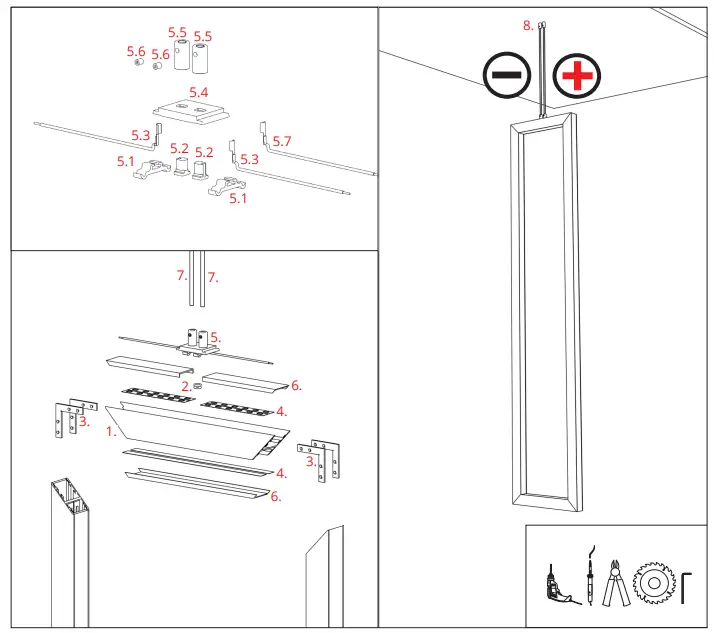

DESCRIPTION
- GLAZA-DUO profile
- Gland
- Connector
- LED tape
- OS22-DUO-LIN-Z fastener
- Blockade
- Threaded hook
- Conductor
- Base
- Head
- Pressure screw
- Spare conductor
- Cover
- Wire
- Ceiling fastener
NOTE! The lifting capacity of a single fastener is 5 kg. Designing multi-level lighting installations should take into account the weight of individual fixtures and choose the number of fasteners accordingly

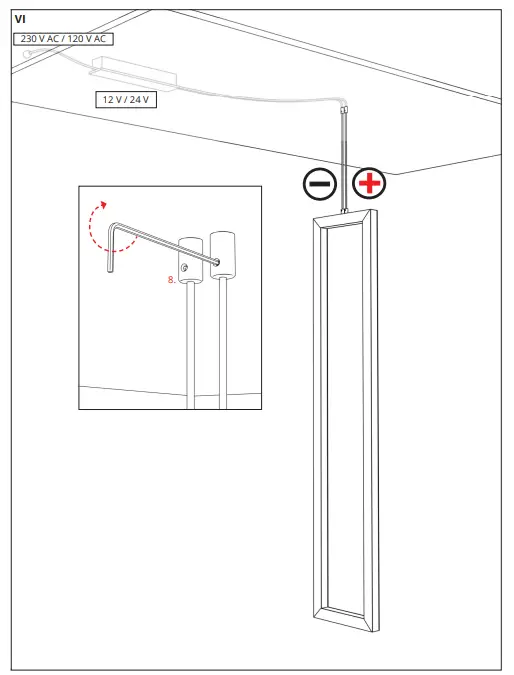

NOTE! All LED tapes must be connected to a 12 V or 24 V power supply.
IMPORTANT: Not all possible mounting procedures are presented here. More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings in these instructions are simplified and only approximate the actual shapes.

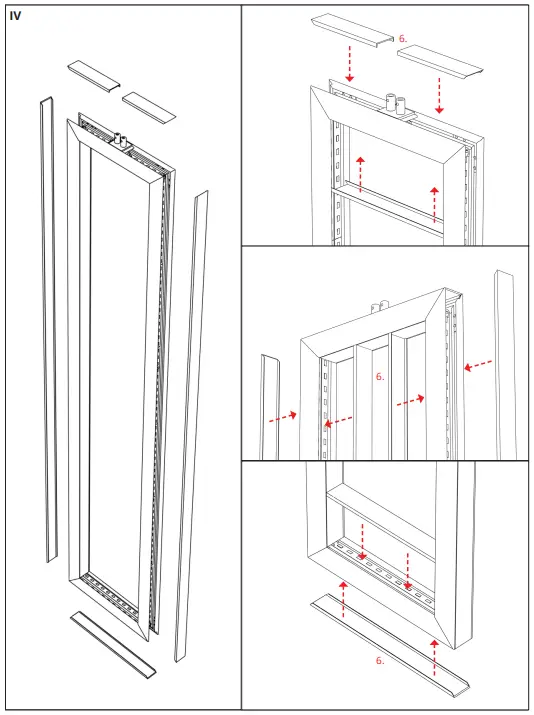

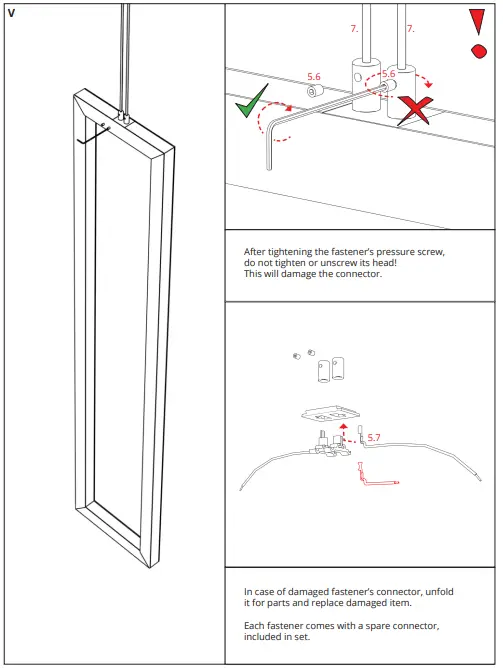

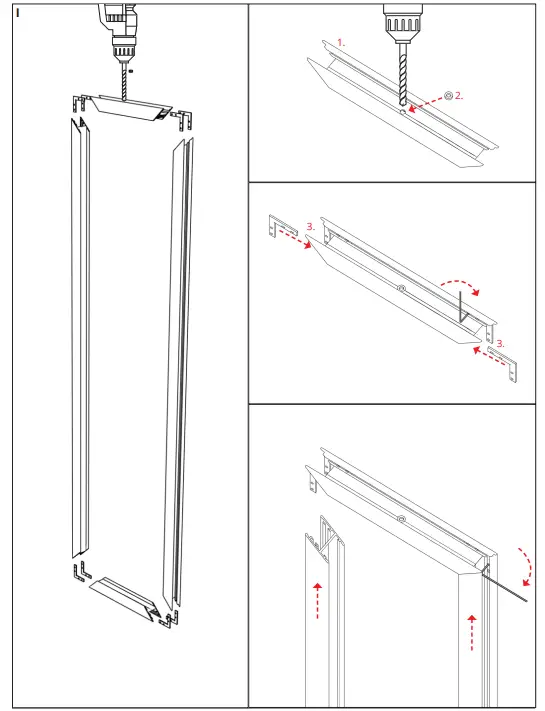

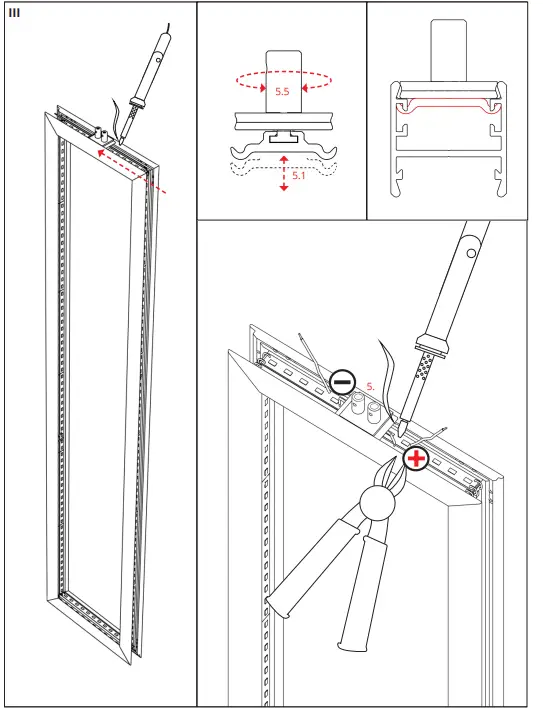

INSTALLATION

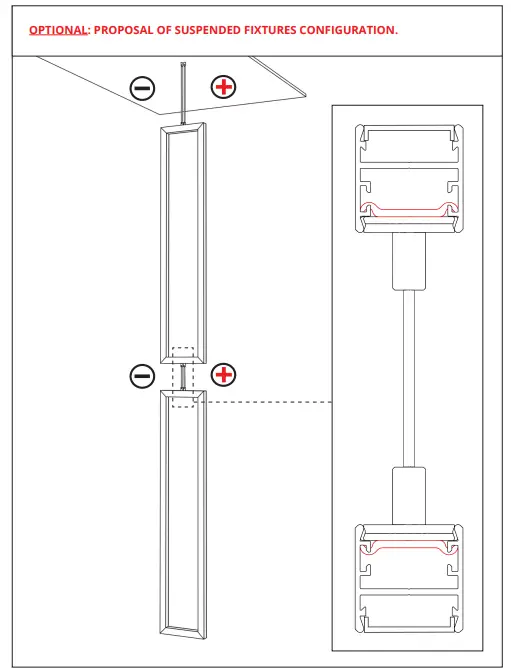

OPTIONAL: PROPOSAL OF SUSPENDED FIXTURES CONFIGURATION.
