Instruction manual
EXTRUSION
80497, 80498, 80499, 80500, 80501, 94946, 94947, 94948, 94949 97732, 97734, 97735, 97736, 97737, 97738, 97739, 102665, 102666, 102667, 102668
Thank you for purchasing this accessory. Please read the instruction carefully before use to ensure the safe and satisfactory operation of this product.
Please retain these instructions for future reference.

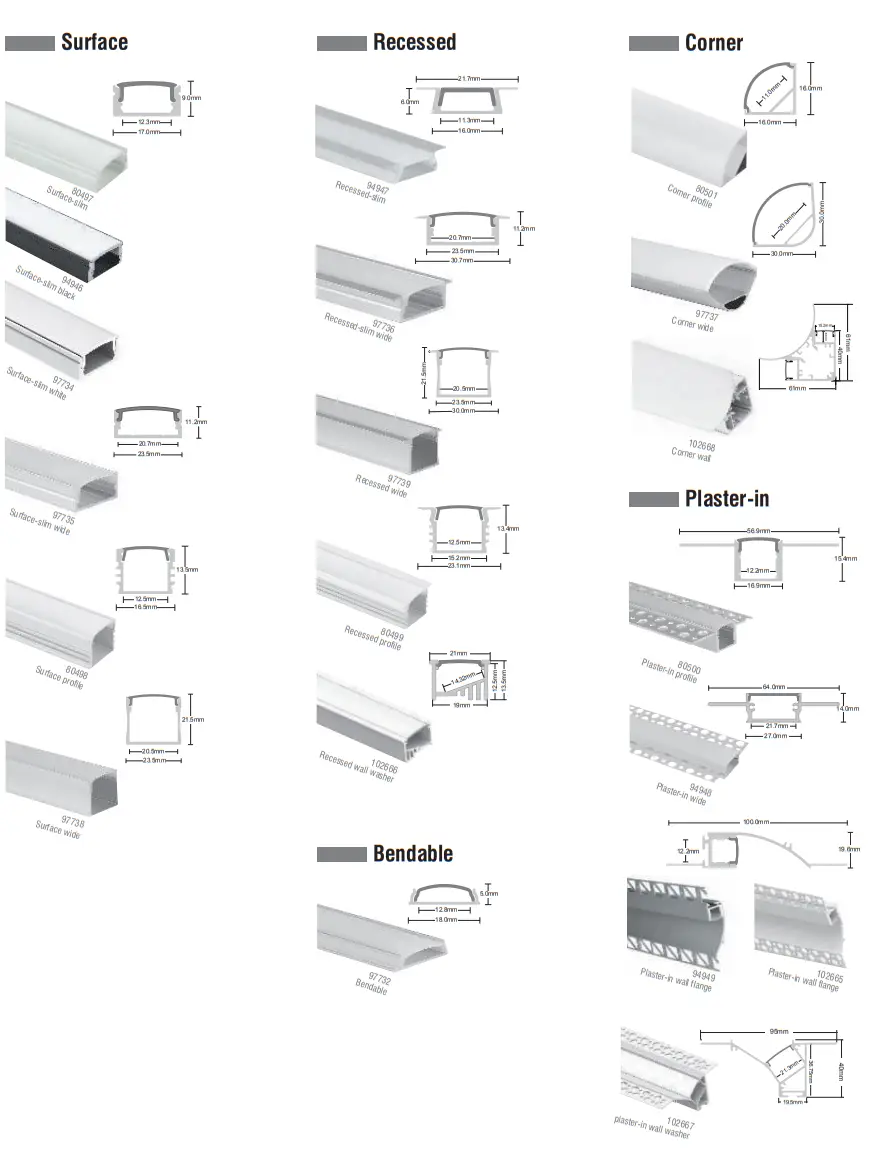

Specification – Dimensions:
| Surface – 80497: 2000mm x 17mm x 9mm 94946: 2000mm x 17mm x 9mm 80498: 2000mm x 16.5mm 13.5mm 97734: 2000mm x 17mm x 9mm 97735: 2000mm x 23.5mm x 11.2mm 97738: 2000mm x 23.5mm x 21.5mm | Recessed – 94947: 2000mm x 21.7mm x 6mm 80499: 2000mm x 23.1mm x 13.4mm 102666: 2000mm x 21mm x 13.5mm 97736: 2000mm x 30.7mm x 11.2mm 97739: 2000mm x 30.0mm x 21.5mm | Bendable – 97732: 2000mm x 18mm x 5mm Corner -80501: 2000mm x 16mm x 16mm 97737: 2000mm x 30mm x 30mm 102668: 2000mm x 61mm x 61mm | Plaster-in – 80500: 2000mm x 56.9mm x 15.4mm 94948: 2000mm x 64mm x 14mm 94949: 2000mm x 100mm x 19.6mm 102665: 2000mm x 100mm x 29.6mm 102667: 2000mm x 95mm x 40mm |
Installation for Surface / Recessed / Bendable / Corner
- Choose an ideal place to mount the profile.
- Remove the 4 brackets from the fixing pack.
- Using the brackets as templates, mark and drill the position of the fixing holes.
- Ensure the mounting structure is capable of holding the weight of the product. Take care to avoid damaging any concealed wiring and pipes.

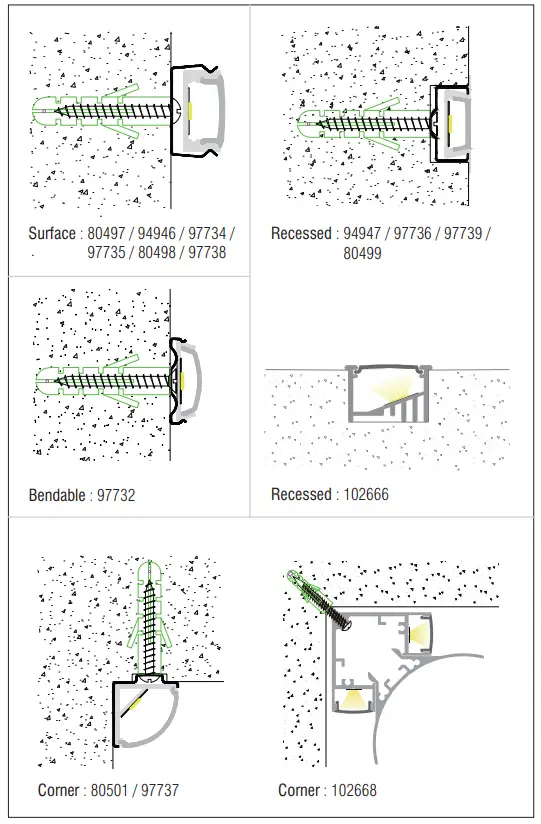

- Attach both brackets to the chosen mounting surface using the plastic plugs and screws (not supplied) according to the following installation diagram.
- Remove the backing off of the chosen LED module strip and stick it down inside the aluminum profile.
- Attach the diffuser to the profile, sliding into the profile grooves.
- Place end caps onto the ends of the fitting.
- Push the profile onto the brackets to secure.
- Your fitting is now ready for use.

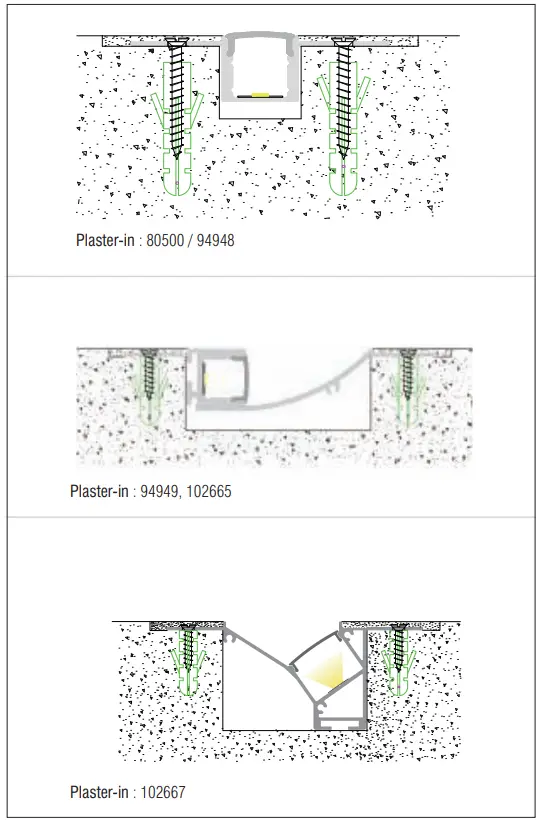

Installation for Plaster-in
- Using the aluminum profile as a template, mark and drill the position of the fixing holes.
- Ensure the mounting structure is capable of holding the weight of the product. Take care to avoid damaging any concealed wiring and pipes.
- Remove the backing off of the chosen LED module strip and stick it down inside the aluminum profile.
- Attach the diffuser to the profile, sliding into the profile grooves.
- Place end caps onto the ends of the fitting.
- Push the aluminum profile into the existing groove.
- Then use the plastic plugs and screws (not supplied) to fix the aluminum profile to the wall.
- Cemented the sides of the aluminum profile.
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
V5 12/05/2022
