K-10 Mounting bracket
mounting instructions

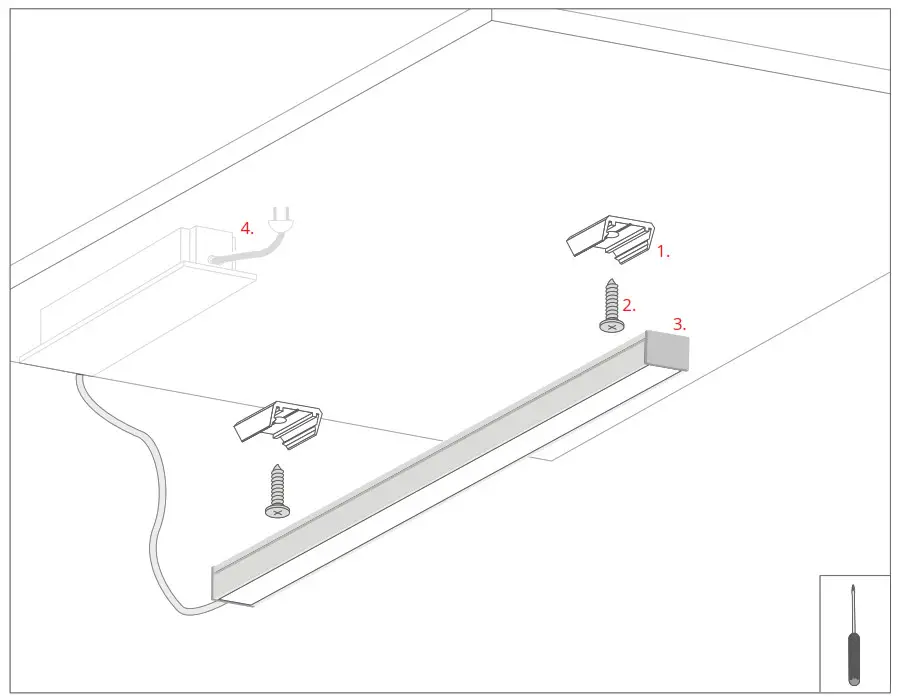

K-10 Mounting Bracket
- K-10 Mounting bracket (ref. 24340)
- Screw
- Lighting fixture
- Power supply (12 V / 24 V)
*The full range of accessories and electronics is available at www.KlusDesign.eu
NOTE! All LED tapes must be connected to a 12 V or 24 V power supply.
IMPORTANT: Not all possible mounting procedures are presented here.
More mounting procedures and related accessories can be found at www.KlusDesign.eu
Drawings of extrusions and accessories in these instructions are simplified and only approximate the actual shapes.
Screw the K-10 mounting brackets (1) to the surface with the use of screws (2). the brackets must be aligned in a straight line.
It is recommended to use:
2 mounting brackets for 1 m of fixture
4 mounting brackets for 2 m of fixture
5 mounting brackets for 3 m of fixture
NOTE! It is necessary to use countersunk screws dedicated to the particular type of surface. The diameter of the screws cannot exceed 3 mm / 0.12”.

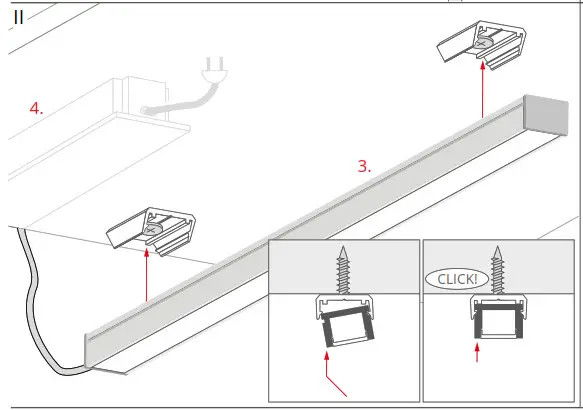

Connect the fixture (3) to the power supply (4) and mount it in the brackets.
