Klus Os22-duo-pret-z Fastener Instruction Manual

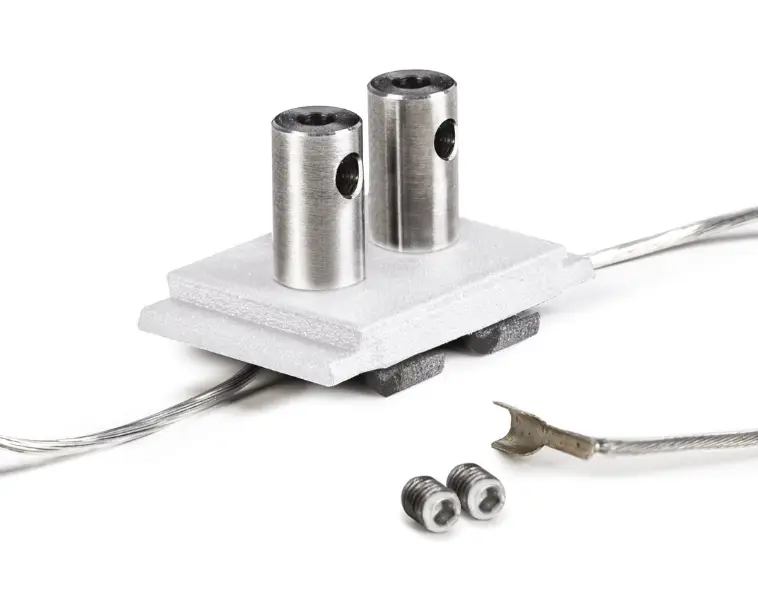

KLUS OS22-DUO-PRET-Z Fastener

Mounting instructions

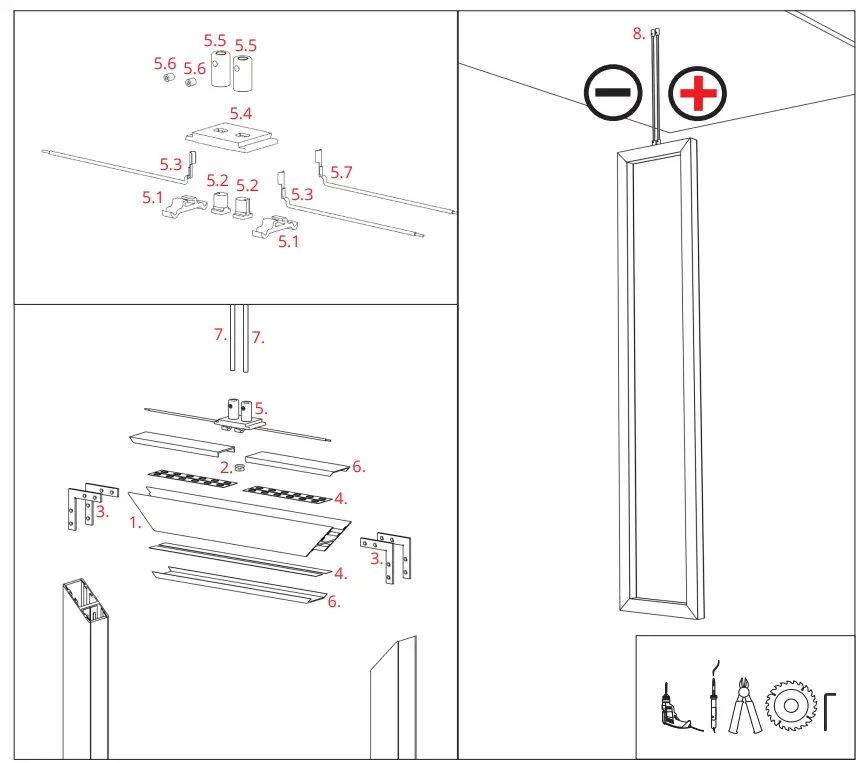

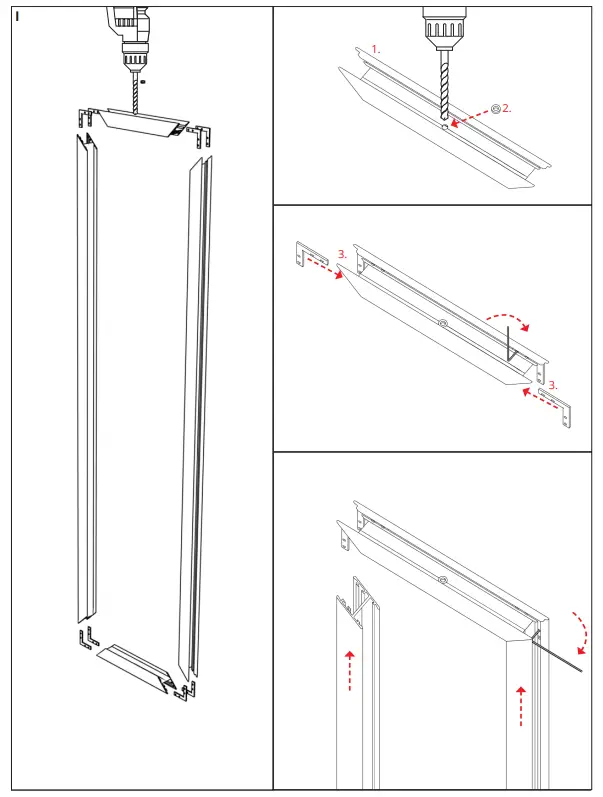

1. GLAZA-DUO profile
2. Gland
3. Connector

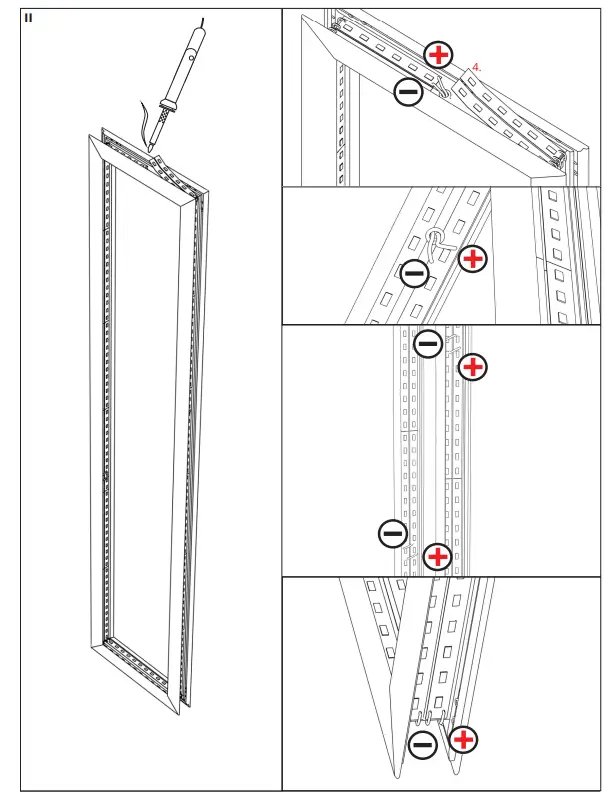

4. LED tape
5. OS22-DUO-LIN-Z fastener
   1. Blockade
   2. Threaded hook
   3. Conductor
   4. Base
   5. Head

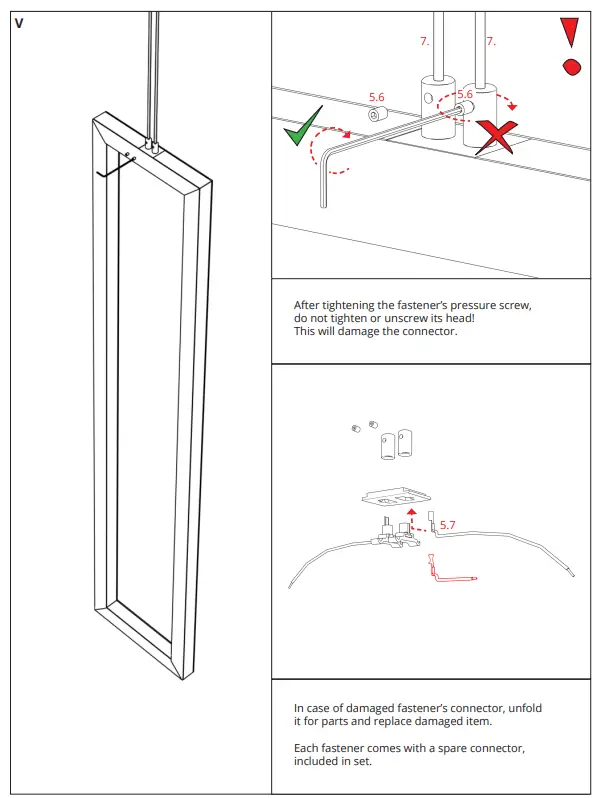

   6. Pressure screw

NOTE! The lifting capacity of a single fastener is 5 kg. Designing multi-level lighting installations should take into account the weight of individual fixtures and choose the number of fasteners accordingly.

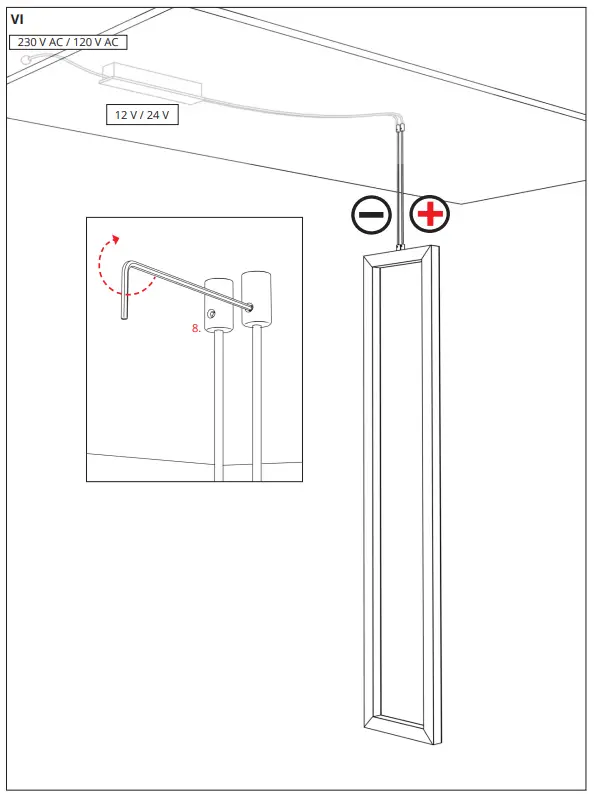

NOTE! All LED tapes must be connected to a 12 V or 24 V power supply.
IMPORTANT: Not all possible mounting procedures are presented here.
More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings in these instructions are simplified and only approximate the actual shapes.

OS22-DUO-PRET-Z Fastener – mounting instructions

OS22-DUO-PRET-Z Fastener – mounting instructions

OS22-DUO-PRET-Z Fastener – mounting instructions

OS22-DUO-PRET-Z Fastener – mounting instructions

OS22-DUO-PRET-Z Fastener – mounting instructions

OS22-DUO-PRET-Z Fastener – mounting instructions

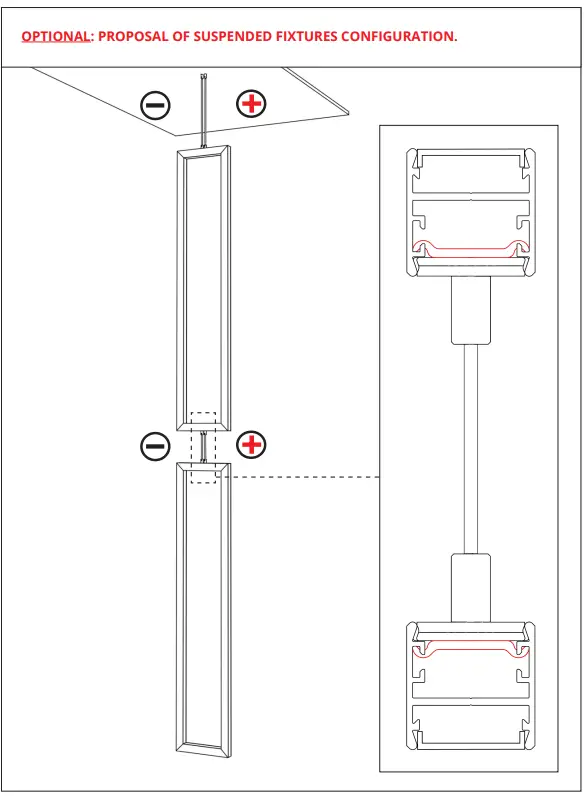

OPTIONAL: PROPOSAL OF SUSPENDED FIXTURES CONFIGURATION.

www.KlusDesign.eu
