IKEA 504.168.22 Kulinarisk Steamer Stainless Steel

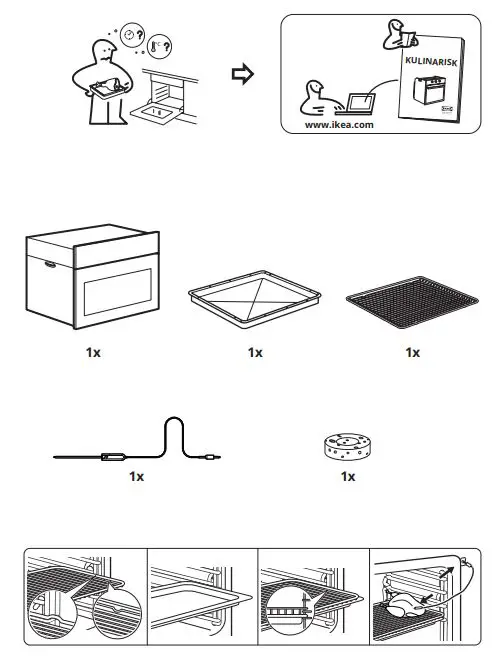

What’s in Box
INSTALLATION INSTRUCTION

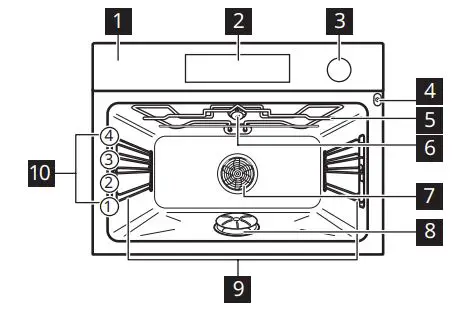

Product Description
- Control panel
- Electronic programmer
- Water drawer
- Socket for the food sensor 5 Grill
- Lamp
- Fan
- Steam generator with cover
- Shelf support, removable 10 Shelf positions

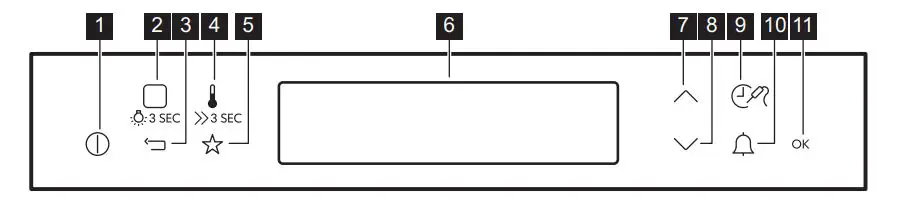

Control Panel
- ON / OFF
- Heating Functions / Assisted Cooking / Lamp
- Back key
- Temperature / Fast Heat Up 5 Favourite programs
- Display
- Up key
- Down key
- Time / More functions 10 Minute minder
- Confirm setting

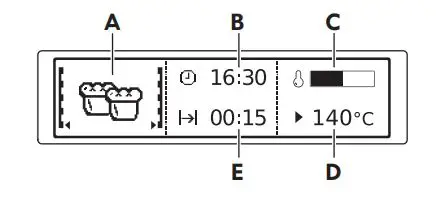

Display
- Heating function
- Time of day
- Heat-up indicator
- Temperature
- Duration time or end time of a function
To download the full version visit www.ikea.com

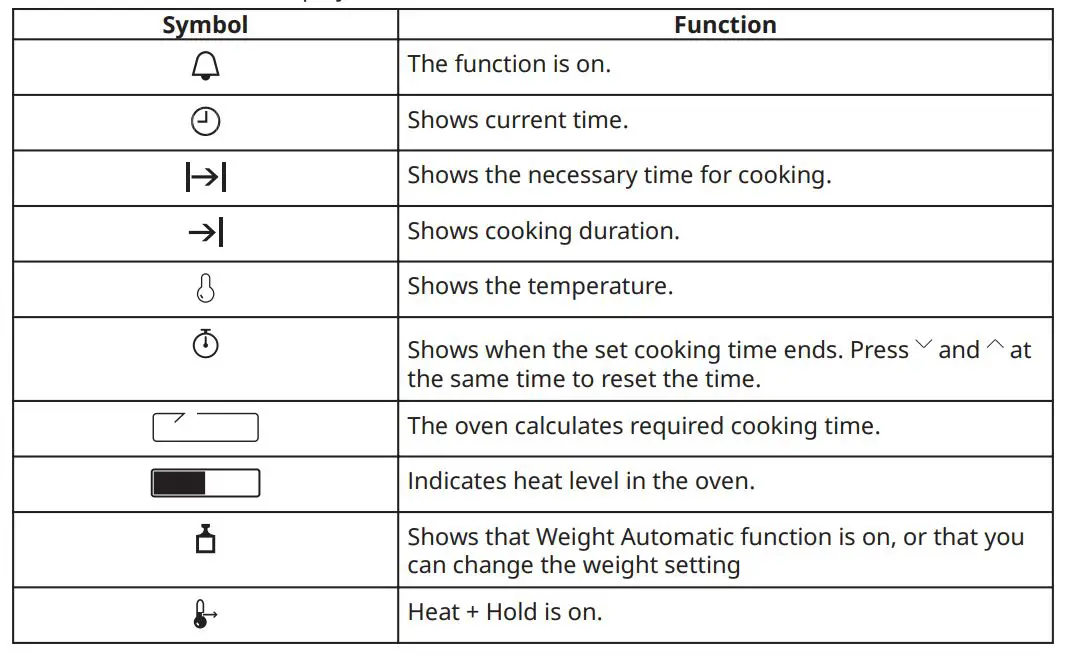

Other indicators of the display
Heating Functions
- Full Steam Vegetables, side dishes, fish
- Half Steam + Heat Custards, flans, terrines, fish
- Quarter Steam + Heat Meat, poultry, oven dishes, casseroles
- Steam Regenerating Reheating on a plate
- True Fan Cooking Even baking, tenderness, drying
- Conventional Cooking Traditional baking
- Pizza Function Baking pizza
- Slow Cooking For tender roasts
- Bottom Heat Baking cakes
- Moist Fan Baking Baking
- Frozen Foods For convenience food (e.g. french fries)
- Grill Grilling, toasting
- Fast Grilling Grilling big portions, toasting
- Turbo Grilling Roasting meat, browning
Specials
- Bread Baking
- Dough Proving
- Preserving
- Keep Warm
- Au Gratin
- Plate Warming
- Dehydrating
- Defrost
To download the full version visit www.ikea.com
Notes on: Moist Fan Baking
- This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
- The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
- When you use this function the lamp automatically turns off after 30 sec.
- This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your in the full version of the User Manual appliance, check the “Troubleshooting” chapter available on: www.ikea.com.
Product Information and Product Information Sheet
| Supplier’s name | IKEA |
| Model identification | KULINARISK 704.168.21 |
| Energy Efficiency Index | 94.5 |
| Energy efficiency class | A |
| Energy consumption with a standard load, convention‐ al mode | 0.93 kWh/cycle |
| Energy consumption with a standard load, fan-forced mode | 0.69 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity |
| Volume | 43 l |
| Type of oven | Built-In Oven |
| Mass | 31.3 kg |
For European Union according to EU Regulations 65/2014 and 66/2014. For the Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. For Ukraine according to 568/32020. The energy efficiency class is not applicable to Russia. Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance.
