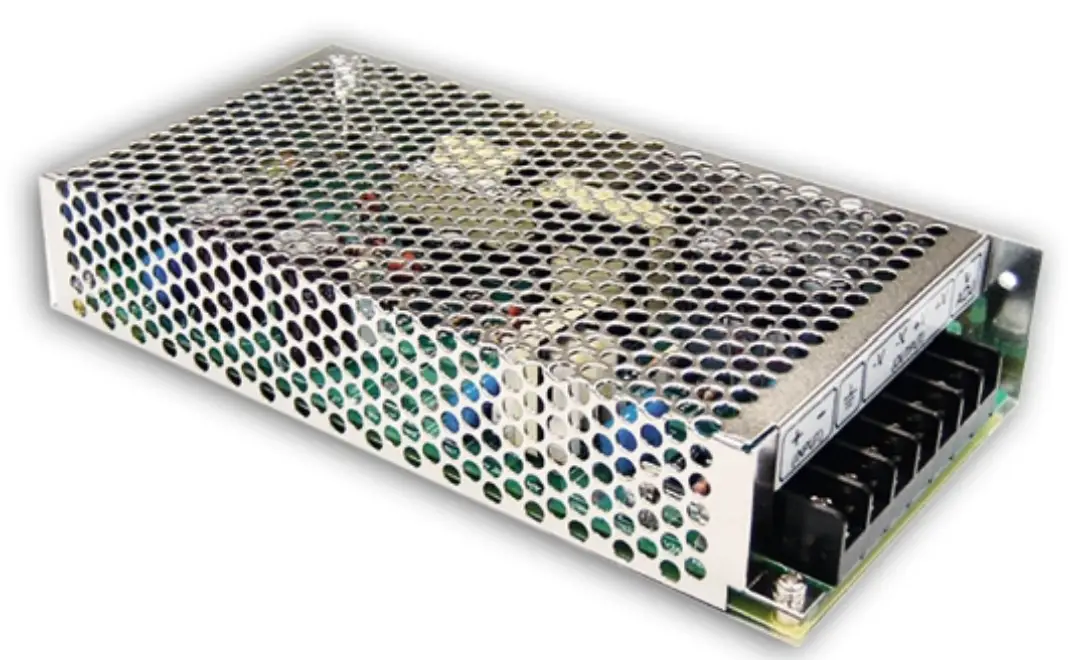

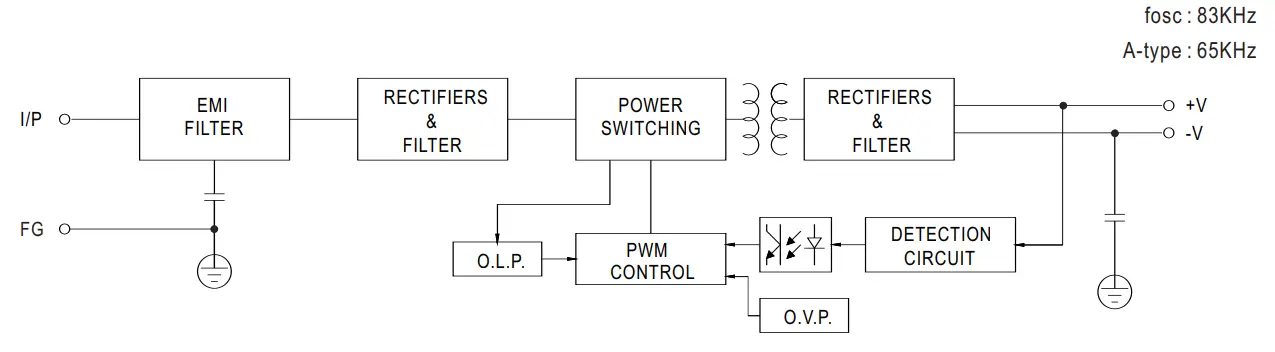

MEAN WELL SD-100 Series 100W Single Output DC DC Converter

Contents hide

1 GTIN CODE

2 Features

3 SPECIFICATION

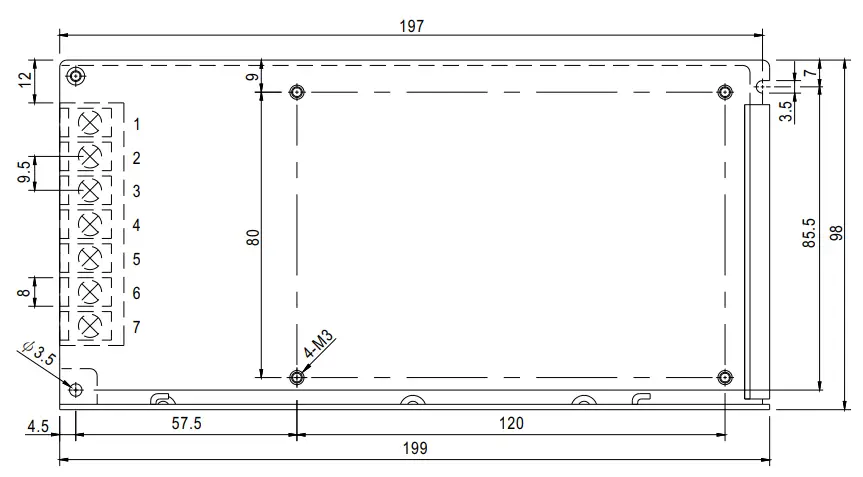

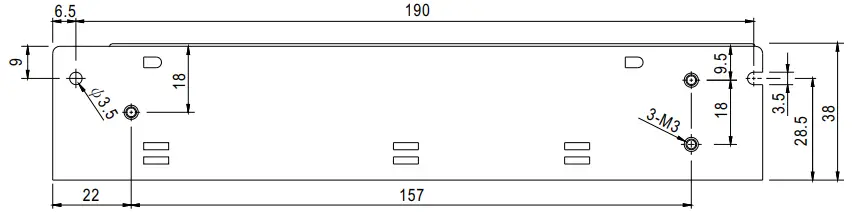

4 Mechanical Specification

4.1 Terminal Pin No . Assignment

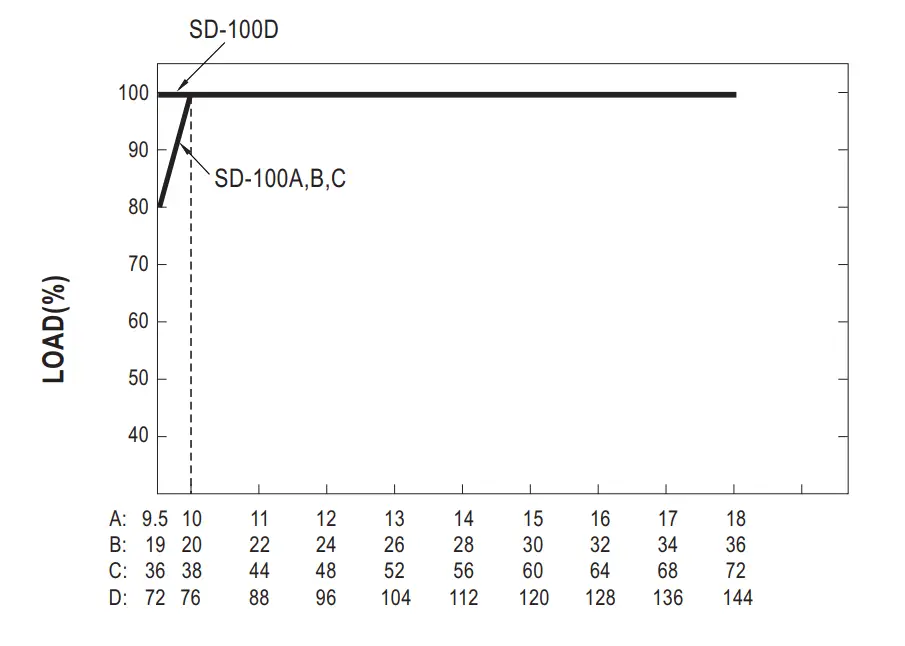

7 Output Derating VS Input Voltage

8 Documents / Resources

8.1 References

9 Related Posts

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

Features

2:1 wide input range
Protections: Short circuit/ Overload/ Over voltage
1500VAC 1/0 isolation
Built-in EMI filter, low ripple noise
Low cost
High reliability
2 years warranty

AS/NZS62368-1
BS EN/EN62368-1 (for D type only)
TPTC004
IEC62368-1 (for D type only)

SPECIFICATION

MODEL		SD-100A-5 SD-100B·S I SD-100C·5I SD-100D-5		SD-100A-12I SD-100B-12I SD-100C-12I SD-100D-12	SD-100A-24I SD-1008-24I SD-100C-24I SD-100D-24
OUTPUT	DC VOLTAGE	5V		12V	24V
	RATED CURRENT	18A	20A	8.5A	4.2A
	CURRENT RANGE	0-18A	0-20A	0- 8.5A	0 -4.2A
	RATED POWER	90W	100W	102W	100.8W
	RIPPLE & NOISE (max.) Note.2	100mVp-p		120mVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	4.5- 5.5VDC		11 ~ 16VDC	23 – 30VDC
	VOLTAGE TOLERANCE Note.3	±2.0%		±1.0%	±1.0%
	LINE REGULATION	±0.5%		±0.3%	±0.2%
	LOAD REGULATION	±0.5%		±0.3%	±0.2%
	SETUP, RISE TIME	2s, 50ms(only D mode) at full load
	HOLD UP TIME (Typ.)	20ms(only D mode) at full load
INPUT	VOLTAGE RANGE	A:9.5 ~ 18VDC B:19 – 36VDC C:36 – 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
	EFFICIENCY (Typ.)	78%	74% I 75% I 76%	82% I 75% I 77% 180%	84% I 78% I 81% 183%
	DC CURRENT (Typ.)	9.7A/12V	4.8A/24V I 2.4A/48V I 1.8A/96V	10.4A/12V I 4.8A/24V I 2.4A/48V I 1.8A/96V 10A/12V I 4.8A/24VI 2.4A/48VI 1.8A/96V
	INRUSH CURRENT (Typ.)	D 18A/96VDC
	LEAKAGE CURRENT	<O.75mA/120VAC(SD-100D)
PROTECTION	OVERLOAD	105 – 135% rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 – 6.75V/10% load		16.8 – 20V/10% load	3 i o t I 31.5 – 37.5V/10% load
		Protection type: Hiccup mode, recovers automatically after fault condition is removed

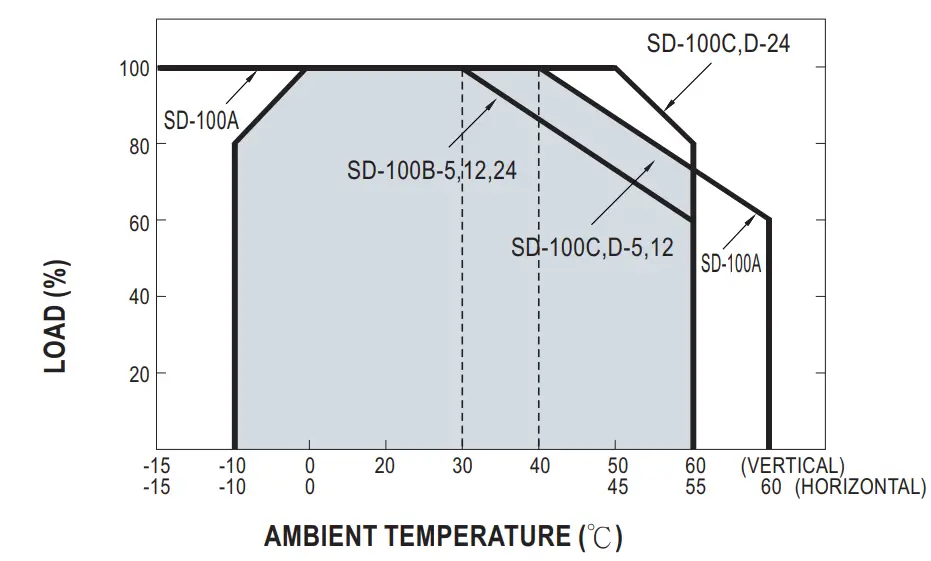

ENVIRONMENT	WORKING TEMP.	-15 – +60’C(SD-100A), -10 – +60’C(SD-1 OOB/C/D) (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 – 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 – +85°C, 10 – 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03%/°C (0 – 50°C)
	VIBRATION	10 – 500Hz , 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note4)	SAFETY STANDARDS	IEC/BS EN/EN 62368-1(/or D type only), EAC TP TC 004 approved, desiQn refer toAS/NZS 62368.1
	WITHSTAND VOLTAGE	I/P-0/P:1.5KVAC I/P-FG:1.5KVAC 0/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-0/P, I/P-FG , 0/P-FG:100M Ohms/ 500VDC / 25( / 70% RH
	EMC EMISSION	Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4 ,6,8, light industry level, EAC TP TC 020
OTHERS	MTBF	2600.2K hrs min. Telcordia SR-332 (Bellcore); 399.9K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	199’98’38mm (L’W’H)
	PACKING	0.65Kg; 20pcs/13.8Kg/0.85CUFT
