MEAN WELL APC-12 12W Single Output Switching Power Supply Instruction Manual
Features
- Constant current design
- Universal AC input / Full range
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- Class II power unit, no FG
- Class 2 power unit
- Pass LPS
- IP42 design
- Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.6)
- 100% full load burn-in test
- Low cost / High reliability
- 2 years warranty
SPECIFICATION
| MODEL | APC-12-350 | APC-12-700 | |
|
OUTPUT | RATED CURRENT | 350mA | 700mA |
| DC VOLTAGE RANGE | 9~36V | 9~18V | |
| RATED POWER | 12.6W | 12.6W | |
| RIPPLE & NOISE (max.) Note.2 | 300mVp-p | 250mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±5.0% | ||
| CURRENT ACCURACY | ±8.0% | ||
| LINE REGULATION | ±1.0% | ||
| LOAD REGULATION | ±3.0% | ||
| SETUP, RISE TIME | 3000ms, 180ms / 230VAC 3000ms, 150ms / 115VAC at full load | ||
| HOLD UP TIME (Typ.) | 20ms/230VAC,15ms/115VAC at full load | ||
|
INPUT | VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY(Typ.) | 82% | 80% | |
| AC CURRENT | 0.2A/230VAC;0.35A/115VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||
| PROTECTION | OVER VOLTAGE | 39.6~ 46.8V | 20.7~ 24.3V |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ 70℃(Refer to “Derating Curve”) | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC (Note 5) | SAFETY STANDARDS Note.7 | UL8750,CSA C22.2 No.250.0-08, BIS IS15885, EAC TP TC 004 approved; design refer to BS EN/EN 62368-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN55024,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A, EAC TP TC 020 | ||
| OTHERS | MTBF | 1145.7K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 77*40*29(L*W*H) | ||
| PACKING | 0.08Kg; 120pcs/11.8Kg/1.06CUFT | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1 of & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristic for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.) 7. The model certified for CCC(GB19510.14, GB19510.1, GB17743 and GB17625.1) is an optional model . Please contact MEAN WELL for details. 8. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft). 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | ||

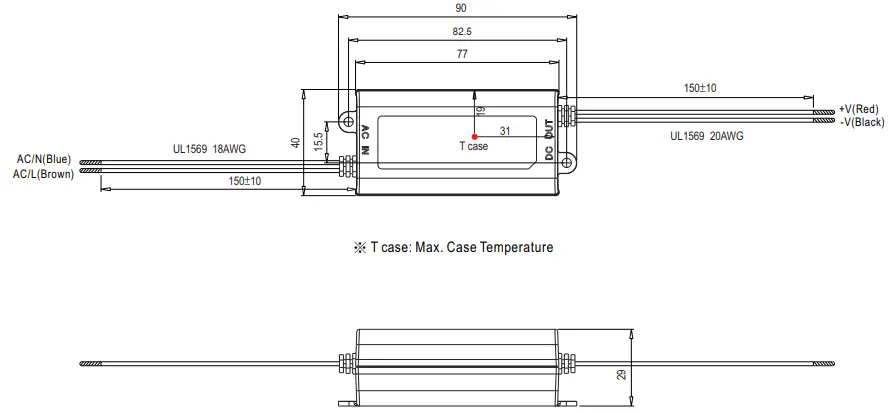

Mechanical Specification
Block Diagram

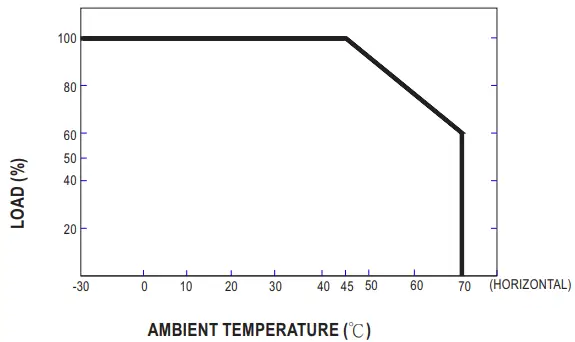

Derating Curve

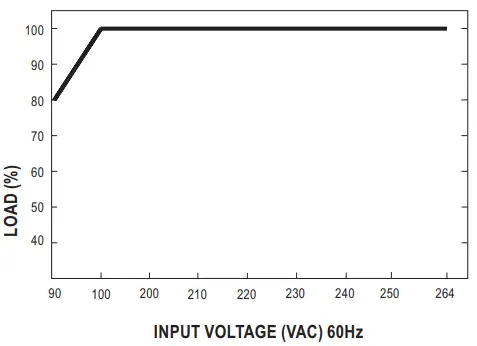

Static Characteristics

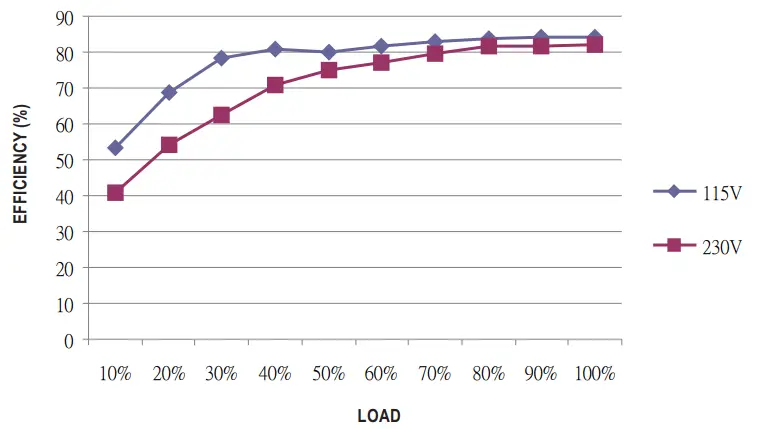

EFFICIENCY vs LOAD (APC-12-350)
