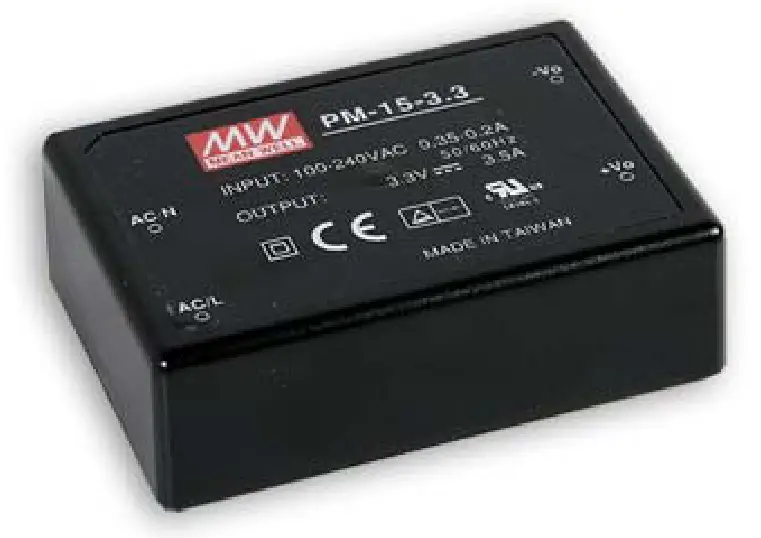

PM-15 Series 15W Single Output
Medical Grade Switching Power Supply
Instruction Manual
Features :
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Ultra-miniature size, lightweight
- Cooling by free air convection
- Isolation classⅡ
- Medical safety approved (2 x MOPP between primary to secondary)
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- Suitable for BF application with appropriate system consideration
- 3 years warranty
https://www.meanwell.com/Upload/PDF/Medical_EN.pdf
SPECIFICATION
| MODEL | PM-15-3.3 | PM-15-5 | PM-15-12 | PM-15-15 | PM-15-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V |
| RATEDCURRENT | 3.5A | 3A | 1.25A | 1A | 0.63A | |
| CURRENT RANGE | 0 – 3.5A | 0 – 3A | 0 – 1.25A | 0 -1A | 0 – 0.63A | |
| RATED POWER | 11.55W | 15W | 15W | 15W | 15.12W | |
| RIPPLE &NOISE (max.) Note2 | 8OmVpp | 80mVp-p | 150niVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE Note3 | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | |
| SEM P, RISE TIME | 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 100ms/230VAC 24ms/115VAC at full bad | |||||
| INPUT | VOLTAGE RANGE | 85 – 264VAC 120 – 370VDC | ||||
| FREQUENCY RANGE | 47 – 440Hz | |||||
| EFFICIENCY (Typ.) | 73% | I 76% | I 78% | I 79% | 181% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.2A/230VAC | |||||
| INRUSH CURRENT gyp.) | COLD START 30A/115VAC 50N230VAC | |||||
| LEAKAGE CURRENT Note.S | Touch current < 80J A/264VAC | |||||
| PROTECTION | OVERLOAD | Above 105% rated output power | ||||
| Protection type: Hiccup mode, recovers automatically after faultconedbon is removed | ||||||
| OVERVOLTAGE | 3.8 – 4.95V | 1 5.75 – 6.7W | 1 13.8 -16.2V | I 17.25 – 2025V | I 27.6 – 32.4V | |
| Protection type: Shutoff rip voltage, clarnzing by Zenit diode | ||||||
| ENROLLMENT | WORKING TEMP. | -20 – +70°C (Refer to “Deratbg Curve”) | ||||
| WORKING HUMIDITY | 20 -90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | .40 – +85°C, 10 – 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%fC (0 – 50°C ) | |||||
| VIBRATION | 10 – 500Hz, 2G 10min.bicycle, the period for 60m h. each along X, Y, Z axes | |||||
| SAFETY & EMC (Note 4) | SAFETY STANDARDS | ANSI/AAMI ES60601-1, TUV EN60601-1, IEC63601-1, U160950-1, EAC TP TC 004 approved | ||||
| ISOLATION LEVEL | Privary-Secondary:2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-0/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-01P:100M Ohms! 500VDC / 25’C/ 70% RH | |||||
| EMC EMISSION | Compiance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to E N61000-4-2,3,4,5,6,8,11, EN55024, EN 60601-1-2, E N61204-3, medical level, criteria A, EAC TP TC 020 | |||||
| OTHERS | MTBF | 499.710trs min. MIL-HDBK-217F (25°C) | ||||
| DIMENSION | 75’53’22.7mm (L’W’H) | |||||
| PACKING | 0.14Kg; 120pcs/17.8Kgr0.94CUFT | |||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated bad, and 25`C of ambient temperature. 2. Fipple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with 0.1 up & 4711 parallel capacitors. 3. Tolerance: includes set up tolerance, line regulation, and load regulation. 4. The power supply is considered a component that will be installed into the final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Touch current was measured from primary input to DC output 6. The ancient temperature devoting of 3.51C/1000m with farness models and of 51C/1000m with fan models for operating altitudes higher than 2000m(6500f0 | |||||

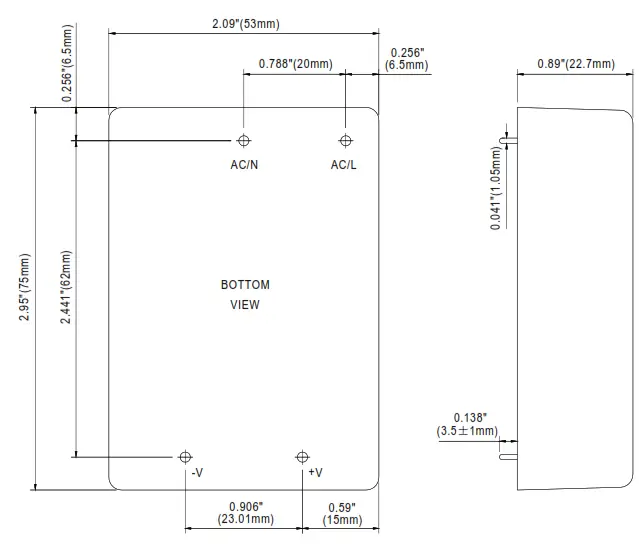

Mechanical Specification

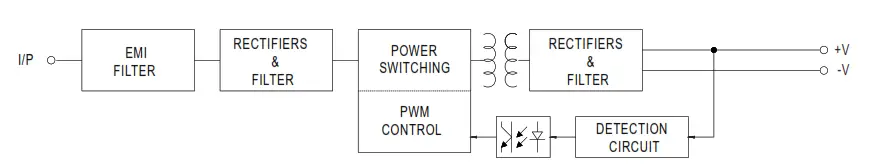

Block Diagram

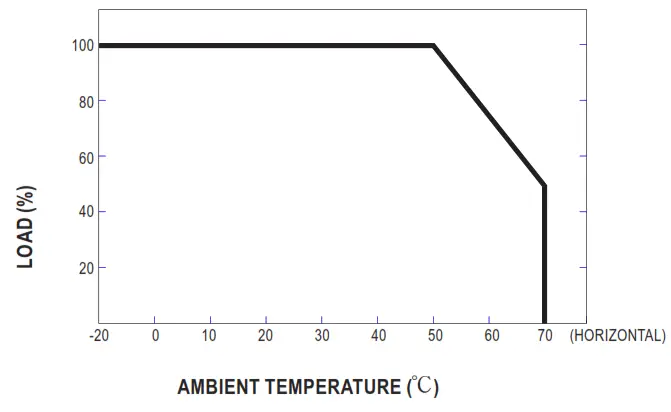

Derating Curve
Output Derating VS Input Voltage
