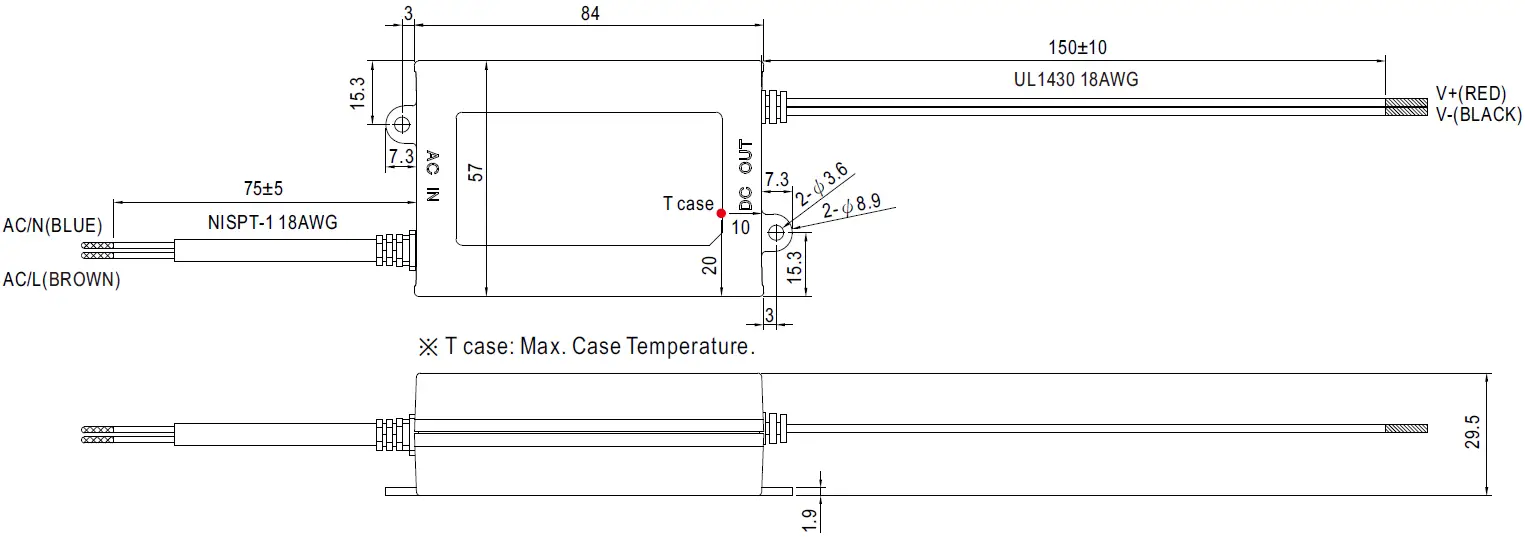

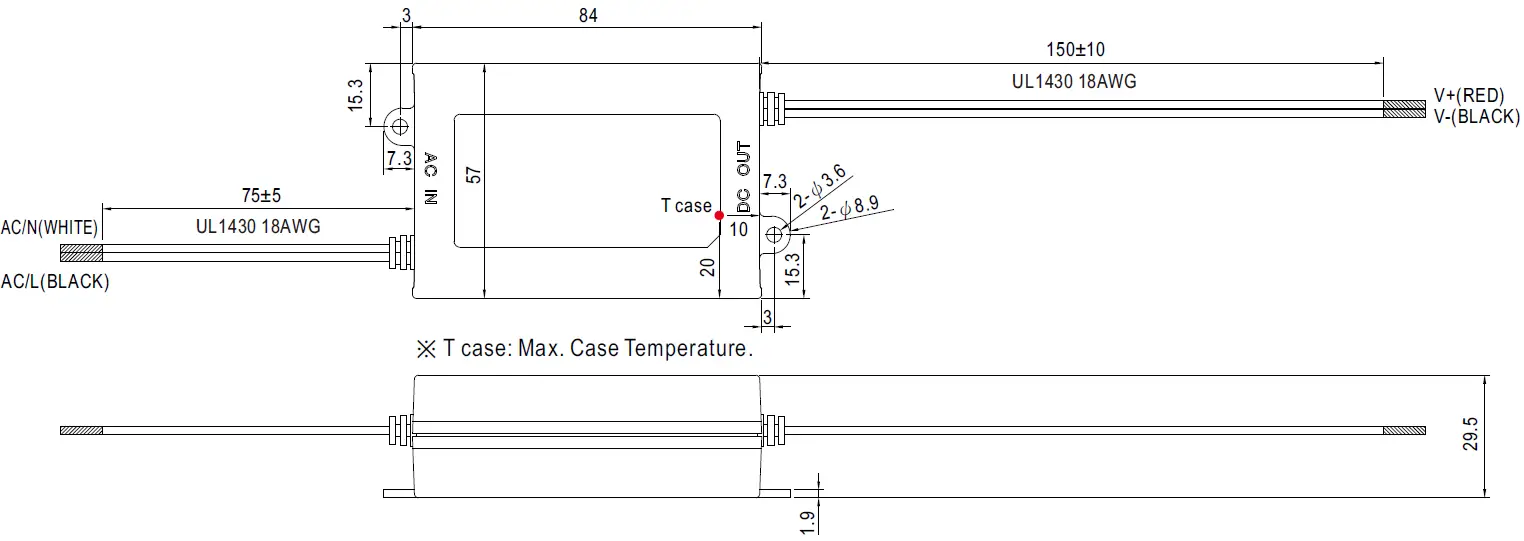

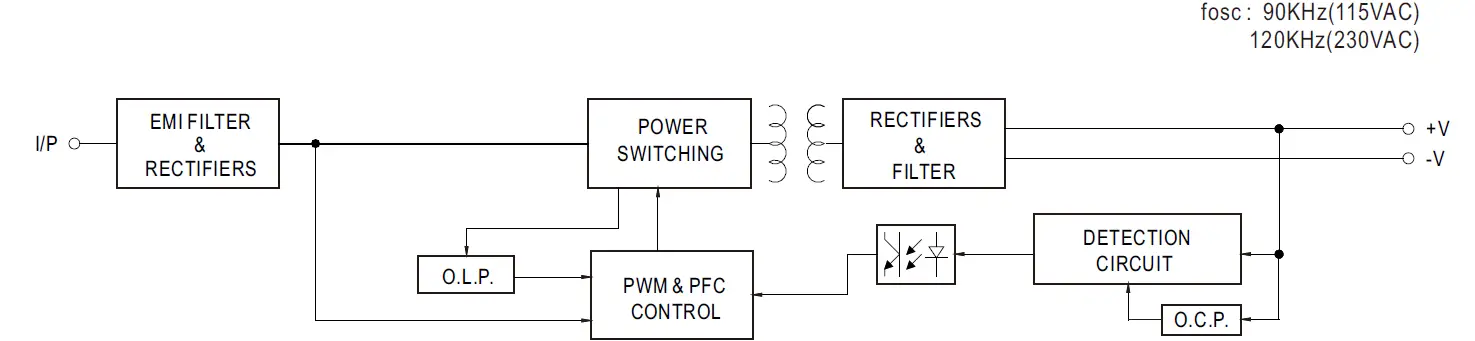

4 Mechanical Specification

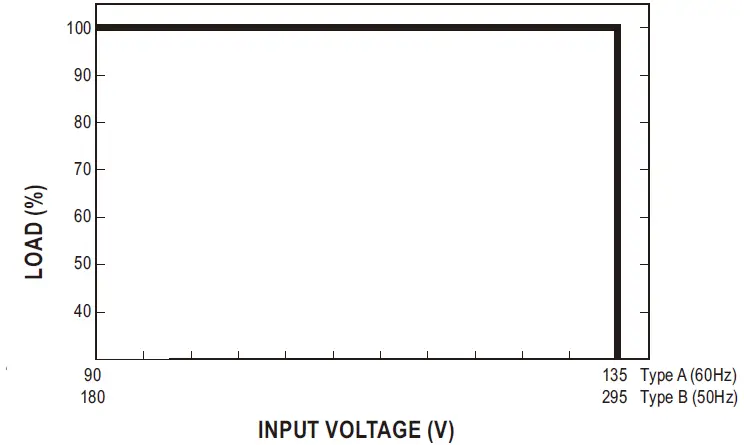

7 Static Characteristics

8 Power Factor Characteristic

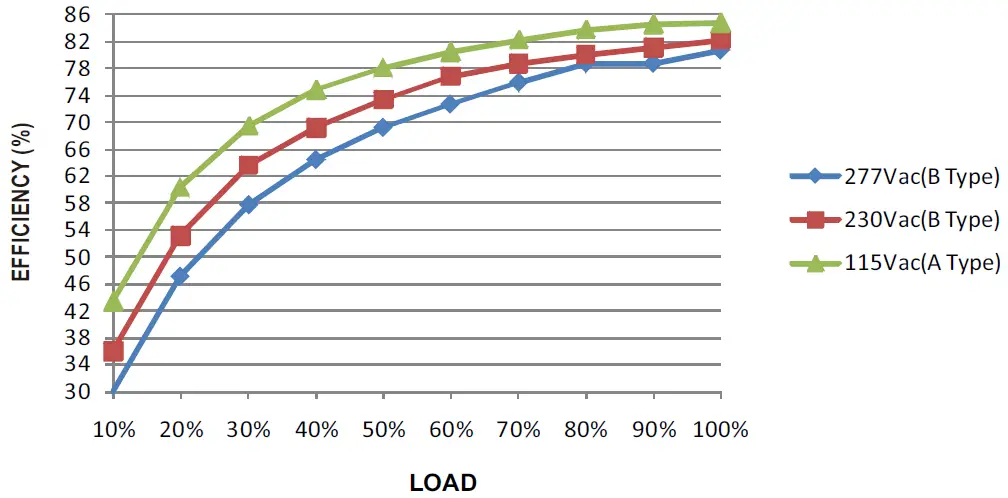

9 EFFICIENCY vs LOAD (PLD-16-350)

10 Documents / Resources

11 Related Posts

MEAN WELL PLD-16 Series 16W Single Output LED Power Supply

Features

115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit/ Over temperature
Cooling by free air convection
Fully isolated plastic case
Class 2 Power Unit
Class II power unit, no FG
IP42 design Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test Low cost High reliability 3 years warranty

Specification

MODEL			PLD-16-350	PLD-16-700	PLD-16-1050	PLD-16-1400
OUTPUT	RATED CURRENT		350mA	700mA	1050mA	1400mA
	OPERATING VOLTAGE RANGE		24 ~ 48V	16 ~ 24V	12 ~ 16V	8 ~ 12V
	CURRENT ACCURACY		±5.0%
	RATED POWER		16.8W	16.8W	16.8W	16.8W
	RIPPLE & NOISE (max.) Note.1		4.6Vp-p	2.7Vp-p	2.2Vp-p	2Vp-p
	NO LOAD OUTPUT VOLTAGE (max.)		60V	35V	25V	16V
	SETUP TIME		500ms / 230VAC 2000ms / 115VAC at full load
INPUT	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to “Power Factor Characteristic” curve)
	TOTAL HARMONIC DISTORTION	A series	THD< 20% when output loading≧70% at 115VAC
		B series	THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
	EFFICIENCY (Typ.)	A series	84.5%	84.5%	84%	82.5%
		B series	85.5%	86%	85%	83.5%
	AC CURRENT (Typ.)		0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
	INRUSH CURRENT(Typ.)		COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	A series	58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
		B series	128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.5mA / 240VAC
PROTECTION	SHORT CIRCUIT		Hiccup mode, recovers automatically after fault condition is removed.
	OVER TEMPERATURE		Shut down o/p voltage, re-power on to recover

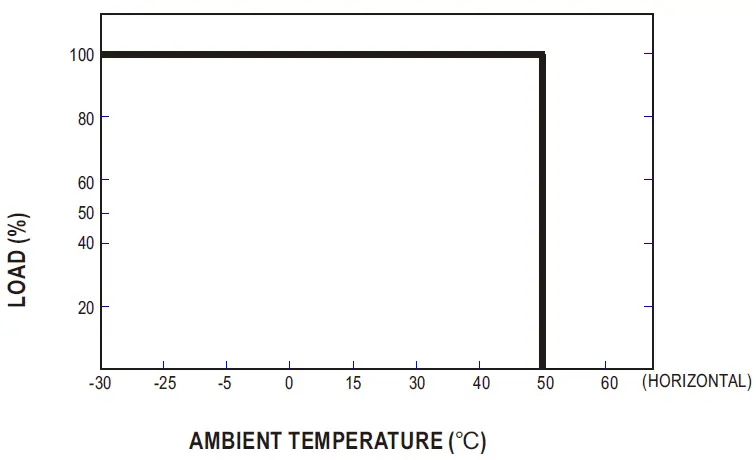

ENVIRONMENT	WORKING TEMP.		-30 ~ +50℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 50℃)
	VIBRATION		10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE		I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020
	EMC IMMUNITY		Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS	MTBF		6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
	DIMENSION		845729.5mm (LWH)
	PACKING		0.19Kg; 72pcs/14.7Kg/0.92CUFT
Note	Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47ut parallel capacitor. Direct connecting to LEDS IS Suggested, but is not suitable for using additional drivers. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains. The ambient temperature derating of 3.5 C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(6500ft) For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf x Product Liable Disclaimer: For detailed information. please refer to httos://www.meanwell.com/serviceDisclaimer.aspx
