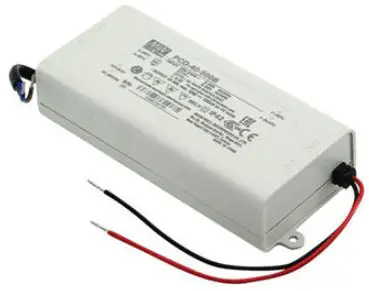

MEAN WELL PCD-60-500B 60W Single Output AC Dimmable LED Power Supply

Product Information

The 60W Single Output AC Dimmable LED Power Supply is part of the PCD-60 series. It is designed to provide a reliable and efficient power source for dimmable LED lighting applications. The power supply has a compact design and is suitable for indoor use with an IP42 rating.

Key Specifications

Model: PCD-60-500B, PCD-60-700B, PCD-60-1050B, PCD-60-1400B, PCD-60-1750B, PCD-60-2000B, PCD-60-2400B
Output Current: 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2000mA, 2400mA
Operating Voltage Range: 70 ~ 108V, 50 ~ 86V, 34 ~ 57V, 25 ~ 43V, 20 ~ 34V, 18 ~ 30V, 15 ~ 25V
Rated Power: 54W, 60.2W, 59.85W, 60.2W, 59.5W, 60W, 60W
Ripple & Noise (max.): 10.2Vp-p, 5.6Vp-p, 3.8Vp-p, 3.4Vp-p, 3.3Vp-p, 2.4Vp-p, 2.4Vp-p
No Load Output Voltage (max.): 118V, 100V, 63V, 50V, 50V, 35V, 35V
Setup Time: 500ms / 230VAC at full load
Voltage Range: 180~295VAC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF>0.9/230VAC, PF>0.9/277VAC at full load
Total Harmonic Distortion: THD<20% when output loading 60% (PCD-60-500B loading 65%) at 230VAC input and output loading 75% at 277VAC input
Efficiency (Typ.): 87%, 86%, 86%, 87%, 87%, 87%, 86%
AC Current (Typ.): 0.6A/230VAC, 0.5A/277VAC
Inrush Current (Typ.): COLD START 13A (twidth=50s measured at 50% Ipeak) at 230VAC
Max. No. of PSUs on 16A Circuit Breaker: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
Leakage Current: (information not provided)

Product Usage Instructions

To use the 60W Single Output AC Dimmable LED Power Supply, follow these instructions:

Ensure that the power supply is compatible with your dimmable LED lighting application based on the model and output current specifications.
Connect the power supply to the AC input voltage within the specified voltage range (180~295VAC) and frequency range (47 ~ 63Hz).
Make sure the power supply is properly grounded to prevent electrical hazards.
Connect the output of the power supply to your dimmable LED lighting system, ensuring that the polarity is correct.
If necessary, adjust the dimming settings according to the instructions provided by your LED lighting system manufacturer.
Monitor the power supply’s operation and ensure that it is delivering the desired output power and current accurately.
If any issues or abnormalities occur, refer to the troubleshooting section of the user manual or contact the manufacturer’s customer support for assistance.

Note: For specific information regarding leakage current, please refer to the user manual or contact the manufacturer for clarification.

Features

AC phase-cut dimming
Work with leading edge and trailing edge TRIAC dimmers
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
IP42 design
Class II power unit, no FG
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.asox

SPECIFICATION

MODEL		PCD-60-500B	PCD-60-700B	PCD-60-1050B	PCD-60-1400B	PCD-60-1750B	PCD-60-2000B	PCD-60-2400B
OUTPUT	RATED CURRENT	500mA	700mA	1050mA	1400mA	1750mA	2000mA	2400mA
	OPERATING VOLTAGE RANGE	70 ~ 108V	50 ~ 86V	34 ~ 57V	25 ~ 43V	20 ~ 34V	18 ~ 30V	15 ~ 25V
	CURRENT ACCURACY	±5.0%
	RATED POWER	54W	60.2W	59.85W	60.2W	59.5W	60W	60W
	RIPPLE & NOISE (max.) Note.1	10.2Vp-p	5.6Vp-p	3.8Vp-p	3.4Vp-p	3.3Vp-p	2.4Vp-p	2.4Vp-p
	NO LOAD OUTPUT VOLTAGE (max.)	118V	100V	63V	50V	50V	35V	35V
	SETUP TIME	500ms / 230VAC at full load
INPUT	VOLTAGE RANGE	180~295VAC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to “Power Factor Characteristic” curve)
	TOTAL HARMONIC DISTORTION	THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
	EFFICIENCY (Typ.)	87%	86%	86%	87%	87%	87%	86%
	AC CURRENT (Typ.)	0.6A/230VAC 0.5A/277VAC
	INRUSH CURRENT(Typ.)	COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.5mA / 240VAC
PROTECTION	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed.
PROTECTION	OVER TEMPERATURE	Shut down o/p voltage, auto-recovery
ENVIRONMENT	WORKING TEMP.	-30 ~ +45℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020
OTHERS	MTBF	3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
	DIMENSION	1286031.5mm (LWH)
	PACKING	0.35Kg;30pcs/11.5Kg/0.58CUFT
NOTE	Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers. To fulfill the requirements of the latest Er regulation for lighting fixtures, this LED power supply can only be used behind a switch without being permanently connected to the mains. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitudes higher than 2000m(6500ft). For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf > Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

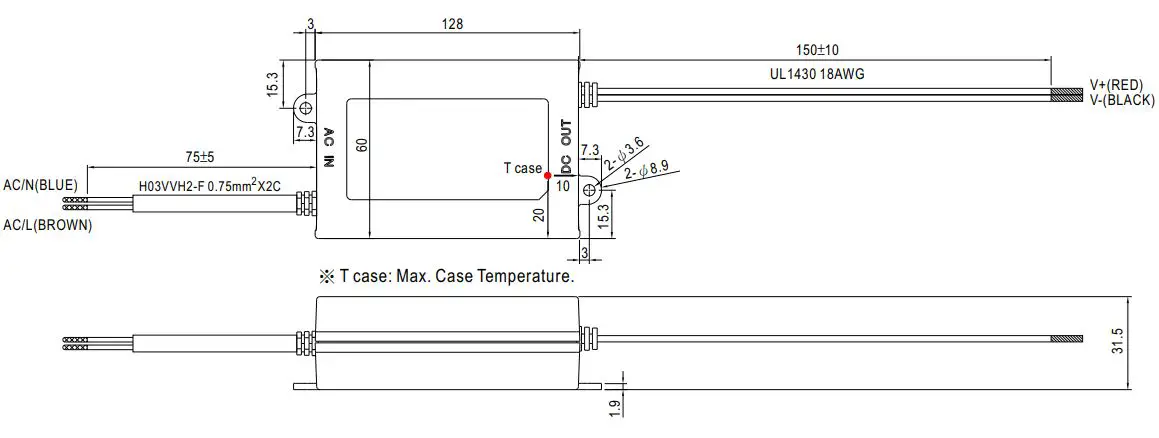

Mechanical Specification

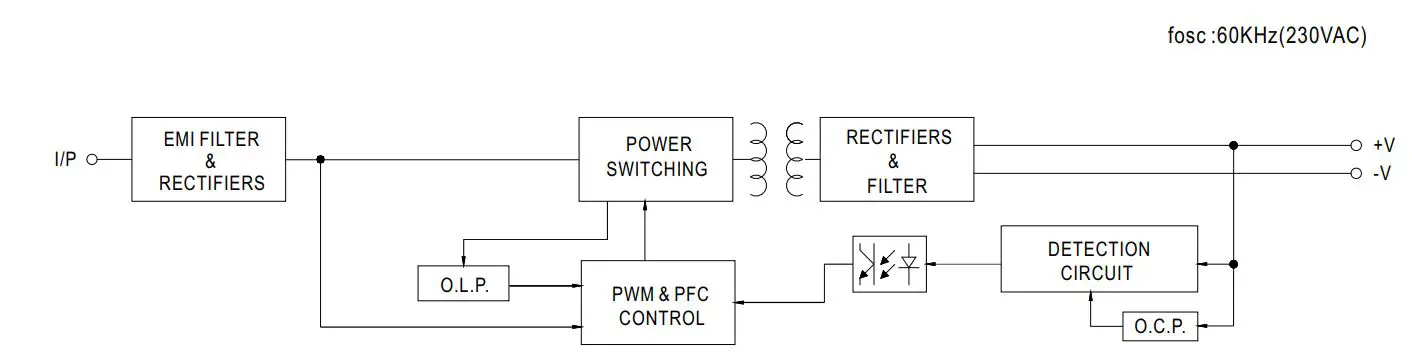

Block Diagram

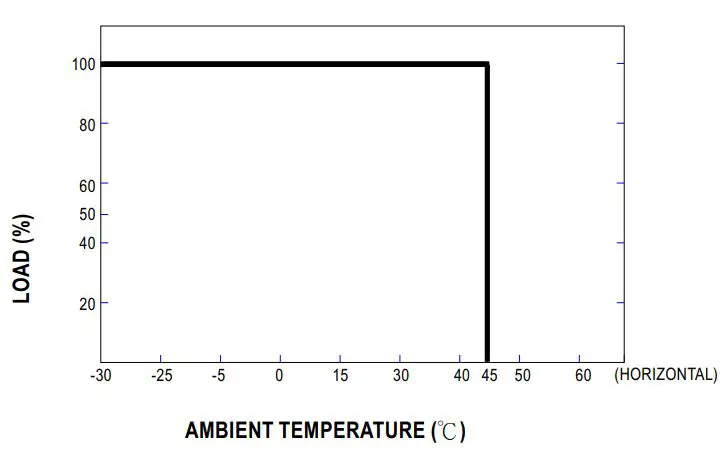

Derating Curve

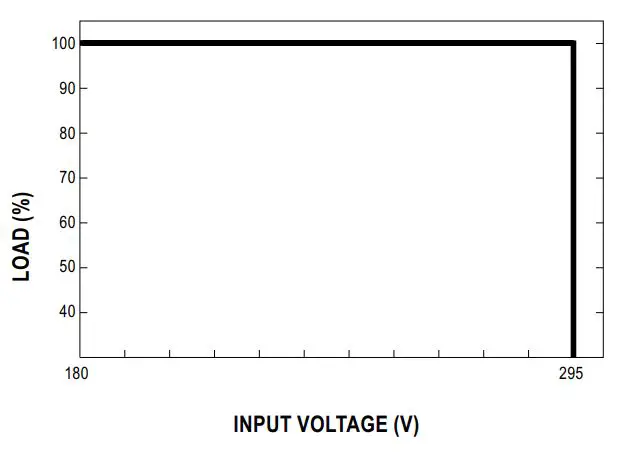

Static Characteristics

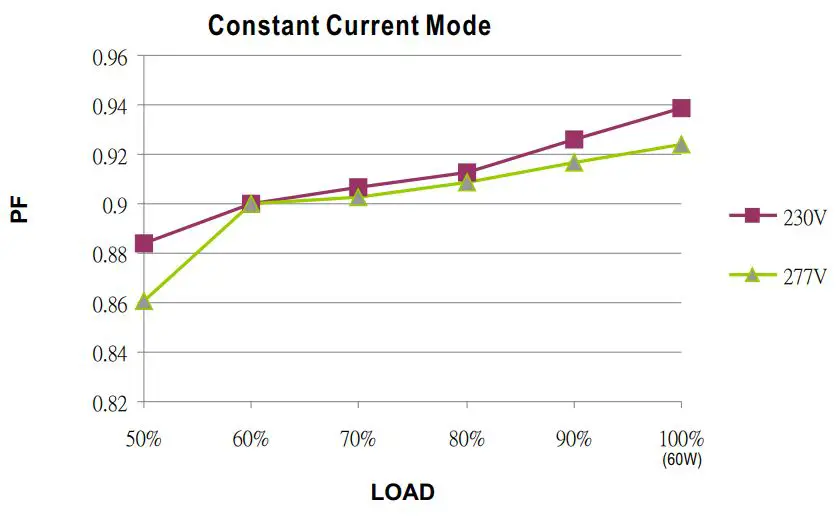

Power Factor Characteristic

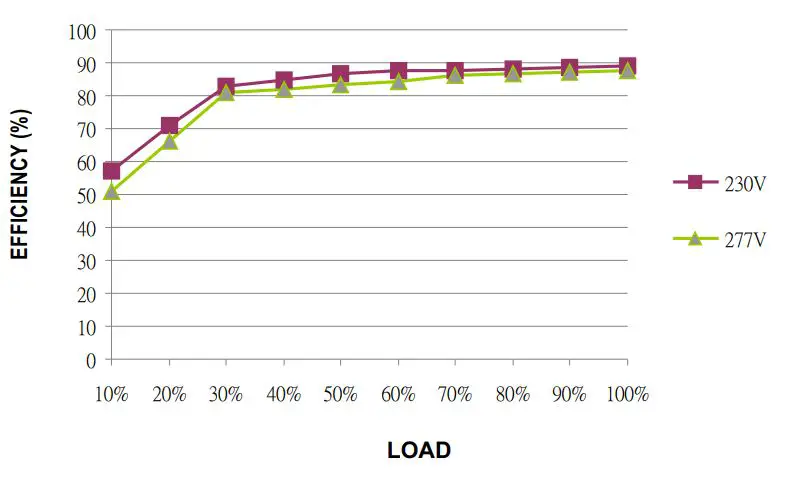

EFFICIENCY vs LOAD (PCD-60-500B)

PCD-60 series possess superior working efficiency that up to 87% can be reached in field applications.

AC Dimming Operation

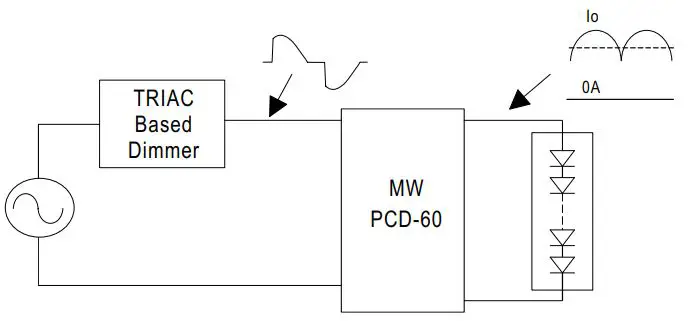

The following diagram depicts a typical installation utilizing the PCD-60 :
Under direct driving, the power supply will work in “constant current mode (CC)” and output voltage of the power supply will be clamped by sum of forward voltage (VF) of the LED strip.

Dimmer Compatibility Chart

Manufacturer	Dimmer Model
LUTRON	SKYLARK SF-12P-277	(277VAC / 60Hz)
LUTRON	DVF-103P-277	(277VAC / 60Hz)
JUNG	Licht-Management 225 TDE	(230VAC / 50Hz)
JUNG	Licht-Management 225 NV DE	(230VAC / 50Hz)
BERKER	Tronic-Drehdimmer 286710	(230-240VAC / 50Hz)
CLIPSAL	32E450UDM	(220-240VAC / 50Hz)
CLIPSAL	NO 32E450TM	(220-240VAC / 50Hz)
CLIPSAL	NO 32E450LM	(220-240VAC / 50Hz)
CLIPSAL	Cat 400T	(230-240VAC / 50Hz)
